Pro All-In-One Golf Simulator
The Pro All-In-One Golf Simulator is a complete home golf simulator package you configure on this page: a Carl's Place Pro enclosure with a one-piece BlackStop wraparound, a triple-layer Premium impact screen and steel corner fittings in 18 sizes, 10.5 to 15.5 ft wide and 5 to 15 ft deep, the 2-inch steel Pipe Framing Kit and Safety Baffle cut to that size, a Real Feel hitting mat, the Optoma ZW350ST short-throw laser projector with its ceiling mount, and the launch monitor of your choice from 22 radar, camera and overhead units. Every pick updates the price and the 3D view, and the whole build goes to your cart as one package. The starting price is the 10.5'W x 8'H x 5'D enclosure with its pipe kit and baffle, the Real Feel mat, the ZW350ST and its mount at their live prices; any build is the sum of the live prices of the parts in it, so a sale on any part shows here the same day.
Carl's Place Pro Enclosure Assembly
Pro All-In-One Golf Simulator Includes:
- Pro Enclosure (10.5'W x 8'H x 5'D) - also available in 11'W, 14.5'W, 12'W, 13'W or 15.5'W
- Pipe Framing Kit (8x10.5x5) - included; uncheck it in the builder if you are supplying your own EMT
- Safety Baffle (10.5) - included; uncheck it in the builder if your ceiling is already protected
- Real Feel Country Club Elite Mat (5'W x 5'L)
- Optoma ZW350ST 3600-Lumen WXGA Laser Projector (0.521:1 throw)
- Projector Ceiling Mount
Use the builder above to change the enclosure size, hitting mat or projector, or add a launch monitor, launch monitor ceiling Drop-Mount kit, movable ceiling crossbar, landing pad, gaming computer or touch screen monitor.
Choose your launch monitor, or bring your own

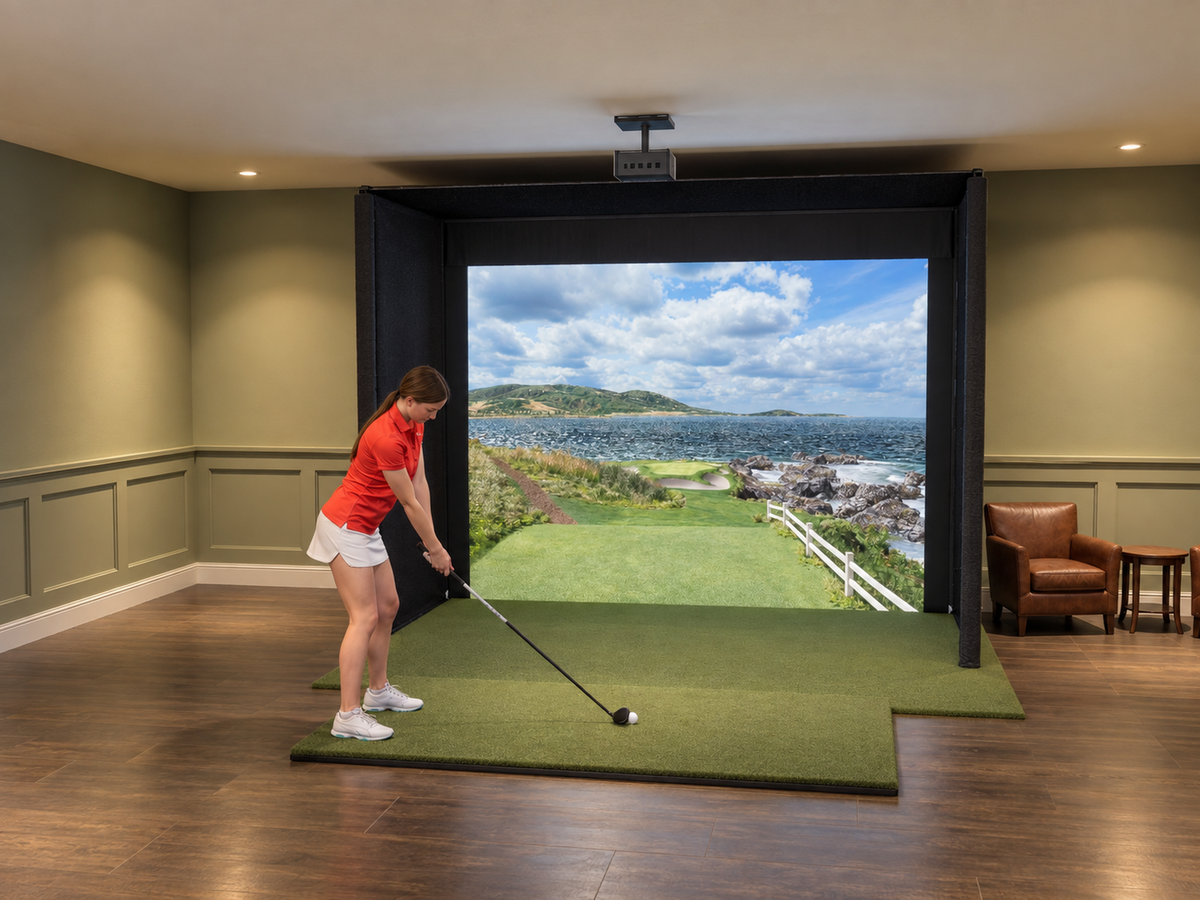

Twenty-two launch monitors are available on this page, from the Swing Caddie SC4 PRO and Garmin Approach R10 to the Foresight Sports GCQuad and QuadMAX. The default is BYO Launch Monitor: the package ships without one and you can add a unit any time. Pick one and the price and the 3D view follow it.

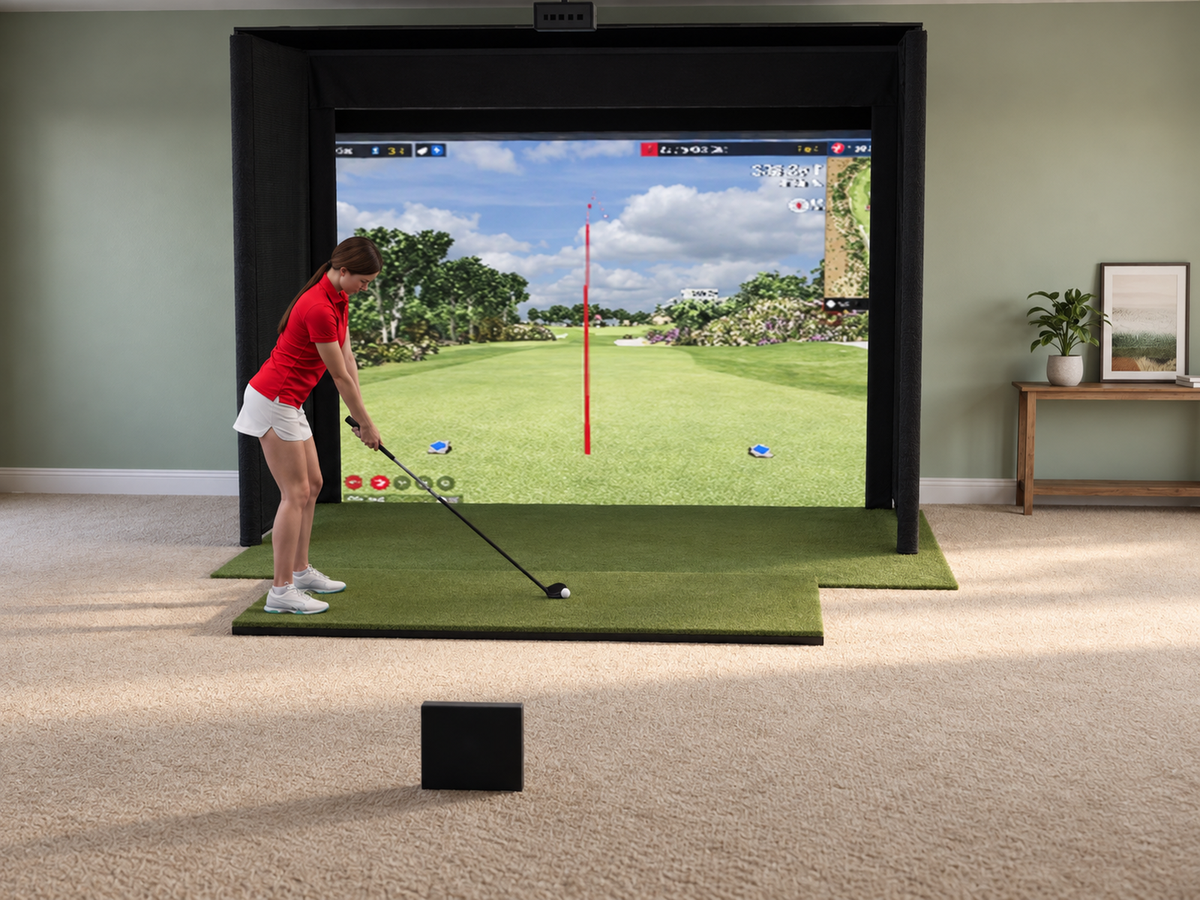

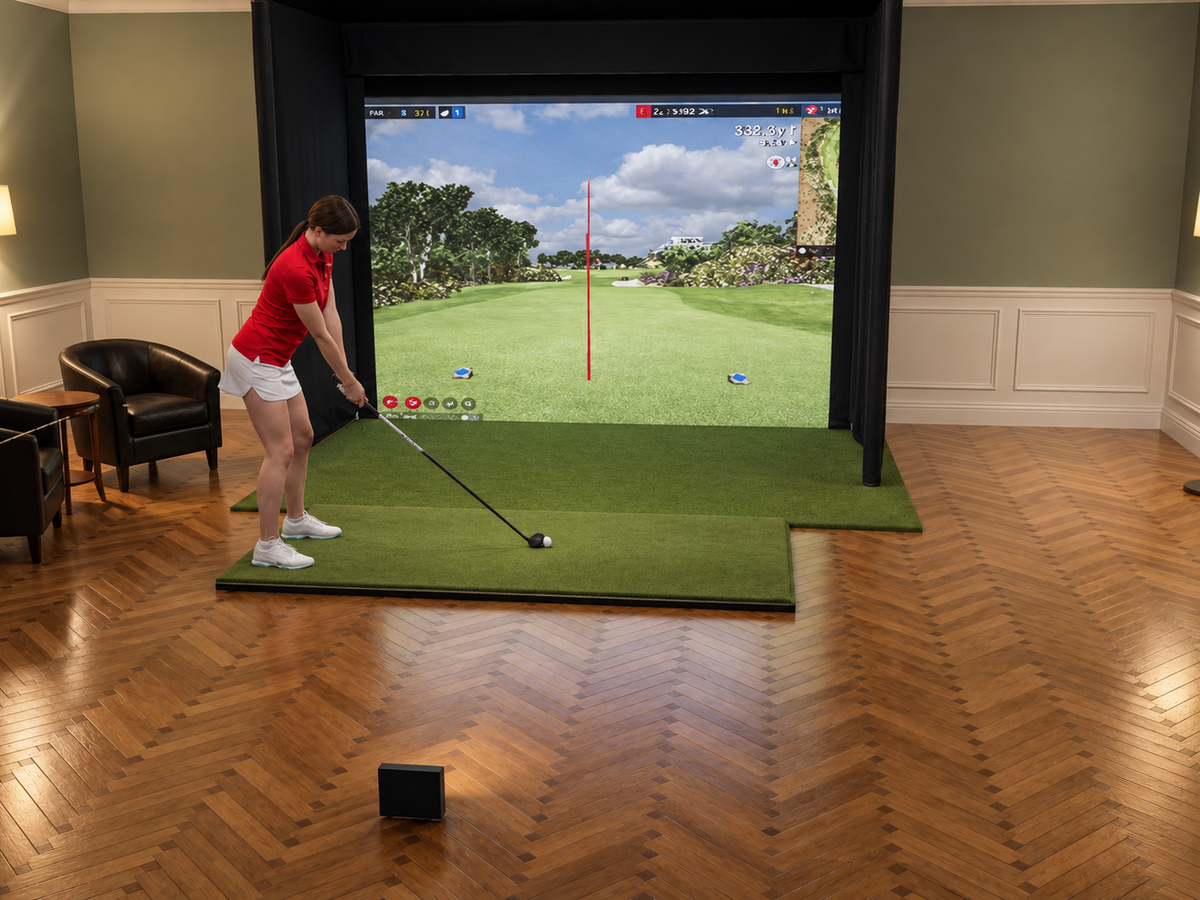

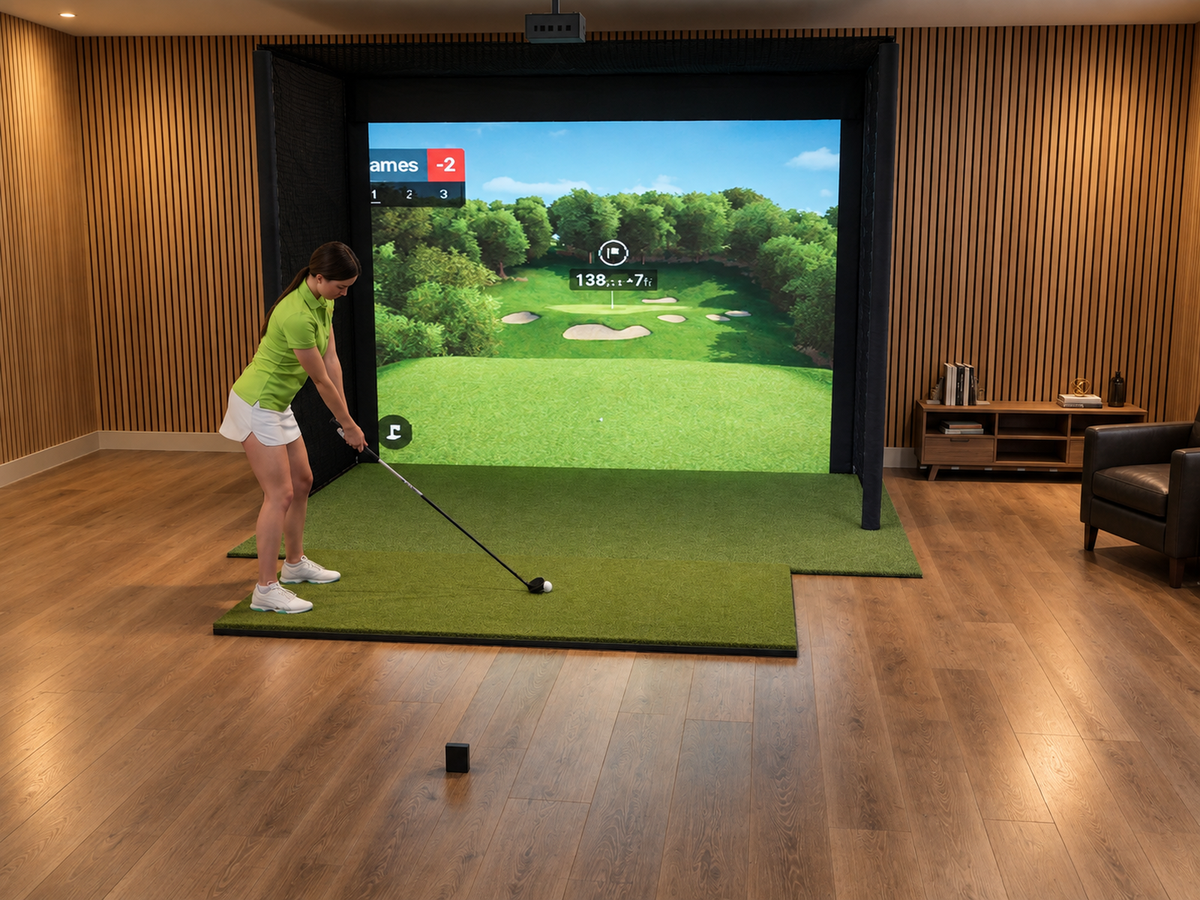

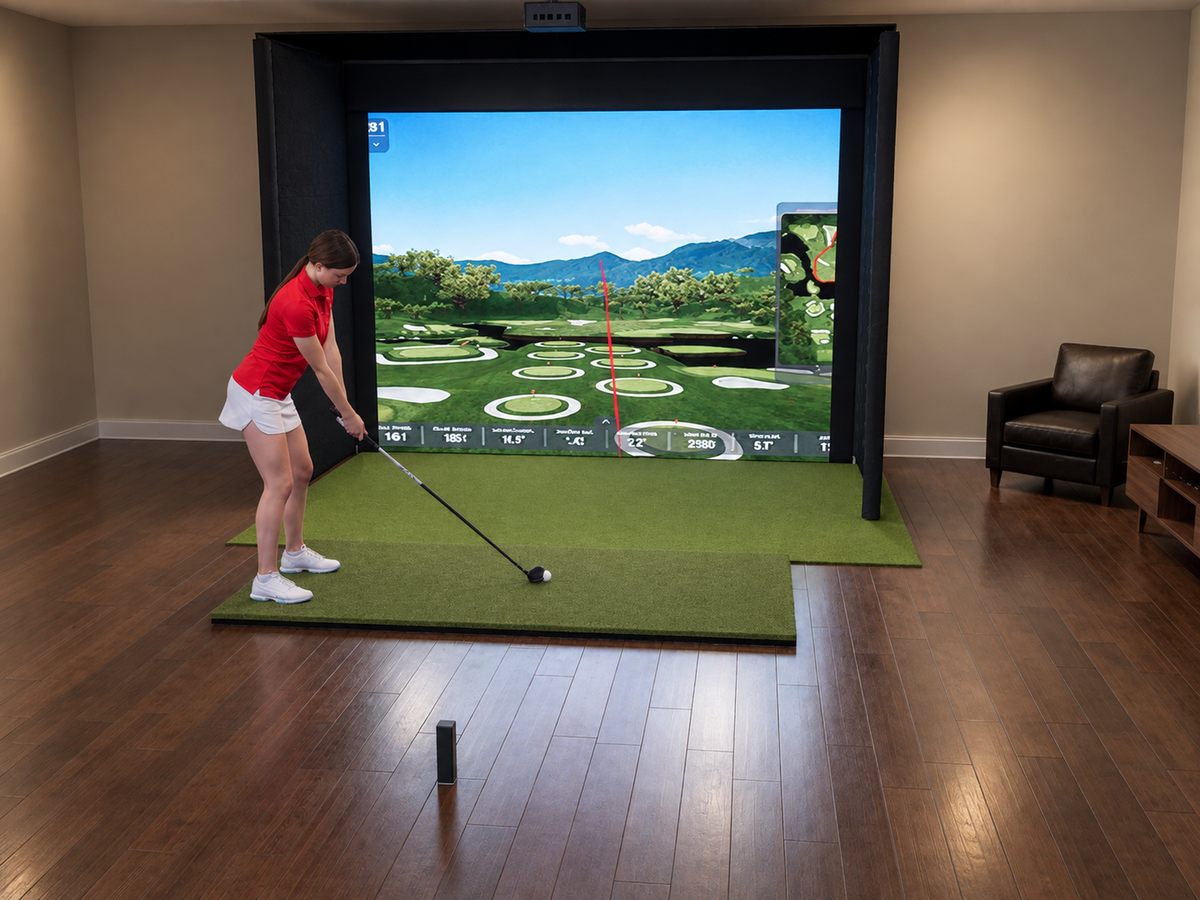

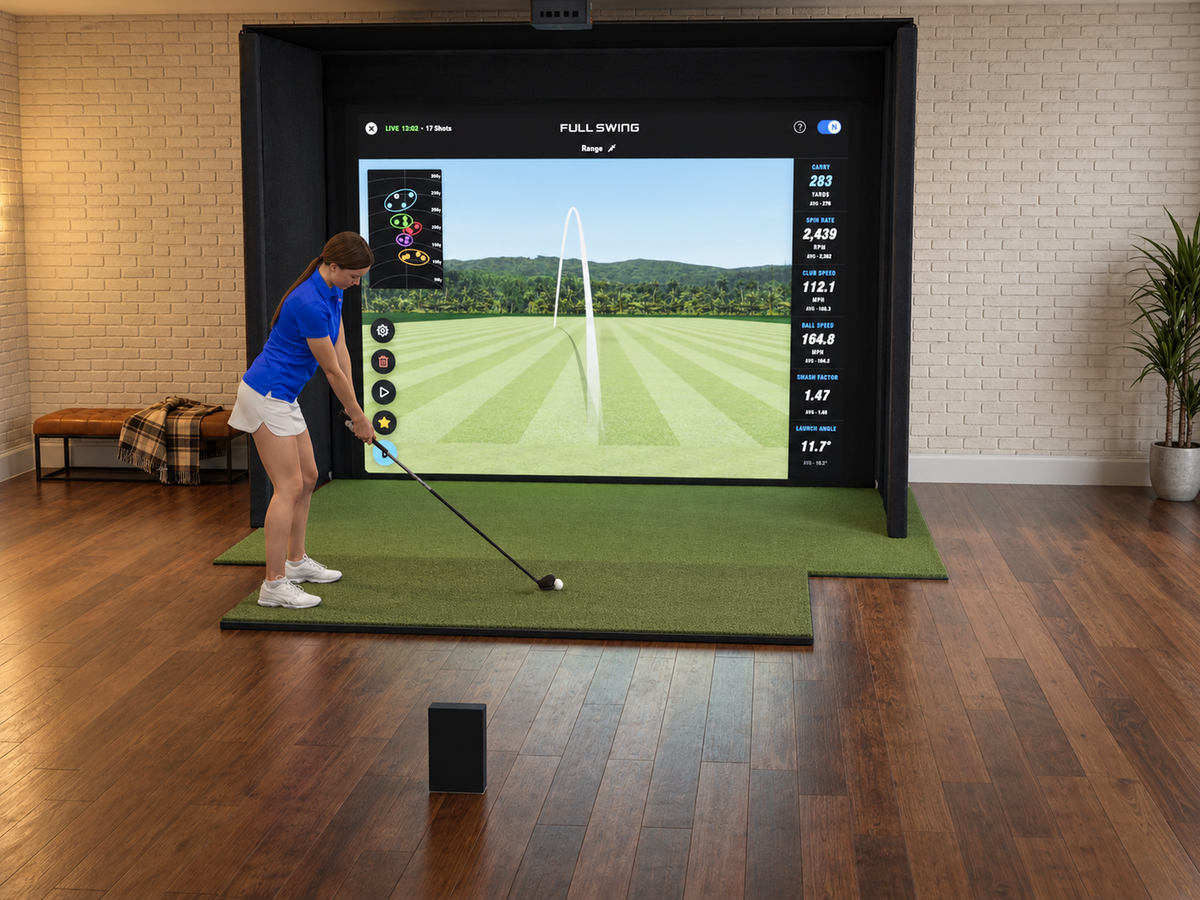

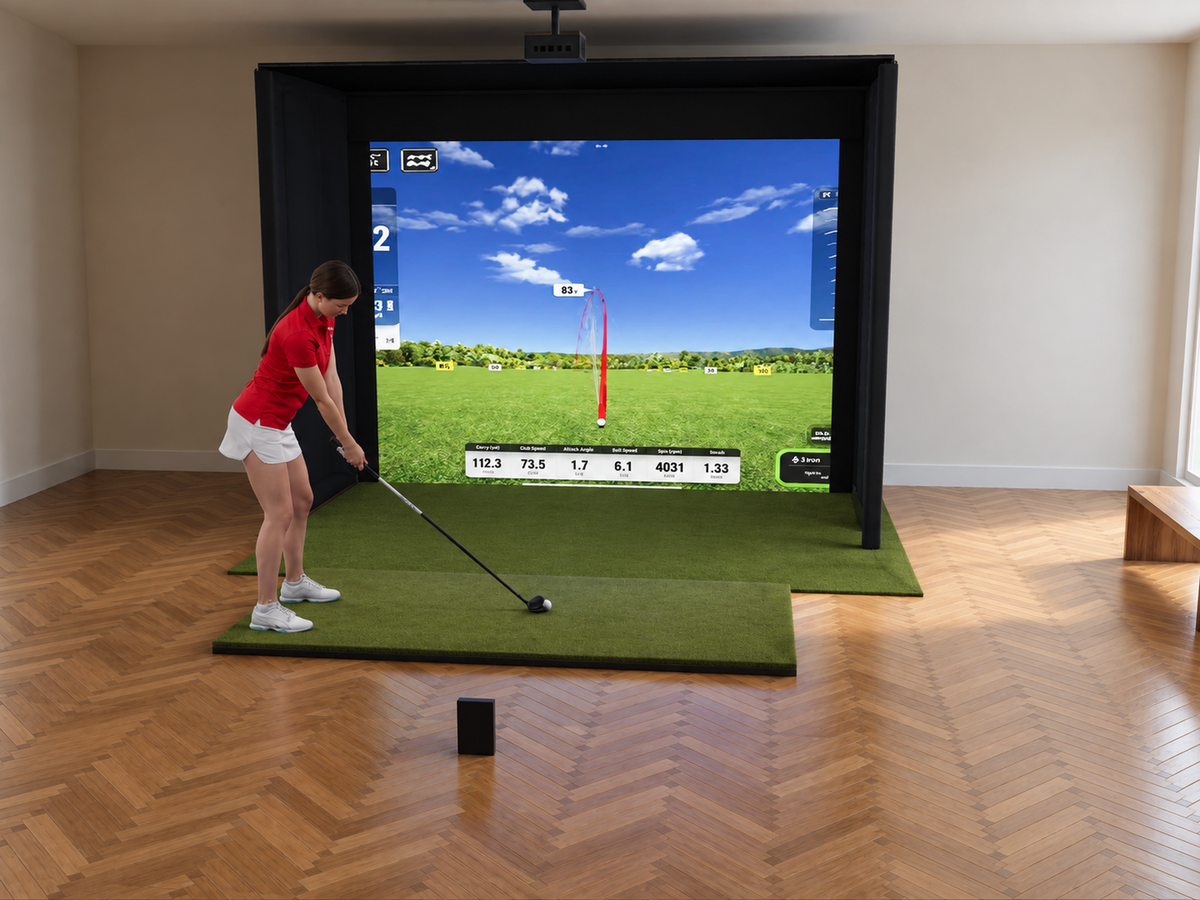

- Behind the ball: Swing Caddie SC4 PRO, Garmin Approach R10, Rapsodo MLM2PRO, FlightScope Mevo Gen2, Full Swing KIT, FlightScope X3C

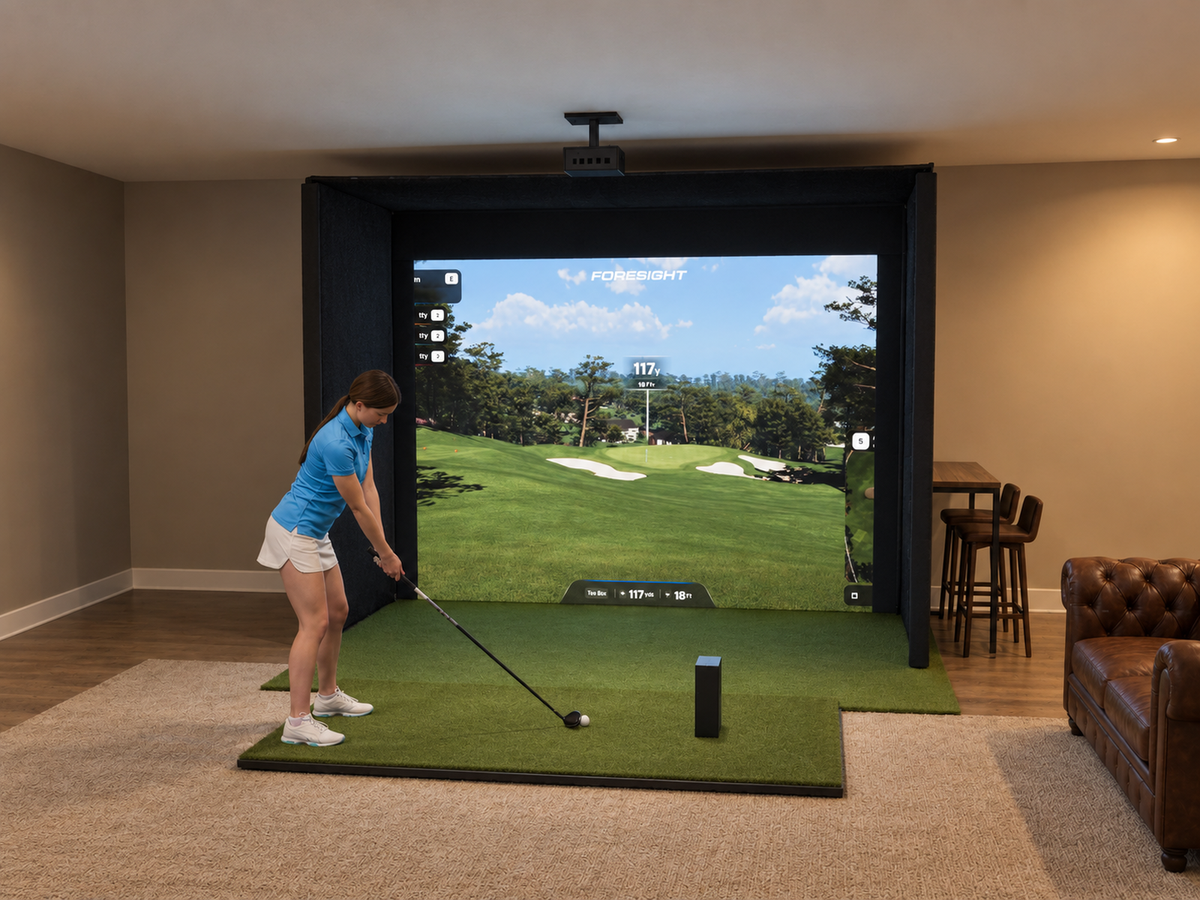

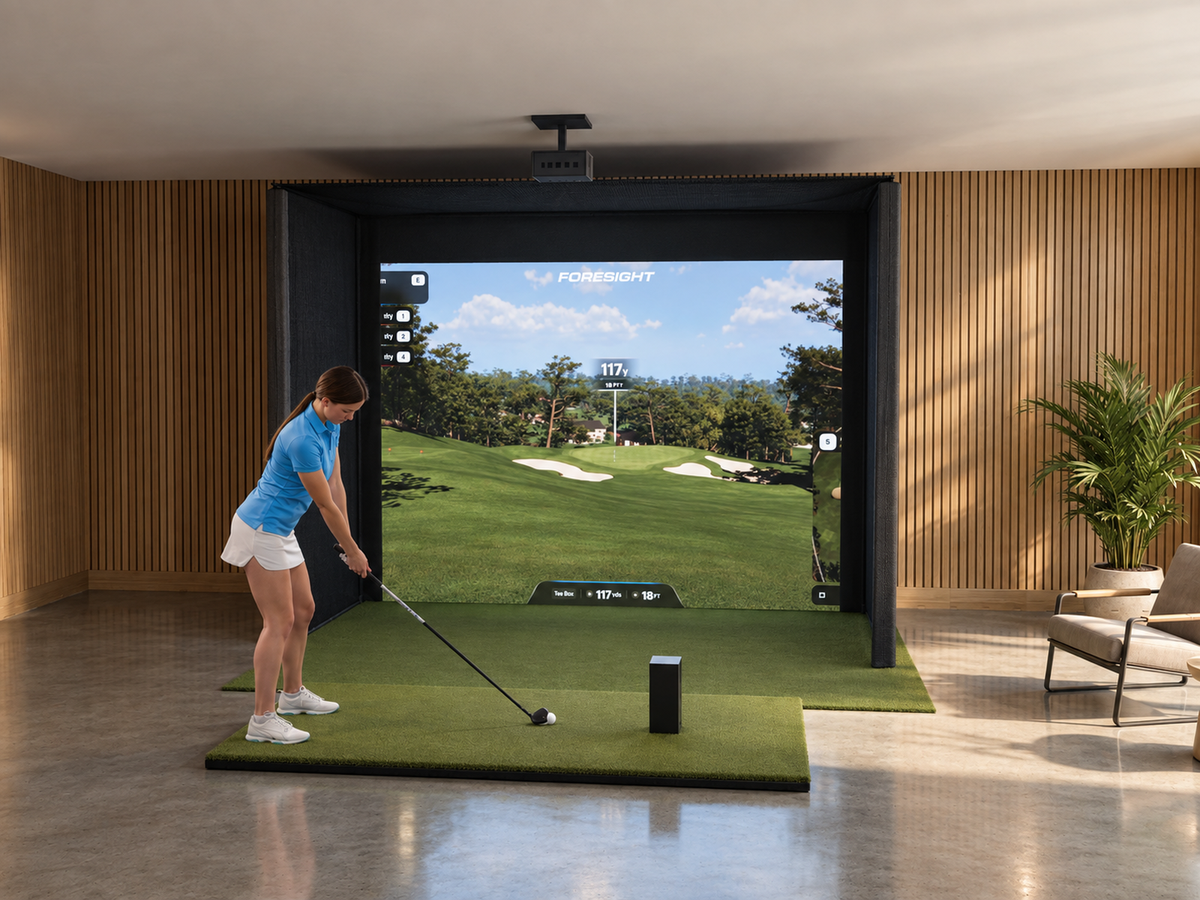

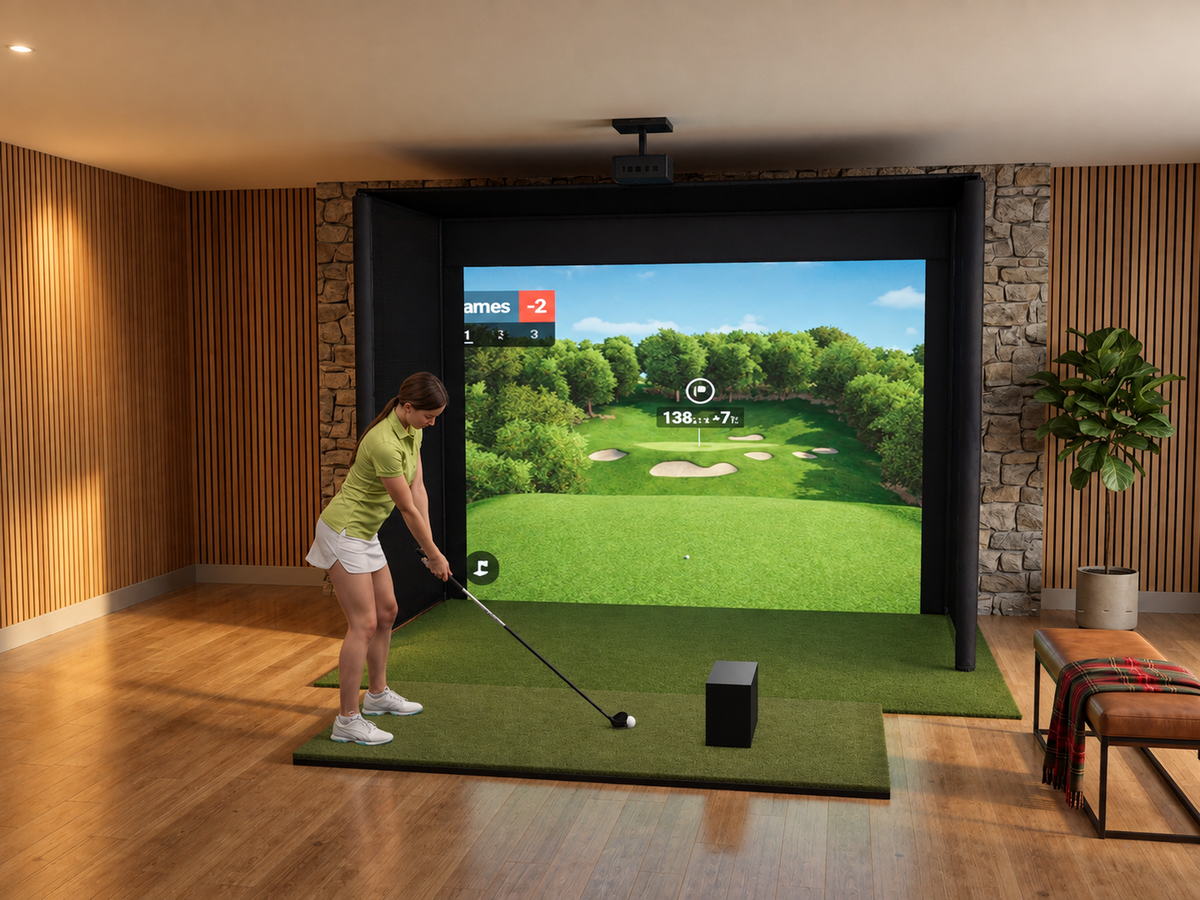

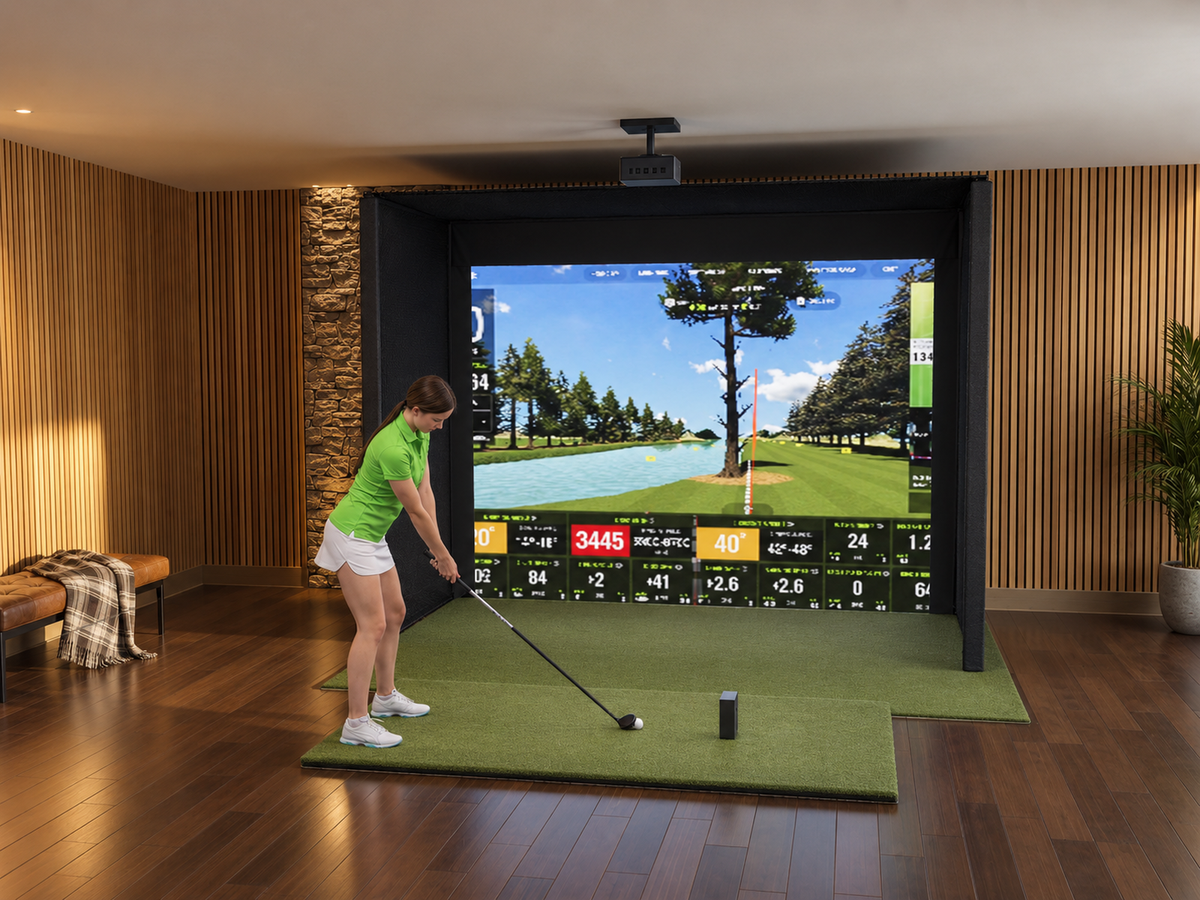

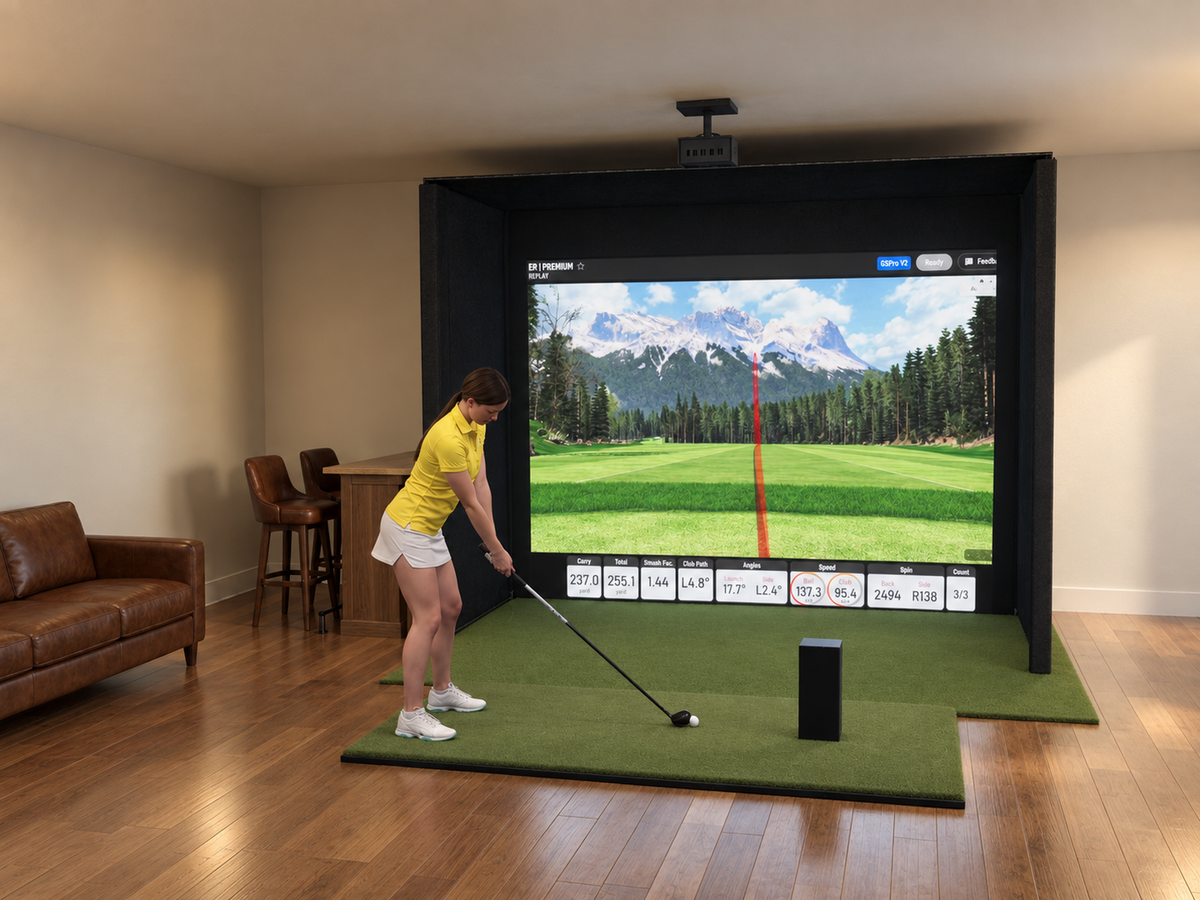

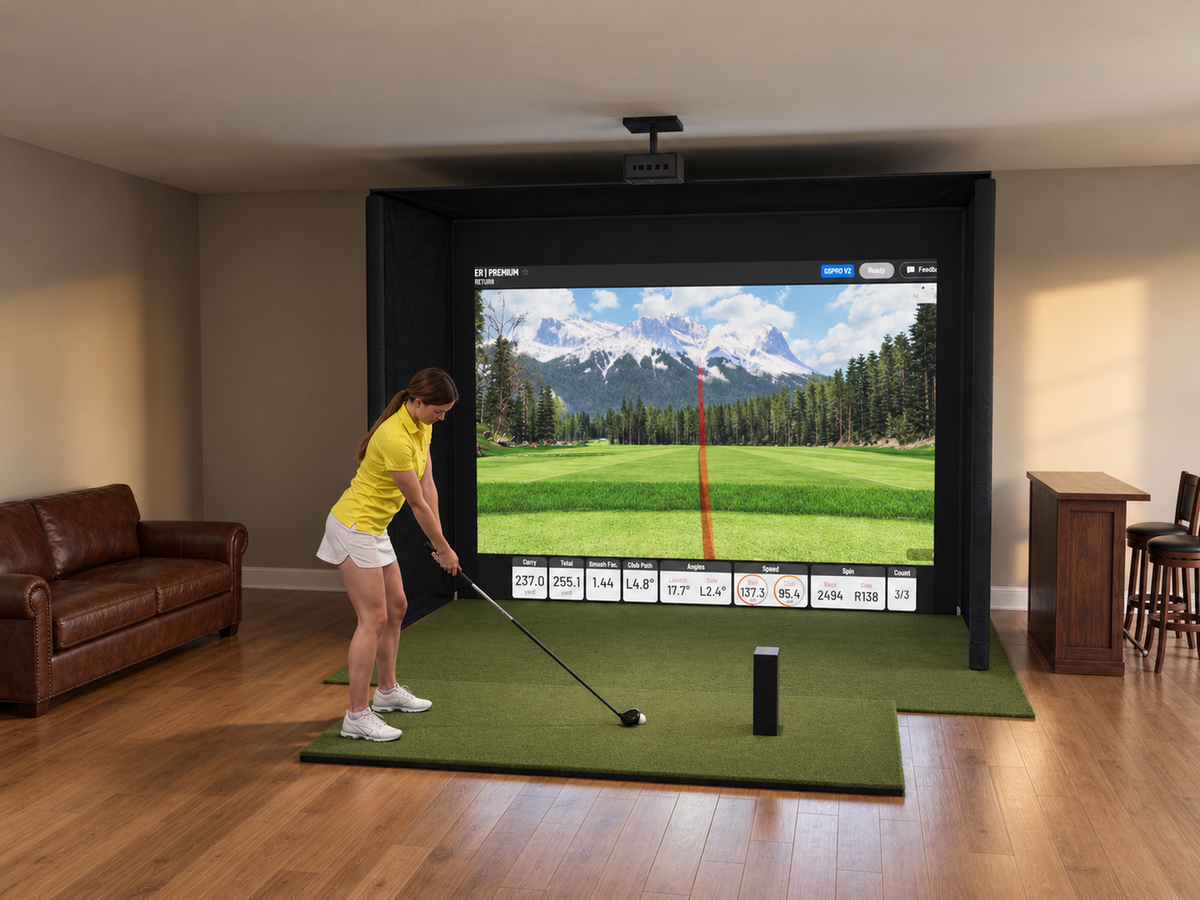

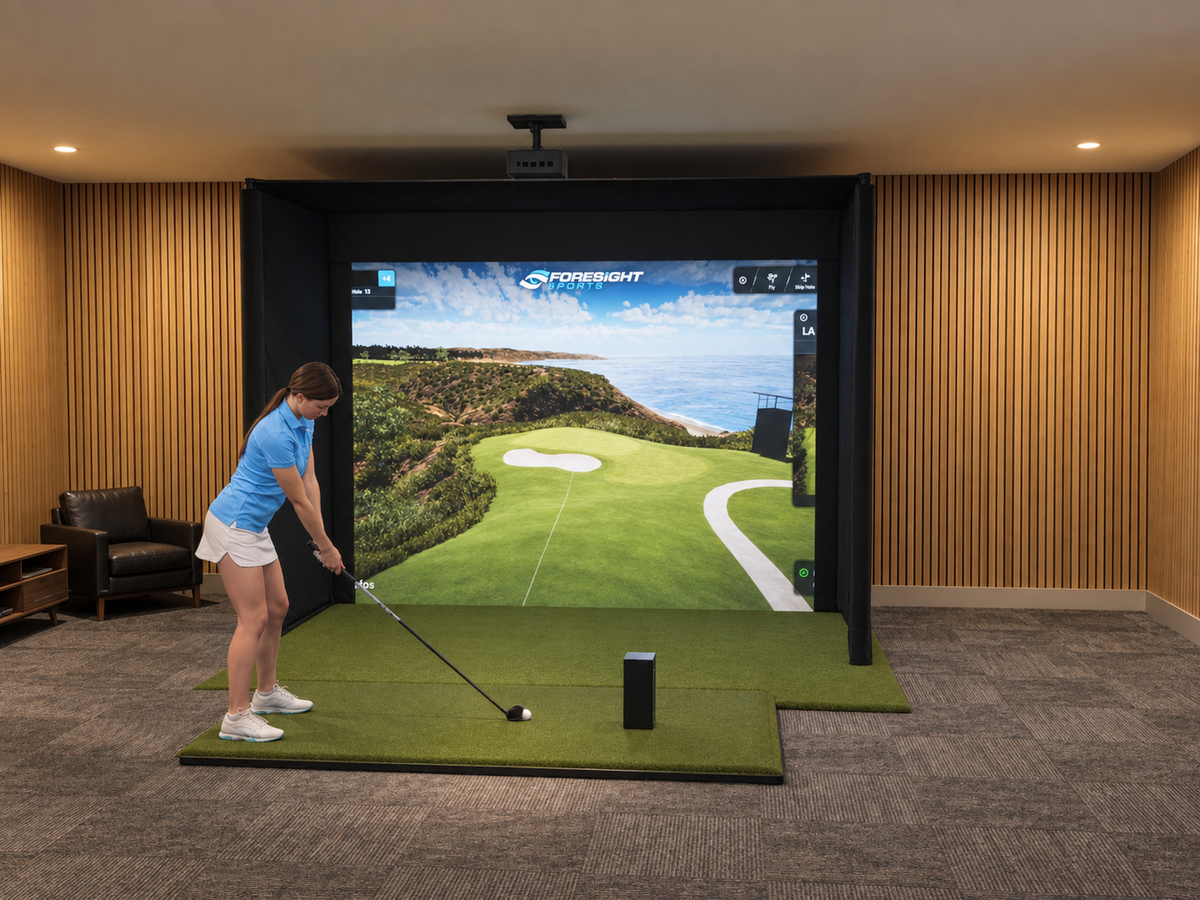

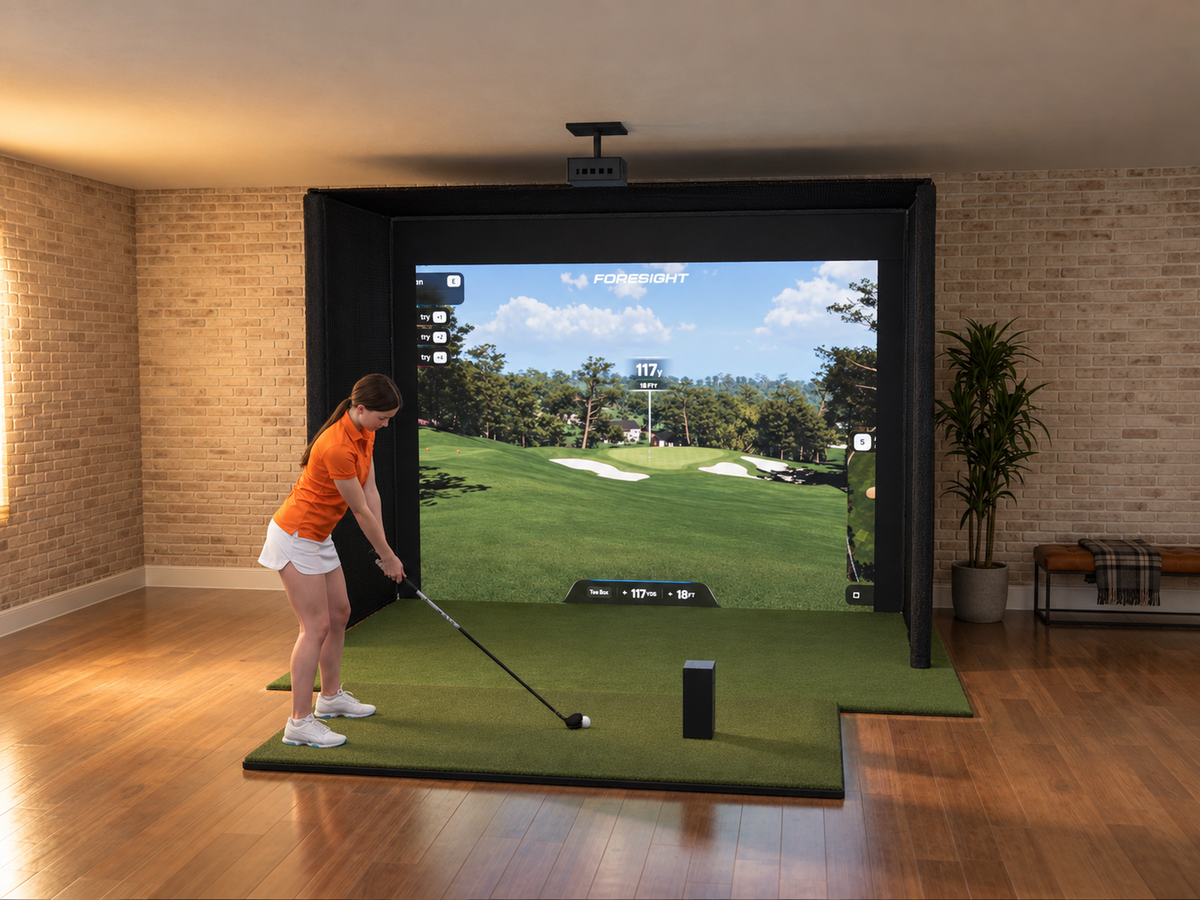

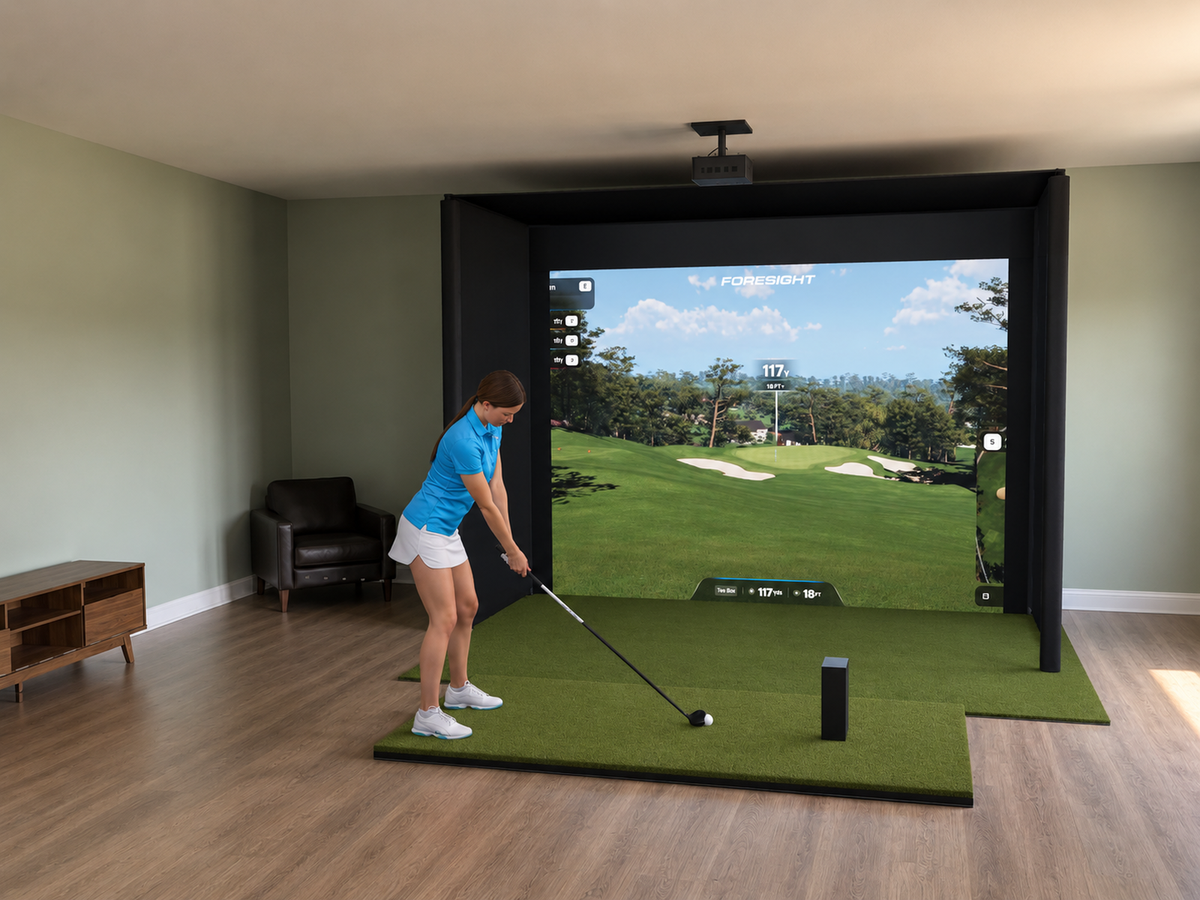

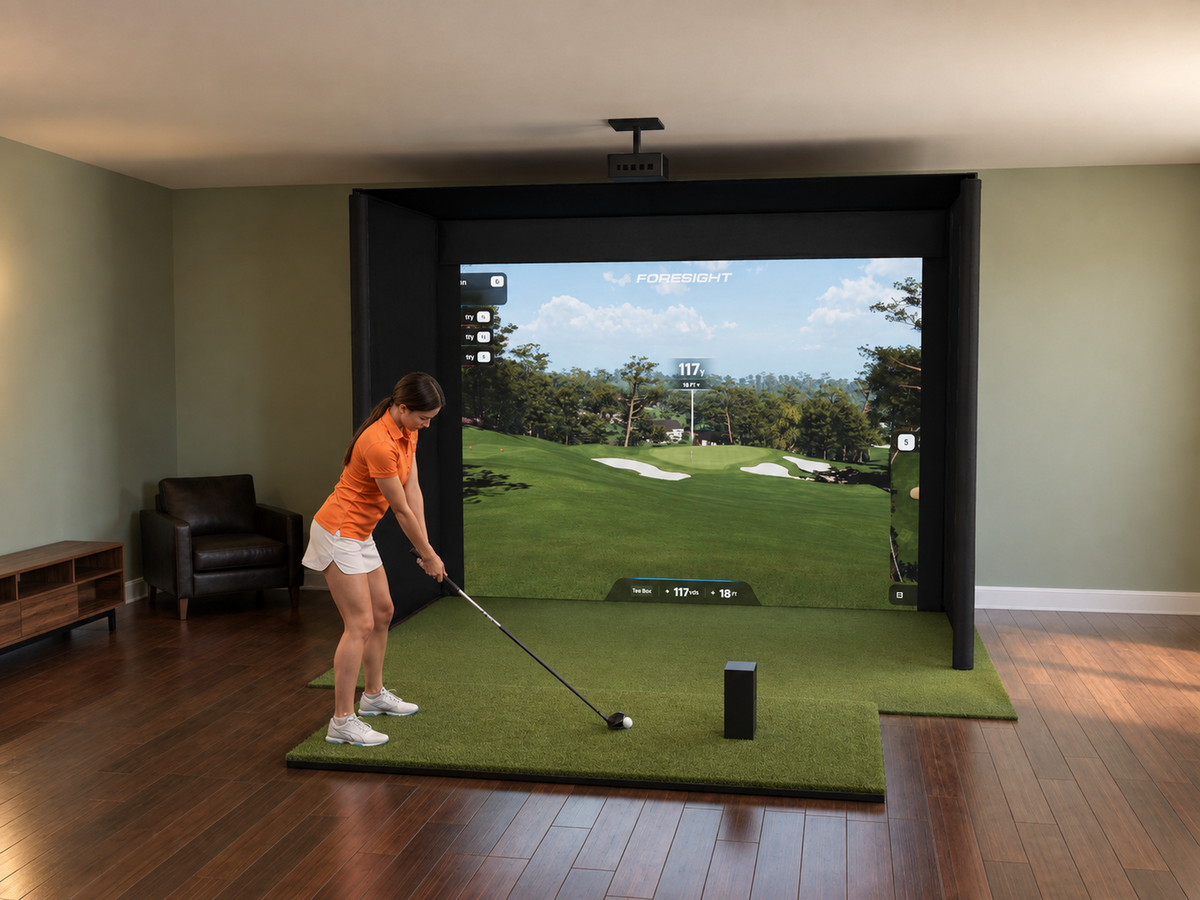

- Beside the ball: SkyTrak ST MAX, Bushnell LPi Circle B Edition, Uneekor EYE MINI LITE, Bushnell Launch Pro Circle B Edition, Uneekor EYE MINI, Foresight Sports GC3S, Garmin Approach R50, Foresight Sports GC3, Foresight Sports GCQuad, Foresight Sports QuadMAX

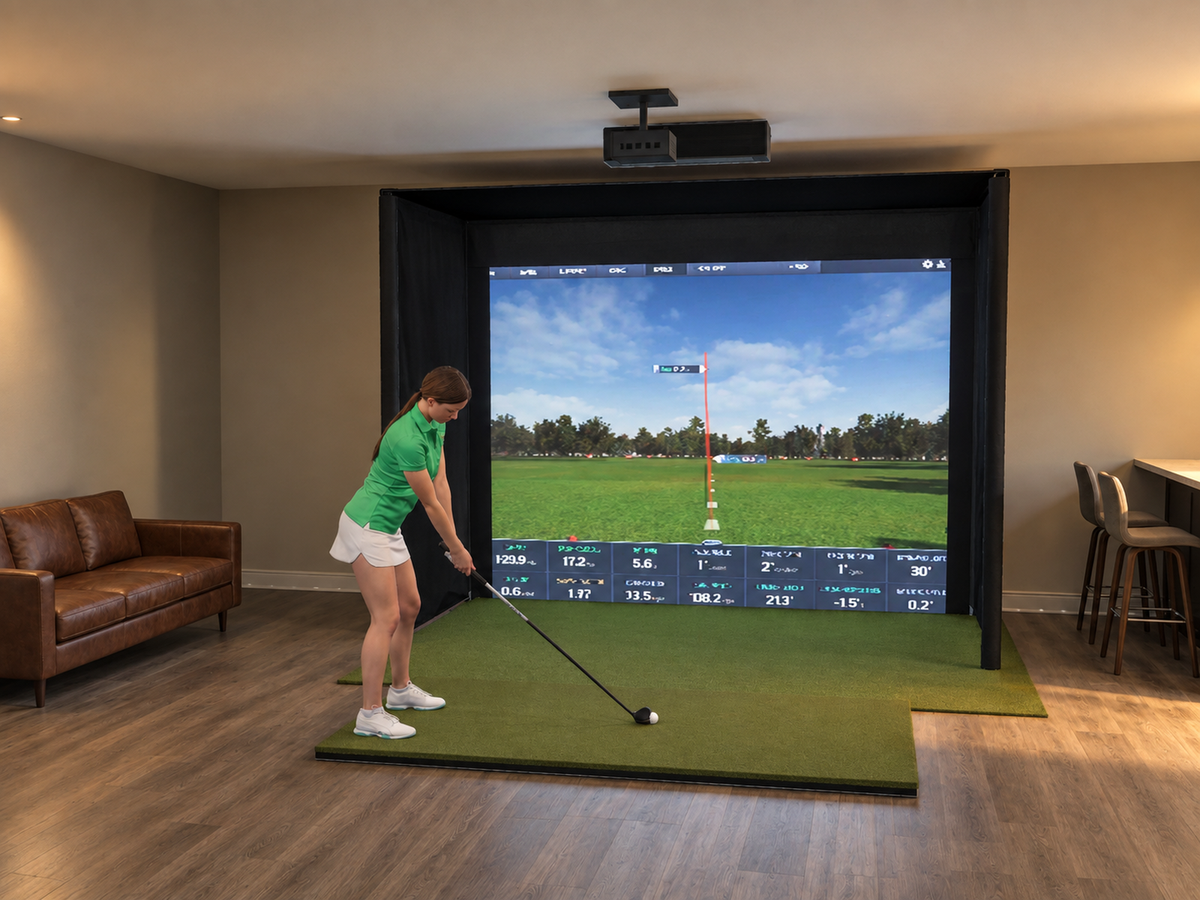

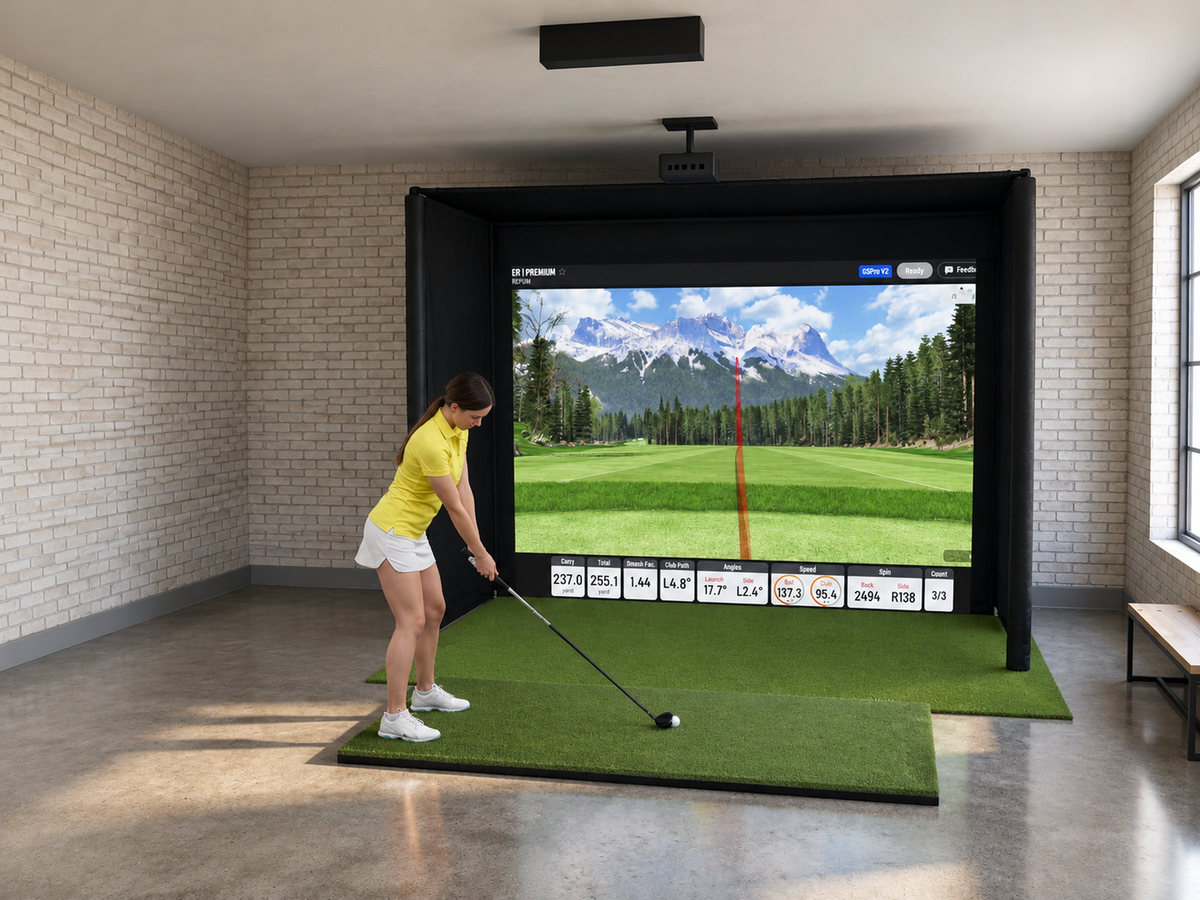

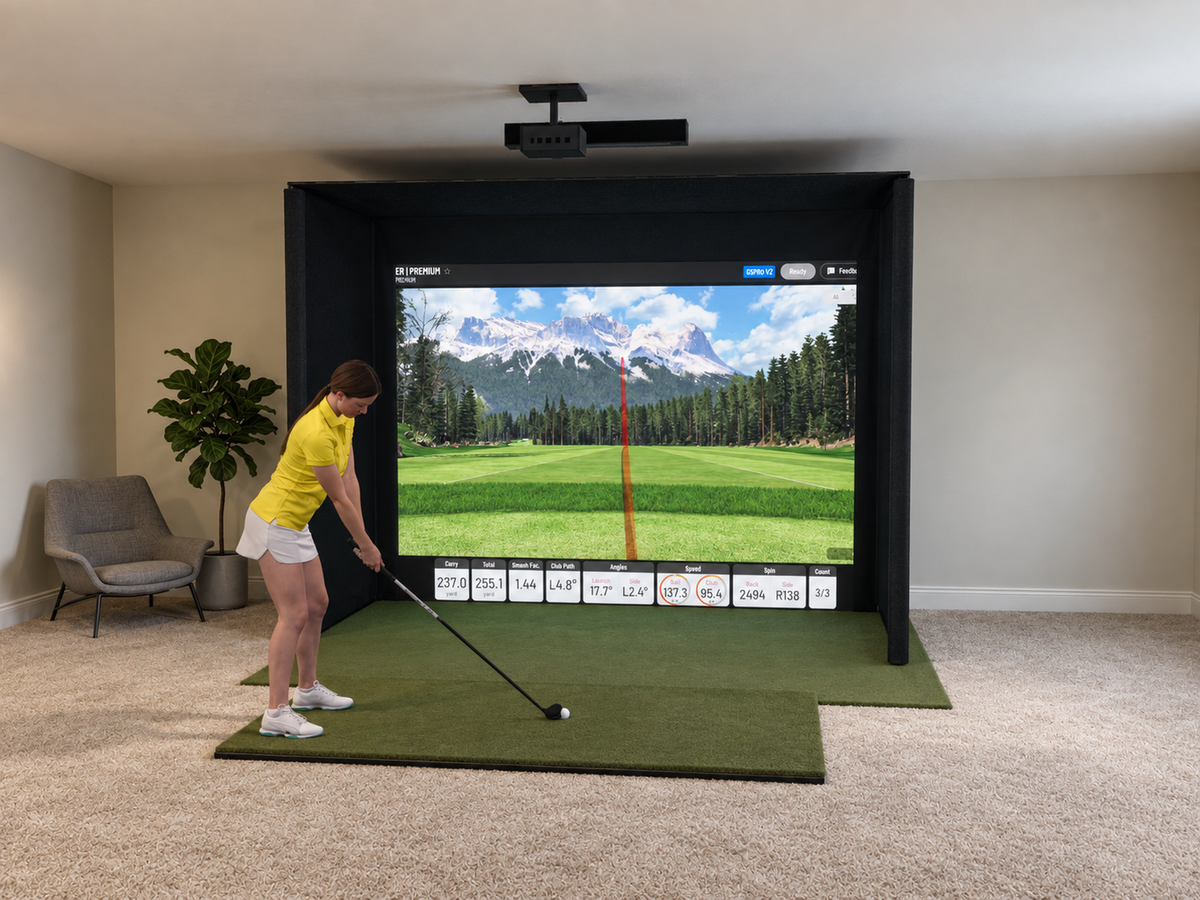

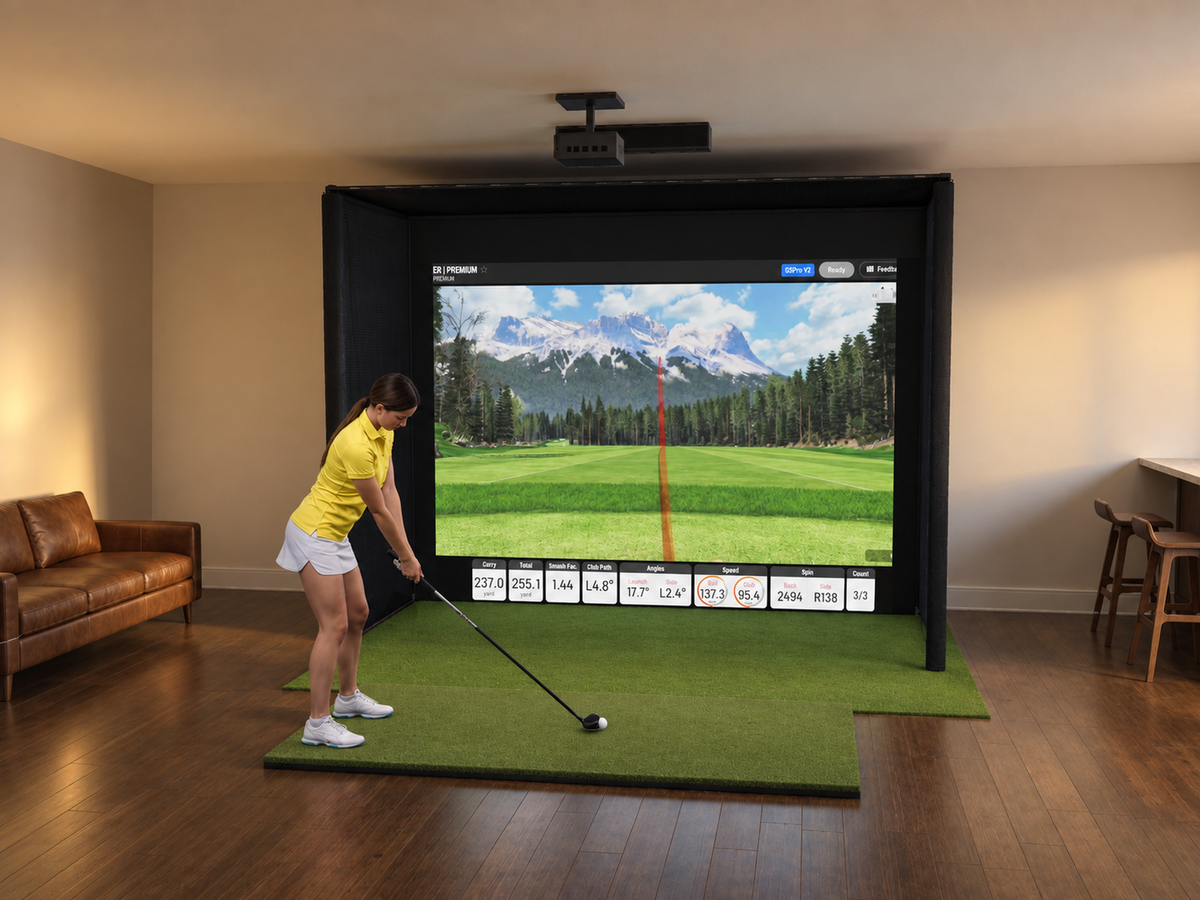

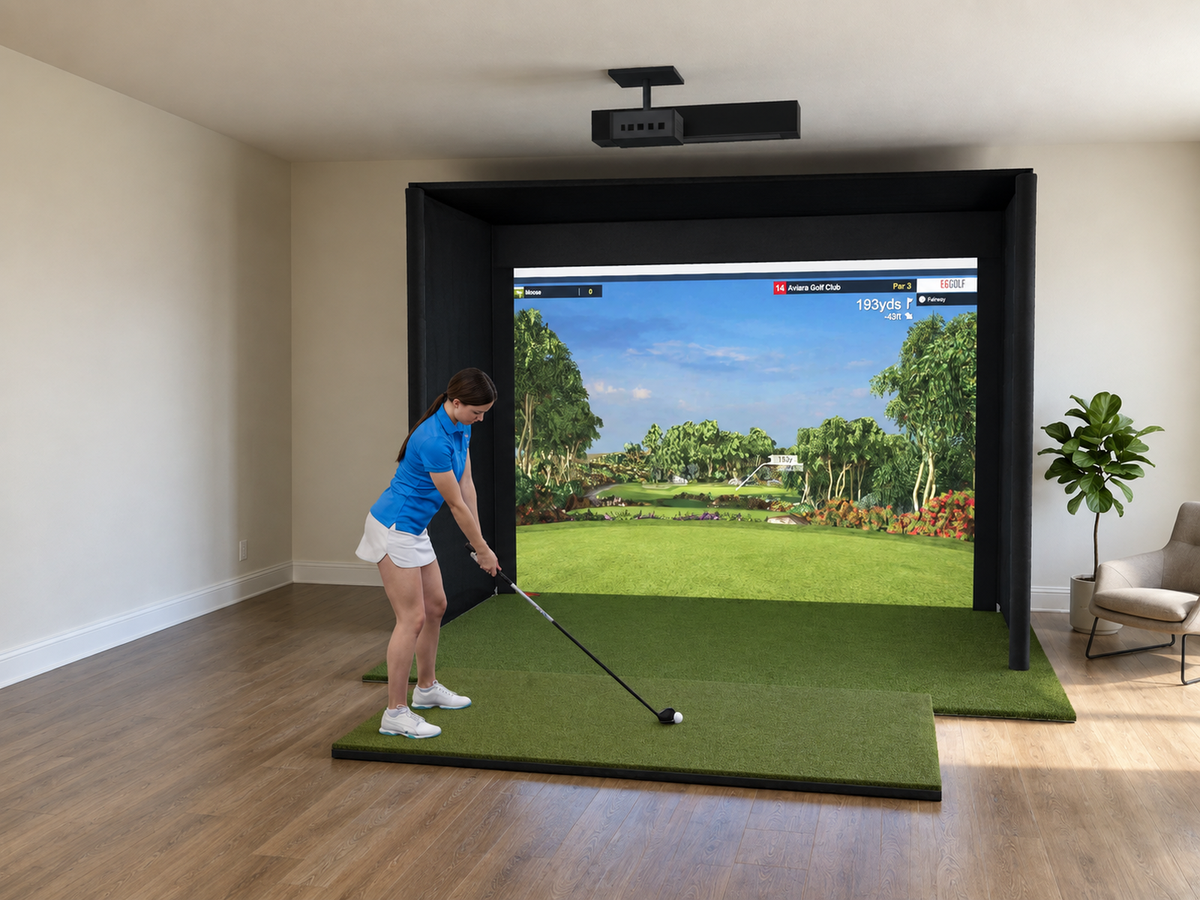

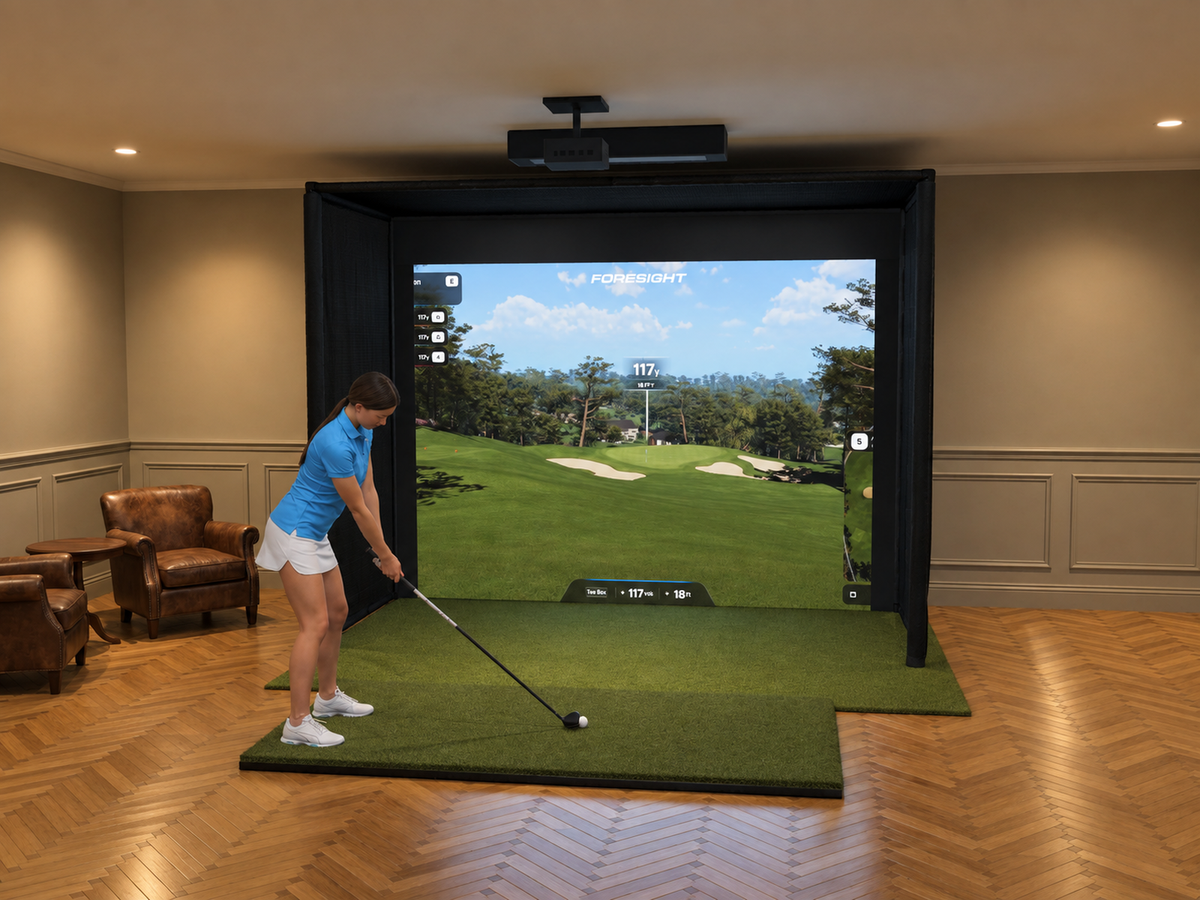

- Overhead, on the ceiling: Uneekor EYE XR, Uneekor EYE XO, ProTee VX, TruGolf APOGEE, Uneekor EYE XO2, Foresight Sports Falcon. Overhead units are ceiling-specific: 9 to 10 ft for ProTee VX and TruGolf APOGEE (drop mount above 10 ft), 9.5 to 10.5 ft for the Foresight Falcon (drop mount above 10.5 ft), and 9 to 10 ft for Uneekor EYE XR, EYE XO and EYE XO2 (drop mount above 10 ft).
For an overhead unit the builder also offers Carl's Launch Monitor Ceiling Drop-Mount Kit, cut for the Uneekor EYE XR, EYE XO and EYE XO2, ProTee VX, TruGolf APOGEE and Foresight Falcon in 6 in to 9 in, 12 in to 18 in, 2 ft to 3 ft and 3 ft to 5 ft drops for a level or a sloped ceiling, and the Movable Ceiling Crossbar, which slides along the enclosure's depth pipes to carry an overhead launch monitor or the projector mid-enclosure.
Not sure which one? The launch monitor comparison lines them up by accuracy, placement, software and price, and the golf simulator builder sizes a full setup to your room.
Carl's Place Pro Golf Simulator Enclosure
The Carl's Place Pro Golf Simulator Enclosure is Carl's Place's premium enclosure, built for dedicated simulator rooms, golf academies and luxury home bays. Its rigid 2-inch EMT frame and higher screen tension hold the screen flatter than a standard build, and a projected image shows every ripple in a loose screen. The BlackStop wraparound is one continuous piece of black-out fabric, so there are no seams between panels for light to leak through. The triple-layer Premium screen puts a sharp picture up front and quiets the impact behind it, and its cabled bottom edge pulls the image down to the turf with no border. Foam inserts, steel corner fittings, cable receivers, springs, zip ties and a frame cut diagram are in the box. The screen and enclosure are made in the USA.
Room minimum, to the inch. Width is Carl's overall frame plus a 3 in buffer on each side; height is the frame plus 3 in above; depth is Carl's 12 in of clearance behind the screen, which covers the 9.5 in backset rear fitting, then 10 ft from the screen to the tee and 5 ft behind the tee to swing, which comes to 16'0" for every depth because the enclosure sits inside that run instead of adding to it. Figures are rounded up to the next inch. Depths are true to size: 69.5, 105.5, 129.5 and 189.5 in overall, including the 9.5 in backset rear fitting.
Power. Everything in the package plugs into ordinary 120 V household outlets; no dedicated circuit or hardwiring is needed. The projectors run on a 100 to 240 V supply and draw 139 W (Optoma ZW350ST) to 440 W (BenQ LK936ST), a gaming PC is a standard desktop tower or laptop, and the launch monitor runs on a small power adapter or its own battery, so one 15 A circuit carries the whole bay. Plan an outlet at the ceiling for the projector and one near the tee for the launch monitor and computer.
Depth is the choice that changes the room. A deeper enclosure puts more of the room inside the BlackStop, which catches and absorbs what the screen does not and blocks more light from the image, and the depth pipes are where the Movable Ceiling Crossbar for the projector or an overhead launch monitor mounts, so a deeper frame gives you more room to place them.
Pipe Framing Kit and Safety Baffle, included
Bought on its own, the Pro kit comes with the fittings and a cut diagram, and you buy and cut the 2-inch EMT yourself. This package includes the Pipe Framing Kit instead: every 2-inch steel EMT pipe pre-cut to your enclosure size and delivered by standard ground carriers. No freight truck to schedule, no hardware store trip, no cutting. Change the enclosure size in the builder and the kit follows it; uncheck it only if you are sourcing your own EMT.
The Safety Baffle hangs above the hitting area and stops a ball that skips off the top of the screen before it reaches the ceiling, lights or projector. It is sized to your enclosure width and follows it the same way. The Movable Ceiling Crossbar is optional: a stand-alone bar with fittings, pipes and a fabric sleeve sized to your width that slides anywhere along the depth pipes and locks in place to carry the projector or an overhead launch monitor.
Hitting mat
The package ships with the Real Feel Country Club Elite Golf Mat, 5'W x 5'L. Its long, dense fibers let you swing down and through the turf the way you would off a fairway, it takes a real wooden tee, and the base absorbs the strike so your joints do not.
Three Fiberbuilt mats are one click away in the builder, or remove the mat if you already have one:
- Fiberbuilt Performance Turf Tee Box Mat, 8'W x 4'L
- Fiberbuilt 7'x4' Grass Series Single-Hitting Studio Mat
- Fiberbuilt 9'x4' Grass Series Center-Hitting Studio Mat (right- and left-handed)
Optional: Tour Golf Landing Pad
The Tour Landing Pad cushions and quiets balls dropping off the screen, keeps them from scuffing the floor or rolling under the enclosure, and bridges the gap between the mat and the screen. The builder preselects the size we recommend, one foot wider than the enclosure, with the length matched to the depth: 8 ft on a 5 ft deep bay, 9 ft on 8 ft, 11 ft on 10 ft and 16 ft on 15 ft. Runs over 8 ft are two pads laid end to end. The Width and Length menus let you go wider or longer, and the width is cut to your exact number after ordering.
- 11.5'W for the 10.5'W enclosure
- 12'W for the 11'W enclosure
- 13'W for the 12'W enclosure
- 14'W for the 13'W enclosure
- 15.5'W for the 14.5'W enclosure
- 16.5'W for the 15.5'W enclosure
Projector and ceiling mount
The Optoma ZW350ST is the included projector: 3,600 lumens, a 30,000-hour DuraCore laser with no bulb to replace, and a 0.521:1 short throw, so it mounts close to the screen and out of the swing. Seven BenQ short-throw projectors are available in the builder, from the 1080p TH671ST to the 5,100-lumen 4K LK936ST. The included ceiling mount tilts and rotates for image alignment and switches to the right model for whichever projector you choose. Carl's Universal Projector Mount is in the builder too: flush to a level ceiling, bolted to the enclosure frame, or on a 6 in to 9 in, 12 in to 18 in, 2 ft to 3 ft or 3 ft to 5 ft drop for a level or a sloped ceiling. Remove the projector and the mount goes with it. The projector calculator shows the mount distance for your screen size.
The mount distance under each projector in the builder is measured from the viewable screen of the enclosure size you pick, not the frame, with the picture sized to fill that screen in the projector's own shape: 16:9 for the BenQ models, 16:10 for the ZW350ST. When the projector's shape matches the screen, the picture fills it exactly; when it differs, the picture matches the screen on one side and runs past it on the other. On a 4:3 Pro size the picture fills the height and comes out wider than the screen, and the extra width lands past the white screen on the frame or the enclosure walls. That is normal: set the simulator PC (display or graphics settings) or the projector, if it has a screen-fit setting, to your screen's shape and those strips stay dark. With the included ZW350ST on the base 10.5'W x 8'H enclosure, that puts the lens about 6.3' from its 10' x 7.5' viewable screen.
- Optoma ZW350ST 3600-Lumen WXGA Laser (0.521:1 throw), included
- BenQ TH671ST 3000-Lumen 1080p (0.69-0.83:1 throw)
- BenQ AH30ST 3000-Lumen 1080p LED (0.69-0.83:1 throw)
- BenQ AH500ST 4000-Lumen 1080p Laser (0.5:1 throw)
- BenQ AH700ST 4000-Lumen 1080p Laser (0.69-0.83:1 throw)
- BenQ LK830ST 4000-Lumen 4K Laser (0.496:1 throw)
- BenQ AK700ST 4000-Lumen 4K Laser (0.69-0.83:1 throw)
- BenQ LK936ST 5100-Lumen 4K Laser (0.81-0.89:1 throw)
Optional: SurfThing gaming computer and touch screen
Simulation software such as GSPro, E6 Connect and FSX Play needs a gaming-class computer, and the one you pick here arrives ready for it. SurfThing builds them for golf simulation: 32GB DDR5, a 2TB SSD and an NVIDIA RTX 50-series GPU, in a desktop tower or a laptop. With the desktop PC, add the SurfThing DT2424H 23.8-inch touch screen to start rounds, review data and scrub swing video without walking back to a keyboard. It is not offered with the laptop, which has its own screen.
- SurfThing Enhanced Level PC: Core Ultra 5 with RTX 5070 Ti, 32GB DDR5, 2TB SSD
- SurfThing Enhanced Level Laptop: Core Ultra 9 with RTX 5070, 32GB DDR5, 2TB SSD
- SurfThing DT2424H 23.8" Touch Screen Monitor, 1080p, 75Hz, 10-point touch (with the desktop PC)
See your build in 3D, then share it
The second gallery thumbnail opens an interactive 3D view of your build at real size, with the launch monitor where it belongs: behind the ball, beside it or overhead. Drag to rotate, pinch or scroll to zoom, open it full screen. Share build saves the configuration to a short topshelfgolf.com link with a picture, for a spouse, a contractor or us, and the link rides along on your cart line and order.
