By placing an order, you are agreeing to our privacy policy and terms of service.
- Choose Your Launch Monitor: Pick any premium launch monitor from our full selection.
- Commercial-Grade Pro Enclosure: Carl's Place Pro with the one-piece BlackStop wraparound, made in the USA.
- Frame Included: Size-matched 2-inch steel EMT pipe framing kit, cut to your enclosure.
- Triple-Layer Premium Screen: Sharp projected image up front, quiet impact behind it.
- Free Shipping: Ships FREE to your door.

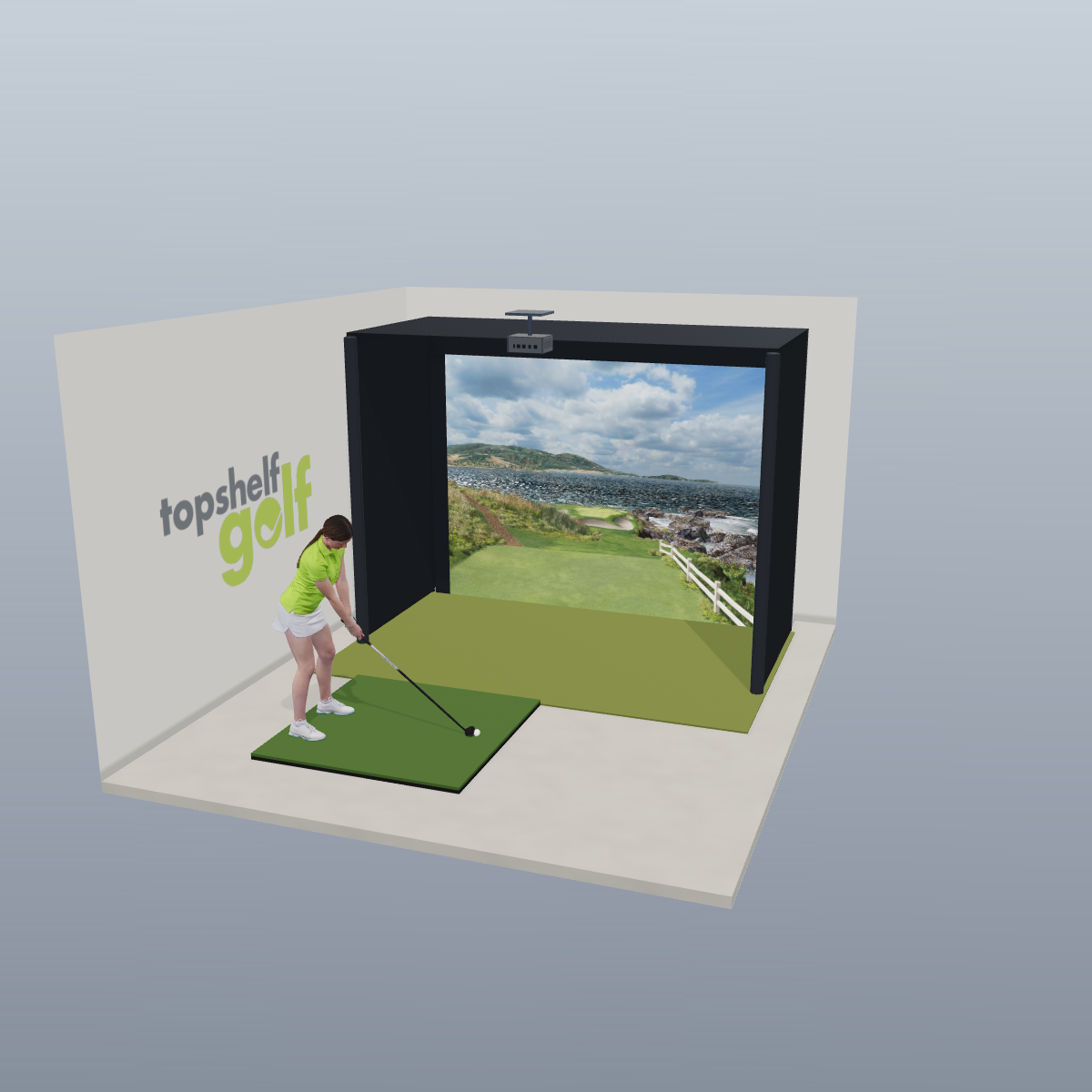

Pro All-In-One Golf Simulator
Built on the Carl's Place Pro, the commercial-grade enclosure with a one-piece BlackStop wraparound, a triple-layer Premium impact screen and steel corner fittings, the Pro All-In-One Golf Simulator lets you pick any launch monitor from our lineup. The Pro kit on its own ships without a frame. This package adds the size-matched 2-inch steel EMT Pipe Framing Kit and the Safety Baffle, plus the hitting mat, short-throw laser projector and ceiling mount. It comes in 18 sizes, 10.5 to 15.5 ft wide and 5 to 15 ft deep. The screen and enclosure are made in the USA.
Pro All-In-One Golf Simulator Includes:
- Pro Enclosure (10.5'W x 8'H x 5'D) - also available in 11'W, 14.5'W, 12'W, 13'W or 15.5'W
- Pipe Framing Kit (8x10.5x5)
- Safety Baffle (10.5)
- Real Feel Country Club Elite Mat (5'W x 5'L)
- Optoma ZW350ST 3600-Lumen WXGA Laser Projector (0.521:1 throw)
- Projector Ceiling Mount
Use the builder above to change the enclosure size, hitting mat or projector, or add a launch monitor, landing pad, gaming computer or touch screen monitor.
Carl's Place Pro Golf Simulator Enclosure

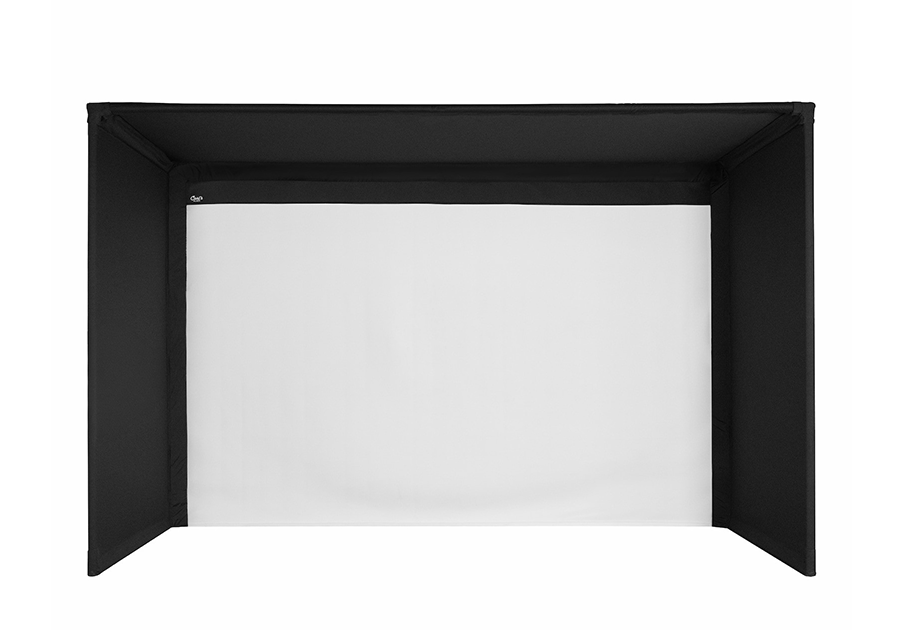

The Pro is Carl's Place's premium enclosure, built for dedicated simulator rooms, golf academies and luxury home bays. Its rigid 2-inch EMT frame and higher screen tension hold the screen flatter than a standard build, and a projected image shows every ripple in a loose screen. The BlackStop wraparound is one continuous piece of black-out fabric, so there are no seams between panels for light to leak through. The triple-layer Premium screen puts a sharp picture up front and quiets the impact behind it, and its cabled bottom edge pulls the image down to the turf with no border. Foam inserts, steel corner fittings, cable receivers, springs, zip ties and a frame cut diagram are in the box. The screen and enclosure are made in the USA.
- 10.5'W x 8'H, 5' or 8' deep - Min. Required Space: 11'W x 8.5'H x 14'D
- 11'W x 8.5'H, 5' or 8' deep - Min. Required Space: 11.5'W x 9'H x 14'D
- 14.5'W x 8.5'H, 5' or 8' deep - Min. Required Space: 15'W x 9'H x 14'D
- 12'W x 9'H, 5', 8', 10' or 15' deep - Min. Required Space: 12.5'W x 9.5'H x 14'D (12.5'W x 9.5'H x 17'D for the 15' depth)
- 13'W x 10'H, 5', 8', 10' or 15' deep - Min. Required Space: 13.5'W x 10.5'H x 14'D (13.5'W x 10.5'H x 17'D for the 15' depth)
- 15.5'W x 10'H, 5', 8', 10' or 15' deep - Min. Required Space: 16'W x 10.5'H x 14'D (16'W x 10.5'H x 17'D for the 15' depth)

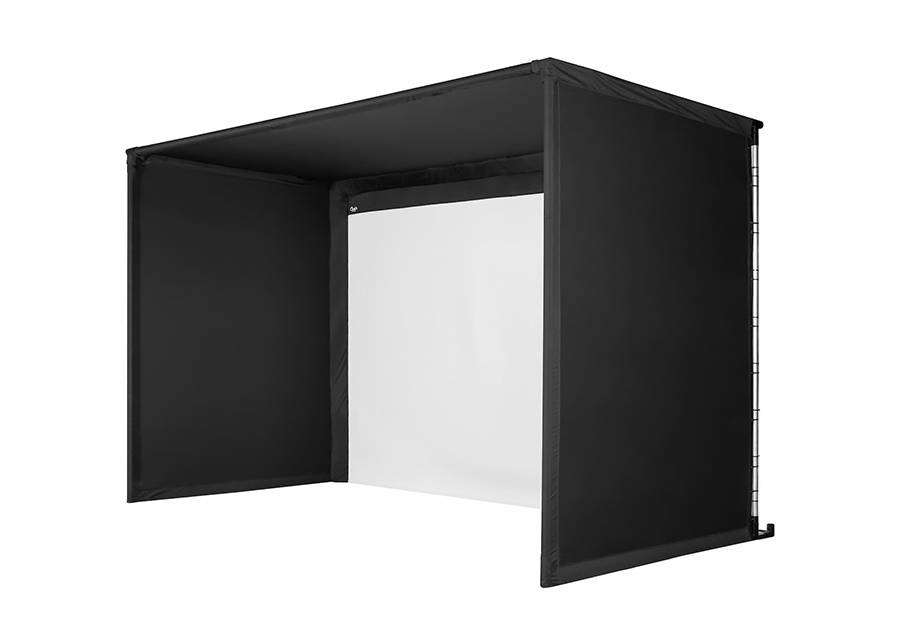

Depth is the choice that changes the room. Depths are true to size: 69.5, 105.5, 129.5 and 189.5 in. A deeper enclosure puts more of the room inside the BlackStop, which catches and absorbs what the screen does not and blocks more light from the image. The depth pipes are also where a ceiling crossbar for the projector or an overhead launch monitor mounts, so a deeper frame gives you more room to place them. The crossbar is offered on the Carl's Place Pro enclosure page.
Pipe Framing Kit and Safety Baffle, Included
Bought on its own, the Pro kit comes with the fittings and a cut diagram, and you buy and cut the 2-inch EMT yourself. This package includes the Pipe Framing Kit instead: every 2-inch steel EMT pipe pre-cut to your enclosure size and delivered by standard ground carriers. No freight truck to schedule, no hardware store trip, no cutting. Change the enclosure size in the builder and the kit follows it.
The Safety Baffle hangs above the hitting area and stops a ball that skips off the top of the screen before it reaches the ceiling, lights or projector. It is sized to your enclosure width and locked to it the same way.
Real Feel Country Club Elite Golf Mat 5'W x 5'L
Country Club Elite's long, dense fibers let you swing down and through the turf like a real fairway, and the mat takes a real wooden tee. At 5'W x 5'L it gives you a square stance area that drops straight into the bay.
The builder also offers the Fiberbuilt Performance Turf Tee Box Mat (8'W x 4'L) with a shock-absorbing rubber base, and the Fiberbuilt Grass Series studio mats in 7'x4' single-hitting and 9'x4' center-hitting sizes with a 300,000-shot guarantee. Already have a mat? Remove it from the package in the builder.
OPTIONAL: Tour Golf Landing Pad
The Tour Golf Landing Pad is not included. Tick it in the builder to add it. It cushions and quiets balls dropping off the screen and keeps them from scuffing the floor or rolling under it. Every size is 8 ft long and one foot wider than the enclosure, and the builder picks the width to match your size.
- 11.5'W x 8'L - for 10.5'W Enclosure
- 12'W x 8'L - for 11'W Enclosure
- 13'W x 8'L - for 12'W Enclosure
- 14'W x 8'L - for 13'W Enclosure
- 15.5'W x 8'L - for 14.5'W Enclosure
- 16.5'W x 8'L - for 15.5'W Enclosure
Optoma ZW350ST WXGA Laser Projector + Ceiling Mount
The Optoma ZW350ST is a 3,600-lumen WXGA short-throw laser projector with a 0.521:1 throw ratio, so it fills the screen from close range in a tight bay. Its 30,000-hour DuraCore laser means no bulb changes. The included ceiling mount tilts and rotates for image alignment and is matched to the projector you choose.
Step up in the builder to a BenQ 1080p or 4K short-throw model, from the TH671ST to the 5,100-lumen LK936ST, and the mount switches with it. Already have a projector? Removing it in the builder also removes the mount.
OPTIONAL: SurfThing Gaming PC/Laptop
Add a SurfThing computer if you need one to run your simulator software. Both come with 32GB DDR5 and a 2TB SSD. The Enhanced Level PC is a 4K-ready desktop tower; the Enhanced Level Laptop brings its own built-in screen. The SurfThing DT2424H 23.8-inch touch screen (1080p, 75Hz, 10-point touch) is offered with the desktop PC, for starting rounds and reviewing data without a mouse.
- SurfThing Enhanced Level PC: Core Ultra 5 w/RTX 5070 Ti
- SurfThing Enhanced Level Laptop: Core Ultra 9 w/RTX 5070
FAQs:
Carl's Place Pro Enclosure Assembly
Warranty
We're proud to say we are an Authorized Dealer/Distributor for all the brands we carry. All our products come directly from the manufacturer. Your launch monitor, projector and computer are covered by their manufacturer's warranty from the date of the original purchase, subject to its conditions and limitations. Carl's Place screens and enclosure materials are wearable goods, so they do not carry a warranty. Some marking and wear from the first sessions is normal, and how long a screen lasts depends on skill level, how often you play and how it is installed. If something looks unusual rather than like normal wear, send us photos and your order number and we will take it up with Carl's Place.
Carl's Place covers manufacturing defects in the impact screen and enclosure. It does not cover normal wear from play; screen life depends on skill level, how often you play and how the screen is installed.
Returns
All Simulator Impact Screen sales are final. No returns will be accepted. The screens are considered to be wear and tear products. They are made out of white polyester fabric and can easily be smudged or stained if used or handled improperly.
All Optoma sales are final. No returns will be accepted.
We want you to be happy with your purchase and enjoy it for many years to come. If you decide you want to return your product, we will gladly assist you in the process. Please inspect your purchase when your package arrives. Product received damaged must be noted with the freight carrier at time of delivery. Contact us immediately no later than 24 hours from delivery time to report the damage. We cannot accept responsibility for a damaged shipment if it is not noted as such on the freight carrier's delivery receipt. Damage must be noted at the time of delivery.
For additional details about our return process & exceptions for all the items included in the package please see our Return Policy.
-
