Golf Simulator Enclosures & Hitting Bays
Golf Simulator Enclosure Kits for Every Room
A golf simulator enclosure, which we also call a hitting bay, is a frame with black fabric walls and a ceiling around an impact screen.
It keeps golf balls in and room light out, so the room is safer and the picture is easier to see. Pick well and a garage bay becomes the place you play 18 on a Tuesday night in January.
- Five enclosure formats: a floating screen, three freestanding enclosures (DIY, Pro, Curved) and a wall-anchored screen built into the room. The impact screen is also sold alone for a frame you build.
- Your room picks the size: the smallest freestanding enclosure needs a room 8 ft 10 in wide, and a curved bay needs 14 ft 4 in.
- Frame it your way: add the Carl's Place Pipe Framing Kit to a DIY, Pro or Curved kit, or skip it and cut your own EMT locally to save.
Find the Golf Simulator Enclosure for Your Room
Which golf simulator enclosure should you buy?
Start with your room, then decide how much of the build you want to do yourself.
$1,349.90
An 8 ft by 8 ft bay with the pre-cut Pipe Framing Kit, or $999.95 if you cut your own EMT.
$790
A wall-to-wall screen for a 10 ft by 8 ft wall, anchored with no frame on the floor.
Decision Path · If You Have This and Want That, Get This
| If you have this and want that | Get this, and why |
|---|---|
|
A garage, basement or spare room, and a first build Want: the lowest price for a full enclosure |
Carl's Place DIY Enclosure From $999.95 for the screen and enclosure, plus $349.95 to $414.95 if you add the pre-cut Pipe Framing Kit. Carl's Place puts assembly at about an hour. |
|
No interest in cutting pipe Want: a frame that is ready to assemble |
DIY Enclosure with the Pipe Framing Kit or a SIG enclosure Add the pre-cut Pipe Framing Kit to a DIY Enclosure, from $1,349.90 together. SIG enclosures go up on color-coded push-pin poles, $1,799.99 to $2,499.99. |
|
A tight or small room Want: less bounce-back and a frame that goes up without tools |
The Net Return Floating Screen Simulator Bay The floating screen minimizes bounce-back, so the bay can be used in tighter, smaller spaces. The 1.5 inch aluminum frame is 3 ft 6 in deep and clicks together with push-button connectors, from $1,395. |
|
A projector or overhead launch monitor to hang Want: electronics mounted to the frame |
Carl's Place Pro Enclosure Carl's Place builds the 2 inch frame to hold projectors and overhead launch monitors. From $3,409.95, and the optional Movable Crossbar is $550. |
|
A dedicated room at least 14 ft 4 in wide Want: the widest view |
Carl's Place Curved Enclosure The curved screen gives a wider field of view. 18 sizes from 14 to 17 ft wide, from $4,894.95. |
|
A finished room with straight, 2x4-framed walls Want: no frame on the floor |
Carl's Place Built-In Golf Room Kit The screen hangs on wall anchors 1 ft in front of the back wall and spans it corner to corner. From $790. |
|
A frame you already own or plan to build Want: the screen alone |
Carl's Place Impact Screens Four materials, three edge finishes and 29 sizes, from $179.95. |
Compare Golf Simulator Enclosures Side by Side
Five enclosure formats, then the impact screen on its own for a frame you build.

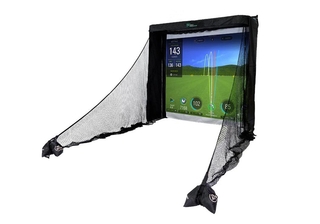

Floating Screen
- Room: 10'W x 9'H x 14'D or more, 8 ft bay
- Frame: 1.5 in aluminum, push-button connectors
- Best for: tighter, smaller rooms: the floating screen minimizes bounce-back

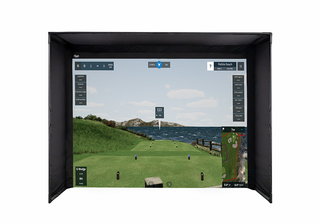

DIY Enclosure
- Room: 8'10"W x 8'7"H x 16'9"D or larger
- Frame: 1 in EMT: add the pre-cut Pipe Framing Kit or cut your own
- Best for: garages, basements and spare rooms

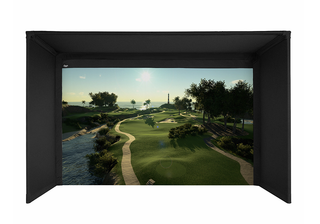

Pro Enclosure
- Room: 11'7"W x 8'9"H x 16'0"D or larger
- Frame: 2 in EMT: add the pre-cut Pipe Framing Kit or cut your own
- Best for: gear mounted to the frame
Curved Screen
- Room: 14'4"W x 9'6"H x 16'0"D or larger
- Frame: curved 2 in EMT: add the Pipe Framing Kit or cut your own
- Best for: a wider field of view in a large room
Built-In Screen
- Room: 10'W x 9'H x 18'D, 14'W for a centered tee
- Frame: none, anchors to the wall
- Best for: a permanent, finished golf room
Impact Screen Only
- Room: sized to your frame or wall
- Frame: your own
- Best for: a frame you build, or a replacement screen
Side by Side · Frame, Screen, Sizes, Build Time and Price
| Format | Frame | Screen material | Sizes | Build time | Kit price |
|---|---|---|---|---|---|
| Floating Screen | 1.5 in aluminum | Polyester impact screen | 3 widths: 8, 10 and 12 ft Rooms 10, 12 and 14 ft wide |
No tools | $1,395 to $1,995 |
| DIY Enclosure | 1 in EMT, pipe kit optional | Standard, Preferred, Premium or High-Contrast Gray | 6 sizes, 5 ft deep | About 1 hour | $999.95 to $1,874.95 With pipe kit from $1,349.90 |
| Pro Enclosure | 2 in EMT, pipe kit optional | Premium or High-Contrast Gray | 18 sizes, 5 to 15 ft deep | About 2 hours | $3,409.95 to $5,609.95 With pipe kit from $4,319.95 |
| Curved Screen | Curved 2 in EMT, pipe kit optional | Premium or High-Contrast Gray | 18 sizes, 8 to 15 ft deep | About 4 hours, with helpers | $4,894.95 to $6,629.95 With pipe kit from $6,809.95 |
| Built-In Screen | None, wall anchors | Standard, Preferred, Premium or High-Contrast Gray | 45 sizes, 10 to 18 ft wide | Construction-level | $790 to $1,545 |
| Impact screen only | Yours | Standard, Preferred, Premium or High-Contrast Gray | 29 sizes | Set by your frame | $179.95 to $1,169.95 |
Build times are the makers' own: Carl's Place for the DIY, Pro and Curved kits, The Net Return for the Floating Screen bay.

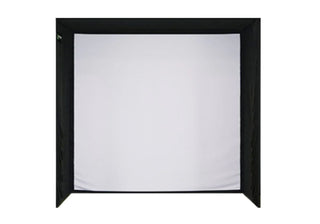

SIG Push-Pin Pole Enclosures in Three Sizes
SIG enclosures go up on color-coded push-pin poles, with a padded surround, in three fixed sizes. The table below lists what comes in each kit on this page and how each one is framed.
SIG8
- Room: 10'W x 9'H x 16'D
- Enclosure: 8'4"W x 8'4"H x 5'D
- In the box: screen, push-pin poles, foam padding
SIG10
- Room: 12'W x 9'H x 18'D
- Enclosure: 10'10"W x 8'4"H x 5'D
- In the box: screen, push-pin poles, foam padding
SIG12
- Room: 14'W x 10'H x 20'D
- Enclosure: 12'2"W x 9'4"H x 5'D
- In the box: screen, push-pin poles, foam padding
What's in the Box, and How Each Kit Is Framed
| Enclosure and price | In the box | Frame | Optional |
|---|---|---|---|
|
Floating Screen $1,395 to $1,995 |
Frame and frame pads, netting and impact screen, rear and side valances, side barriers | 1.5 in aluminum frame, in the box | Sold as shown |
|
DIY Enclosure $999.95 to $1,874.95 |
Impact screen, BlackStop enclosure, steel corner fittings, cable receivers, springs, zip ties, pipe cut list | Add the pre-cut Pipe Framing Kit, $349.95 to $414.95, or cut your own 1 in EMT to save | Net wall extensions $140 a pair Foam insert kit $150 Safety baffle $40 |
|
Pro Enclosure $3,409.95 to $5,609.95 |
Premium or Gray screen, single-piece BlackStop cover, foam inserts, fittings, custom cut diagram | Add the pre-cut Pipe Framing Kit, $910 to $1,550, or cut your own 2 in EMT to save | Movable Crossbar $550 Safety baffle $50 |
|
Curved Screen $4,894.95 to $6,629.95 |
Premium or Gray screen, BlackStop ceiling and wall panels, steel fittings and elbows, foam inserts, fasteners | Add the Pipe Framing Kit, $1,915 to $2,810, or cut your own 2 in EMT to save | Safety baffle $50 |
|
Built-In Screen $790 to $1,545 |
Custom-sized screen, cables and cable locks, corner anchors, pulley wheels, starter panels, flaps, fasteners | No frame: the screen anchors to the wall. The walls and ceiling need a finish | Wall tiles, acoustic tiles, curtains or padded panels |
|
SIG8, SIG10, SIG12 $1,799.99 to $2,499.99 |
SIGPRO Premium screen, push-pin poles and connectors, foam padding, surround, 6 in ball bungees | Push-pin poles, in the box | Sold as shown |
- Smallest DIY Enclosure with its pipe kit: $999.95 + $349.95 = $1,349.90.
- Smallest Pro Enclosure with its pipe kit: $3,409.95 + $910 = $4,319.95.
- Smallest Curved Screen with its pipe kit: $4,894.95 + $1,915 = $6,809.95.
What Size Golf Simulator Enclosure Fits Your Room?
Measure width, ceiling height and depth, then leave buffer space around the frame. The size in a kit's name is a nominal listing size, so check the frame dimensions.
Width
A 10 ft room works with the tee to one side. At 14 ft the tee sits in the middle for right- and left-handed golfers.
Tee distance
Never closer than 10 ft, or the ball bounces back. The whole room runs longer: 16 ft 9 in deep for a DIY Enclosure.
Buffer
Curved: Carl's Place suggests 6 to 7 in above. Behind the frame: 8.25 in for the DIY, 9.5 in for Pro and Curved.
Carl's Place DIY Enclosure · Six Sizes and the Room Each Needs
| Listing size, H x W | Smallest room | Frame, H x W | Kit price, Standard to Gray |
|---|---|---|---|
| 8' x 8' (1:1) | 8'10" wide, 8'7" high | 100 in x 100 in | $999.95 to $1,574.95 |
| 7.7' x 10' (4:3) | 10'11" wide, 8'3" high | 95.8 in x 124.8 in | $1,149.95 to $1,664.95 |
| 8' x 10.5' (4:3) | 11'5" wide, 8'7" high | 100 in x 130.3 in | $1,174.95 to $1,719.95 |
| 8.5' x 11.5' (4:3) | 12'3" wide, 9'3" high | 107.5 in x 140.3 in | $1,224.95 to $1,798.95 |
| 9' x 12' (4:3) | 12'9" wide, 9'7" high | 112 in x 146.3 in | $1,259.95 to $1,874.95 |
| 7.7' x 13' (16:9) | 14'2" wide, 8'3" high | 95.8 in x 163.3 in | $1,239.95 to $1,839.95 |
- Depth for every DIY size: 16 ft 9 in with a launch monitor that sits beside the ball or overhead.
- Launch monitor behind the ball: plan 18 ft 9 in or more, depending on the unit.
- Pro and Curved: 18 sizes each, and the simulator builder checks every one against your room.
- Before you order: take your longest club into the room and make a few full practice swings.
Which Screen Material Should the Enclosure Have?
White for a room you can darken, gray for a room you cannot. Carl's Place makes four screen materials, and the enclosure you pick decides which ones you can order.
| Material | Best for | Offered on |
|---|---|---|
|
Standard White |
Budget builds | DIY, Built-In |
|
Preferred White, tighter weave |
A sharper picture for less than Premium | DIY, Built-In |
|
Premium White, three layers |
A room you can darken | DIY, Pro, Curved, Built-In |
|
High-Contrast Gray Gray, three layers |
A room with light you cannot block | DIY, Pro, Curved, Built-In |
- Gray needs a brighter projector: at least 4,000 lumens in a room with any meaningful light, and 5,000 or more in a bright room.
- The screen is replaceable: when it wears, order a new one in the same size and edge finish as the original.
Wall, Ceiling and Floor Tiles for a Golf Simulator Room
The enclosure stops the shots that reach it. These cover the walls, ceiling and floor around it.
Golf Room Wall Tiles
- Tile: 2 ft x 2 ft
- Surface: soft low-pile black carpet
- Install: peel, stick and trim to fit
Golf Room Acoustic Tiles
- Tile: 2 ft x 2 ft, thicker than wall tiles
- Surface: smooth matte black, absorbs sound
- Install: peel, stick and trim to fit

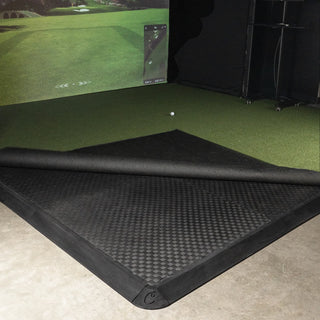

Golf Room Floor Tiles
- Tile: 40.25 in x 40.25 in
- Surface: foam subfloor under your turf
- Install: interlocking, no tools
Golf Simulator Enclosure Guides
How to Choose a Golf Simulator Enclosure
DIY, Pro, Curved and Built-In kits matched to your room.
How to Build a DIY Golf Simulator Enclosure
Frame, pipe, screen and tensioning, step by step.
Golf Simulator Enclosure Cost
What an enclosure costs, from a screen-only build to a commercial bay.
Built-In vs Freestanding Enclosures
Which fits your room, your budget and how permanent you want the bay.
What Size Impact Screen Do You Need?
Screen size and aspect ratio, room by room.
Commercial Golf Simulator Enclosures
Planning bays for a business or teaching studio.
Golf Simulator Enclosure FAQ
A golf simulator enclosure is a frame with black fabric walls and a ceiling around an impact screen.
It keeps golf balls in and ambient light out. On this site we also call it a hitting bay or a simulator bay.
A DIY Enclosure with the pre-cut Pipe Framing Kit starts at $1,349.90, or $999.95 if you cut your own EMT. The Floating Screen bay starts at $1,395 and a SIG8 is $1,799.99.
A Carl's Place Built-In screen kit starts at $790 and anchors to a finished wall instead of a frame. The enclosure cost guide goes deeper on the Carl's Place kits.
With a Carl's Place DIY, Pro or Curved kit, you choose: add the Carl's Place Pipe Framing Kit, or skip it and cut your own EMT locally to save, using the cut list or diagram in the kit.
SIG bays go up on push-pin poles, and The Net Return Floating Screen bay has a 1.5 inch aluminum frame. The Built-In kit anchors to the wall, with no frame.
Carl's Place recommends at least 14 feet wide, 18 feet deep and a 9 to 10 foot ceiling, and many rooms work smaller.
The smallest DIY Enclosure fits a room 8 ft 10 in wide, 8 ft 7 in high and 16 ft 9 in deep. Check yours in the simulator builder.
The DIY Enclosure uses a 1 inch EMT frame, comes in six sizes at one 5 ft depth and offers four screen materials.
The Pro uses a 2 inch EMT frame that holds a projector or overhead launch monitor, comes in 18 sizes up to 15 ft deep, and includes foam inserts.
The Net Return's floating screen minimizes bounce-back, so the bay can be used in tighter, smaller spaces.
Its frame is 3 ft 6 in deep, and the 8 ft bay needs a room at least 14 ft deep, against 16 ft 9 in for a DIY Enclosure. The DIY Enclosure costs less and offers six sizes and four screen materials.
A net stops the ball and shows no picture. A bare impact screen shows the picture and needs a way to hang and tension it, plus side protection you add.
An enclosure adds the walls and ceiling that catch mishits and block light. For a net, see golf simulator nets.
Carl's Place puts the DIY Enclosure at about an hour, the Pro at about two hours and the Curved at about four hours with a couple of helpers.
The Net Return Floating Screen bay sets up with no tools. The Built-In kit is construction-level work with lag screws and a laser level.
On the Pro Enclosure, yes. Carl's Place builds its 2 inch frame to support projectors and overhead launch monitors, on the front bar or on the optional Movable Crossbar.
With a DIY Enclosure, electronics sit on the floor or mount to the ceiling.
Carl's Place recommends standing 10 to 12 feet from the screen and never closer than 10 feet. Standing closer brings bounce-back and raises the risk of injury.
Carl's Place screens and enclosure materials are wearable goods and carry no warranty, and impact screen sales are final. SIG enclosures carry a one-year limited warranty against manufacturing defects.
The Net Return bay carries The Net Return's manufacturer warranty, with the terms on the product page, and its screen sales are final.
For help matching an enclosure to your room, call 1-888-871-6110, or price the whole bay in the simulator builder.
Prices checked October 4, 2026.
