Curved All-In-One Golf Simulator
The Curved All-In-One Golf Simulator is a complete home golf simulator package you configure on this page: a Carl's Place Curved enclosure, whose triple-layer Premium impact screen wraps around the hitting area, in 18 sizes, 14 to 17 ft wide and 8, 10 or 15 ft deep, the 2-inch steel Pipe Framing Kit and Safety Baffle for that size, a Real Feel hitting mat, the BenQ LK830ST 4K short-throw laser projector with its ceiling mount, and the launch monitor of your choice from 22 radar, camera and overhead units. Every pick updates the price and the 3D view, and the whole build goes to your cart as one package. The starting price is the 14'W x 9'H x 8'D enclosure with its pipe kit and baffle, the Real Feel mat, the LK830ST and its mount at their live prices; any build is the sum of the live prices of the parts in it, so a sale on any part shows here the same day.
Carl's Place Curved Enclosure Assembly
Curved All-In-One Golf Simulator Includes:
- Curved Enclosure (14'W x 9'H x 8'D, Premium) - also available in 14.5'W, 15'W, 16'W or 17'W
- Pipe Framing Kit (9x14x8) - included; uncheck it in the builder if you are supplying your own EMT
- Safety Baffle (14) - included; uncheck it in the builder if your ceiling is already protected
- Real Feel Country Club Elite Mat (5'W x 5'L)
- BenQ LK830ST 4000-Lumen 4K Laser Projector (0.496:1 throw)
- Projector Ceiling Mount
Use the builder above to change the enclosure size, hitting mat or projector, or add a launch monitor, launch monitor ceiling Drop-Mount kit, back cover kit, landing pad, gaming computer or touch screen monitor.
Choose your launch monitor, or bring your own

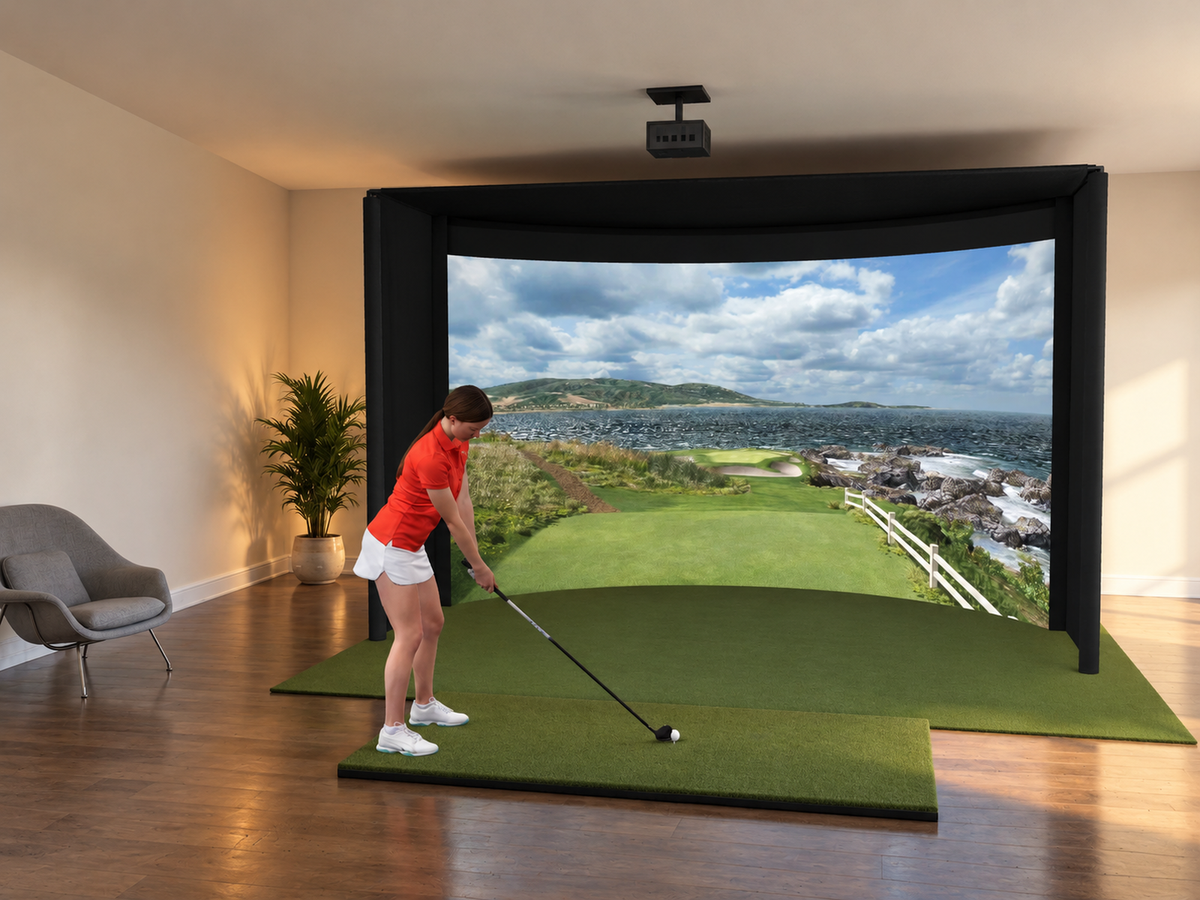

Twenty-two launch monitors are available on this page, from the Swing Caddie SC4 PRO and Garmin Approach R10 to the Foresight Sports GCQuad and QuadMAX. The default is BYO Launch Monitor: the package ships without one and you can add a unit any time. Pick one and the price and the 3D view follow it.

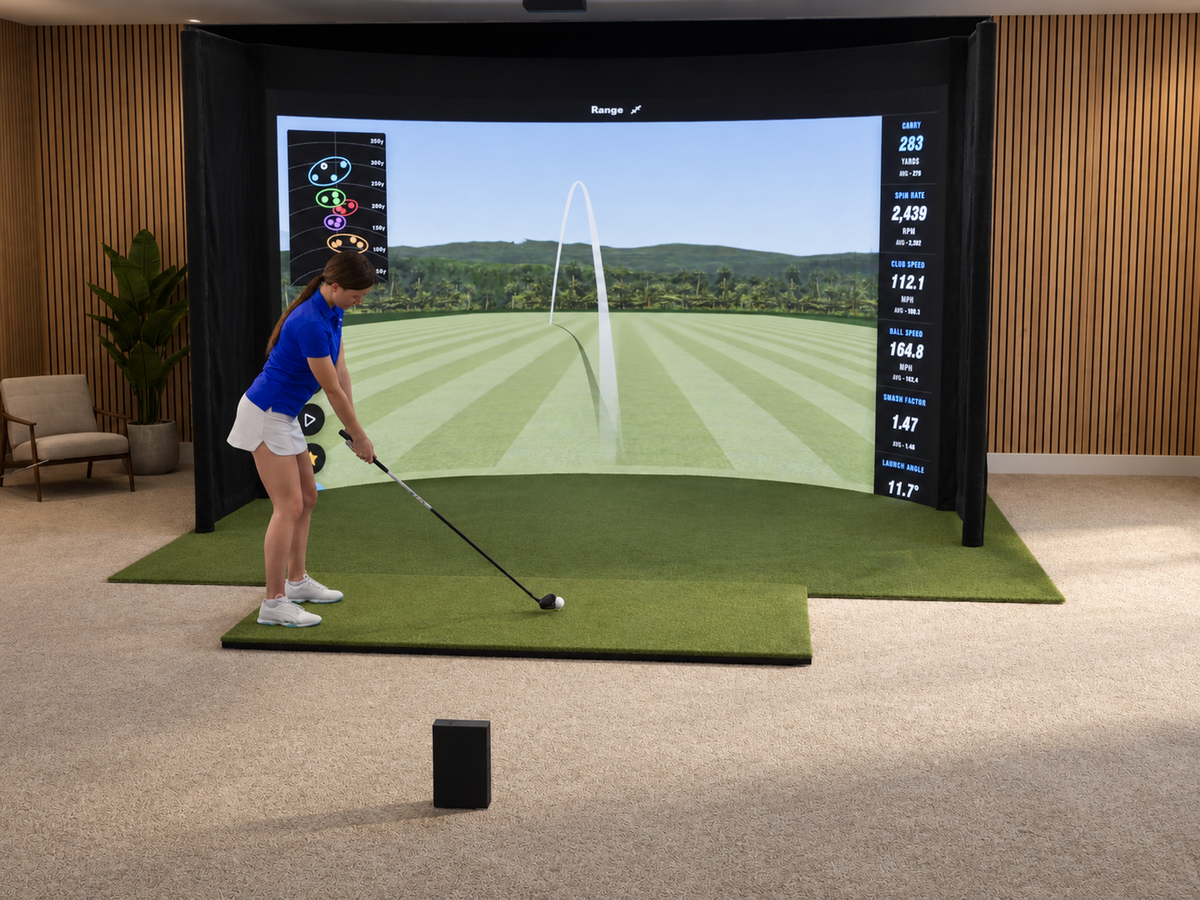

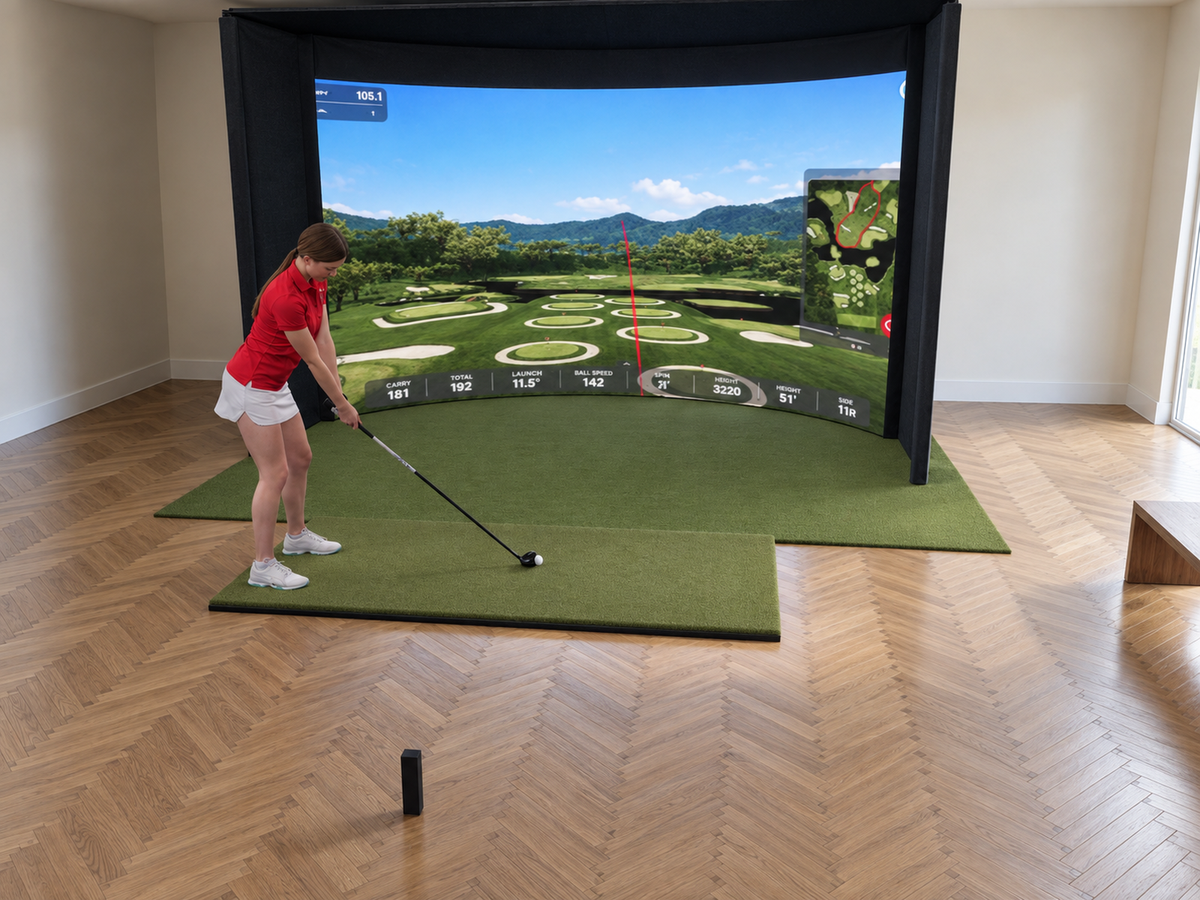

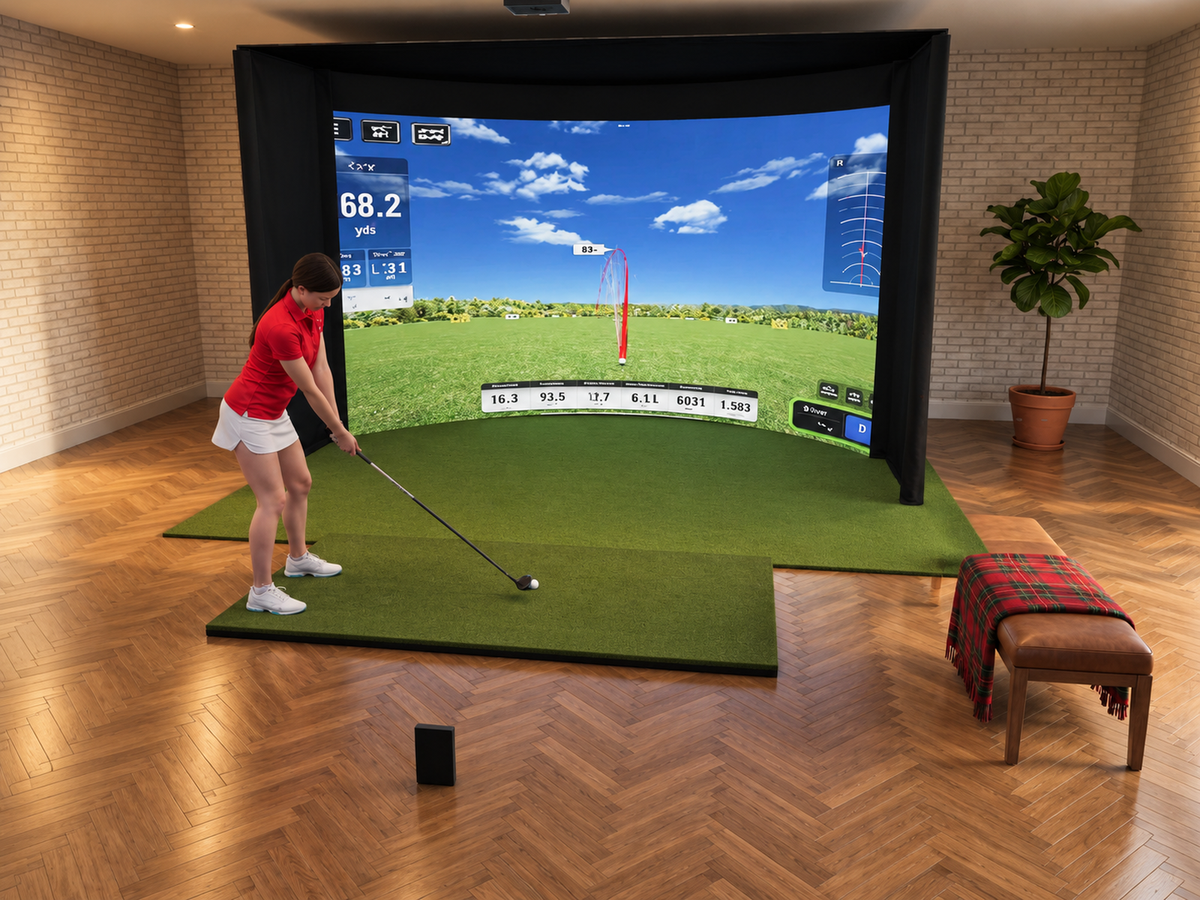

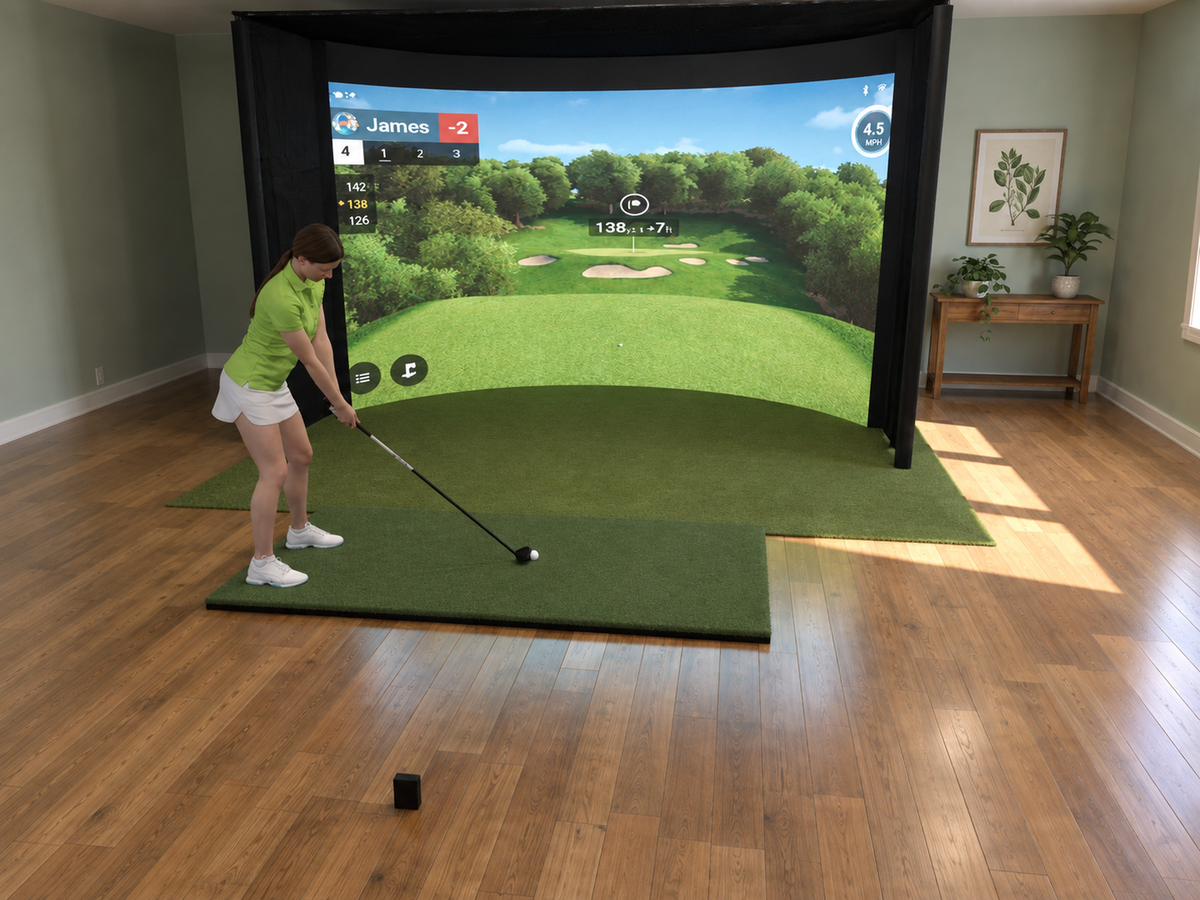

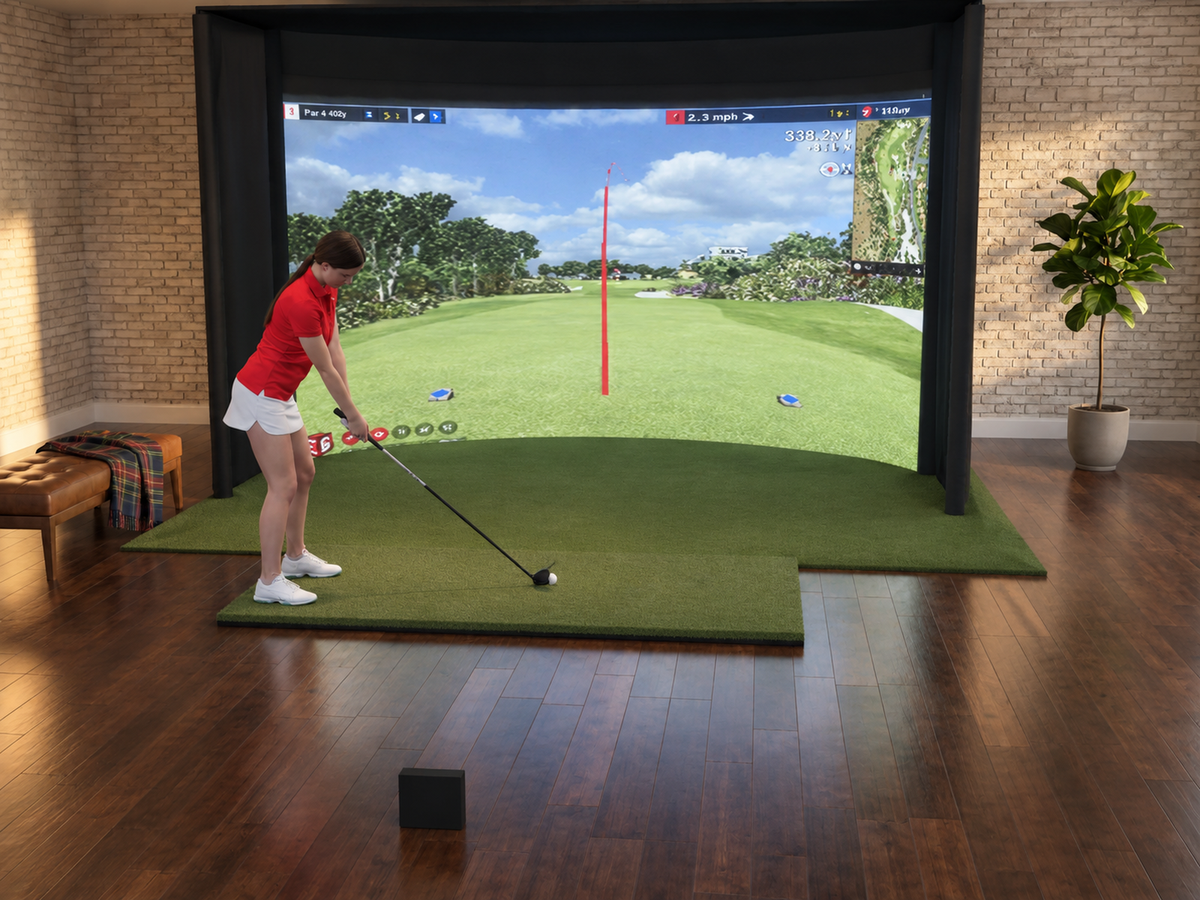

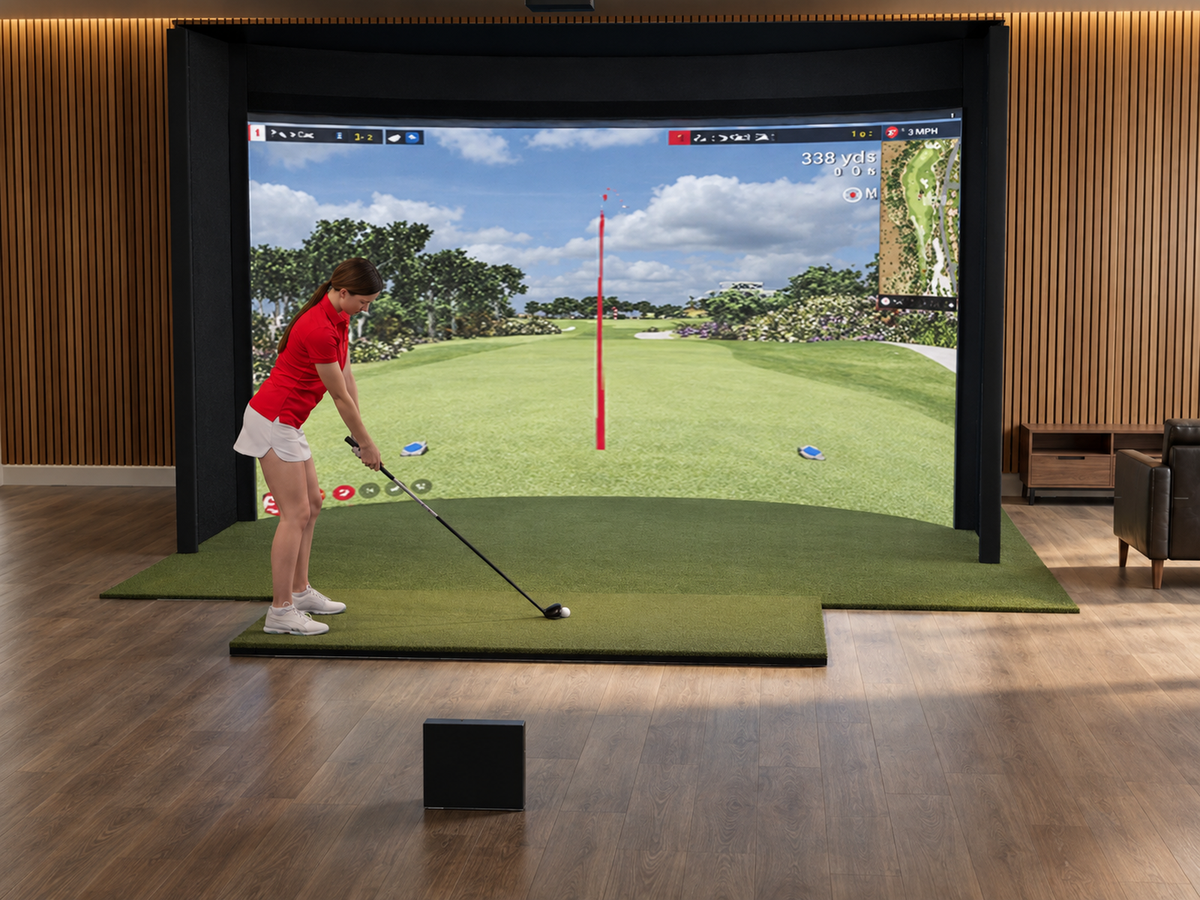

- Behind the ball: Swing Caddie SC4 PRO, Garmin Approach R10, Rapsodo MLM2PRO, FlightScope Mevo Gen2, Full Swing KIT, FlightScope X3C

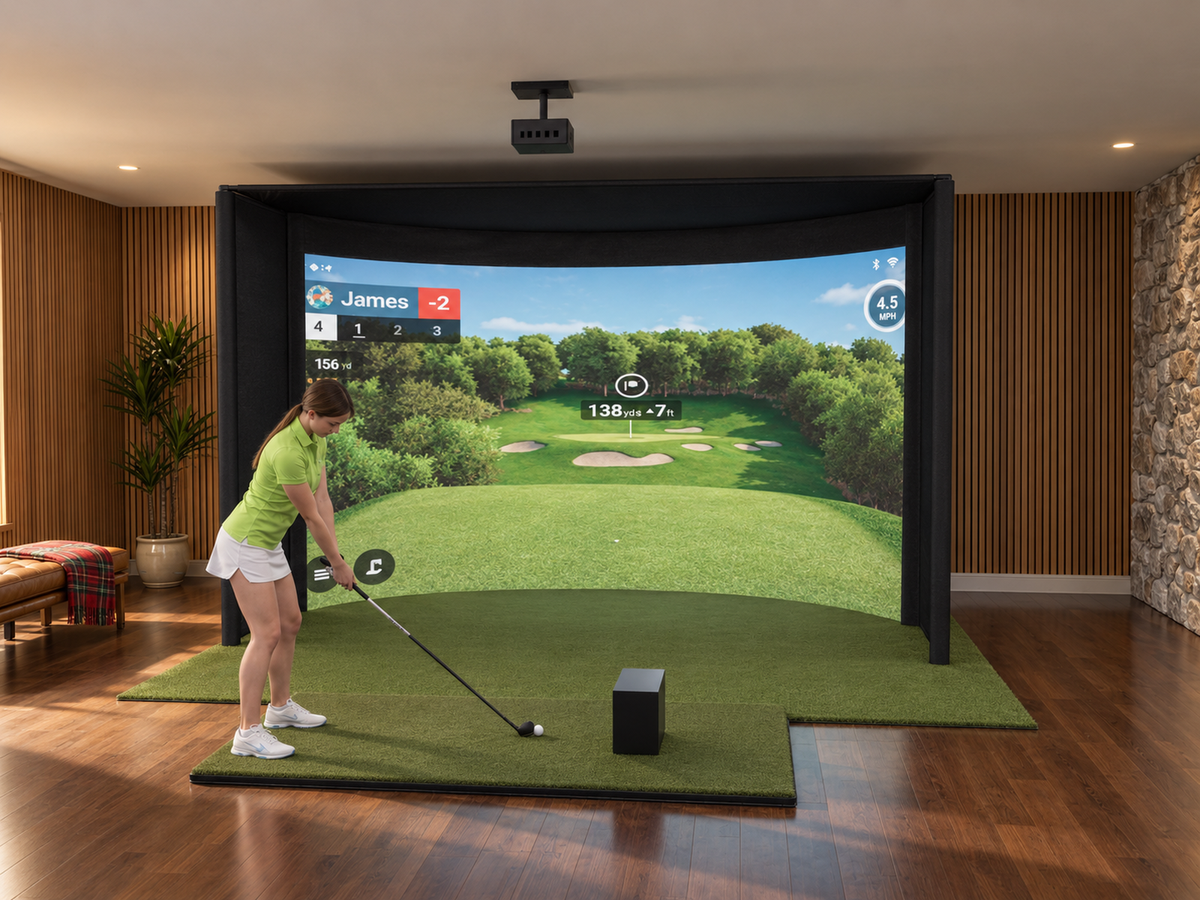

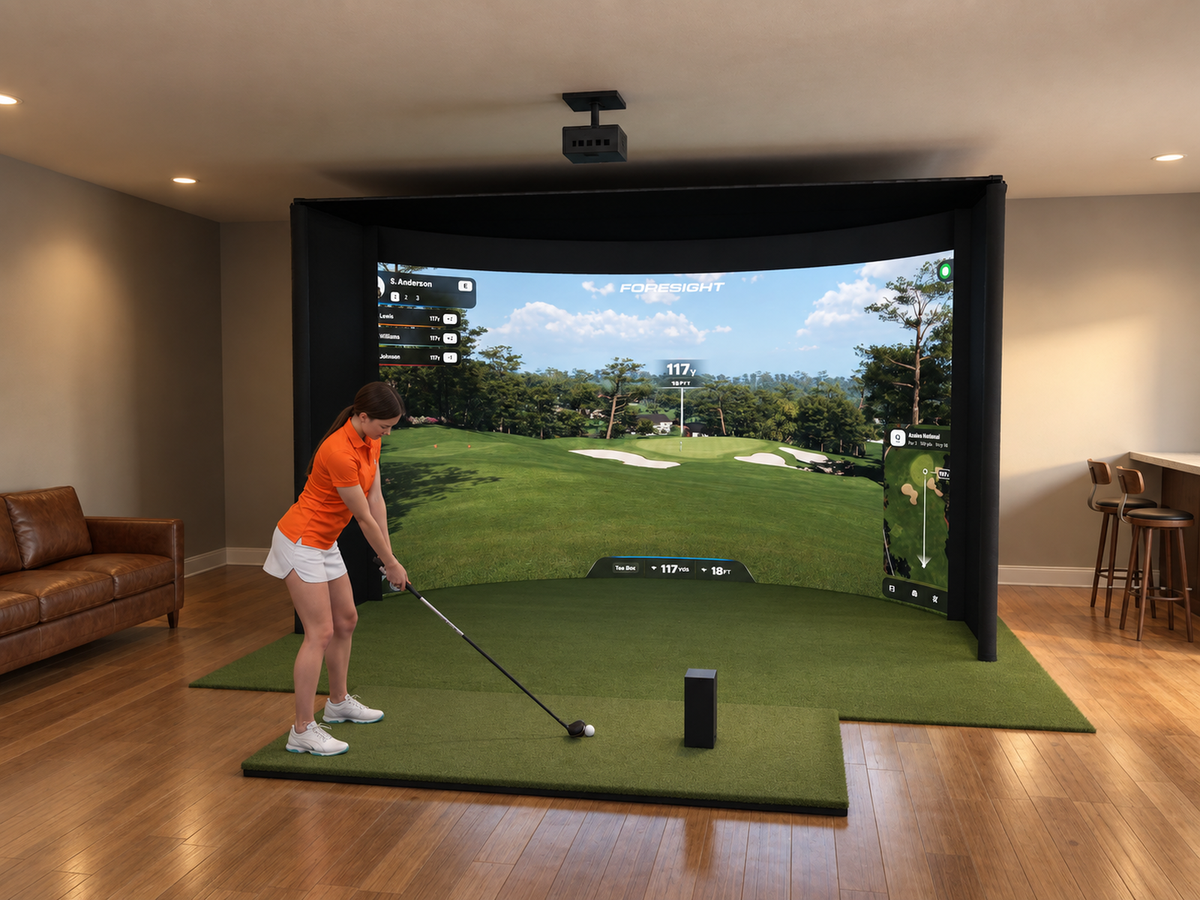

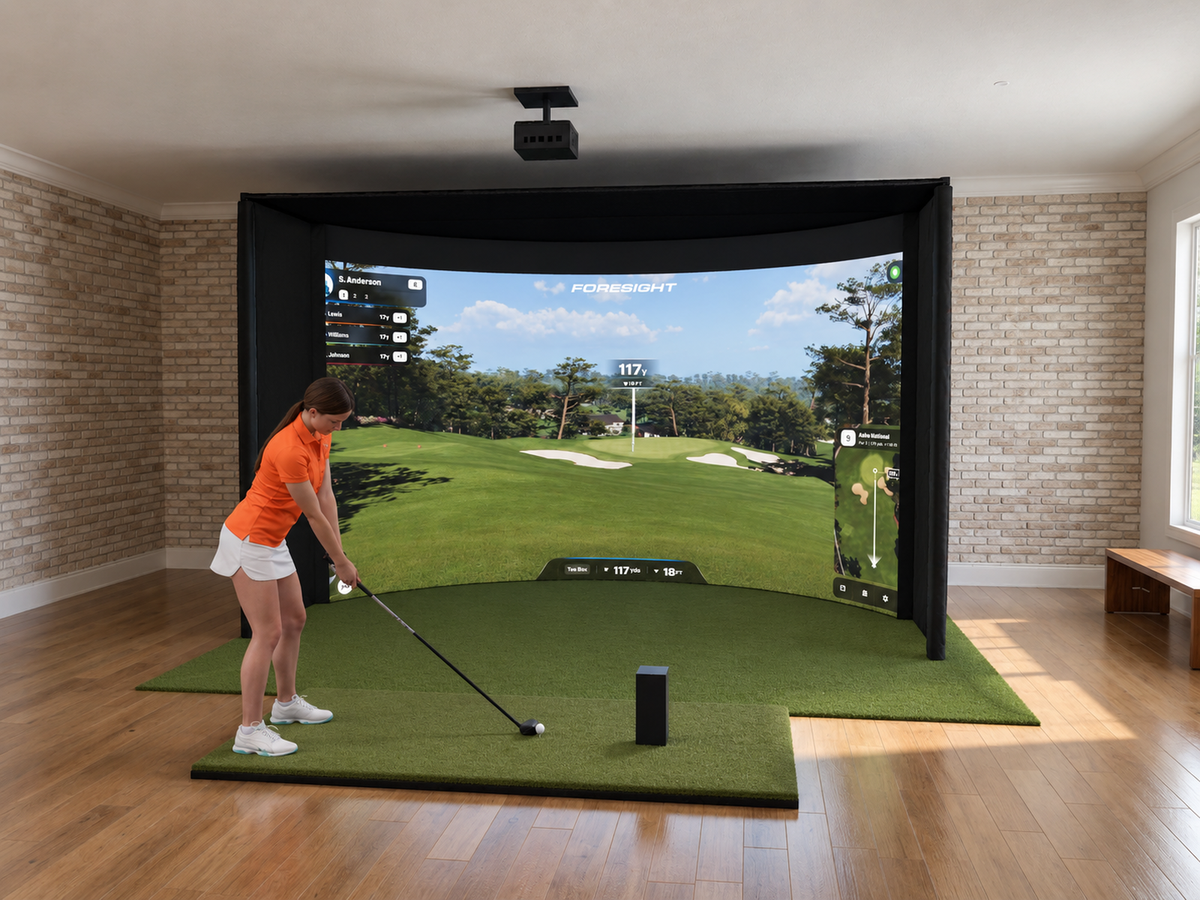

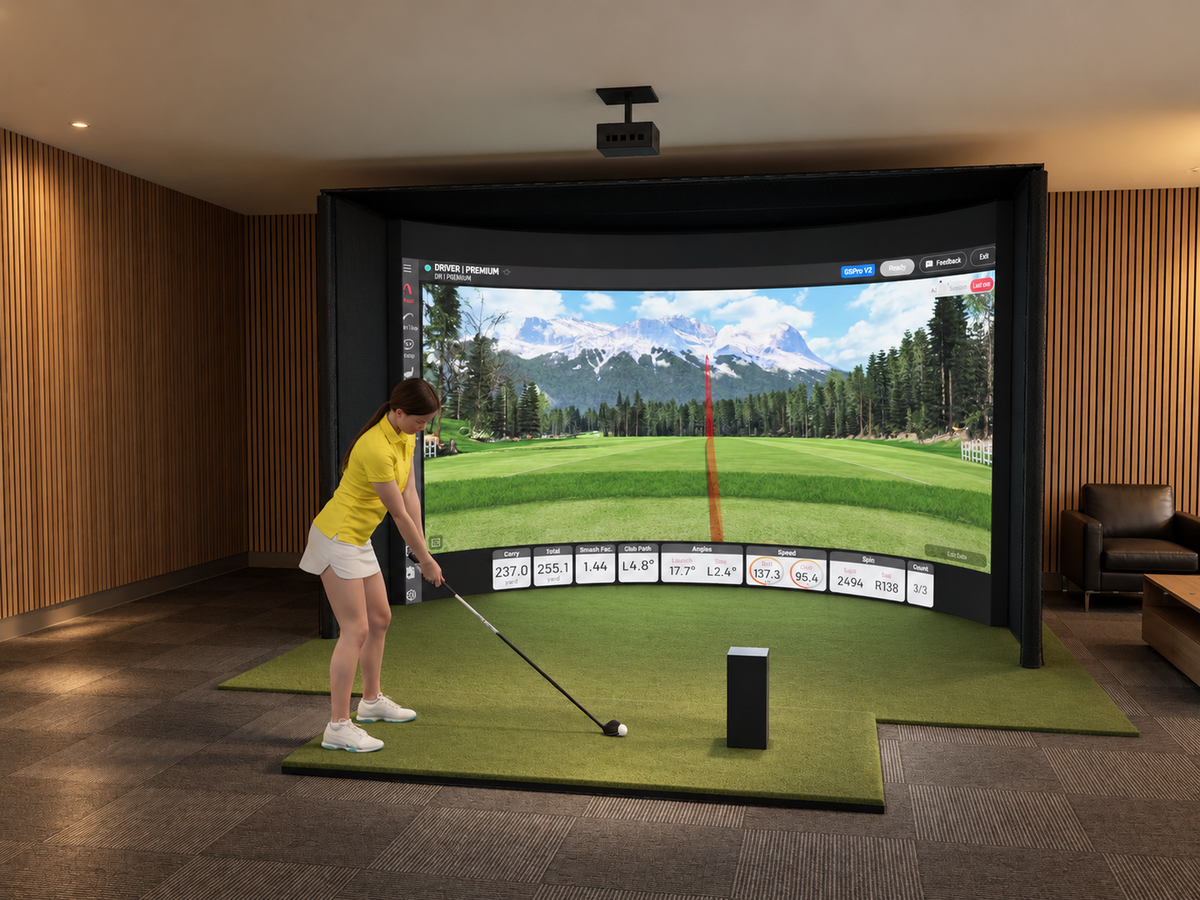

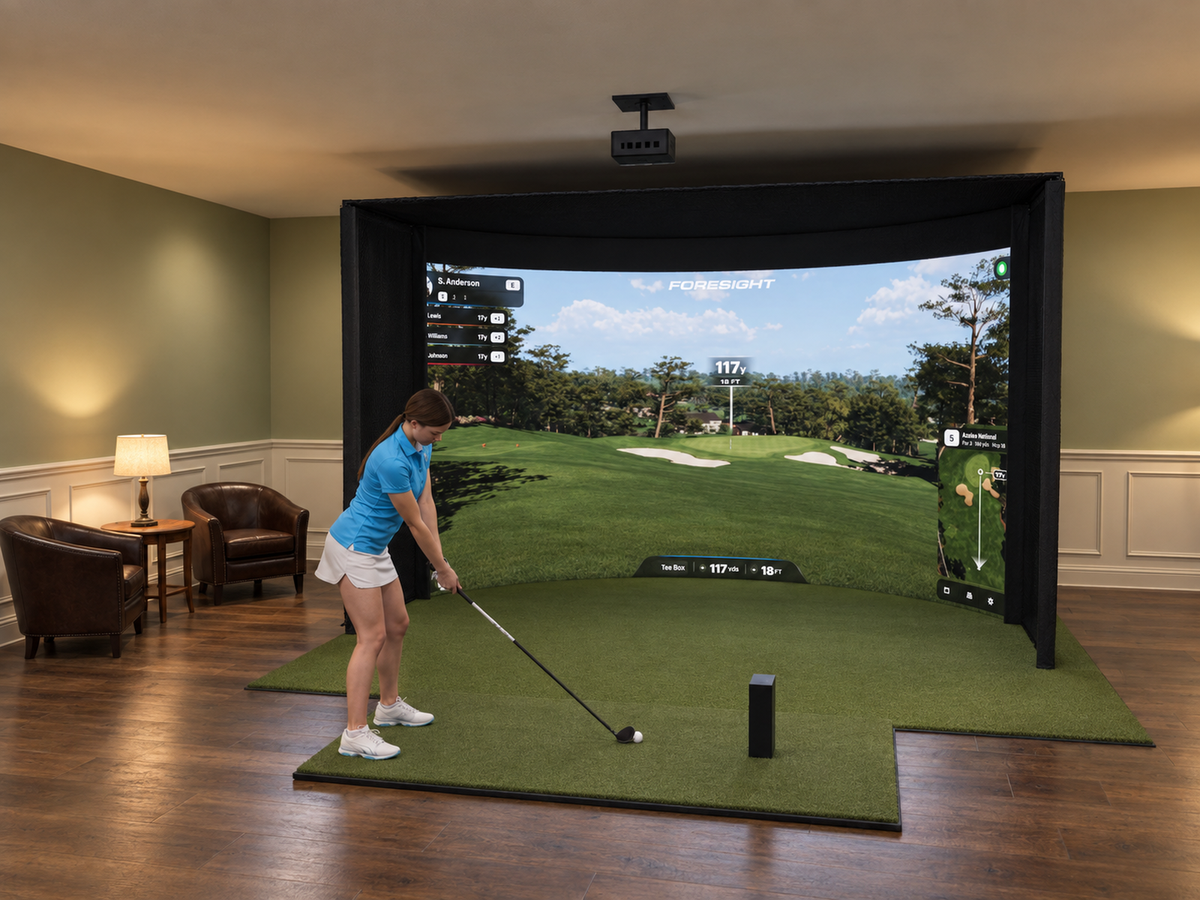

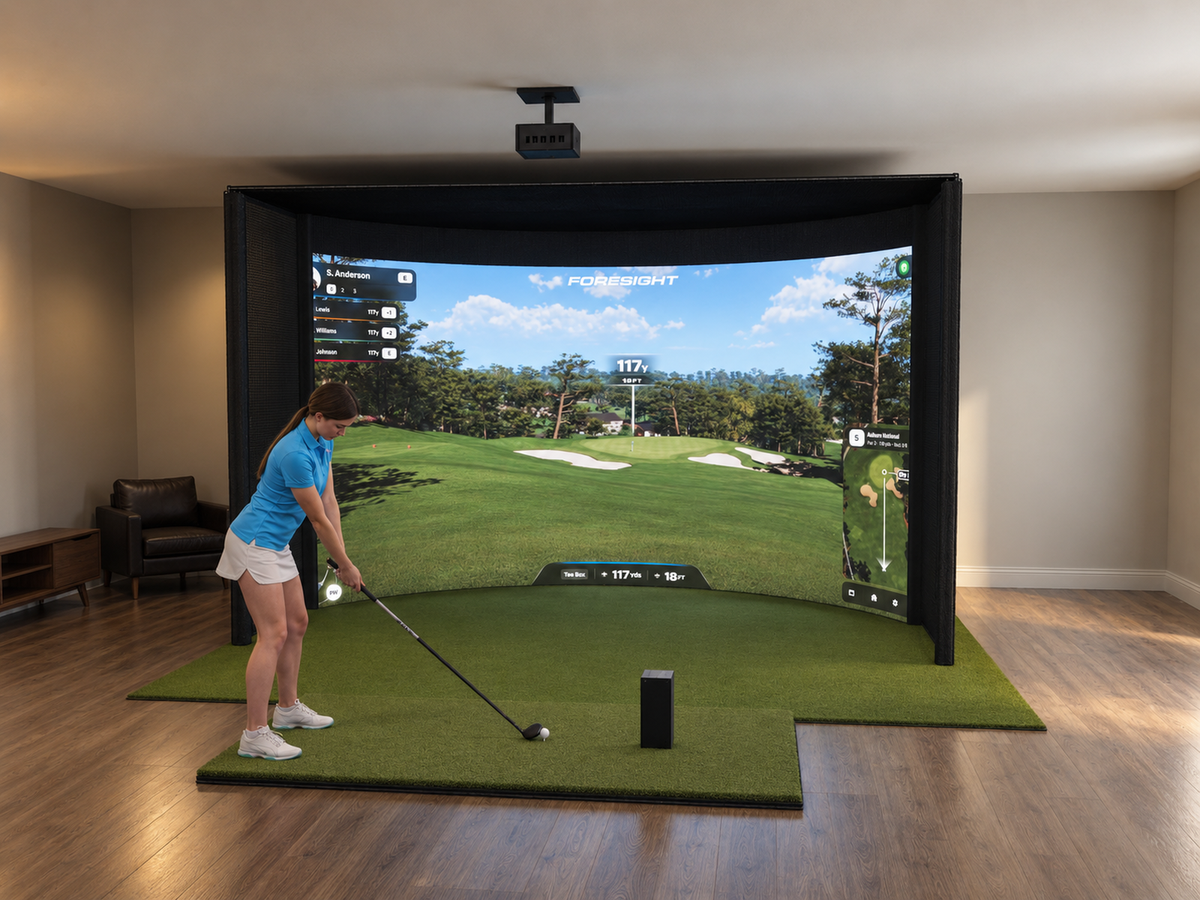

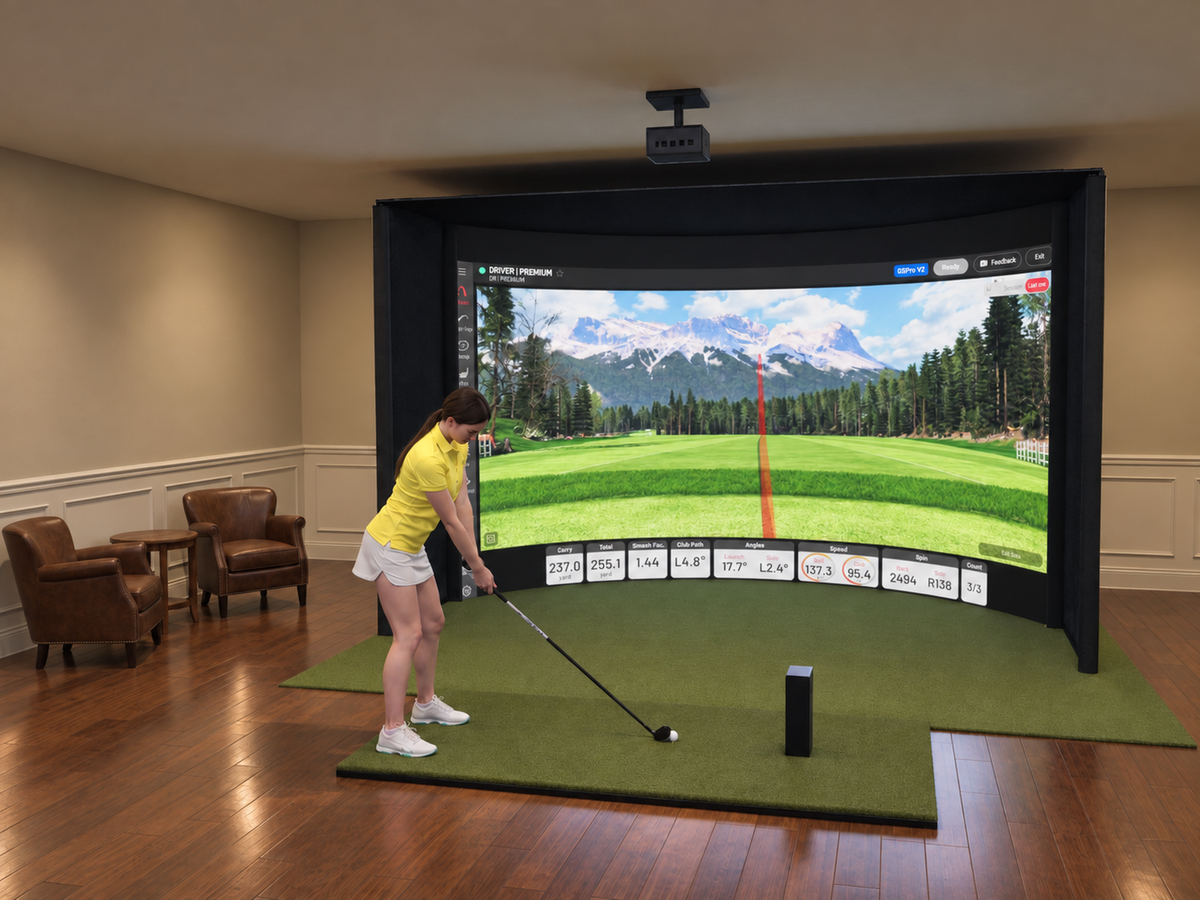

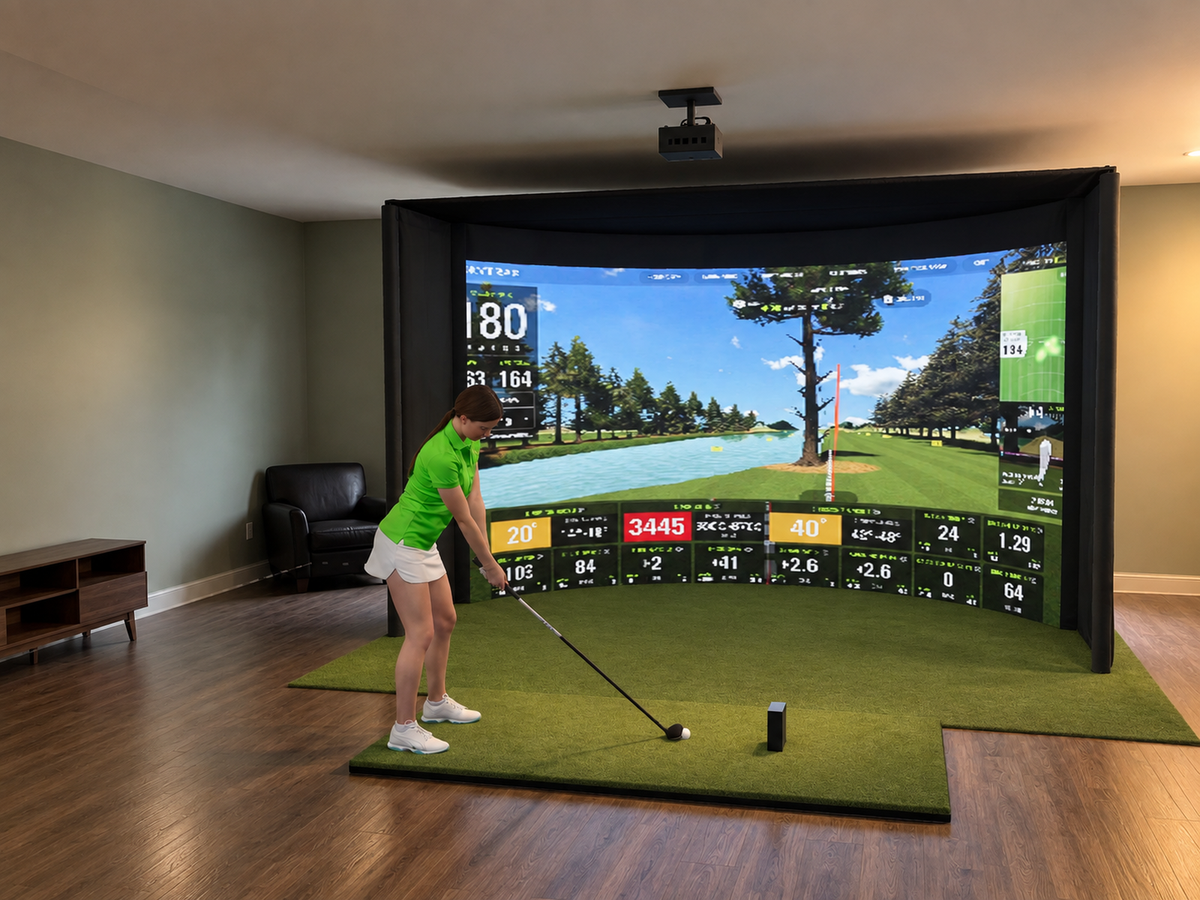

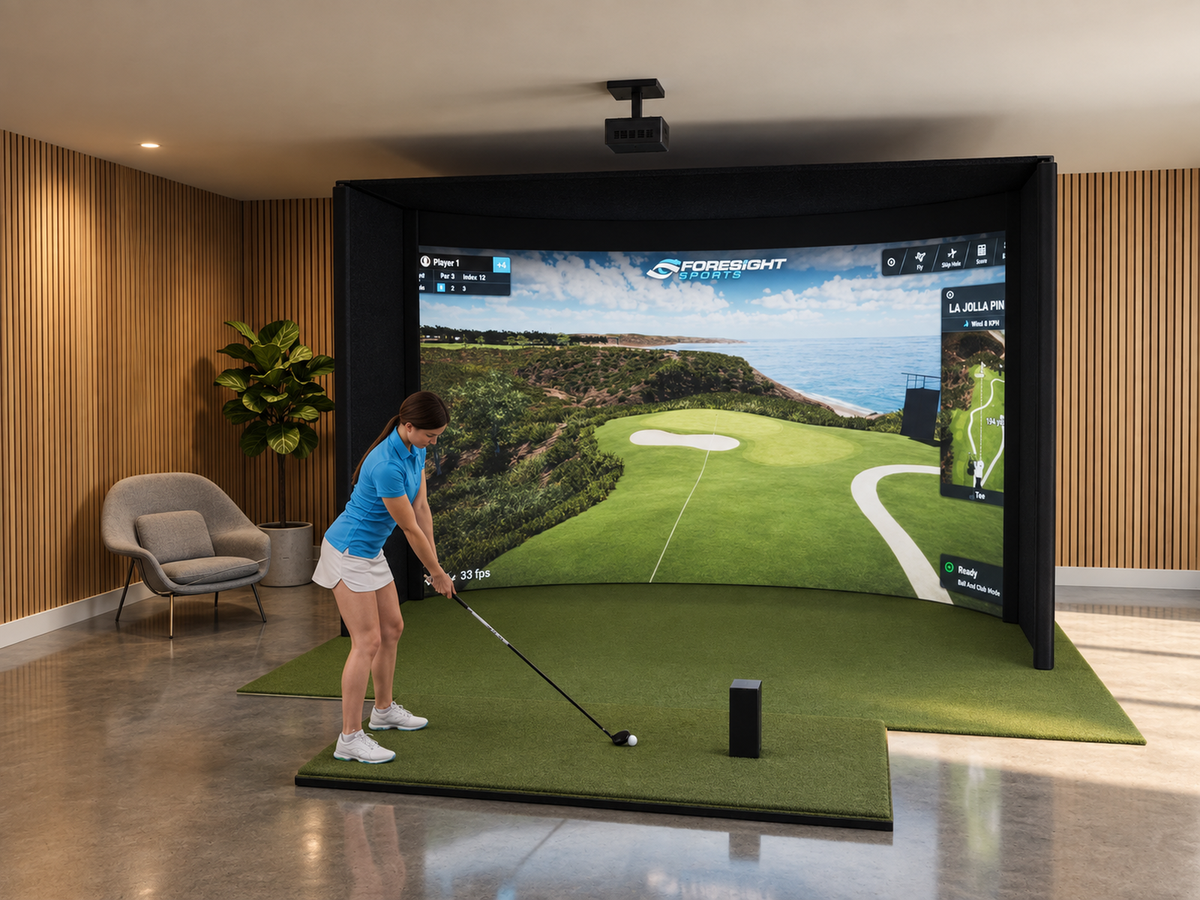

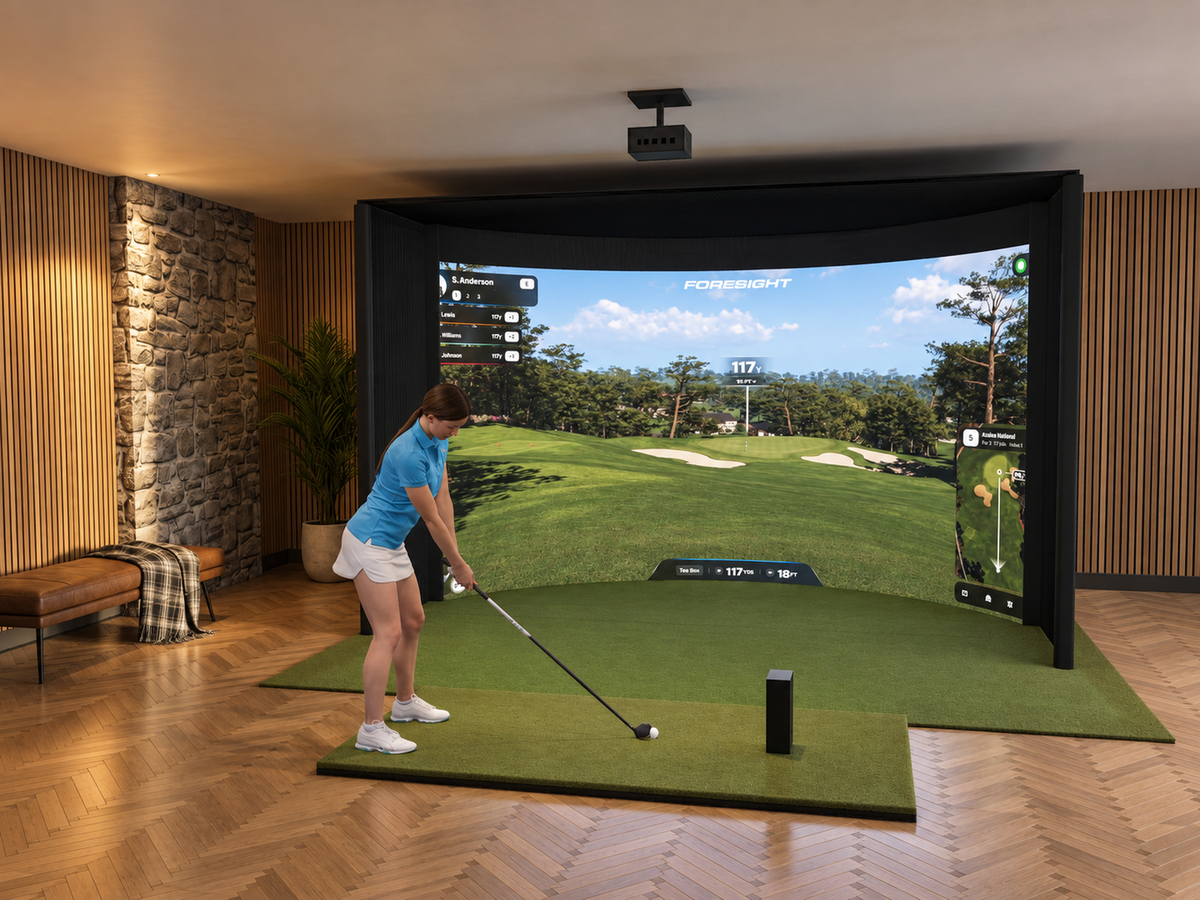

- Beside the ball: SkyTrak ST MAX, Bushnell LPi Circle B Edition, Uneekor EYE MINI LITE, Bushnell Launch Pro Circle B Edition, Uneekor EYE MINI, Foresight Sports GC3S, Garmin Approach R50, Foresight Sports GC3, Foresight Sports GCQuad, Foresight Sports QuadMAX

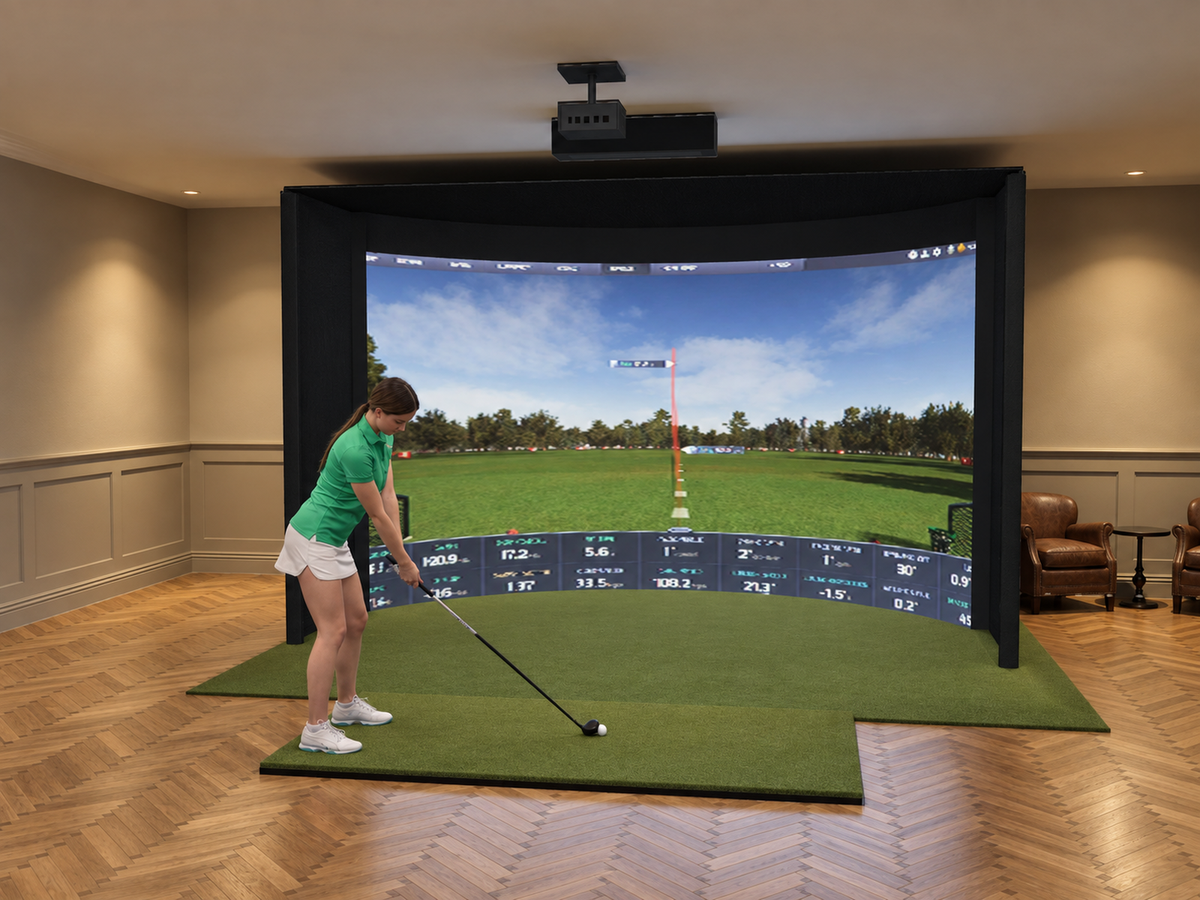

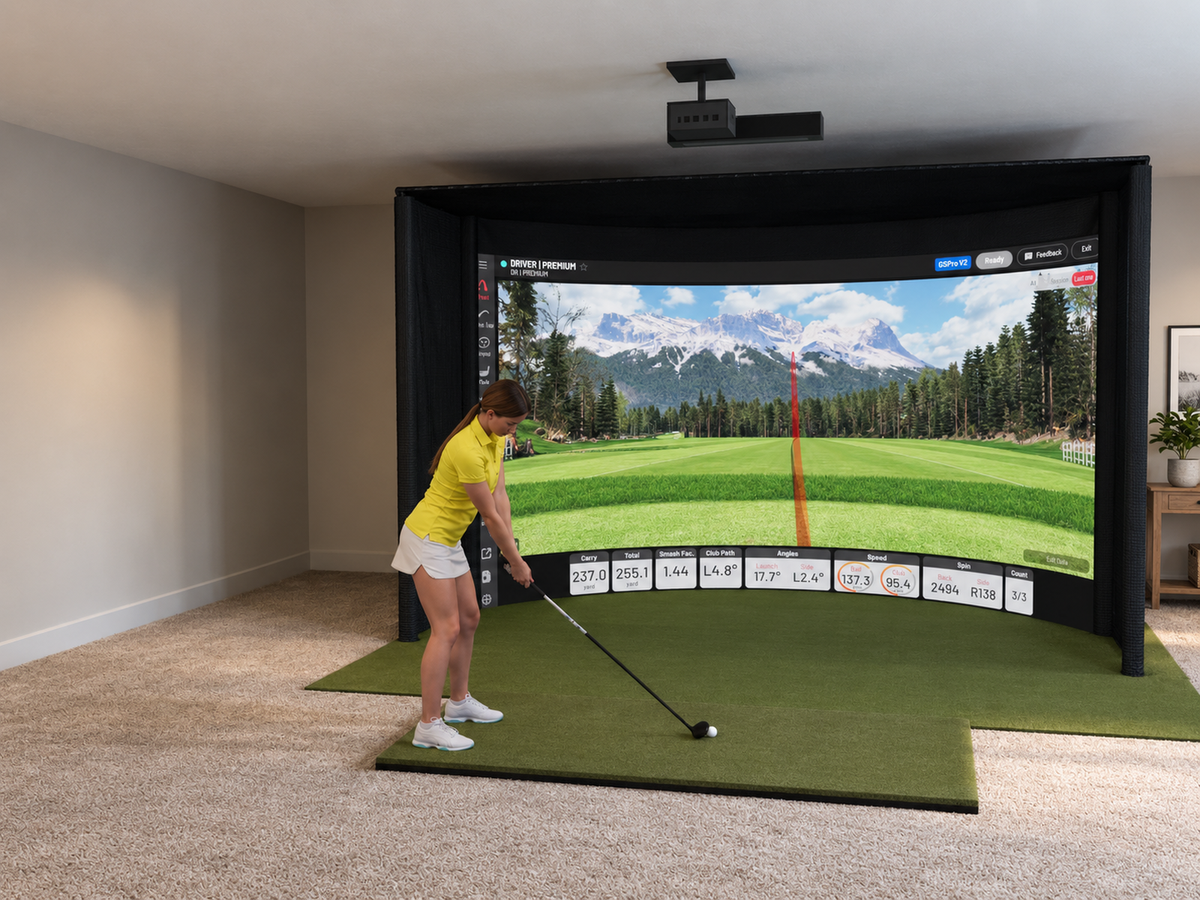

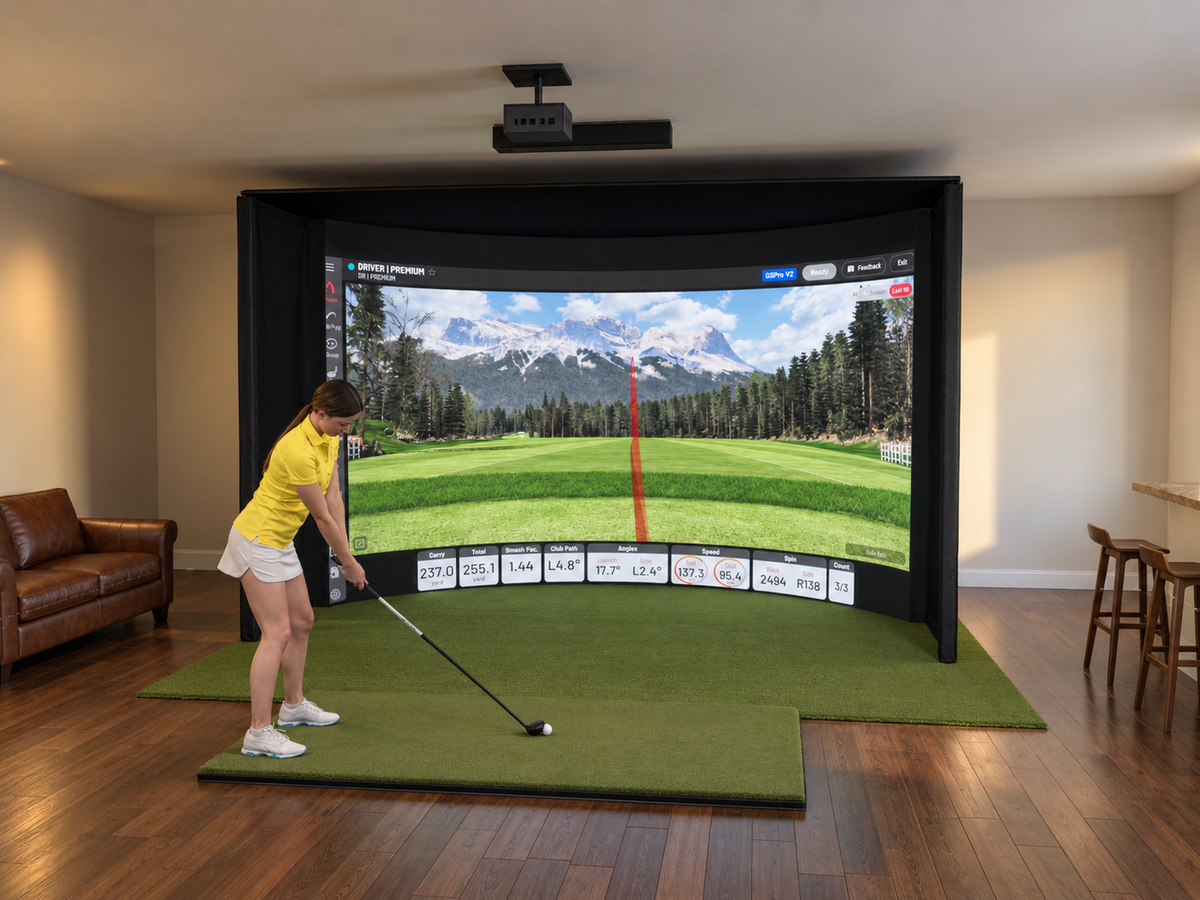

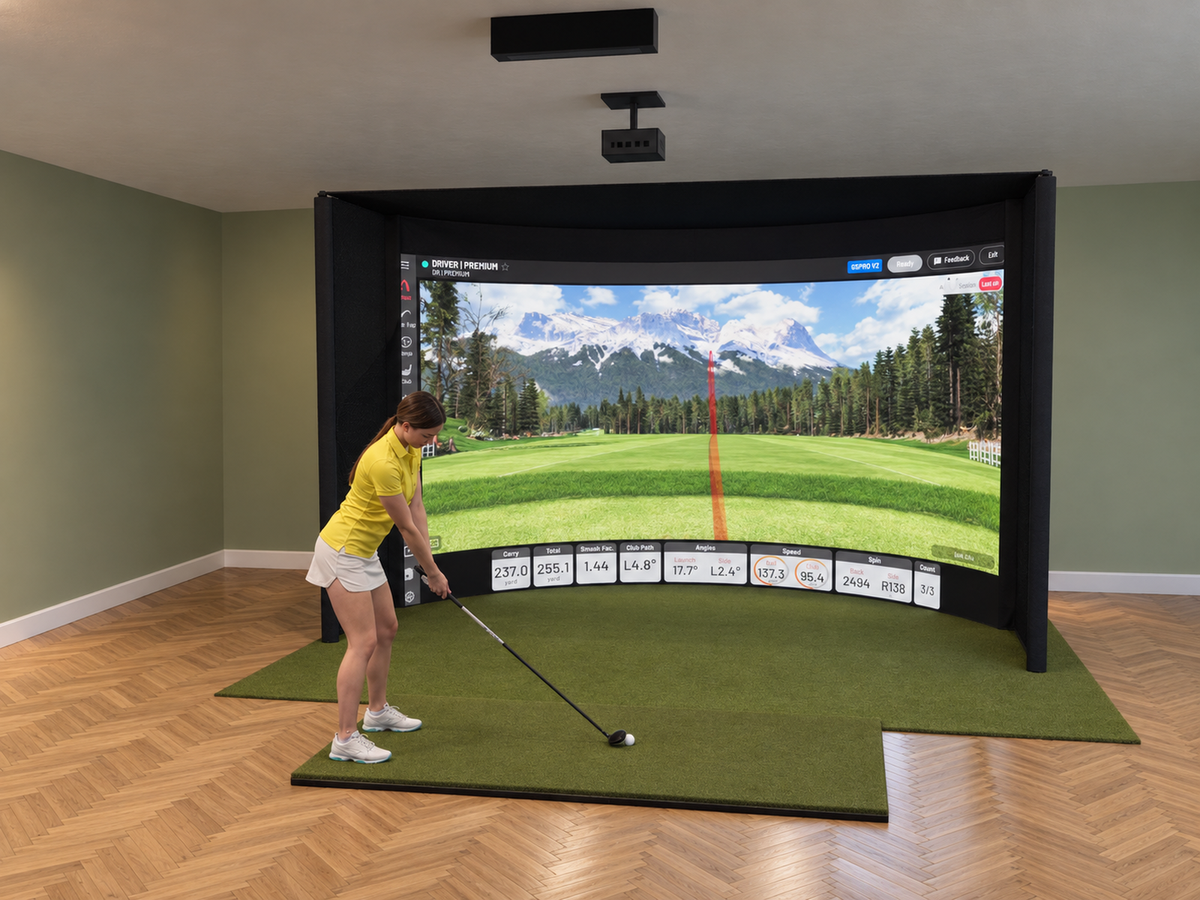

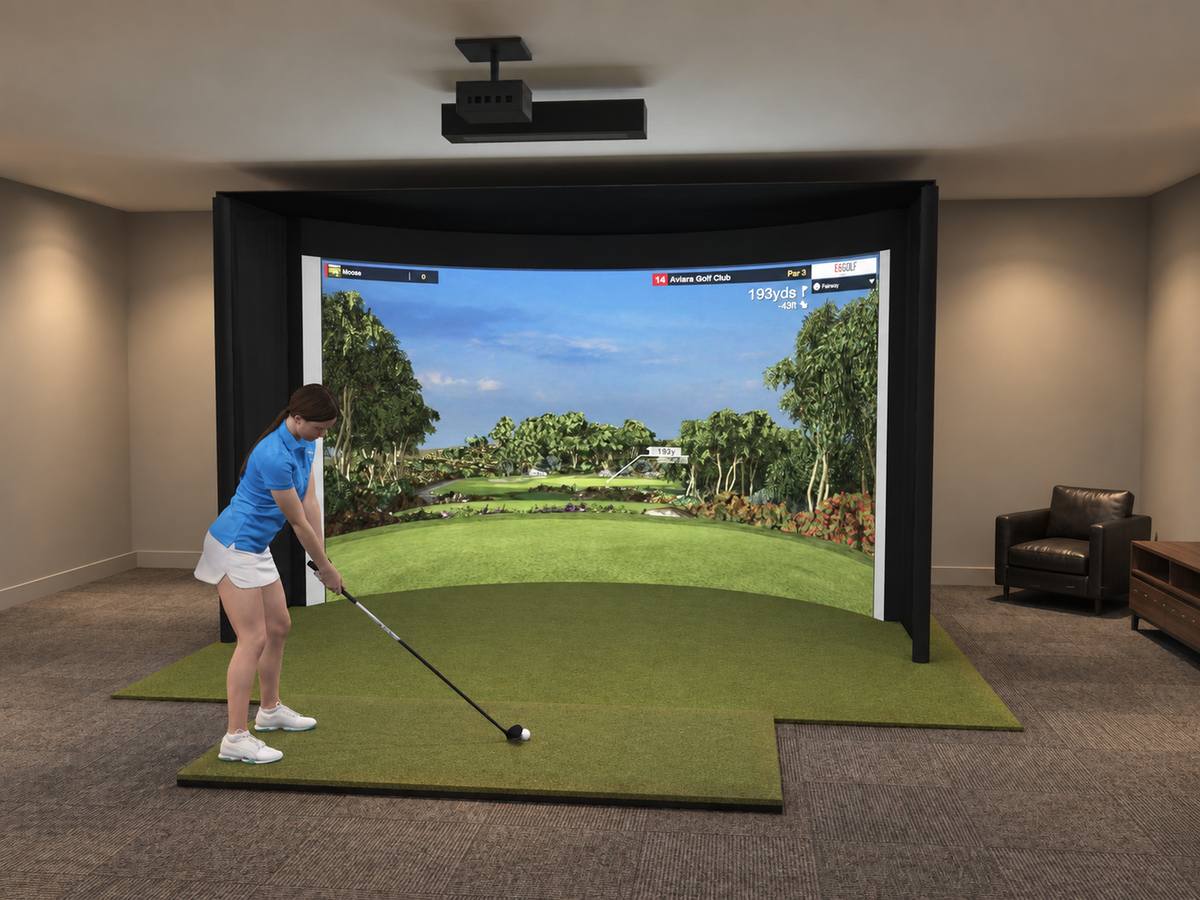

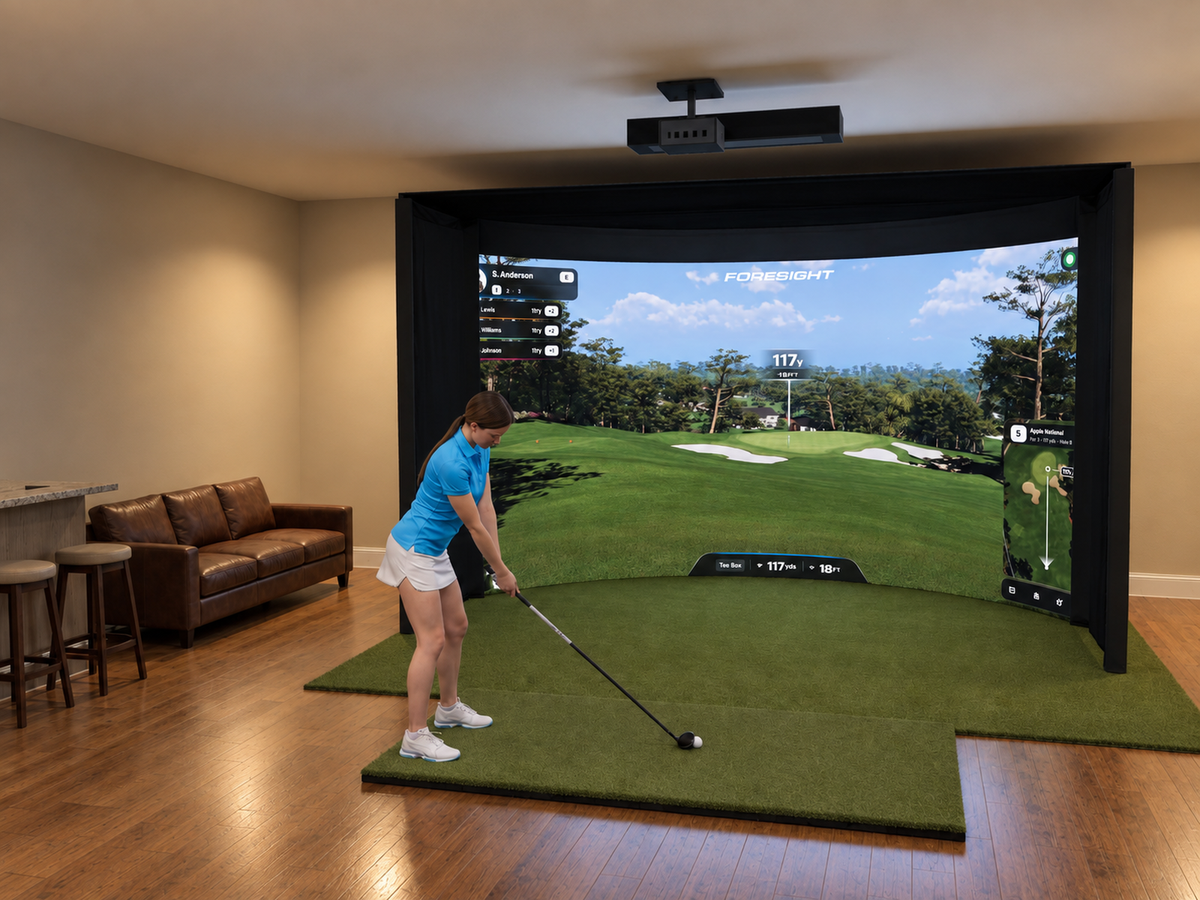

- Overhead, on the ceiling: Uneekor EYE XR, Uneekor EYE XO, ProTee VX, TruGolf APOGEE, Uneekor EYE XO2, Foresight Sports Falcon. Overhead units are ceiling-specific: 9 to 10 ft for ProTee VX and TruGolf APOGEE (drop mount above 10 ft), 9.5 to 10.5 ft for the Foresight Falcon (drop mount above 10.5 ft), and 9 to 10 ft for Uneekor EYE XR, EYE XO and EYE XO2 (drop mount above 10 ft).
For an overhead unit the builder also offers Carl's Launch Monitor Ceiling Drop-Mount Kit, cut for the Uneekor EYE XR, EYE XO and EYE XO2, ProTee VX, TruGolf APOGEE and Foresight Falcon in 6 in to 9 in, 12 in to 18 in, 2 ft to 3 ft and 3 ft to 5 ft drops for a level or a sloped ceiling.
Not sure which one? The launch monitor comparison lines them up by accuracy, placement, software and price, and the golf simulator builder sizes a full setup to your room.
Carl's Place Curved Golf Simulator Enclosure
Carl's Place builds its Curved enclosure for DIY assembly. The side walls angle back so the picture fills your peripheral vision, and the same triple-layer screen that runs in Carl's flat enclosures takes full-speed drives in the middle of it. The Carl's Place Curved Golf Enclosure Kit is a 2-inch steel EMT frame with steel fittings and elbows at every joint, BlackStop ceiling and wall panels, foam inserts to protect the frame from shanked shots, zip ties and instructions, made in the USA. Six sizes, each in three depths, all with the Premium screen; the High-Contrast Gray screen is sold on the enclosure page, where you pick the projector for it yourself.
Room minimum, to the inch. Width is Carl's overall frame plus a 3 in buffer on each side; height is the frame plus the 6 in Carl's asks for above a curved kit; depth is 12 in of clearance behind the screen, which covers the 9.5 in backset rear fitting, then 10 ft from the screen to the tee and 5 ft behind the tee to swing, which comes to 16'0" for every depth because the enclosure sits inside that run instead of adding to it. Figures are rounded up to the next inch. Depths are true to size: 105.5, 129.5 and 189.5 in overall, including the 9.5 in rear fitting. The screen is wider along the curve than across its face; the picture your projector fills is the width at the projection plane.
Power. Everything in the package plugs into ordinary 120 V household outlets; no dedicated circuit or hardwiring is needed. The projectors run on a 100 to 240 V supply and draw 212 W (BenQ AK700ST) to 440 W (BenQ LK936ST), a gaming PC is a standard desktop tower or laptop, and the launch monitor runs on a small power adapter or its own battery, so one 15 A circuit carries the whole bay. Plan an outlet at the ceiling for the projector and one near the tee for the launch monitor and computer.
Pipe Framing Kit and Safety Baffle, included
Bought on its own, the Curved kit comes with the fittings and you buy the 2-inch EMT yourself. This package includes the Pipe Framing Kit: every pipe in the exact lengths for your enclosure, no cutting. Carl's does not cut the curved pipes down, so the pipe kit ships separately: free no-rush delivery (about 2 weeks). Paid ground delivery is available when the kit is ordered on its own. Sourcing pipe locally is the cheaper route if you would rather cut your own; uncheck the kit in the builder and its line goes with it.
The Safety Baffle hangs above the hitting area and stops a ball that skips off the top of the screen before it reaches the ceiling. Both follow the enclosure size you pick. The Back Cover Kit is optional: it closes the back of the enclosure to block light and contain balls; pipes for the back cover are sold separately and are not an option in this builder.
Hitting mat
The package ships with the Real Feel Country Club Elite Golf Mat, 5'W x 5'L. Its long, dense fibers let you swing down and through the turf the way you would off a fairway, it takes a real wooden tee, and the base absorbs the strike so your joints do not.
Three Fiberbuilt mats are one click away in the builder, or remove the mat if you already have one:
- Fiberbuilt Performance Turf Tee Box Mat, 8'W x 4'L
- Fiberbuilt 7'x4' Grass Series Single-Hitting Studio Mat
- Fiberbuilt 9'x4' Grass Series Center-Hitting Studio Mat (right- and left-handed)
Optional: Tour Golf Landing Pad
The Tour Landing Pad cushions and quiets balls dropping off the screen, keeps them from scuffing the floor or rolling under the enclosure, and bridges the gap between the mat and the screen. The builder preselects the size we recommend, one foot wider than the enclosure, with the length matched to the depth: 13 ft on an 8 ft or 10 ft deep bay and 16 ft on 15 ft. The pad starts at the deepest point of the curve, and the tee distance is measured from the leading edge of the screen about 4 ft ahead of it, so the run is longer than on a flat screen of the same depth. Runs over 8 ft are two pads laid end to end. The Width and Length menus let you go wider or longer, and the width is cut to your exact number after ordering.
- 15'W for the 14'W enclosure
- 15.5'W for the 14.5'W enclosure
- 16'W for the 15'W enclosure
- 17'W for the 16'W enclosure
- 18'W for the 17'W enclosure
Projector and ceiling mount
A curved screen needs a very short throw, so the projector sits close enough to the screen that you can stand 10 ft back and swing without your shadow on the picture, and it needs the image bent to fit a cylinder. The included BenQ LK830ST is a 4,000-lumen 4K laser with a 0.496:1 throw, the shortest in the builder, and a Warping menu that maps the picture onto the curve across a 5x3 grid. The BenQ AK700ST and LK936ST also warp in firmware, on grids up to 24x15, for a larger or brighter picture, though both throw 0.69:1 or longer. Every projector in this builder warps in firmware, so none of them needs its geometry corrected in software on the simulator PC. The included ceiling mount tilts and rotates for image alignment and switches to the right model for whichever projector you choose. Carl's Universal Projector Mount is in the builder too: flush to a level ceiling, bolted to the enclosure frame, or on a 6 in to 9 in, 12 in to 18 in, 2 ft to 3 ft or 3 ft to 5 ft drop for a level or a sloped ceiling. Remove the projector and the mount goes with it. The projector calculator shows the mount distance for your screen size.
The mount distance under each projector in the builder is measured from the viewable screen of the enclosure size you pick, not the frame, using the screen width across the face of the curve that Carl's publishes for each size, with the 16:9 picture sized to fill that screen. When the projector's shape matches the screen, the picture fills it exactly; when it differs, the picture matches the screen on one side and runs past it on the other, and the extra lands past the white screen on the enclosure walls. That is normal: set the simulator PC (display or graphics settings) or the projector, if it has a screen-fit setting, to your screen's shape and those strips stay dark. With the included LK830ST on the base 14'W x 9'H enclosure, that puts the lens about 7.3' from its 13.3' x 8.2' viewable screen.
- BenQ LK830ST 4000-Lumen 4K Laser (0.496:1 throw), included
- BenQ AK700ST 4000-Lumen 4K Laser (0.69-0.83:1 throw)
- BenQ LK936ST 5100-Lumen 4K Laser (0.81-0.89:1 throw)
Optional: SurfThing gaming computer and touch screen
Simulation software such as GSPro, E6 Connect and FSX Play needs a gaming-class computer, and the one you pick here arrives ready for it. SurfThing builds them for golf simulation: 32GB DDR5, a 2TB SSD and an NVIDIA RTX 50-series GPU, in a desktop tower or a laptop. With the desktop PC, add the SurfThing DT2424H 23.8-inch touch screen to start rounds, review data and scrub swing video without walking back to a keyboard. It is not offered with the laptop, which has its own screen.
- SurfThing Enhanced Level PC: Core Ultra 5 with RTX 5070 Ti, 32GB DDR5, 2TB SSD
- SurfThing Enhanced Level Laptop: Core Ultra 9 with RTX 5070, 32GB DDR5, 2TB SSD
- SurfThing DT2424H 23.8" Touch Screen Monitor, 1080p, 75Hz, 10-point touch (with the desktop PC)
See your build in 3D, then share it
The second gallery thumbnail opens an interactive 3D view of your build at real size, with the launch monitor where it belongs: behind the ball, beside it or overhead. Drag to rotate, pinch or scroll to zoom, open it full screen. Share build saves the configuration to a short topshelfgolf.com link with a picture, for a spouse, a contractor or us, and the link rides along on your cart line and order.
