Build Your Built-In Golf Room
Size it to your room, down to the inch.
Your Room
Screen Material
Top Masking
Surface Protection
Padded Panel Depth
Left Wall Curtain
Right Wall Curtain
Finish
Room Tiles
Your Build
What You Get
- Sized to the inch: any width from 8 to 20 ft and any height from 8 ft to 10 ft 9 in, sewn to the numbers you set.
- Every surface is your call: pad a wall, hang a curtain, or leave it open, with depths set per surface.
- See it before you buy: the live 3D view draws your room from the front and from above as you build.
- Confirmed before production: we go over your exact dimensions, masking, and layout with you before anything is sewn.
See It Built In
Answers Before You Build
The Built-In Kit mounts to a squared-off, finished room. The screen spans the full wall.
Room requirements
- The width slider takes any wall from 8' to 20' wide, in whole inches.
- Keep at least 12" of free and clear space behind the screen.
- Allow around 6" in front of the screen for the flaps and starter panels.
- Set your tee at least 10' back from the screen.
- For a centered tee, a room at least 14' wide is recommended.
Measure wall to wall and set the slider to that number. The screen is sewn to it, and the price updates as you move it.
Your exact wall dimensions are confirmed with you before the screen is made, so the kit arrives fitting your room the first time.
Measure floor to ceiling and set the height slider to it. The builder takes any height from 8' to 10' 9", in whole inches, and prices the kit live from the real height you set.
Built-In screens are sewn with a section of black impact material across the top, called masking. It keeps the white viewable area at a clean aspect ratio even though most rooms don't perfectly match one. Built-In masking is adjustable from 4" to 12" and is safe for impact.
Because the screen is custom-made, we confirm your exact ceiling height and masking before it ships.
All four materials are built to take real golf ball impacts. The difference is image quality, impact noise, and durability.
- Standard: the budget-friendly pick, perfect for first-time builds.

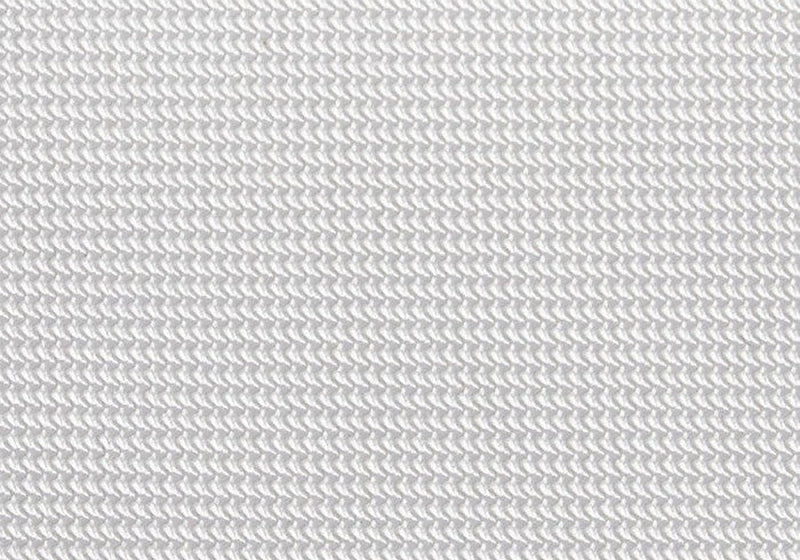

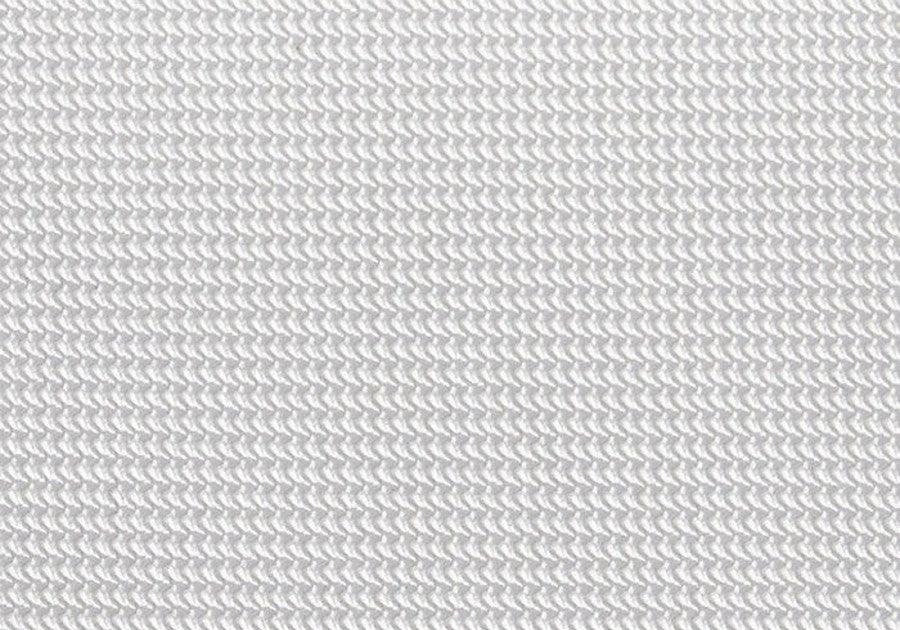

- Preferred: best value for home and light commercial use; smoother, tightly woven fibers for a better HD picture.

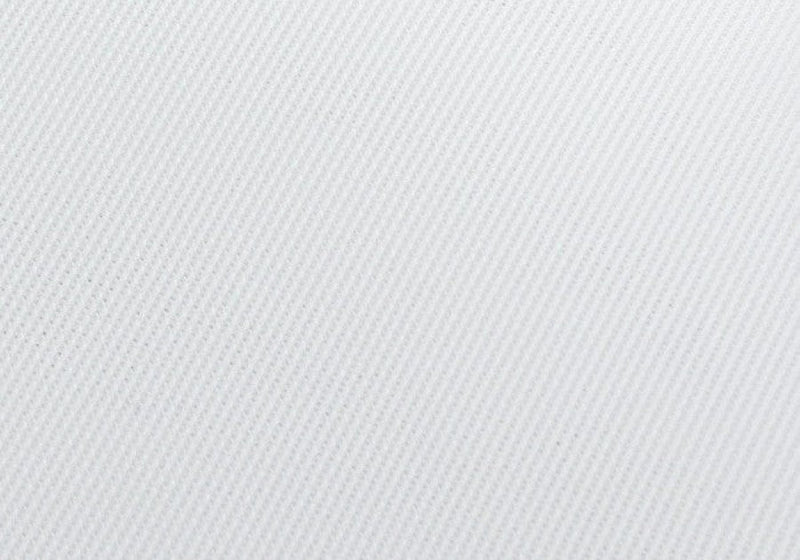

- Premium: three layers of heavy-duty, tight-knit impact-resistant polyester. Quiets ball impact and delivers the best image quality.
- High-Contrast Gray: premium-grade, impact-resistant material in a darker gray that deepens color and contrast; the best pick for rooms with more ambient light.
Protect and finish a side wall of your golf room. Choose one option per side, or leave it open.

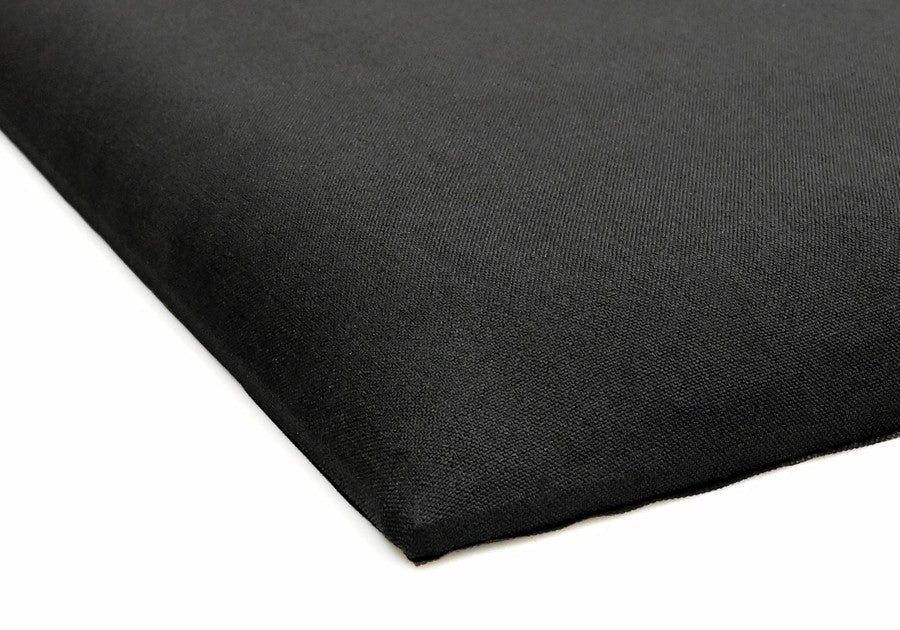

- Padded Panels: the finished, commercial-bay look. Thick foam panels protect the wall from shanks and ricochets and quiet the room. Set how far back from the screen to cover, any depth from 3 ft to 30 ft in 3 ft steps (most rooms do the first 6 ft, where nearly all mishits land); we calculate the panel count from your room height, and starter trim plus French-cleat hardware are included.
- Retractable Curtain: a lighter, lower-cost option that pulls across the side wall to block light and catch errant shots, then slides back when you are done. Sized to your room height and sold in depth steps (4, 8, or 12 ft deep). The ceiling-mount hanging hardware is added with the curtain and priced into your total, and you can turn it off if you already have a track. One limit to know: 12 ft deep fabric curtains are stocked for rooms up to 9 ft 6 in tall, and 12 ft net curtains up to 10 ft. Above that, the builder offers the 4 and 8 ft depths and flags a depth that is not stocked at your height.
Room Details & Coverage
Lead time notice: for orders placed August 27, 2026 or later, Carl's Place production time is temporarily about 9 business days, and about 16 business days for custom screen orders, plus normal shipping time. Normal lead times are expected back in early September.
Your Wall Is Not a Standard Size
Your tape measure says 147 inches, and that is exactly what the screen should be. Set the sliders above to your room's real numbers, any width from 8 to 20 ft and any height from 8 ft to 10 ft 9 in, and the kit is sized to them while the live 3D view draws your room from the front and from above. No quote form, no waiting.
The screen mounts straight to your wall with no pipe or frame and spans exactly the wall you measured, with adjustable masking that tunes the viewable area toward your projector's 16:9 or 16:10 image. We confirm your exact dimensions and layout with you before anything is sewn. Authorized Carl's Place dealer · Affirm financing available.
A Screen That Becomes Part of the Room
Watch how the built-in screen mounts flush to the wall with cables and tensioning hardware for a permanent, finished golf room.
What Sets a Built-In Room Apart
Edge to Edge on Your Exact Wall
No frame and no pipe. The screen mounts flush and runs the full width you set, so even an odd-sized wall ends up looking planned for golf.
Sewn to the Number You Set
Move the sliders in whole inches and the screen is sewn to exactly those dimensions. We confirm your measurements and layout with you before your kit is built.
Masking You Choose, Down to the Inch
Keep Carl's standard masking or set it to any whole inch from 4 to 12, and it tunes the viewable area toward the 16:9 or 16:10 picture your projector throws.
No Border, at Any Width
Whatever width you land on, the screen has no bottom border, so your turf can run all the way to the fabric for a clean floor-to-screen line.
Finish Each Surface on Its Own
Give the left and right walls padded panels, a retractable curtain, or nothing, and pad the ceiling or leave it open. One depth for everything, or split it per surface.
Odd Sizes Get the Same Milton Build
A 151-inch screen is cut and sewn in Milton, Wisconsin with the same full-impact construction as any stock size, so an exact fit gives up nothing.
How Much Space You Need
The sliders will take almost any wall, but your swing still needs its room: at least 10 feet back from the screen with roughly 7 feet of clearance in every direction. Check the grid below against your measurements before you set the sliders.
Is a Built-In Room Right for You?
Your Room Ignored the Size Chart
Your wall measures 13 ft 4 in and the fixed sizes offer 13 or 14, nothing between. Set the slider to 160 inches and the screen is sewn to that number.
You Measured Twice and Trust Your Tape
You are not guessing from a dropdown. Enter the real numbers, watch the 3D view redraw from the front and from above, and order the room you actually have.
A Stripe of Bare Drywall Would Haunt You
A stock screen that stops short of the corners leaves a gap you would stare at every round. Sized to the inch, it runs edge to edge and the wall looks finished on day one.
Each Wall Has Its Own Job
The left wall catches your misses and the right wall has a door in it. Pad one, hang a curtain on the other or leave it open, and set each depth to how the room is really used.
Not comfortable with construction work? A free-standing kit assembles without this level of build. Compare the two approaches in our built-in vs freestanding guide.
Every Carl's Place impact screen is built for full-impact play and designed to withstand the rigors of regular indoor golf use, so the screen anchoring your room is built to last.
Everything That Ships in the Kit
The built-in screen installs with no pipe or frame. Everything needed to hang and tension the screen on your wall comes in the kit.
- Custom-sized impact screen with top masking, pre-fed bottom cable, and loose top cable
- 2 cable locks with release pins
- 4 corner cable anchors with 1/4 in lag screws and 4 pulley wheels with safety wire lynch pins
- Starter panels made entirely of loop fabric
- 10 snaphooks with screws and drywall anchors
- 10 zip ties for the corners and 50 hook-and-loop straps
- 3 detached flaps to cover the exposed cable
- Fastener set with 100 long screws, drywall anchors, and 50 short screws
- Detailed setup and measuring instructions
Choose from 4 screen materials (Standard, Preferred, Premium, and High-Contrast Gray), with the screen sewn to the width and height you set in the builder, to the inch. Deciding on a material? Our impact screen materials guide breaks down each one.
Before you order: because each screen is built to your exact wall dimensions, Built-In kit sales are final. We confirm your size, masking, and layout with you before anything is produced.
All the Ways to Finish a Built-In Room
Start with the built-in screen, then choose how to protect and finish your walls and ceiling.
Built-In Screen Only
The screen and its hardware install with no pipe or frame, and you finish the walls and ceiling your own way.
Wall & Acoustic Tiles
Adhesive-backed tiles trim to fit and cut around outlets and lights. Wall tiles soften impact; acoustic tiles add light and sound control.
Retractable Curtains
Heavy-duty curtains block ambient light with reinforced grommets and a weighted bottom. Pull them across to play and back for access.
Padded Panels*
The most protective option: a foam core in smooth black fabric, custom-sized to your room and hung with French cleats and Z-clips.
* Padded panels require freight shipping (residential delivery with liftgate). Freight is calculated at checkout.
How the Built-In Kit Compares
All four Carl's Place kits use impact screens built for full-impact play. What changes is how the screen mounts and how finished the room looks.
| Feature | Built-In Room Kit | Pro | Curved | DIY C-Series |
|---|---|---|---|---|
| Mount | Wall-mounted, no frame | 2-inch EMT frame | 2-inch EMT frame | 1-inch EMT frame |
| Structure | Built into the wall | Freestanding, flat | Freestanding, curved | Freestanding, flat |
| Install effort | Construction-level | Assemble the frame | Assemble the frame | Assemble the frame |
| Floor space | Fully open | Frame footprint | Frame footprint | Frame footprint |
| Permanence | Permanent | Semi-permanent | Semi-permanent | Semi-permanent |
| Screen materials | All 4 | Premium or High-Contrast Gray | Premium or High-Contrast Gray | All 4 |
| Best for | A finished, built-in room | A dedicated finished bay | Maximum immersion | An affordable first bay |
Compare the freestanding kits on their own pages: the Carl's Place Pro, the Curved, and the DIY C-Series, or browse the full Carl's Place collection.
Building the Room, Step by Step
1. Plan & Measure
Start with the included setup instructions to plan the layout and measure your wall so every component fits your room.
2. Install the Hardware
Mount the corner cable anchors to the top and bottom plates of your walls, install the starter panels in a straight, even line, then add the ceiling snaphooks, using a laser level to keep everything aligned.
3. Hang & Tension the Screen
Zip tie the corners of the screen, secure the remaining grommets to the cables with hook-and-loop straps, then pull the cables taut through the cable locks for a flat, even hitting surface.
4. Secure the Flaps, Then Finish
Attach the 3 detached flaps to the starter panels to cover the exposed cable, then protect the walls and ceiling with curtains, wall or acoustic tiles, or padded panels.
Confirmed Before It Ships
We confirm your exact screen size, masking, and panel layout with you before your kit is produced, so it fits the first time.
Know the Skill Level
This kit suits handy people comfortable with construction: lag screws into wall plates, demoing trim, and patient screen tensioning. If that is not you, a free-standing kit is the easier route.
The Sliders Are Waiting on Your Tape Measure
Scroll up, set the width and height to the numbers you wrote down, and watch the room take shape in 3D. Every component you add shows up in the running total, and we confirm your exact dimensions with you before anything is sewn.
Set Your NumbersPlan Your Built-In Golf Room
Guides to help you choose the right enclosure, screen, and budget for your room.
Built-In vs Freestanding Enclosures
Which enclosure fits your room, budget, and how permanent you want the bay.
Golf Simulator Enclosure Buyer's Guide
Compare DIY, Pro, Curved, and built-in Carl's Place kits to match your room.
Impact Screen Materials
How to choose the right screen weave, color, and material for your room.
Golf Simulator Enclosure Cost
What an enclosure costs, from a screen-only build up to a commercial bay.
Your Purchase is in Good Hands
1-888-871-6110
If a slider has you second-guessing your measurements, call. Real people who know this builder are here if you want a second set of eyes on your numbers before you order.
Know the Policy Before You Order
Warranty
Carl's Place screens and enclosure materials are wearable goods, so they do not carry a warranty. Some marking and wear from the first sessions is normal, and how long a screen lasts depends on skill level, how often you play and how it is installed. If something looks unusual rather than like normal wear, send us photos and your order number and we will take it up with Carl's Place. All impact screen sales are final with no returns. Because fit and material choice matter, measure your space and pick your screen carefully before ordering, or call us at 1-888-871-6110 and we will help you choose.
Returns
All Simulator Impact Screen sales are final and no returns will be accepted. Once golf balls have been hit into a screen, it cannot be resold, so it cannot be returned. The screens are white polyester, and they mark easily if handled or used improperly.
For more information, please see our Return Policy.
Built-In Golf Room Kit Questions
A built-in golf simulator room mounts the impact screen directly to your wall instead of hanging it from a free-standing frame, so the screen becomes a permanent part of the room. The Carl's Place Built-In Golf Room Kit supplies a custom-sized screen and all the hardware to mount and tension it, and you finish the walls and ceiling for an integrated, studio look.
The kit includes a custom-sized impact screen with top masking, a pre-fed bottom cable, and a loose top cable, plus 2 cable locks with release pins, 4 corner cable anchors with 1/4 in lag screws, and 4 pulley wheels with safety wire lynch pins. It also comes with starter panels made entirely of loop fabric, 10 snaphooks, 10 zip ties for the corners, 50 hook-and-loop straps, 3 detached flaps, a fastener set, and detailed setup instructions. It installs with no pipe or frame, and you supply the wall and finishing materials.
Plan for a room at least about 14 feet wide with a ceiling of at least 9 feet, and stand at least 10 feet from the screen with roughly 7 feet of swing room around you. You also want at least 12 inches of buffer behind the screen and about 6 inches in front for the flaps and starter panels. Add about 36 inches of depth for each row of padded panels.
No. The built-in screen mounts straight to your wall with cables and anchors, so there is no pipe or frame. That is what keeps the floor open and gives the room its integrated, built-in look. If you would rather not mount to the wall, a free-standing Carl's Place kit stands on its own EMT frame instead.
The kit is designed for people comfortable with home-renovation and construction work. A proper install calls for using a laser level to align components, anchoring lag screws into the top and bottom plates of your walls, demoing any trim that interferes, and patiently tensioning the screen for a flat surface. If that kind of work is not a fit, a free-standing enclosure kit assembles without this level of construction.
The Built-In kit offers all four Carl's Place materials: Standard for budget builds, Preferred for a tighter weave and sharper image, Premium for the best image with reduced noise, and High-Contrast Gray for deeper contrast in rooms with ambient light. All four are built for full-impact play. Our impact screen materials guide breaks down the differences in detail.
Yes. Because the screen mounts to the wall and nothing stands on the floor, the room stays open. Finished with retractable curtains or panels that pull back, the same space can serve as a home theater, family room, or general entertaining area when you are not playing.
Each screen is sewn in Milton, Wisconsin to the width and height you set in the builder, in whole inches, so it is made for your wall rather than a stock size. Before your kit is produced, we confirm your exact screen size, masking, and panel layout with you, so the components fit your room the first time.
Yes. We offer Affirm financing at checkout, so you can split the cost of your built-in kit into monthly payments. Choose Affirm at checkout to see the terms you qualify for.
Carl's Place screens and enclosure materials are wearable goods, so they do not carry a warranty. Some marking and wear from the first sessions is normal, and how long a screen lasts depends on skill level, how often you play and how it is installed. If something looks unusual rather than like normal wear, send us photos and your order number and we will take it up with Carl's Place. All impact screen sales are final with no returns. Because fit and material choice matter, measure your space and pick your screen carefully before ordering, or call us at 1-888-871-6110 and we will help you choose.
Move the width and height sliders to your room's real measurements. The builder accepts any width from 8 ft to 20 ft and any height from 8 ft to 10 ft 9 in, in whole inches, and the 3D view redraws as you go. Before anything is produced, we confirm your exact dimensions, masking, and layout with you.
Every component you have selected: the screen kit plus any padded panels, curtains, foam inserts, or wall and acoustic tiles you add. Add to Cart adds your build to the cart as one line that lists every component, and at checkout it splits into itemized lines, each at its real price. Freight on padded panels is calculated at checkout.
