- Choose Your Launch Monitor: Pick any premium launch monitor from our full selection.
- Built Into Your Wall: Carl's Place Built-In screen mounts flush to the wall, corner to corner, with no pipe or frame.
- 45 Wall Sizes: 10 to 18 ft wide and 8 to 10 ft tall, the triple-layer Premium screen sewn in Milton, Wisconsin.
- Fit Confirmed Before It Is Sewn: We check your wall dimensions, masking and layout with you before anything is made.
- Real Feel Mat and Laser Projector: Country Club Elite 5'W x 5'L mat and the Optoma ZW350ST with ceiling mount.
Built-In All-In-One Golf Simulator
The Built-In All-In-One Golf Simulator is a complete home golf simulator package you configure on this page, built around the Carl's Place Built-In Golf Room Kit: a triple-layer Premium impact screen sewn to your exact wall size and mounted straight to the wall, with no pipe or frame, in 45 sizes from 10 to 18 ft wide and 8 to 10 ft tall. The package adds a Real Feel hitting mat, the Optoma ZW350ST short-throw laser projector with its ceiling mount, and the launch monitor of your choice from 22 radar, camera and overhead units. Every pick updates the price and the 3D view, and the whole build goes to your cart as one package.
The starting price is the 14'W x 9'H Built-In kit, the Real Feel mat, the ZW350ST and its mount at their live prices; any build is the sum of the live prices of the parts in it, so a sale on any part shows here the same day.
A Screen That Becomes Part of the Room
Watch how the built-in screen mounts flush to the wall with cables and tensioning hardware for a permanent, finished golf room. Nothing stands on the floor, so curtains or panels pull back and the same space seats the family for a movie.
Built-In All-In-One Golf Simulator Includes:
- Built-In Kit (14'W x 9'H, Premium) - also available in 10'W, 11'W, 12'W, 13'W, 15'W, 16'W, 17'W or 18'W
- Real Feel Country Club Elite Mat (5'W x 5'L)
- Optoma ZW350ST 3600-Lumen WXGA Laser Projector (0.521:1 throw)
- Projector Ceiling Mount
Use the builder above to change the Built-In kit size, hitting mat or projector, or add a launch monitor, launch monitor ceiling Drop-Mount kit, landing pad, gaming computer or touch screen monitor.
Choose your launch monitor, or bring your own

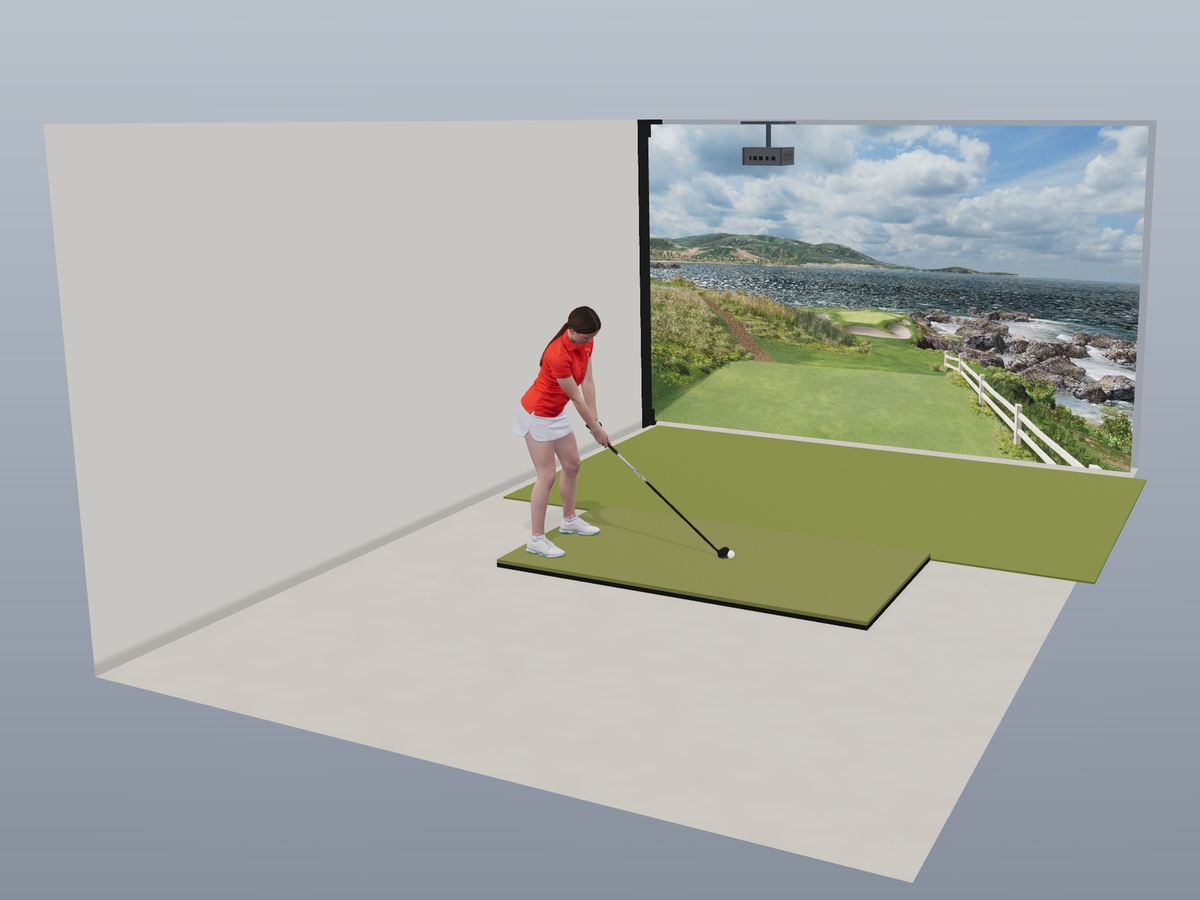

Twenty-two launch monitors are available on this page, from the Swing Caddie SC4 PRO and Garmin Approach R10 to the Foresight Sports GCQuad and QuadMAX. The default is BYO Launch Monitor: the package ships without one and you can add a unit any time. Pick one and the price and the 3D view follow it.

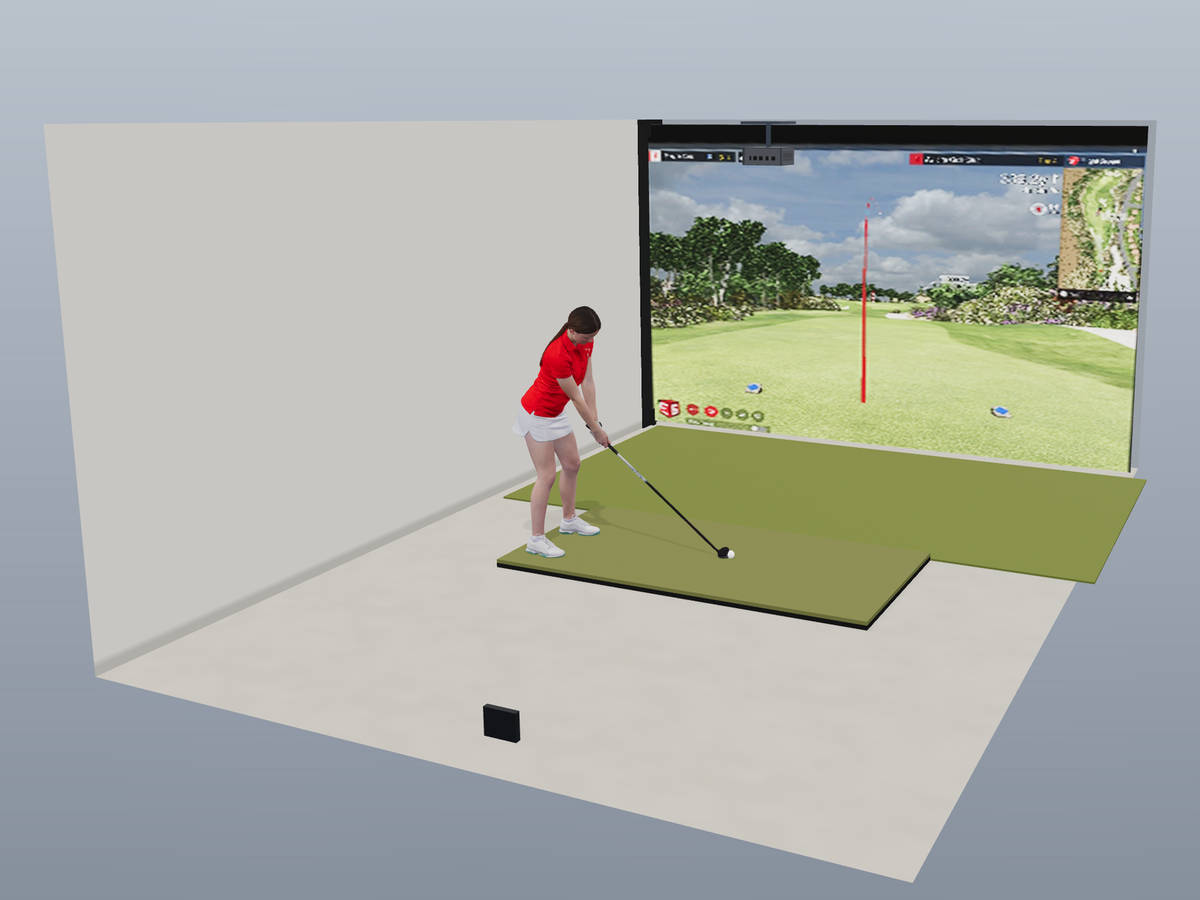

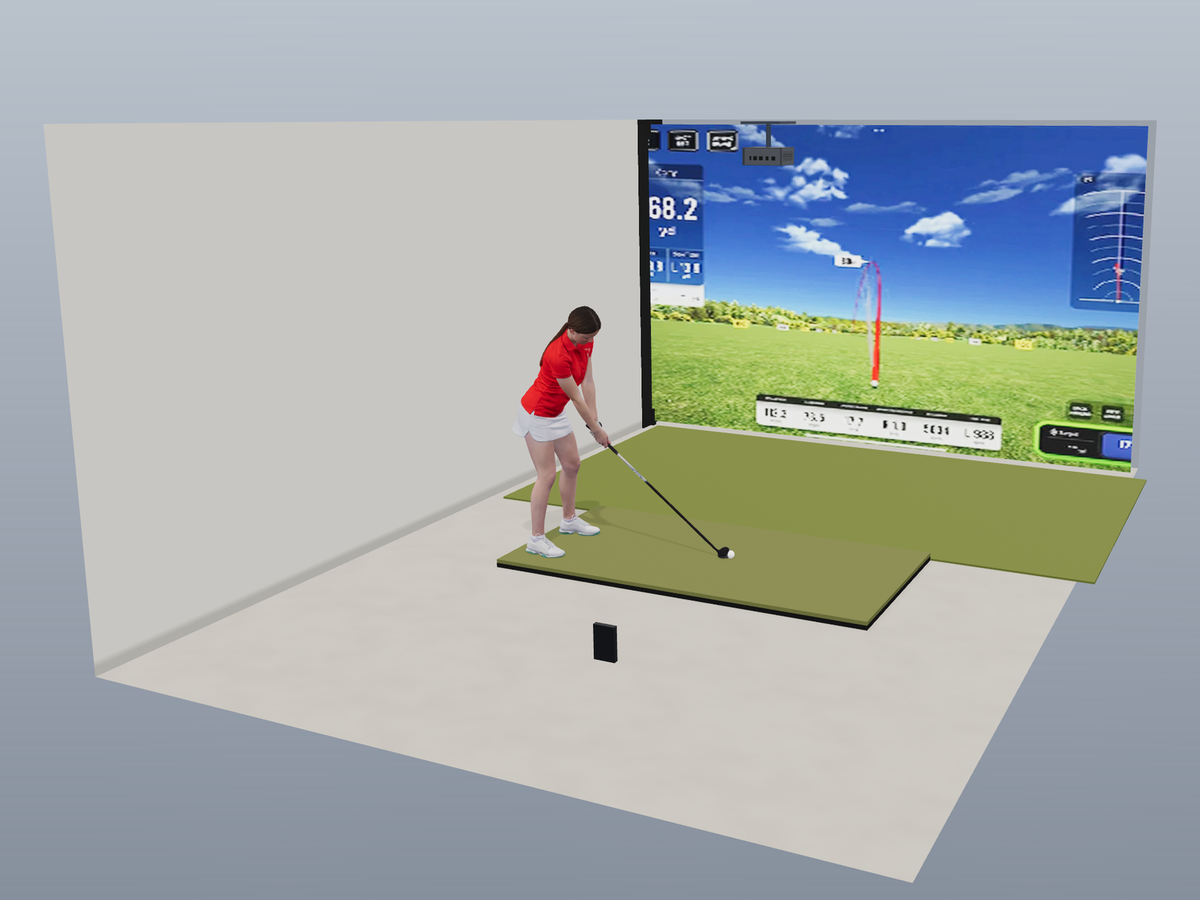

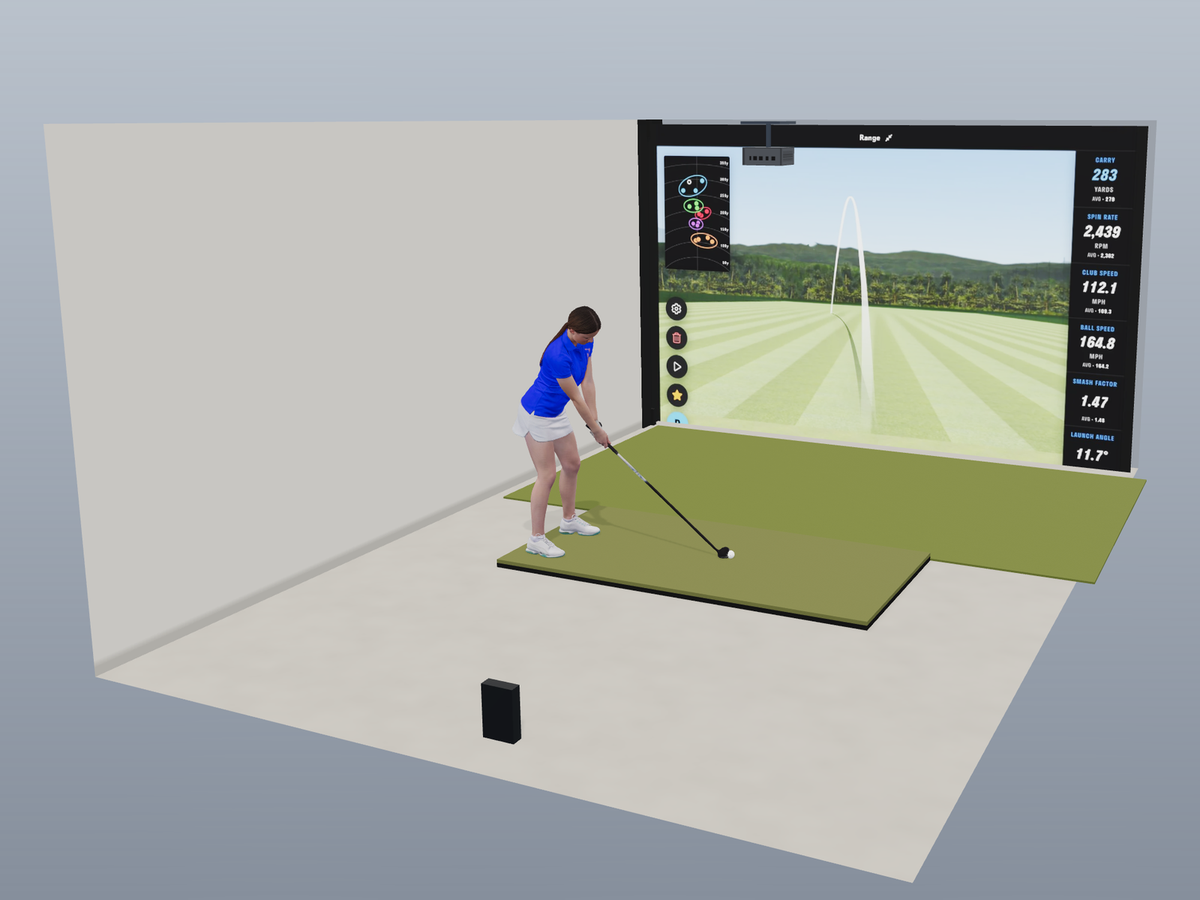

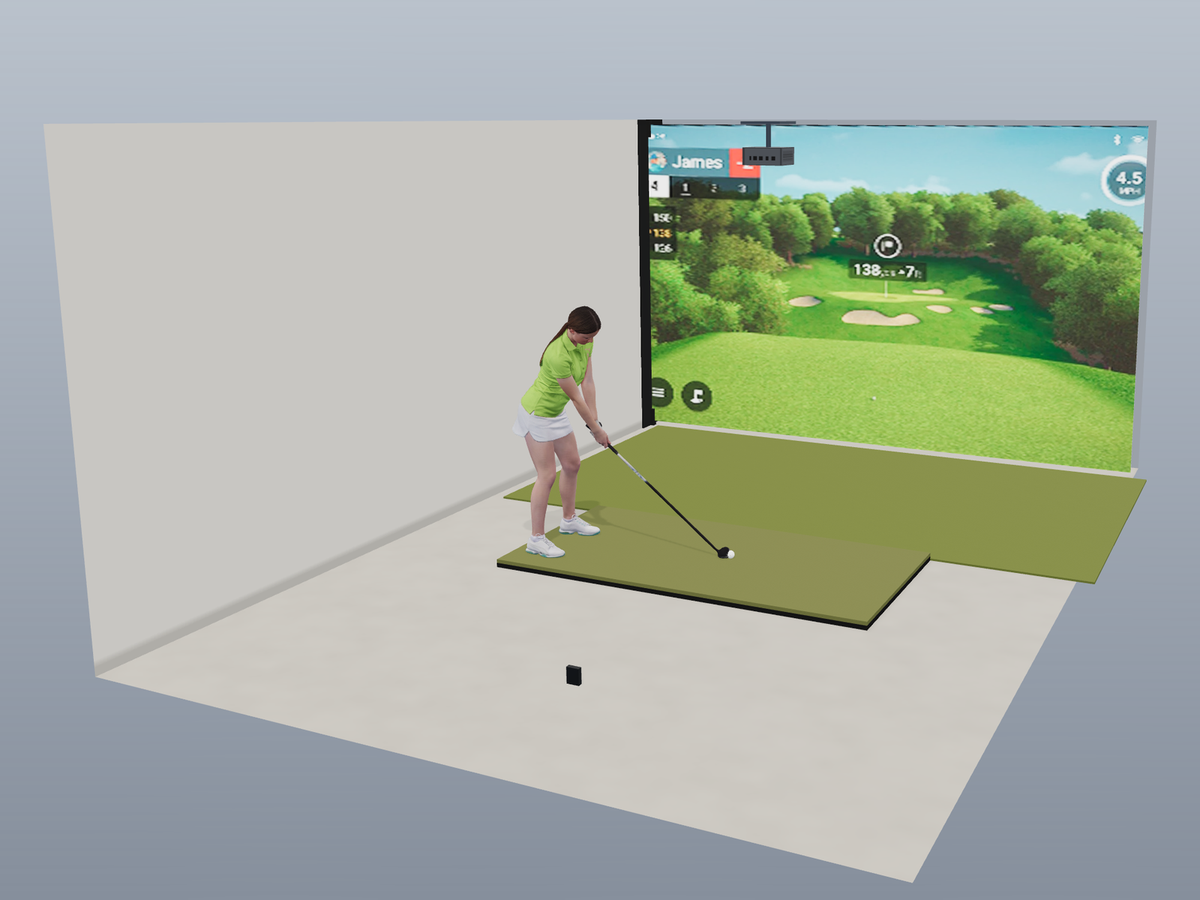

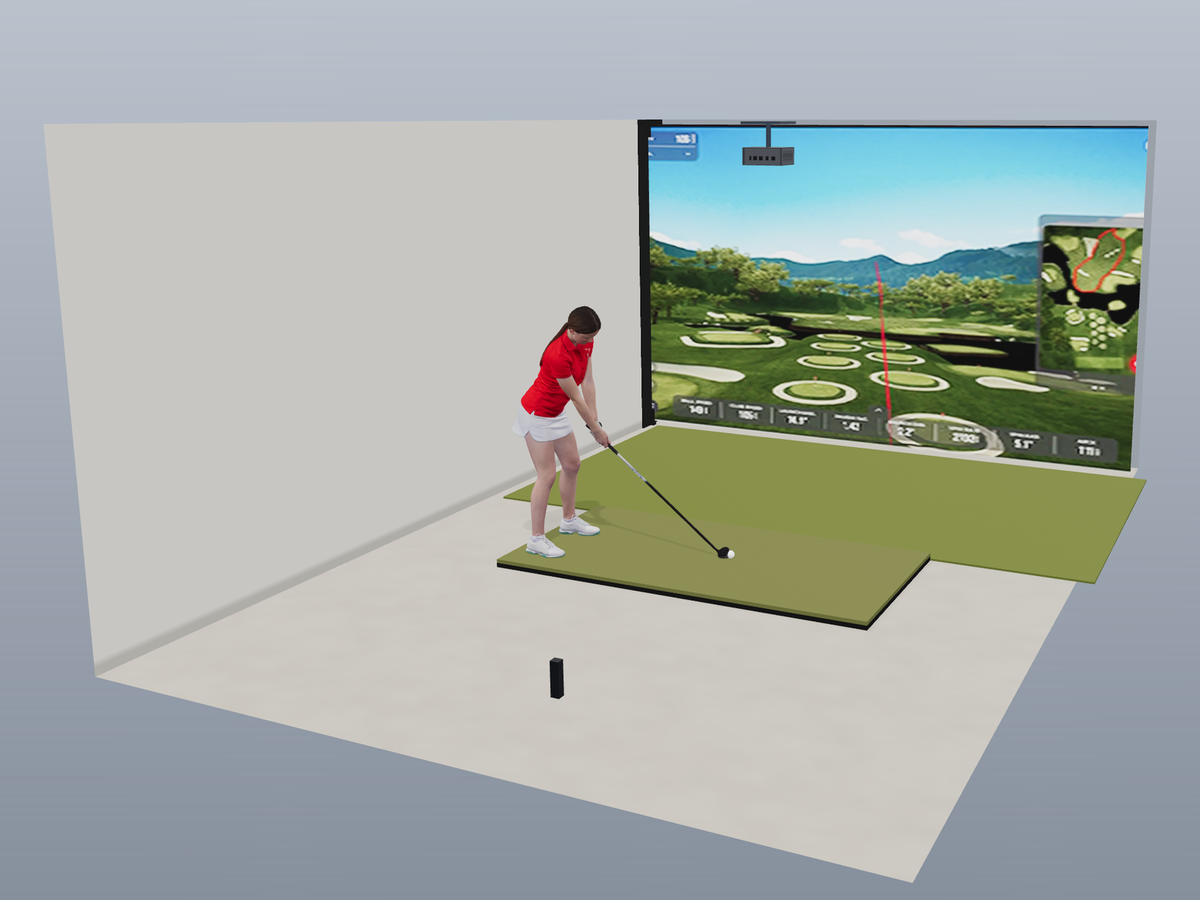

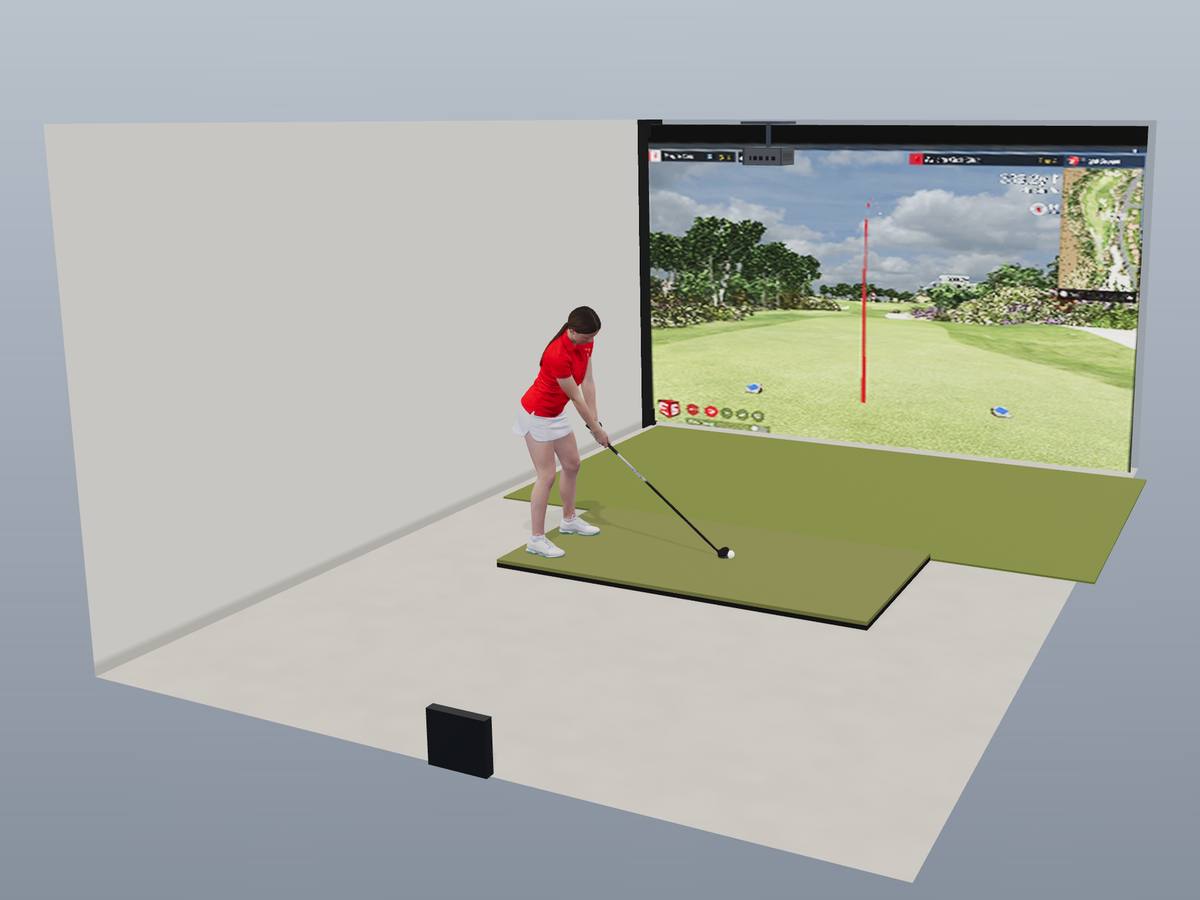

- Behind the ball: Swing Caddie SC4 PRO, Garmin Approach R10, Rapsodo MLM2PRO, FlightScope Mevo Gen2, Full Swing KIT, FlightScope X3C

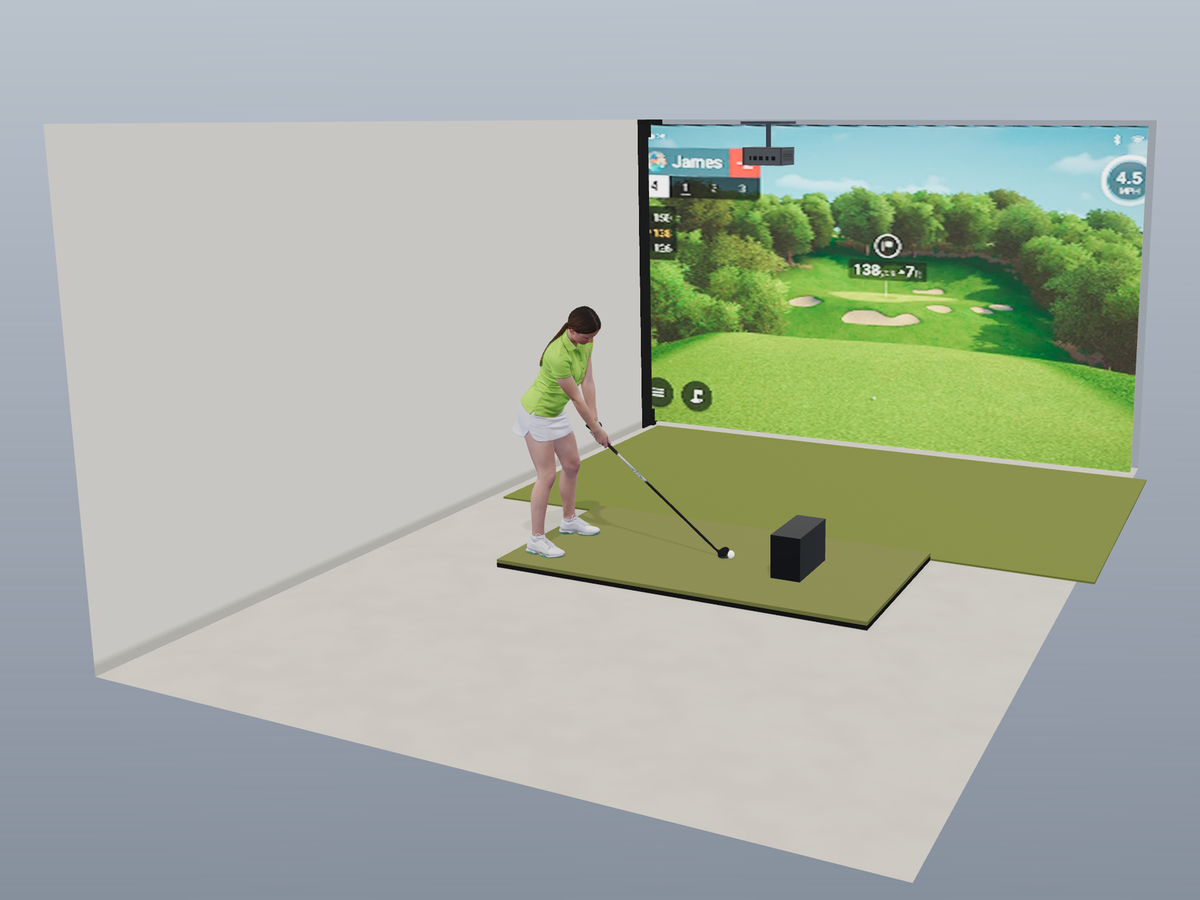

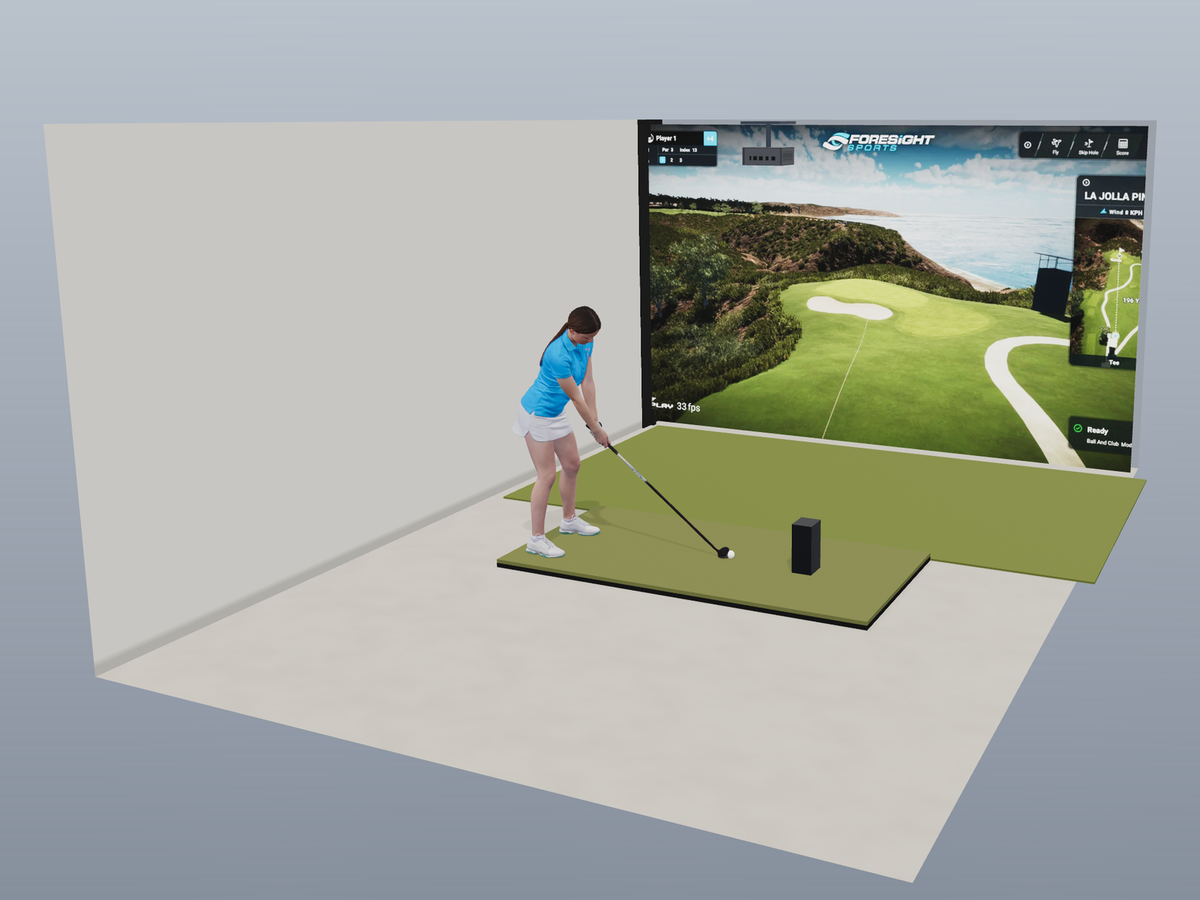

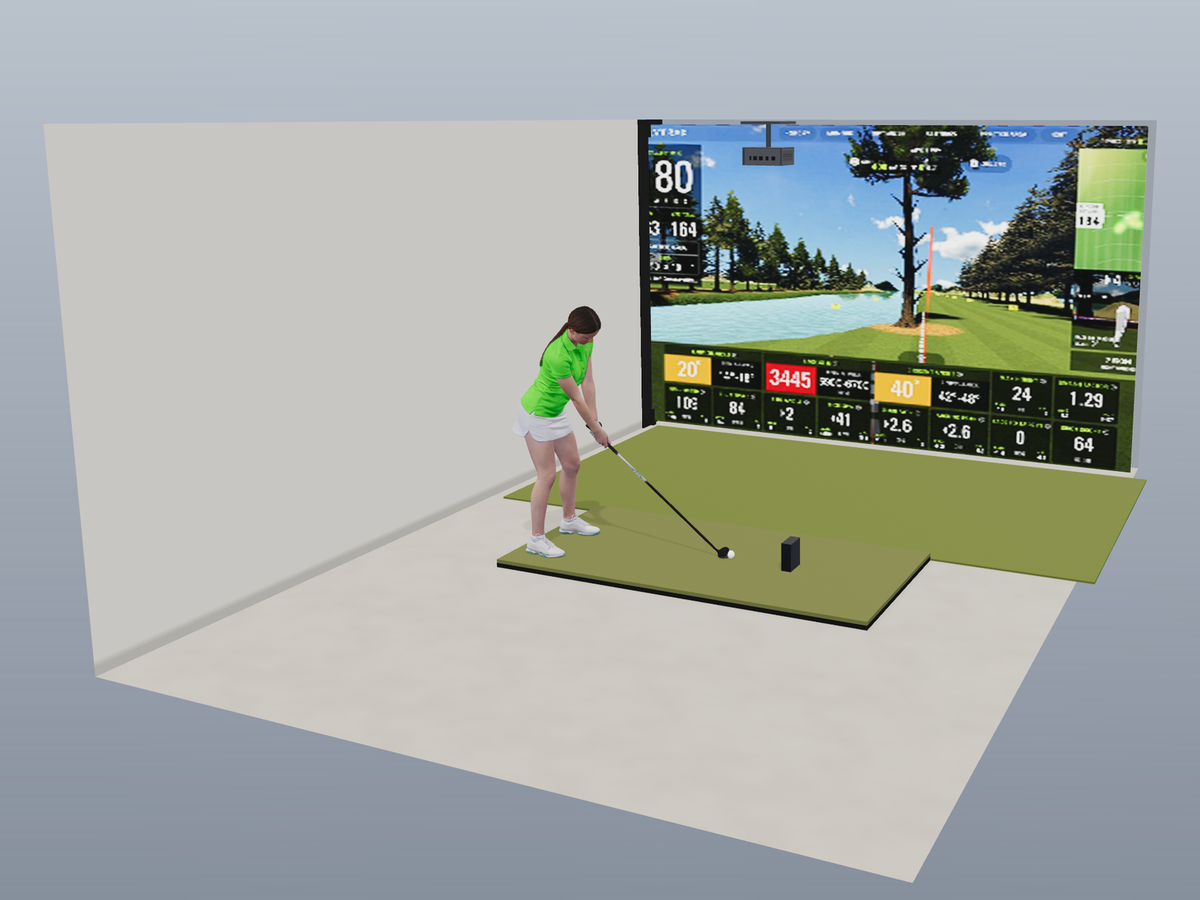

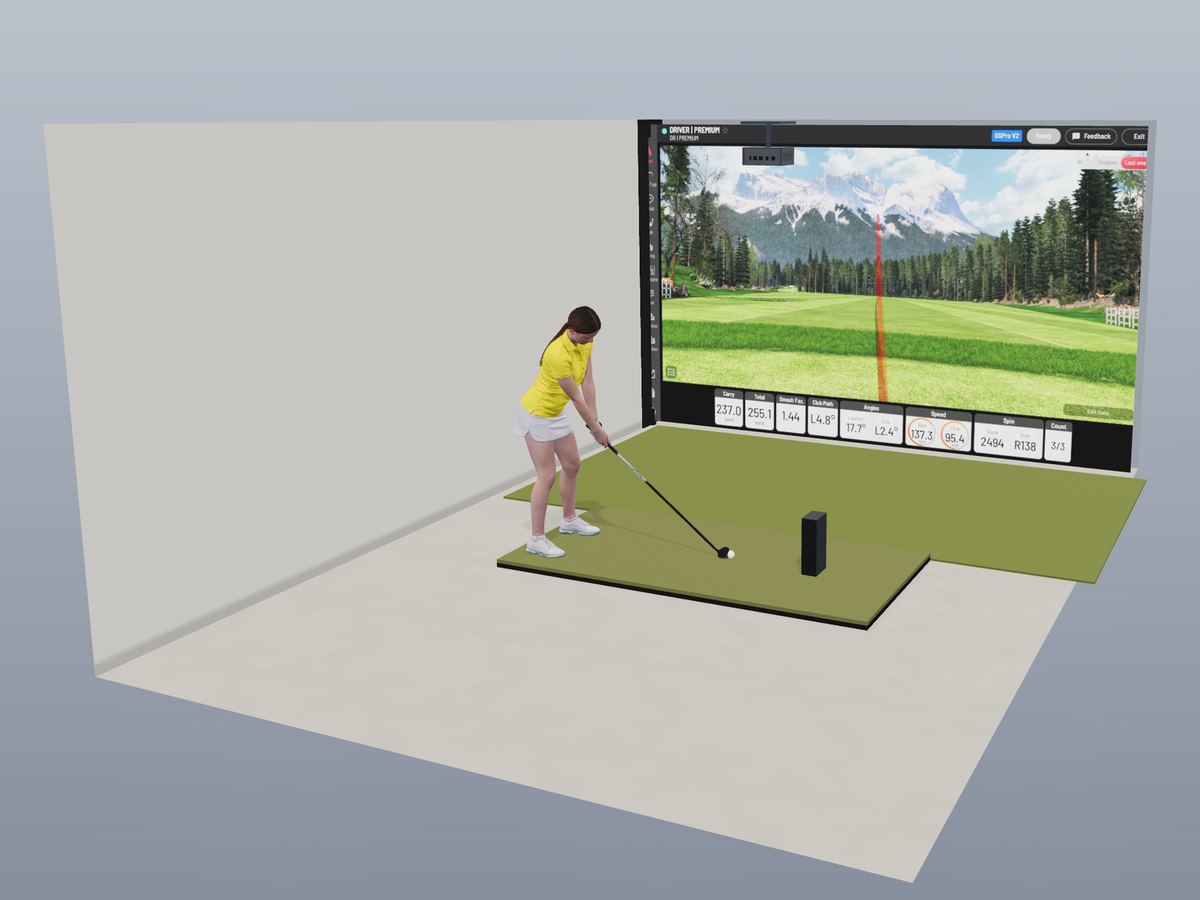

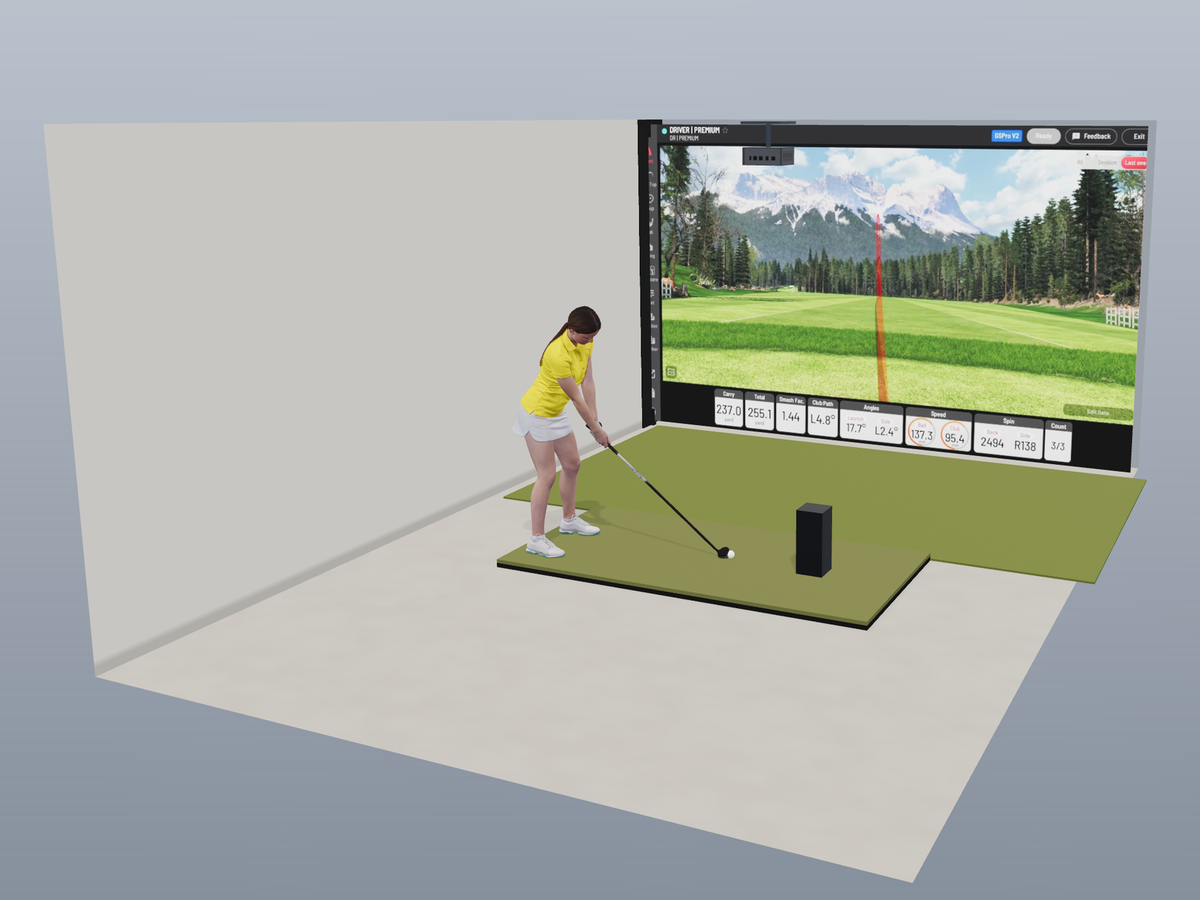

- Beside the ball: SkyTrak ST MAX, Bushnell LPi Circle B Edition, Uneekor EYE MINI LITE, Bushnell Launch Pro Circle B Edition, Uneekor EYE MINI, Foresight Sports GC3S, Garmin Approach R50, Foresight Sports GC3, Foresight Sports GCQuad, Foresight Sports QuadMAX

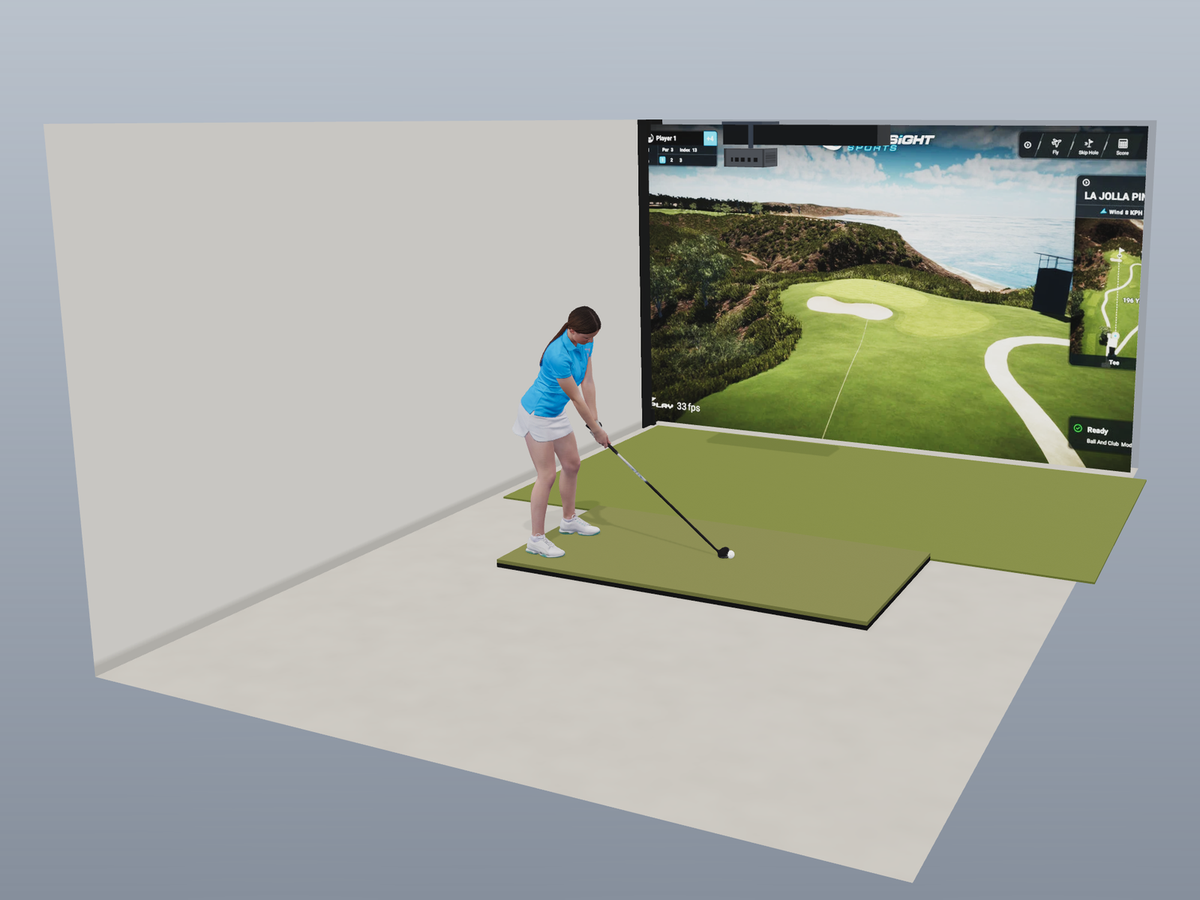

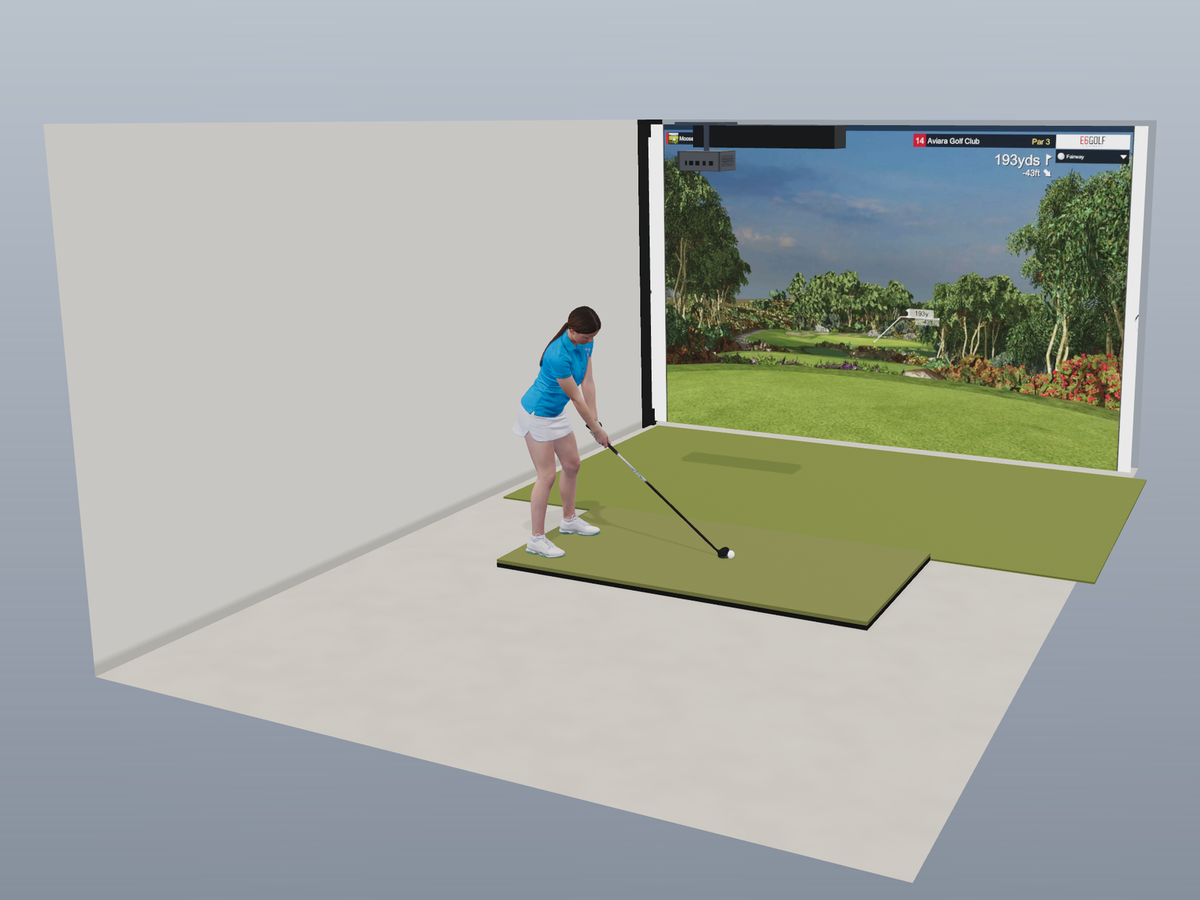

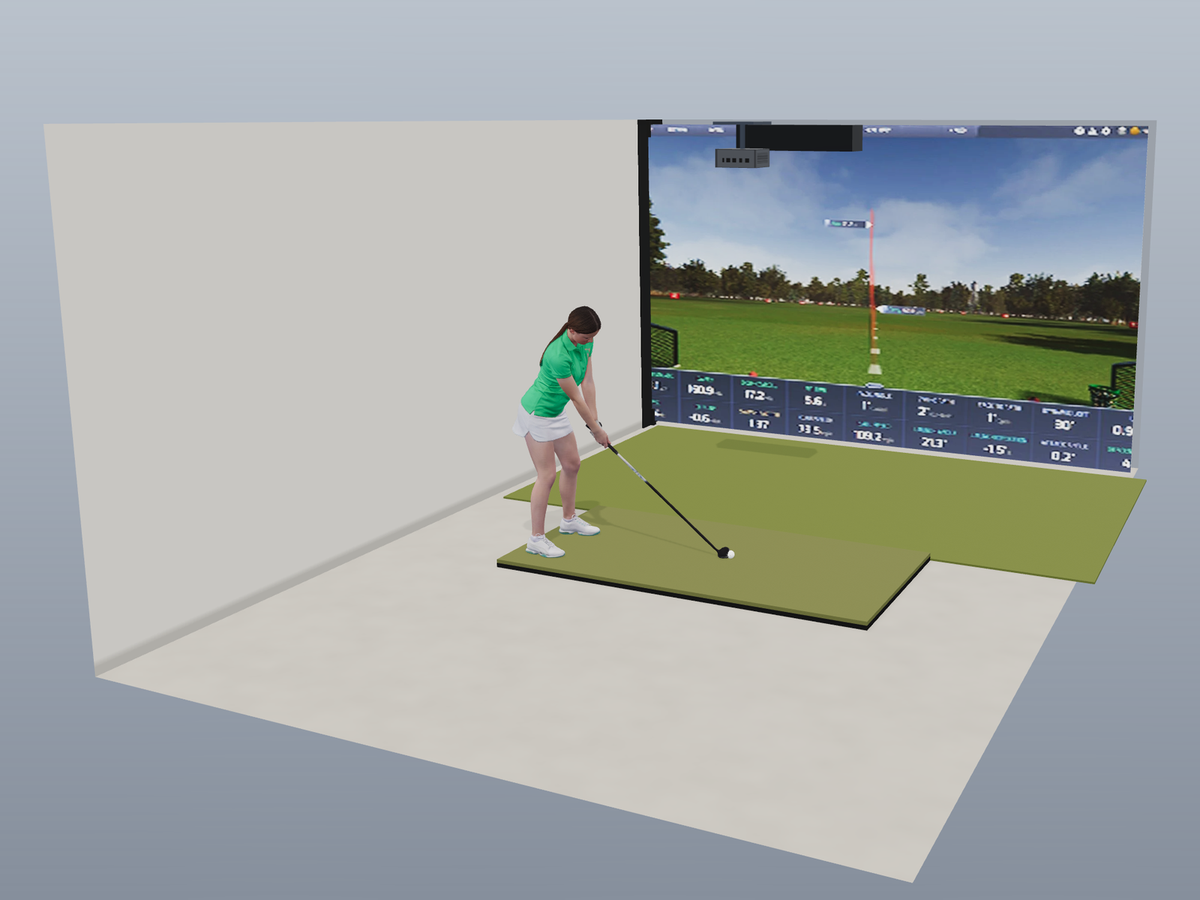

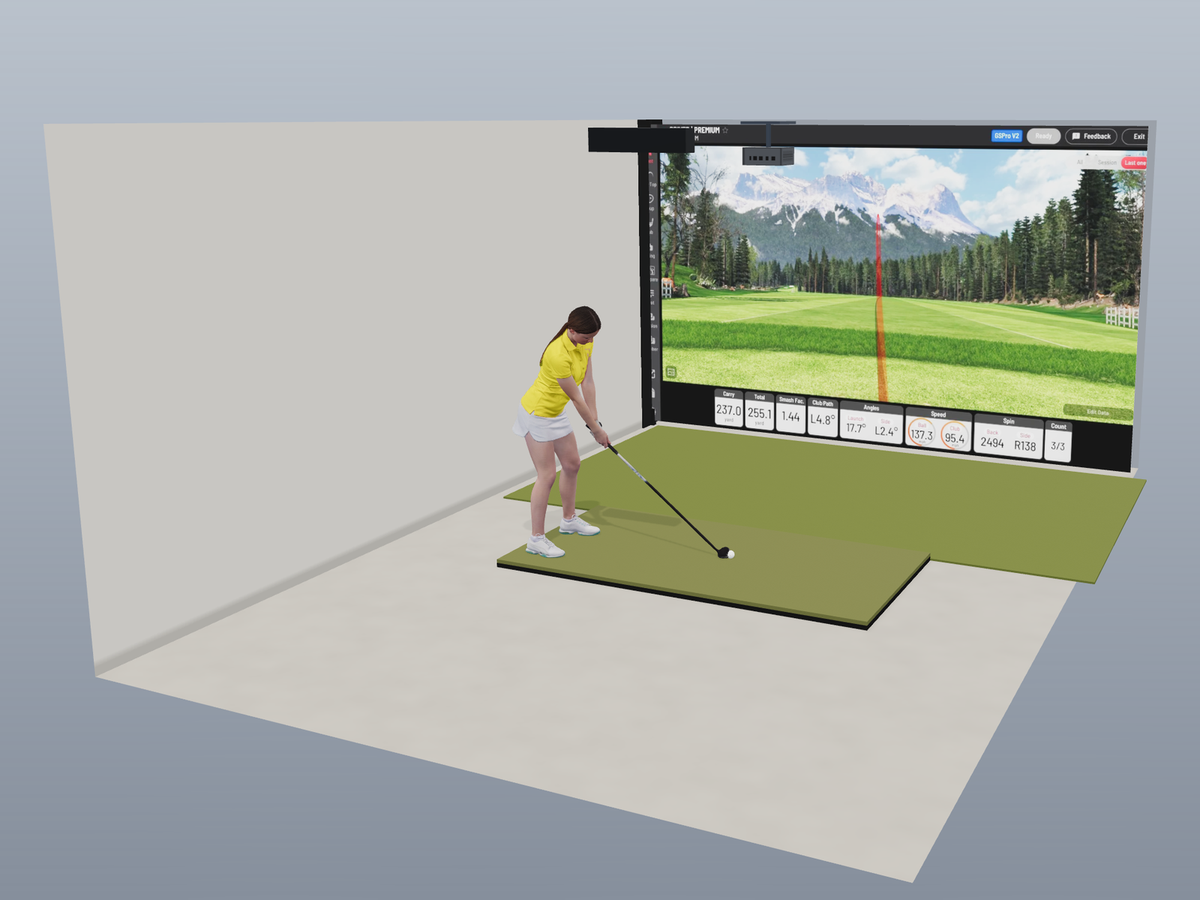

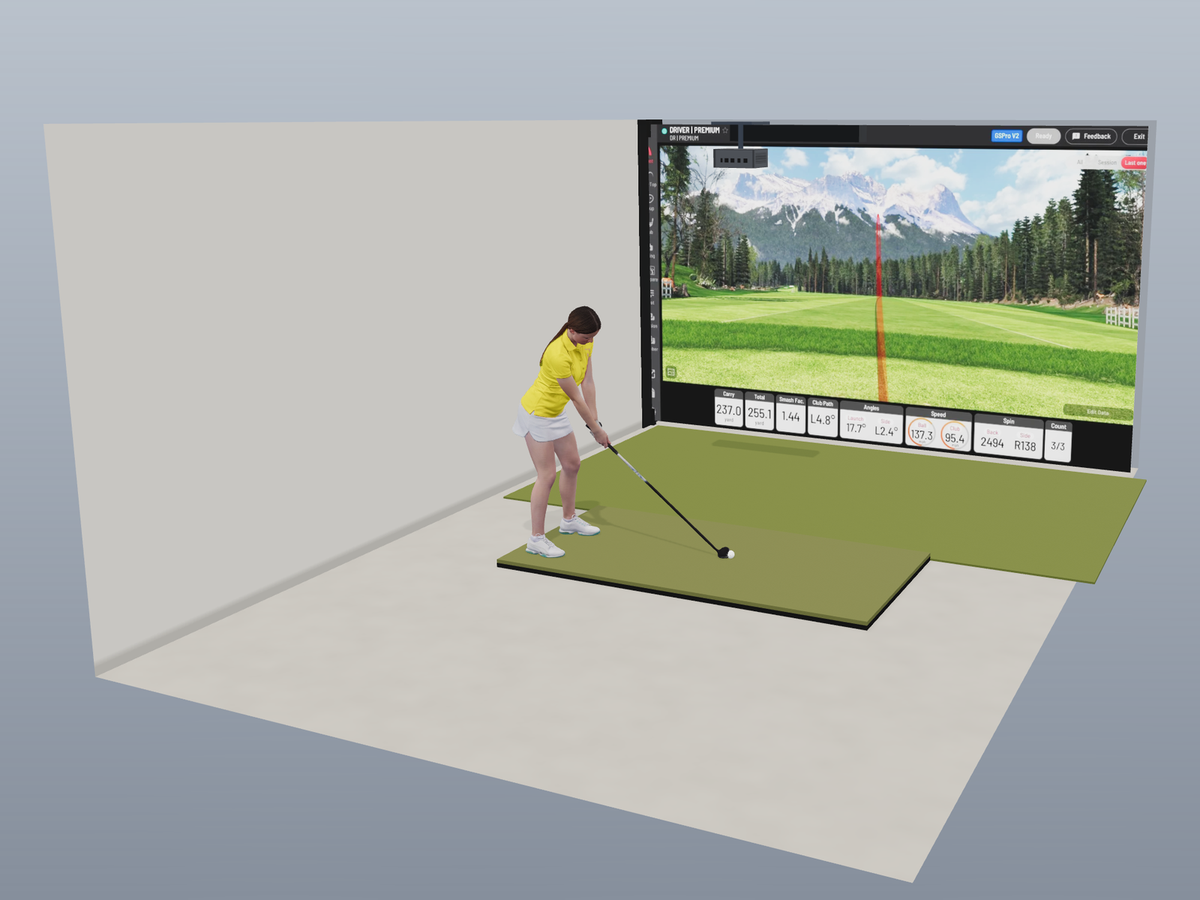

- Overhead, on the ceiling: Uneekor EYE XR, Uneekor EYE XO, ProTee VX, TruGolf APOGEE, Uneekor EYE XO2, Foresight Sports Falcon. Overhead units are ceiling-specific: 9 to 10 ft for ProTee VX and TruGolf APOGEE (drop mount above 10 ft), 9.5 to 10.5 ft for the Foresight Falcon (drop mount above 10.5 ft), and 9 to 10 ft for Uneekor EYE XR, EYE XO and EYE XO2 (drop mount above 10 ft).
For an overhead unit the builder also offers Carl's Launch Monitor Ceiling Drop-Mount Kit, cut for the Uneekor EYE XR, EYE XO and EYE XO2, ProTee VX, TruGolf APOGEE and Foresight Falcon in 6 in to 9 in, 12 in to 18 in, 2 ft to 3 ft and 3 ft to 5 ft drops for a level or a sloped ceiling.
Not sure which one? The launch monitor comparison lines them up by accuracy, placement, software and price, and the golf simulator builder sizes a full setup to your room.

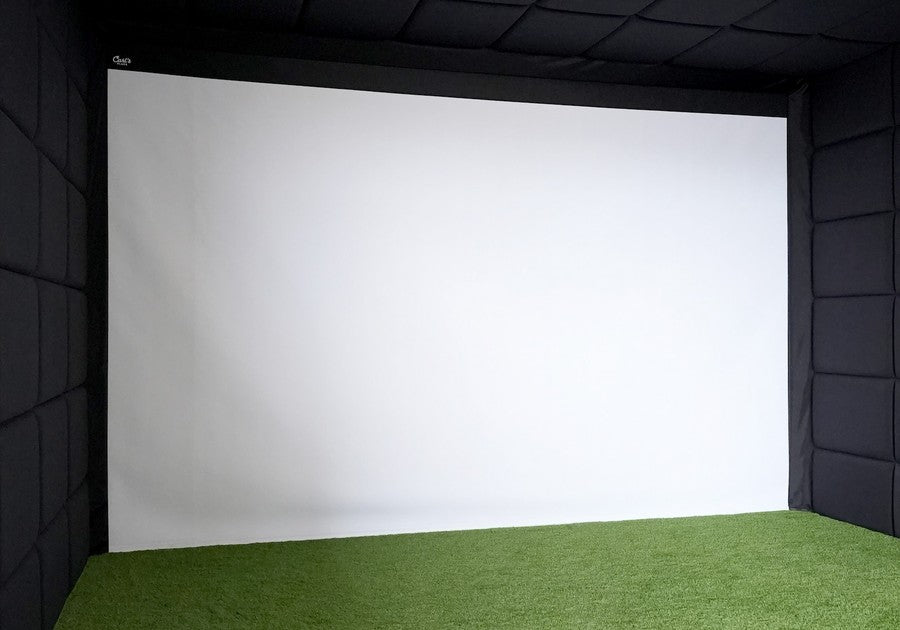

Carl's Place Built-In Golf Room Kit
The Carl's Place Built-In Golf Room Kit mounts the impact screen straight to the wall, sewn to your exact wall dimensions, so it spans the wall corner to corner. There is no pipe and no frame: the room reads as finished carpentry, not equipment you assembled. Adjustable masking tunes the viewable area toward your projector's 16:9 or 16:10 picture, and with no bottom border your turf can run right up to the fabric.
This package uses the triple-layer Premium screen: three layers of heavy-duty, tight-knit polyester that quiet ball impact and give the best image quality of Carl's four materials. Every Carl's Place screen is built for full-impact play and is cut and sewn in Milton, Wisconsin. Because each screen is made to order, we confirm your exact size, masking and layout with you before anything is sewn.
In the kit: the custom-sized screen with top masking, a pre-fed bottom cable and a loose top cable, 2 cable locks with release pins, 4 corner cable anchors with 1/4 in lag screws and 4 pulley wheels with safety wire lynch pins, starter panels made entirely of loop fabric, 10 snaphooks with screws and drywall anchors, 10 zip ties for the corners and 50 hook-and-loop straps, 3 detached flaps to cover the exposed cable, a fastener set with 100 long screws, drywall anchors and 50 short screws, and detailed setup and measuring instructions.
What the install takes. Walls should be straight, even and 2x4-framed so the anchors hold. A proper install calls for a laser level to align the components, lag screws into the top and bottom plates of your walls, removing any trim that interferes, and patient tensioning until the screen sits flat. If that kind of work is not a fit, the Pro All-In-One Golf Simulator stands on its own frame.
How Much Space You Need
Get the tape measure out before you pick a size. Each screen is built to the exact size you order, so pick the listed size that matches your wall. Between sizes, or a wall wider than 18 ft? Build your kit to the inch with the custom Built-In room builder.
Not sure your room fits? See our golf simulator room size guide.
Hitting mat
The package ships with the Real Feel Country Club Elite Golf Mat, 5'W x 5'L. Its long, dense fibers let you swing down and through the turf the way you would off a fairway, it takes a real wooden tee, and the base absorbs the strike so your joints do not.
Three Fiberbuilt mats are one click away in the builder, or remove the mat if you already have one:
- Fiberbuilt Performance Turf Tee Box Mat, 8'W x 4'L
- Fiberbuilt 7'x4' Grass Series Single-Hitting Studio Mat
- Fiberbuilt 9'x4' Grass Series Center-Hitting Studio Mat (right- and left-handed)
Optional: Tour Golf Landing Pad
The Tour Landing Pad cushions and quiets balls dropping off the screen, keeps them from scuffing the floor, and bridges the gap between the mat and the screen. In a built-in room the screen spans the wall, so the builder matches the pad to your wall width, wall to wall, 8 ft long from the screen toward the mat: a 14 ft wall gets a 14'W x 8'L pad. It is optional and not selected; tick it in the builder if you want it, and the width is cut to your exact number after ordering.
Projector and ceiling mount
The Optoma ZW350ST is the included projector: 3,600 lumens, a 30,000-hour DuraCore laser with no bulb to replace, and a 0.521:1 short throw, so it mounts close to the screen and out of the swing. Seven BenQ short-throw projectors are available in the builder, from the 1080p TH671ST to the 5,100-lumen 4K LK936ST. The included ceiling mount tilts and rotates for image alignment and switches to the right model for whichever projector you choose. Carl's Universal Projector Mount is in the builder too: flush to a level ceiling, or on a 6 in to 9 in, 12 in to 18 in, 2 ft to 3 ft or 3 ft to 5 ft drop for a level or a sloped ceiling. Remove the projector and the mount goes with it. The projector calculator shows the mount distance for your screen size.
- Optoma ZW350ST 3600-Lumen WXGA Laser (0.521:1 throw), included
- BenQ TH671ST 3000-Lumen 1080p (0.69-0.83:1 throw)
- BenQ AH30ST 3000-Lumen 1080p LED (0.69-0.83:1 throw)
- BenQ AH500ST 4000-Lumen 1080p Laser (0.5:1 throw)
- BenQ AH700ST 4000-Lumen 1080p Laser (0.69-0.83:1 throw)
- BenQ LK830ST 4000-Lumen 4K Laser (0.496:1 throw)
- BenQ AK700ST 4000-Lumen 4K Laser (0.69-0.83:1 throw)
- BenQ LK936ST 5100-Lumen 4K Laser (0.81-0.89:1 throw)
Optional: SurfThing gaming computer and touch screen
Simulation software such as GSPro, E6 Connect and FSX Play needs a gaming-class computer, and the one you pick here arrives ready for it. SurfThing builds them for golf simulation: 32GB DDR5, a 2TB SSD and an NVIDIA RTX 50-series GPU, in a desktop tower or a laptop. With the desktop PC, add the SurfThing DT2424H 23.8-inch touch screen to start rounds, review data and scrub swing video without walking back to a keyboard. It is not offered with the laptop, which has its own screen.
- SurfThing Enhanced Level PC: Core Ultra 5 with RTX 5070 Ti, 32GB DDR5, 2TB SSD
- SurfThing Enhanced Level Laptop: Core Ultra 9 with RTX 5070, 32GB DDR5, 2TB SSD
- SurfThing DT2424H 23.8" Touch Screen Monitor, 1080p, 75Hz, 10-point touch (with the desktop PC)
See your build in 3D, then share it

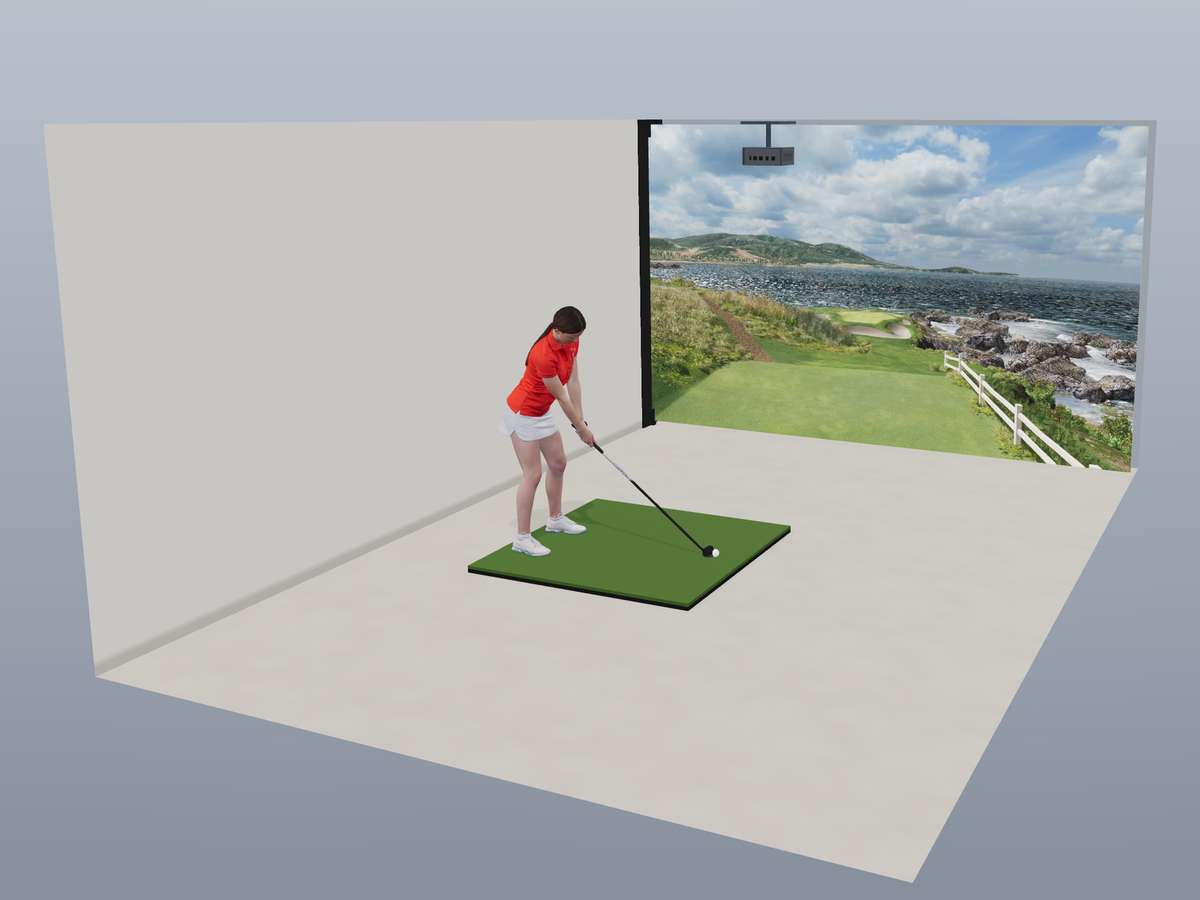

The second gallery thumbnail opens an interactive 3D view of your room at real size, with the screen across the wall and the launch monitor where it belongs: behind the ball, beside it or overhead. Drag to rotate, pinch or scroll to zoom, open it full screen. Share build saves the configuration to a short topshelfgolf.com link with a picture, for a spouse, a contractor or us, and the link rides along on your cart line and order.
Your Wall. Your Launch Monitor. One Package.
Screen sewn to your wall size. Financing available through Affirm.
Build YoursPlan Your Built-In Golf Room
Guides to help you choose the right enclosure, screen and launch monitor for your room.
Built-In vs Freestanding Enclosures
Which enclosure fits your room, budget, and how permanent you want the bay.
Golf Simulator Enclosure Buyer's Guide
Compare DIY, Pro, Curved, and built-in Carl's Place kits to match your room.
Impact Screen Materials
How to choose the right screen weave, color, and material for your room.
Golf Simulator Room Size Guide
The width, depth and ceiling height a full swing needs, and how to measure yours.
Your Purchase is in Good Hands
1-888-871-6110
From the moment you first contact us, we offer the very best advice and service to find the right product at the right price. We do not just sell boxes -- we help you build the sim room you have been planning.
Built-In All-In-One Golf Simulator Questions
We're proud to say we are an Authorized Dealer/Distributor for all the brands we carry. All our products come directly from the manufacturer. Your launch monitor, projector and computer are covered by their manufacturer's warranty from the date of the original purchase, subject to its conditions and limitations. Carl's Place screens and enclosure materials are wearable goods, so they do not carry a warranty. Some marking and wear from the first sessions is normal, and how long a screen lasts depends on skill level, how often you play and how it is installed. If something looks unusual rather than like normal wear, send us photos and your order number and we will take it up with Carl's Place.
Because each Built-In screen is sewn to your exact wall dimensions, Built-In kit sales are final with no returns. We confirm your size, masking and layout with you before anything is produced, so measure your space before ordering.
All Optoma sales are final. No returns will be accepted.
We want you to be happy with your purchase and enjoy it for many years to come. If you decide you want to return your product, we will gladly assist you in the process. Please inspect your purchase when your package arrives. Product received damaged must be noted with the freight carrier at time of delivery. Contact us immediately no later than 24 hours from delivery time to report the damage. We cannot accept responsibility for a damaged shipment if it is not noted as such on the freight carrier's delivery receipt. Damage must be noted at the time of delivery.
For additional details about our return process & exceptions for all the items included in the package please see our Return Policy.
