- Full Swing KIT Included: Compact dual radar + photometric unit with full ball and club data.
- Six Enclosure Sizes: Carl's Place DIY C-Series from 8'W to 13'W, with the triple-layer Premium screen in every size.
- Frame Included: Pre-cut 1-inch EMT pipe kit matched to your size, plus foam inserts, side nets and safety baffle.
- Real Feel Mat and Laser Projector: Country Club Elite 5'W x 5'L mat and the Optoma ZW350ST with ceiling mount.
- Free Shipping: Ships free within the contiguous 48 states.

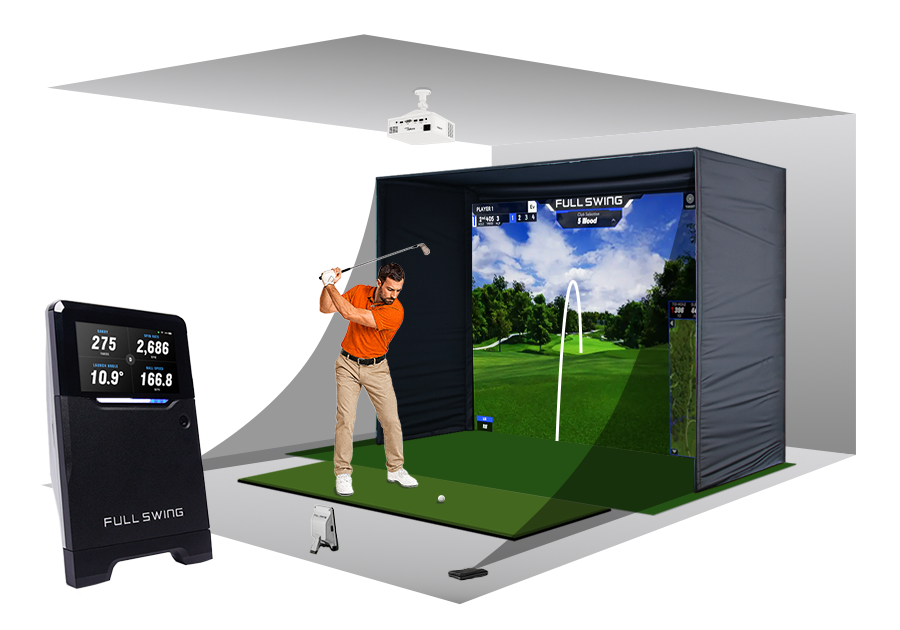

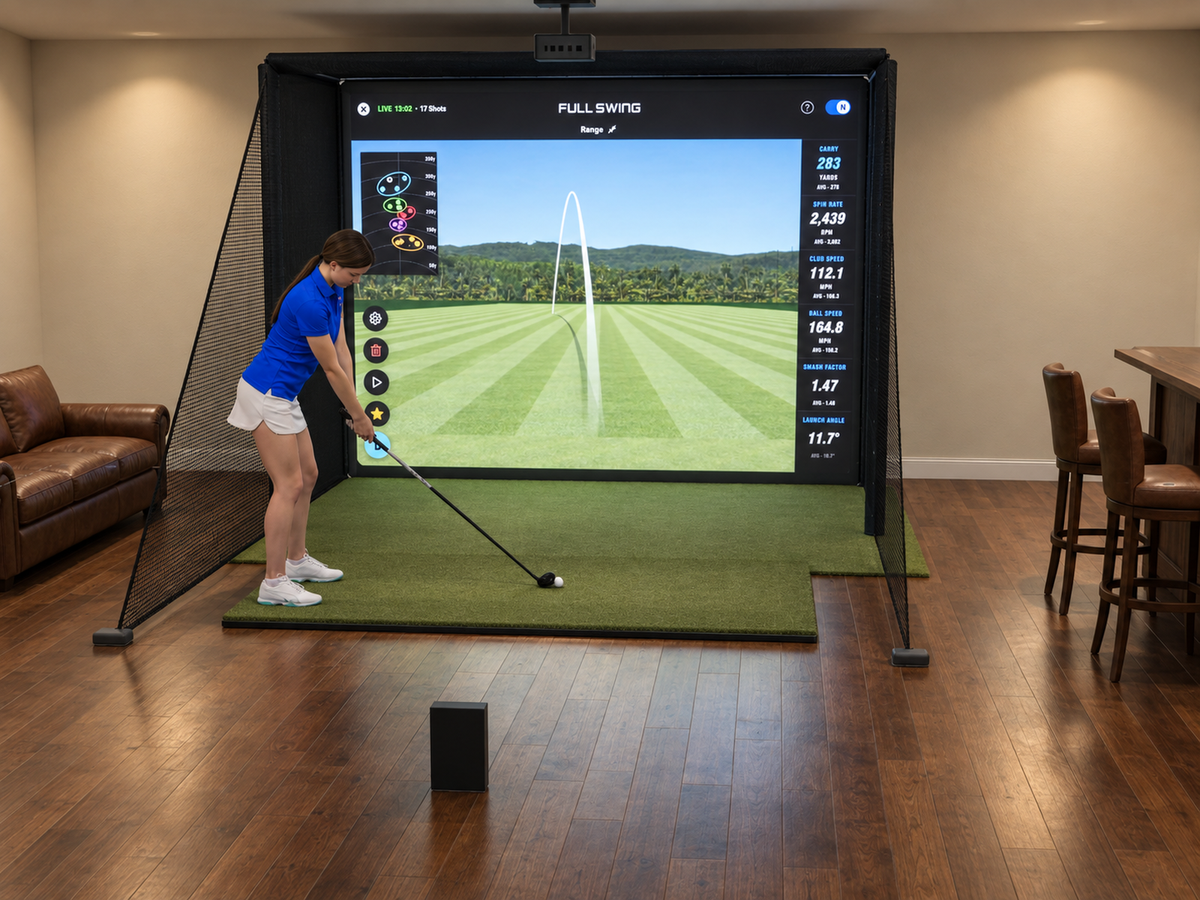

Full Swing KIT DIY Enclosure Golf Simulator
Snow on the driveway, a Tuesday night, and you are still hitting driver, with the Full Swing KIT set up behind the ball. Choose the screen size, mat and projector here, watch the build take shape in 3D at real size, and check out without waiting on a quote.
The Full Swing KIT DIY Enclosure Golf Simulator is a complete home golf simulator package built around the Full Swing KIT launch monitor: a Carl's Place DIY enclosure with a premium impact screen in six sizes, a Real Feel hitting mat, and a short-throw laser projector with its ceiling mount.
Every pick updates the price and the 3D view, and the whole build goes to your cart as one package. It is for the golfer who wants one order for the whole room instead of sourcing a screen, frame, mat and projector separately.
Carl's Place DIY Simulator Kit Assembly
Full Swing KIT DIY Enclosure Golf Simulator Includes:
- Full Swing KIT Launch Monitor

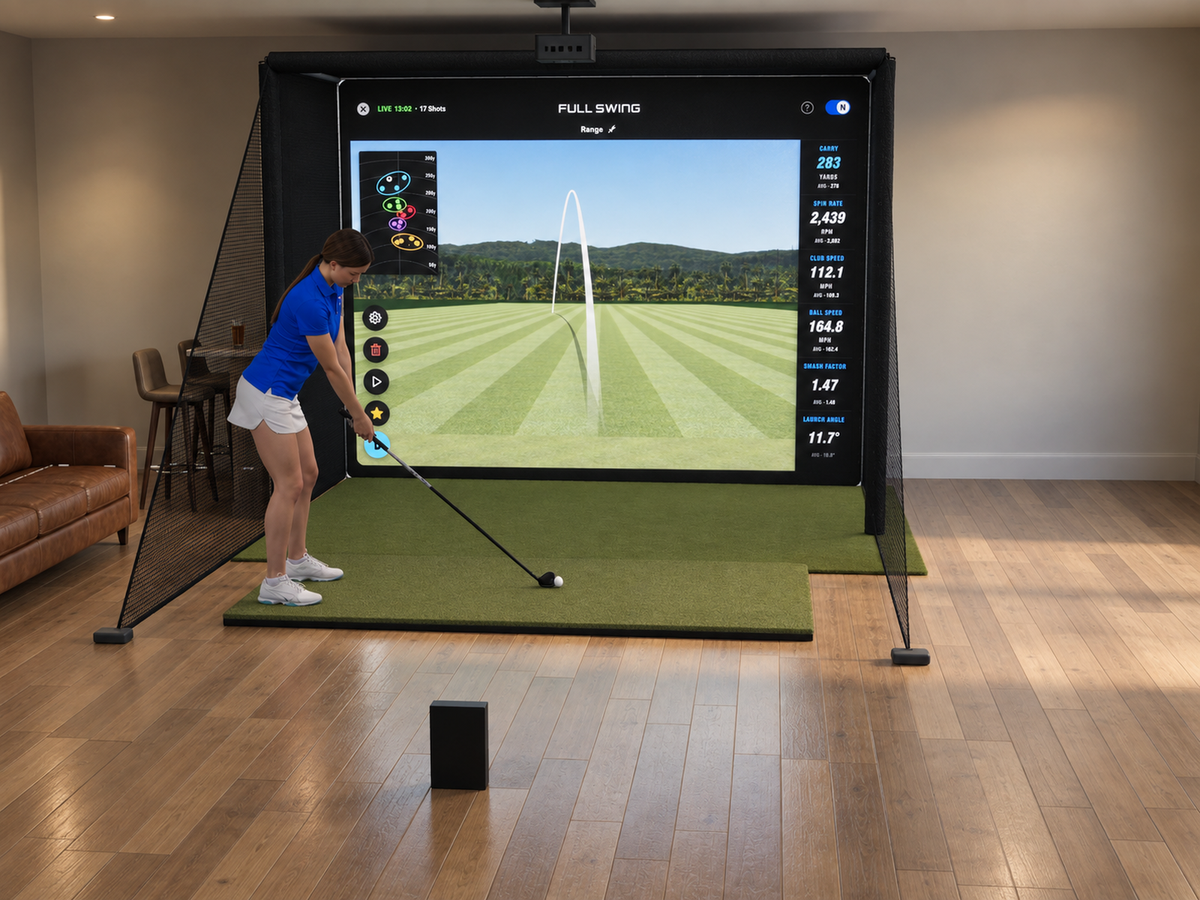

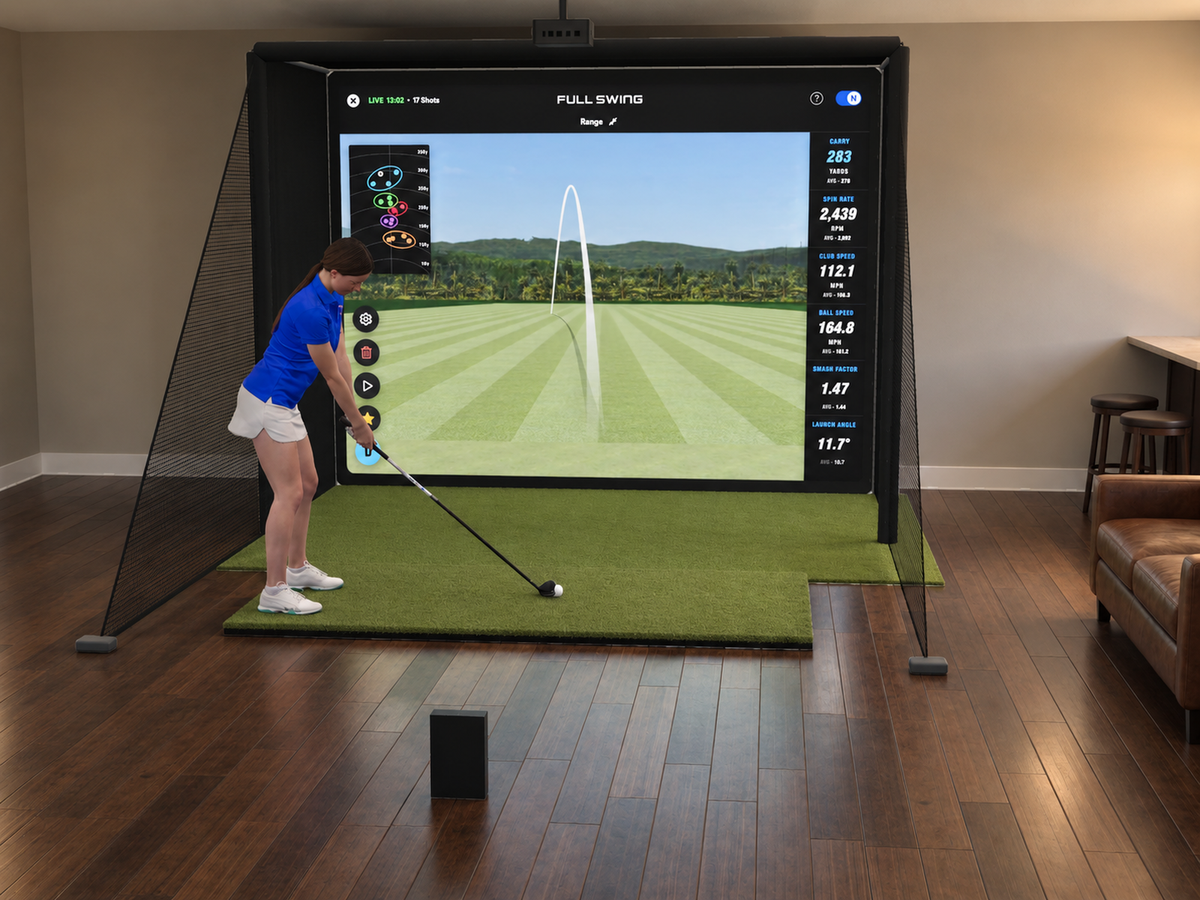

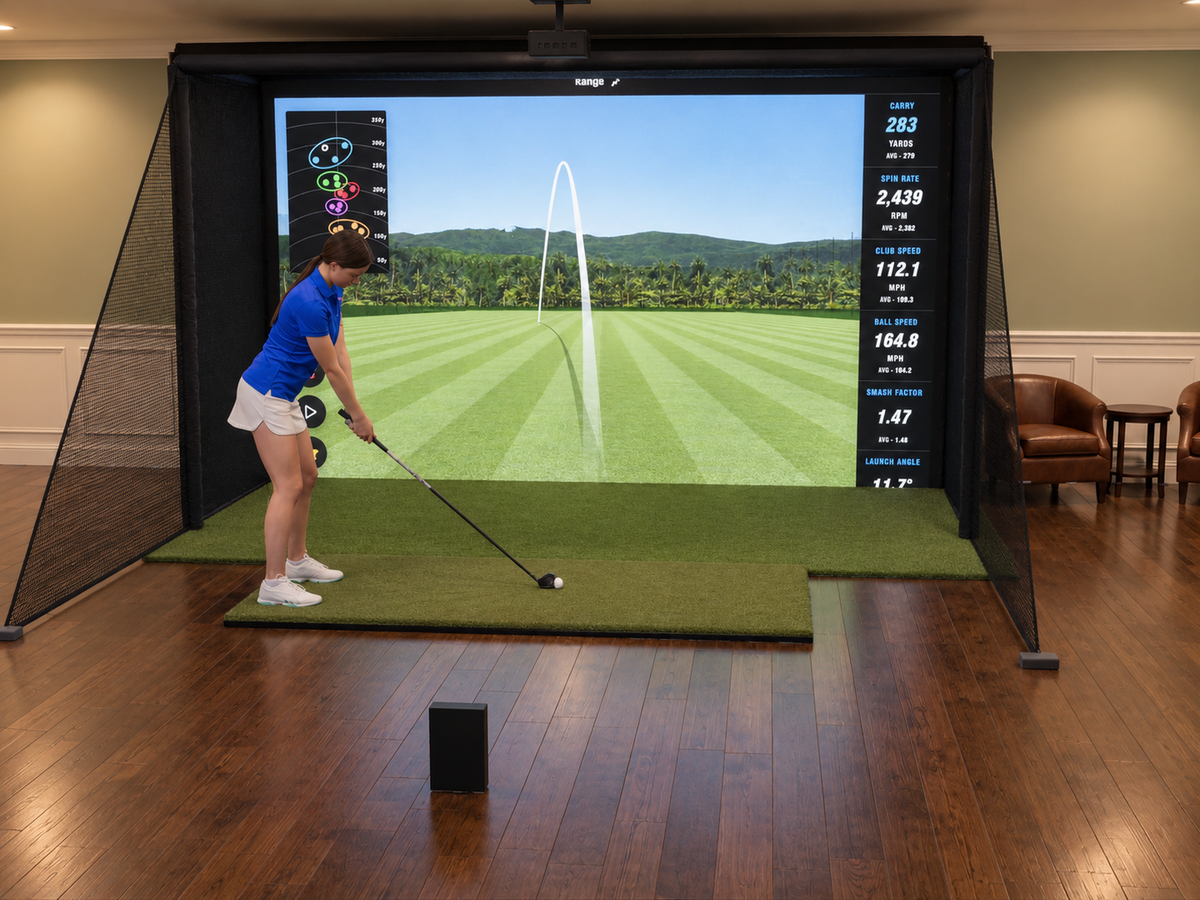

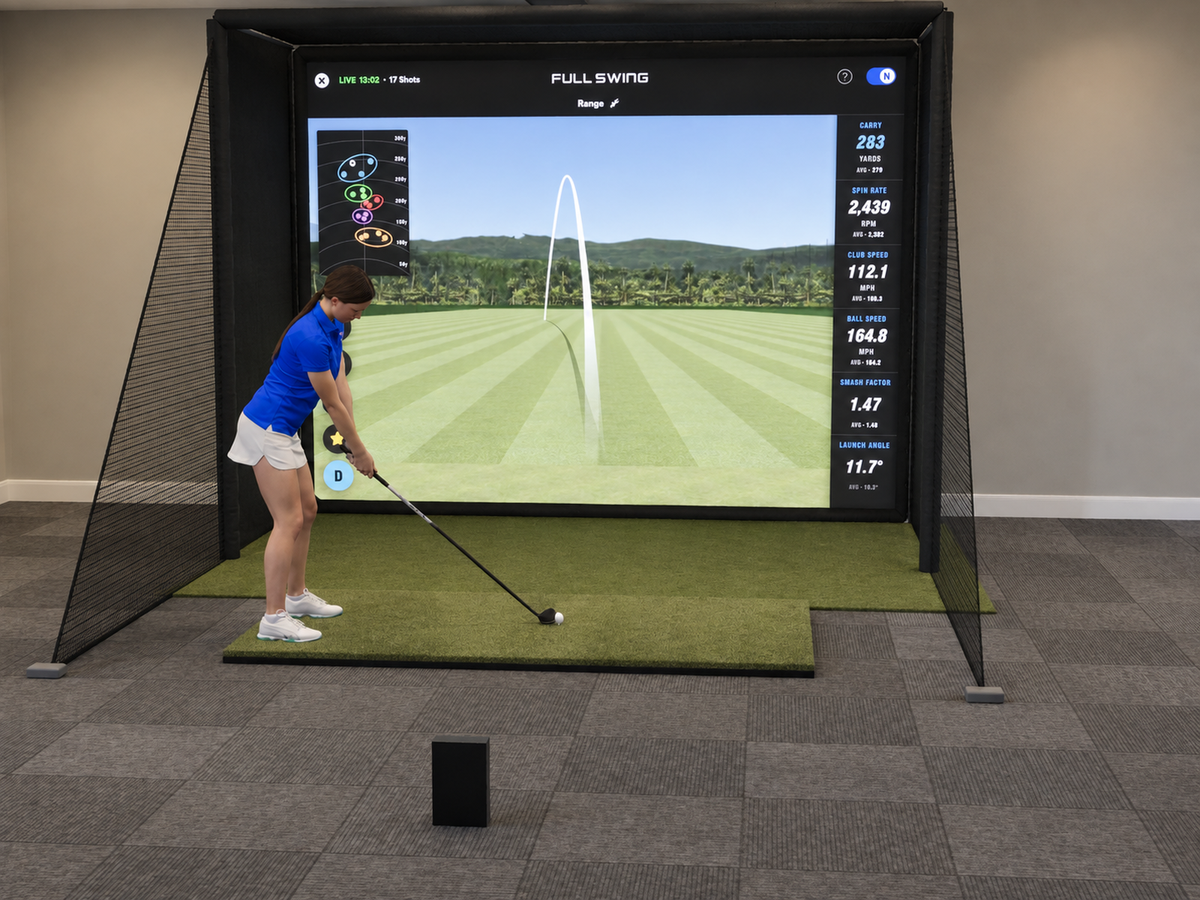

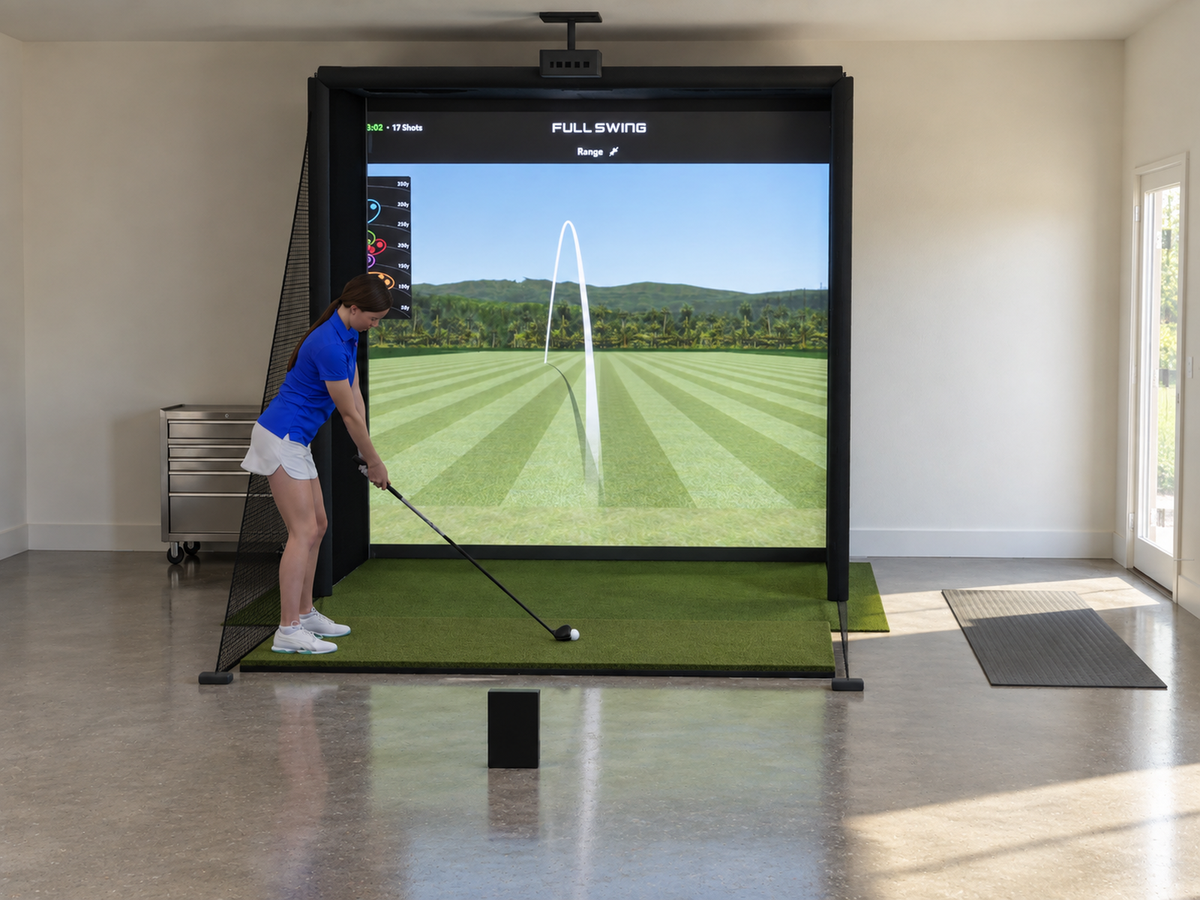

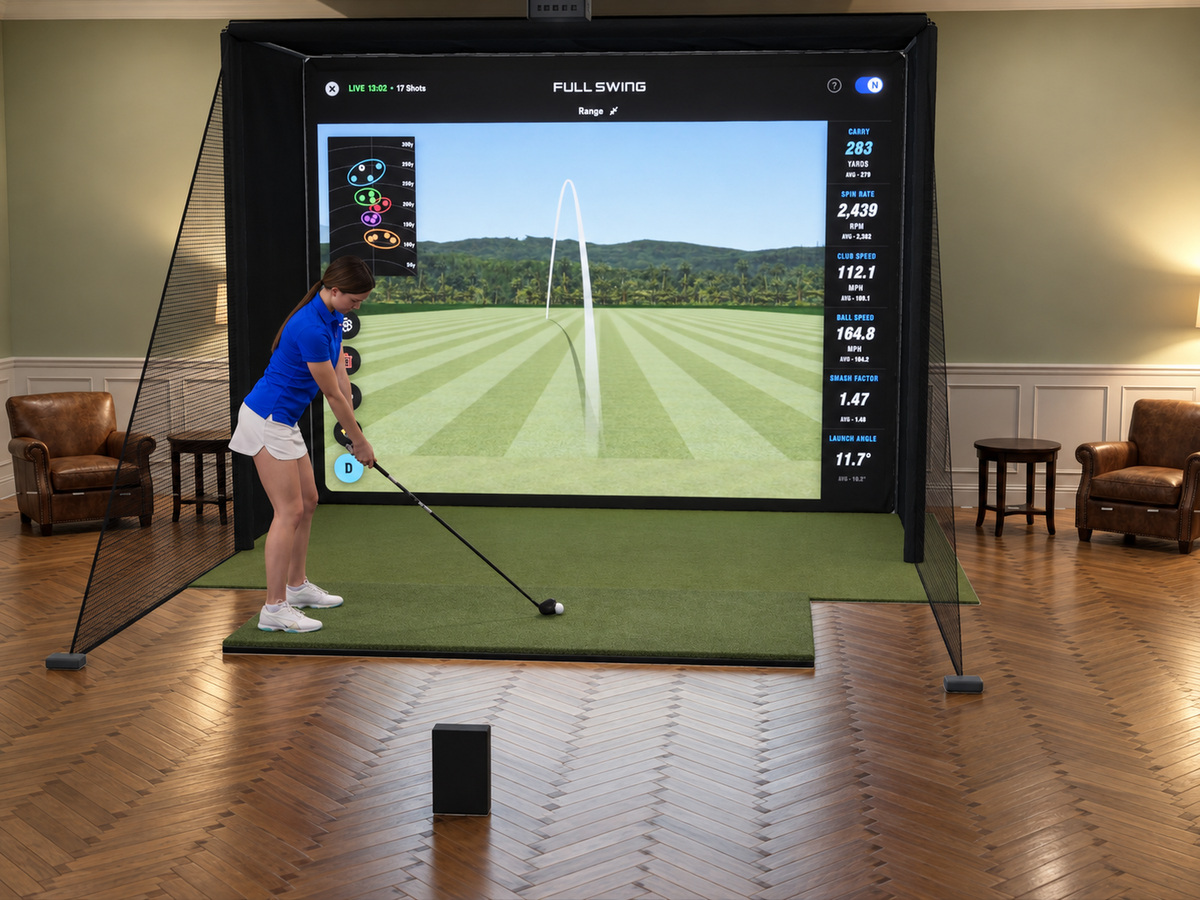

- DIY Enclosure Bundle (10'W x 7.7'H x 5'D, 4:3) - also available in 8'W, 10.5'W, 11.5'W, 12'W or 13'W
- Real Feel Country Club Elite Mat (5'W x 5'L) - included; pick 'I already have a mat' in the builder to leave it out
- Optoma ZW350ST 3600-Lumen WXGA Laser Projector (0.521:1 throw) - included; pick 'I already have a projector' in the builder to leave it out
- Projector Ceiling Mount - included; uncheck it in the builder to leave it out
Use the builder above to change the enclosure size, hitting mat or projector, or add a landing pad, gaming computer, touch screen monitor or GSPro software.
Full Swing KIT
The Full Swing KIT launch monitor is engineered with patented 24 GHz dual-mode, ML-enhanced radar to deliver accurate readings and real-time insights. Trusted by Tiger Woods, Jon Rahm and Dustin Johnson, the KIT captures 16 detailed ball and club data points alongside high-definition swing video.
Its portable, easy-setup design works indoors and outdoors, integrates smoothly with popular golf simulation platforms like GSPro and E6 Connect, and pairs with a dynamic app that makes tracking, analyzing, and sharing your progress effortless.
- Club Speed
- Smash Factor
- Angle of Attack
- Club Path
- Face Angle
- Face-to-Path
- Ball Speed
- Vertical Launch Angle
- Horizontal Launch Angle
- Spin Rate
- Spin Axis
- Carry Distance
- Total Distance
- Apex Height
- Side Carry Distance
- Side Total Distance
Carl's Place DIY Enclosure
The Carl's Place DIY Golf Simulator Enclosure builds a clean, fully contained hitting bay. Every size in this package ships with the triple-layer Premium impact screen, a pre-cut 1-inch EMT pipe framing kit, foam inserts, a pair of 8 ft net wall extensions and an overhead safety baffle. BlackStop light-absorbing fabric keeps the picture bright with less bounce-back.
Room minimum, to the inch. Width is Carl's overall frame plus a 3 in buffer on each side; height is the frame plus 3 in above.
Depth is 1 ft behind the screen, 10 ft from the screen to the ball (the closest Carl's says to hit from) and 8 ft behind the tee for the Full Swing KIT (Full Swing places it 8 to 10 ft behind the ball), which is 19 ft 0 in for every size.
Figures are rounded up to the next inch.
Hitting mat
The package ships with the Real Feel Country Club Elite Golf Mat, 5'W x 5'L. Its long, dense fibers let you swing down and through the turf the way you would off a fairway, it takes a real wooden tee, and the base absorbs the strike so your joints do not.
Three Fiberbuilt mats are one click away in the builder, or remove the mat if you already have one:
- Fiberbuilt Performance Turf Tee Box Mat, 8'W x 4'L
- Fiberbuilt 7'x4' Grass Series Single-Hitting Studio Mat
- Fiberbuilt 9'x4' Grass Series Center-Hitting Studio Mat (right- and left-handed)
Optional: Tour Golf Landing Pad
The Tour Landing Pad cushions and quiets balls dropping off the screen, keeps them from scuffing the floor, and bridges the gap between the mat and the enclosure. The builder offers the width that matches your bay, always 8 ft long:
- 9'W x 8'L for the 8'W enclosure
- 11'W x 8'L for the 10'W enclosure
- 11.5'W x 8'L for the 10.5'W enclosure
- 12.5'W x 8'L for the 11.5'W enclosure
- 13'W x 8'L for the 12'W enclosure
- 14'W x 8'L for the 13'W enclosure
Projector and ceiling mount
The Optoma ZW350ST is the included projector: 3,600 lumens, a 30,000-hour DuraCore laser with no bulb to replace, and a 0.521:1 short throw, so it mounts close to the screen and out of the swing.
Seven BenQ short-throw projectors are available in the builder, from the 1080p TH671ST to the 5,100-lumen 4K LK936ST, and the ceiling mount switches to the right model for whichever projector you choose. Remove the projector and the mount goes with it. The projector calculator shows the mount distance for your screen size.
- Optoma ZW350ST 3600-Lumen WXGA Laser (0.521:1 throw), included
- BenQ TH671ST 3000-Lumen 1080p (0.69-0.83:1 throw)
- BenQ AH30ST 3000-Lumen 1080p LED (0.69-0.83:1 throw)
- BenQ AH500ST 4000-Lumen 1080p Laser (0.5:1 throw)
- BenQ AH700ST 4000-Lumen 1080p Laser (0.69-0.83:1 throw)
- BenQ LK830ST 4000-Lumen 4K Laser (0.496:1 throw)
- BenQ AK700ST 4000-Lumen 4K Laser (0.69-0.83:1 throw)
- BenQ LK936ST 5100-Lumen 4K Laser (0.81-0.89:1 throw)
Optional: SurfThing gaming computer and touch screen
With the KIT, GSPro runs on a PC and E6 Connect runs on iPhone or iPad over Bluetooth. GSPro needs a gaming-class computer, and the one you pick here arrives ready for it. SurfThing builds them for golf simulation: 32GB DDR5, a 2TB SSD and an NVIDIA RTX 50-series GPU, in a desktop tower or a laptop.
With the desktop PC, add the SurfThing DT2424H 23.8-inch touch screen to start rounds, review data and scrub swing video without walking back to a keyboard. It is not offered with the laptop, which has its own screen.
- SurfThing Enhanced Level PC: Core Ultra 5 with RTX 5070 Ti, 32GB DDR5, 2TB SSD
- SurfThing Enhanced Level Laptop: Core Ultra 9 with RTX 5070, 32GB DDR5, 2TB SSD
- SurfThing DT2424H 23.8" Touch Screen Monitor, 1080p, 75Hz, 10-point touch (with the desktop PC)
Which Enclosure Fits the Full Swing KIT?
Full Swing places the KIT 8 to 10 ft behind the ball and asks for 8 to 10 ft of ball flight to the screen or net.
Net
No wall or enclosure mounting is needed: the KIT goes on the floor 8 to 10 ft behind the ball and the net catches the shot.
Full Swing asks for 8 to 10 ft of ball flight to the screen or net and 8 to 10 ft behind the ball; check the specific net you pick for its own frame depth.
Floating Screen
Every width of the Net Return Floating Screen Simulator Bay stands 8 ft 6 in tall and 3 ft 6 in deep and can sit 6 in from a wall. The KIT goes on the floor 8 to 10 ft behind the ball.
DIY Enclosure
The Carl's DIY kit needs 19 ft 0 in of room depth with the KIT behind the ball, up from 16 ft 0 in on its own.
Pro Enclosure
The Pro enclosure needs at least 16 ft 0 in of room depth on its own, and 19 ft with the KIT behind the ball. The frame is free-standing, so the unit sits on the floor behind you and nothing attaches to it.
Curved Screen
Same 19 ft as the Pro Enclosure, both up from 16 ft 0 in on their own with the KIT behind the ball.
Built-In Screen
Carl's plans a Built-In room as 12 in behind the screen for buffer space plus 6 in to install the flaps, at least 10 ft from the screen and 7 ft of swing room in every direction. The KIT sits on the floor 8 to 10 ft behind the ball.
Our pick: the Carl's DIY kit, our best seller, at 19 ft 0 in of room depth with the KIT behind the ball, or the Floating Screen, which minimizes bounce-back for tighter rooms.
Enter your own room width, depth and ceiling in the golf simulator builder, or read the golf simulator room size guide first.
Full Swing KIT DIY Enclosure Golf Simulator Review: Our Take
Buy the Full Swing KIT DIY Enclosure Golf Simulator if you want the Full Swing KIT's 16-data-point dual-mode radar, a Carl's Place enclosure with a Premium impact screen in six sizes, a hitting mat and a laser projector in one order.
It fits golfers with at least 19 ft of room depth who want a behind-the-ball radar build from one order and will run GSPro on a gaming PC or E6 Connect on an iPhone or iPad.
- Patented 24 GHz dual-mode radar measures 16 ball and club data points, all included in the free Full Swing app.
- Six Carl's Place DIY enclosure sizes, each with the triple-layer Premium impact screen, a pre-cut EMT framing kit, net wall extensions and a safety baffle.
- The Optoma ZW350ST 3,600-lumen laser projector and its ceiling mount are included, with seven BenQ short-throw projectors in the builder.
- The Real Feel Country Club Elite mat takes a real wooden tee.
- The KIT sits on the floor 8 to 10 ft behind the ball, so the launch monitor needs no ceiling or enclosure mount.
- Simulator software is sold separately: GSPro on a PC or E6 Connect on iPhone or iPad.
- A gaming computer is not included; the SurfThing PC is optional in the builder.
- Needs 19 ft 0 in of room depth at every enclosure size.
- Costs more than the FlightScope Mevo Gen2 DIY Enclosure build, whose Mevo Gen2 tracks 20 data parameters.
Full Swing KIT vs FlightScope Mevo Gen2 vs FlightScope X3C DIY Enclosure Golf Simulators
| Feature | Full Swing KIT DIY Enclosure 10 ft ($7,890.90) | FlightScope Mevo Gen2 DIY Enclosure 10 ft ($5,040.90) | FlightScope X3C DIY Enclosure 10 ft ($15,886.90) |
|---|---|---|---|
| Price | $7,890.90 | $5,040.90 | $15,886.90 |
| Tracking | 24 GHz dual-mode radar, machine-learning enhanced | Radar plus camera Fusion Tracking | 3D Doppler radar plus high-speed imaging, Fusion Tracking |
| Data points | 16 | 20 | 50 |
| Software in the box | Free Full Swing app; GSPro or E6 Connect sold separately | E6 Connect courses included | Lifetime ownership of 12 E6 Connect courses for iOS and PC |
| Enclosure, projector, mat | Carl's Place DIY with Premium screen, Optoma ZW350ST, Real Feel mat | Carl's Place DIY with Premium screen, Optoma ZW350ST, Real Feel mat | Carl's Place DIY with Premium screen, Optoma ZW350ST, Real Feel mat |
| Room depth | 19 ft 0 in | 19 ft 0 in | 19 ft 0 in |
| Best for | Tour-proven radar with no data subscription | 20 data parameters for less money | The most data, plus chipping and putting data |
Compare in depth: FlightScope Mevo Gen2 DIY Enclosure Golf Simulator and FlightScope X3C DIY Enclosure Golf Simulator, or browse all all-in-one golf simulators.
See your build before you buy
Before you order, see the screen, the mat, the projector on its mount and the launch monitor drawn at real size, each where it goes.
The second gallery thumbnail opens an interactive 3D view of your build at real size, with the Full Swing KIT where it belongs: behind the ball. Drag to rotate, pinch or scroll to zoom, open it full screen.
Share build saves the configuration to a short topshelfgolf.com link with a picture, for a spouse, a contractor or us, and the link rides along on your cart line and order.
