- True 4K UHD: Crisp, detailed visuals at simulator viewing distances -- you will see the difference
- 4,000 ANSI Lumens: Bright enough for rooms with some ambient light
- Short Throw (0.69-0.83:1): Mount close to the screen, no shadows on your swing
- Golf Mode: Color tuned specifically for simulator software -- greens and skies look natural
- 20,000-Hour Laser: No bulb replacements for the life of your sim room
- IP5X Dust Protection: Sealed laser engine -- no filter cleaning in dusty basements or garages
🌴 Enjoy a Free 5-Night Getaway — Claim Now >>

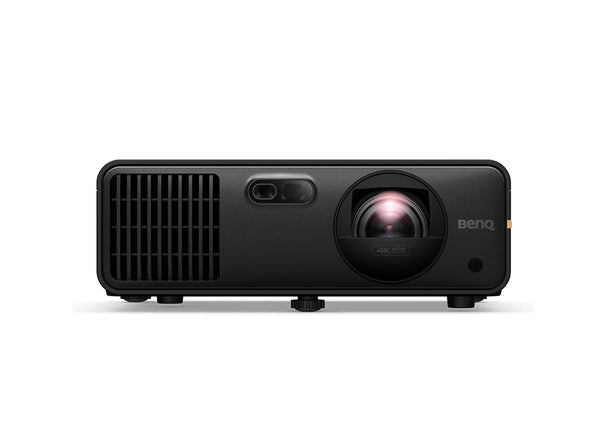

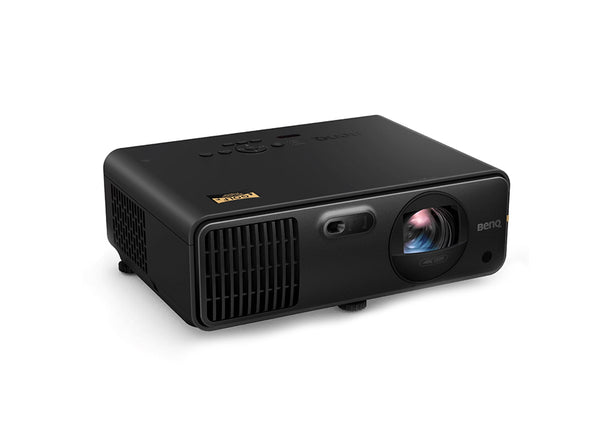

BenQ AK700ST 4K Laser Golf Simulator Projector
The BenQ AK700ST is a 4K UHD short-throw laser projector built specifically for golf simulators. At $2,899, it delivers 3840x2160 resolution and 4,000 ANSI lumens of laser brightness with a 0.69-0.83:1 throw ratio -- fills a 100-inch screen from just 3-4 feet away.
No more 15-foot throw distances. No shadows from your swing. No bulb replacements for 20,000 hours. The AK700ST includes Golf Mode color calibration, curved screen support, and IP5X dust protection -- features you will not find on any competing projector at this price.
Why Golfers Choose the AK700ST
True 4K UHD
3840x2160 resolution. Fairways, greens, and data overlays render in razor-sharp detail on screens up to 200 inches.
4,000 Lumens Laser
Laser light source rated for 20,000 hours. No bulb changes, no brightness loss. IP5X sealed engine keeps dust out.
Short Throw
0.69-0.83:1 ratio fills a 100-inch screen from 3-4 feet. Mount close to the screen and eliminate swing shadows.
Golf Mode
Dedicated color calibration tuned for simulator environments. Optimizes greens, fairways, and sky tones automatically.
Curved Screen Support
Geometry correction for curved impact screens -- a feature most competitors lack entirely.
3-Year Warranty
Parts, labor, and laser covered. One of the most comprehensive projector warranties in the category.
Throw Ratio and Room Placement
The AK700ST's 0.69-0.83:1 short-throw ratio means it projects a large image from a very short distance. Combined with 1.2x motorized zoom and vertical lens shift, you have significant flexibility in placement.
Is the AK700ST Right for Your Build?
Premium Sim Room Builder
You are investing $10,000+ in a launch monitor and enclosure. The AK700ST's 4K laser image matches the quality of the rest of your setup.
Compact Space
Your room is tight and you cannot fit a standard-throw projector 10-15 feet back. The AK700ST fills a 120-inch screen from under 5 feet.
Low-Maintenance Priority
You want to install it once and forget it. 20,000 hours of laser life, IP5X dust sealing, no filters to clean, no bulbs to replace.
Commercial / Lesson Studio
Teaching pros and commercial facilities need a projector that runs 8+ hours daily without degradation. Laser delivers consistent brightness session after session.
Upgrading from a Lamp Projector
Your current projector is dimming, running hot, or eating through bulbs. The AK700ST's laser source eliminates replacements entirely — 20,000 hours of consistent brightness with zero maintenance.
Entertainment Beyond Golf
Your sim room doubles as a home theater. 4K resolution and 4,000 lumens mean movie nights, big-screen sports, and gaming look just as sharp as your sim sessions.
Deep blacks. Vivid colors. Every blade of grass, every fairway contour, every data overlay rendered with clarity that makes your simulator feel real.
Key Specifications
BenQ AK700ST vs Other Golf Simulator Projectors
Every projector in this comparison is available from Top Shelf Golf. Your ideal choice depends on resolution, budget, and room size.
| Feature | AK700ST ($2,899) | TK710STi ($2,199) | AH500ST ($1,999) | LK830ST ($2,499) |
|---|---|---|---|---|
| Resolution | 4K UHD | 4K UHD | 1080p | 4K UHD |
| Brightness | 4,000 lumens | 3,200 lumens | 4,000 lumens | 4,000 lumens |
| Light Source | Laser (20K hrs) | Laser (20K hrs) | Laser (20K hrs) | Laser (20K hrs) |
| Throw Ratio | 0.69-0.83:1 | 0.68-0.83:1 | 0.69-0.83:1 | 0.496:1 |
| Golf Mode | Yes | No | Yes | Yes |
| Curved Screen | Yes | No | No | Yes |
| IP5X Dust Protection | Yes | No | Yes | Yes |
| Best For | Premium 4K sim room | Affordable 4K laser | Compact spaces / 1080p laser | Highest-end install |
Get the Most Out of Your AK700ST
Five tips to get a perfect image from day one.

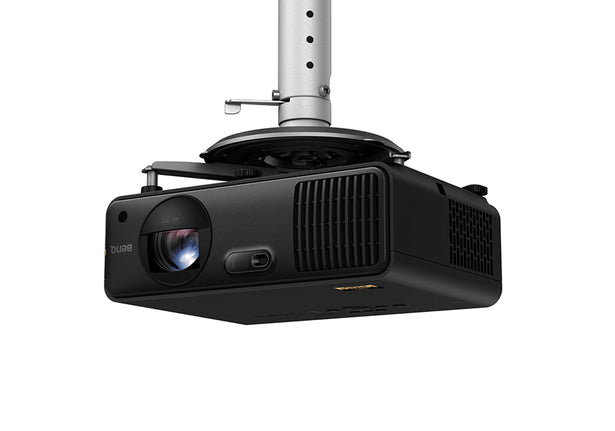

Ceiling Mount It
The BenQ ceiling mount is purpose-built for this projector. Overhead mounting eliminates swing interference and keeps cables clean.
Dial In the Image
Use the 1.2x motorized zoom and vertical lens shift to fine-tune size and position without physically moving the projector after install.
Connect via HDMI 2.0b
Two HDMI 2.0b ports means you can run your sim PC and a streaming device simultaneously. High-speed cable included in the box.
Enable Golf Mode
In picture settings, activate Golf Mode. It calibrates color temperature and gamma specifically for simulator graphics — greens look green, not washed out.
Pair with Quality Enclosure
A good enclosure setup makes a measurable difference in image quality. ALR screen material maximizes the AK700ST's 4,000 lumens.
Read the Manual
BenQ's documentation covers every adjustment in detail. Download the AK700ST manual (PDF) for the full setup walkthrough.
Build the Sim Room You Have Been Planning
In stock. Ships free via FedEx. Financing available through Affirm.
Add to Cart - $2,899Your Purchase is in Good Hands
1-888-871-6110
From the moment you first contact us, we offer the very best advice and service to find the right product at the right price. We do not just sell boxes -- we help you build the sim room you have been planning.
Frequently Asked Questions
The AK700ST outputs 4,000 ANSI lumens via a laser light source. This is bright enough for most home simulator environments, including rooms with some ambient light. For dedicated sim rooms with controlled lighting, the image quality is exceptional. If your room has significant ambient light (large windows, overhead fluorescents), consider blackout curtains for optimal contrast.
The AK700ST has a 0.69-0.83:1 throw ratio. For a 100-inch screen, the projector sits approximately 3.4 to 4.1 feet from the screen. For a 120-inch screen, approximately 4.1 to 4.9 feet. For a 150-inch screen, approximately 5.1 to 6.2 feet. This short throw distance means you can mount the projector close to the screen, avoiding swing shadows entirely.
Yes. BenQ makes the BenQ ceiling mount specifically for their short-throw golf projectors including the AK700ST. The mount allows you to install the projector above and behind the hitting area. Between the BenQ ceiling mount, the AK700ST's built-in vertical lens shift, and its 1.2x motorized zoom, you have significant flexibility in placement.
Yes. The AK700ST includes curved screen support through its keystone correction and geometry adjustment features. This is particularly useful for golfers building immersive simulator setups with curved impact screens.
The AK700ST uses a laser light source rated at 20,000 hours. Unlike traditional lamp-based projectors, the laser never needs replacement. At 4 hours of daily use, that is over 13 years of operation with no maintenance.
Both are 4K short-throw projectors from BenQ. The AK700ST ($2,899) uses a laser light source with 4,000 lumens and 20,000-hour life, while the TK710STi ($2,199) uses a laser light source with 3,200 lumens and 20,000-hour life. The AK700ST also adds IP5X dust protection, Golf Mode color calibration, and curved screen support. The TK710STi costs $700 less and is a strong choice for budget-conscious 4K builds.
4K resolution (3840x2160) provides four times the pixel density of 1080p. On large screens (100 inches and up), the difference is clearly visible in course graphics, green reading, and club data overlays. If you are investing $5,000 or more in a launch monitor and software, a 4K projector ensures the image quality matches the rest of your setup. For tighter budgets, the BenQ AH500ST ($1,999) delivers excellent 1080p performance.
For most home simulators, a 100-120 inch impact screen delivers the best combination of immersion and image quality. With the AK700ST's short-throw ratio, a 100-inch screen requires only 3.4-4.1 feet of throw distance. For larger dedicated rooms, the AK700ST supports up to 200-inch projection.
Yes. BenQ provides a 3-year limited warranty covering parts, labor, and the laser light source. Top Shelf Golf is an authorized BenQ dealer, so your warranty is fully backed. See our return policy for additional details.
Yes. The AK700ST connects via HDMI 2.0b and works with any simulator software including GSPro, E6 Connect, TGC 2019, Creative Golf 3D, Awesome Golf, and more. It is simply a display device -- compatible with any PC-based or console-based simulator setup.
We ship the AK700ST free via FedEx. Orders typically ship within 1-2 business days when in stock. The projector weighs 14.3 lbs and ships in BenQ's original packaging with all included accessories.
Yes, it has a built-in 10W speaker. For most simulator setups, an external sound system will deliver a better audio experience, but the built-in speaker works for basic use during setup and testing.
As an authorized BenQ dealer, every projector purchased from Top Shelf Golf comes with BenQ's 3-Year Limited Manufacturer's Warranty covering the projector and laser light source under standard terms. If anything goes wrong, BenQ covers it directly.
Returns are accepted within 30 days of receiving your order on undamaged and unused products (15% restocking fee applies). Please inspect your package when it arrives and contact us within 24 hours if there is any shipping damage. For full details, see our Return Policy.
Shipping is free within the continental United States on most products over $150. If you find any BenQ projector cheaper on another authorized dealer website, we will beat their price.
Building a sim room? Browse our complete projector collection or call us at 1-888-871-6110 for a personalized recommendation based on your room size and budget.
