- Ultra-Short Throw (0.50): Ideal for small rooms — mounts close without casting shadows.
- Bright 4,000 Lumens: Clear, vivid image even with some ambient light.
- 1080p Full HD Resolution: Crisp, detailed visuals on screens up to 200".
- 20,000-Hour Laser Life: Virtually maintenance-free, no lamp replacements needed.
- Fast & Easy Setup: Auto Screen Fill, Corner Fit, and remote zoom/focus save time.
🌴 Enjoy a Free 5-Night Getaway — Claim Now >>

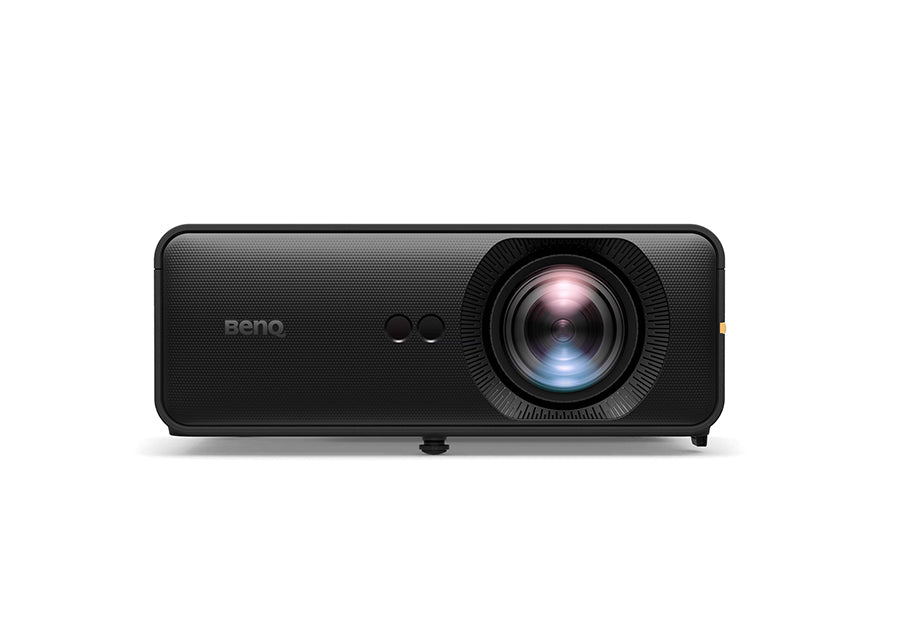

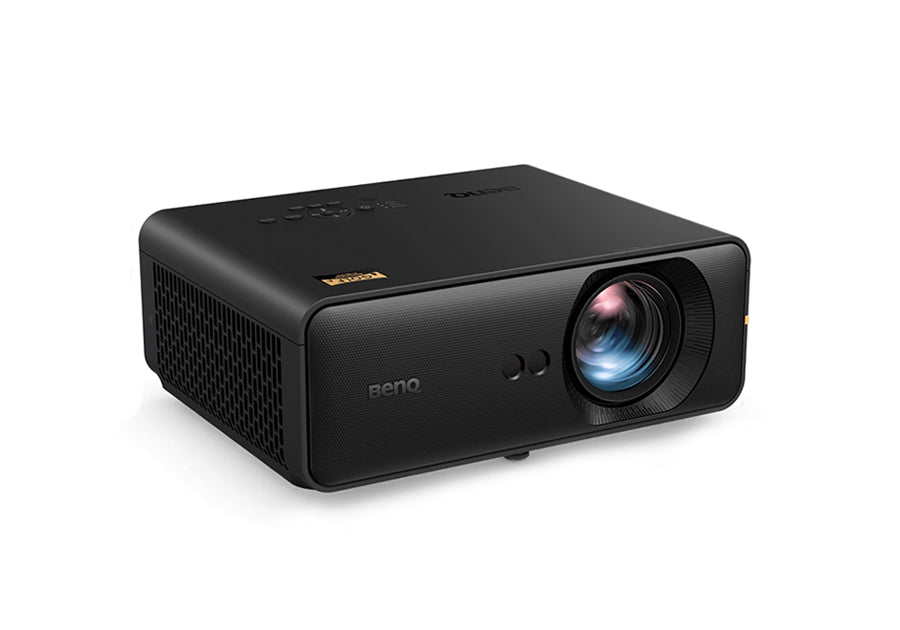

BenQ AH500ST 1080p Laser Ultra-Short Throw Golf Simulator Projector
The BenQ AH500ST is a 1080p laser projector built for golf simulators in tight spaces. At $1,999, it delivers 4,000 ANSI lumens of laser brightness with an ultra-short 0.5:1 throw ratio -- fills a 100-inch screen from just 3.6 feet away.
No 10-foot throw distances. No shadows from your swing. No bulb replacements for 20,000 hours. The AH500ST includes Golf Mode color calibration, IP5X dust protection, Screen Fill for multiple aspect ratios, and Quick Focus from the remote -- the most affordable laser short-throw projector in BenQ's golf lineup.
Why Golfers Choose the AH500ST
Ultra-Short 0.5:1 Throw
The tightest throw ratio in the BenQ golf lineup. Fill a 100-inch screen from just 3.6 feet. Mount close to the screen and eliminate swing shadows entirely.
4,000 Lumens Laser
Laser light source rated for 20,000 hours (38,000 in ECO mode). No bulb changes, no brightness loss. The brightest 1080p projector in BenQ's golf lineup.
Full HD 1080p
1920x1080 resolution delivers sharp, detailed course graphics and data overlays on screens up to 200 inches. Accepts 4K input signals.
Golf Mode
Dedicated color calibration tuned for simulator environments. Optimizes greens, fairways, and sky tones automatically for true-to-life visuals.
IP5X Dust Protection
Sealed laser engine keeps dust out -- critical for simulator rooms where turf particles and debris are part of the environment. No filters to clean.
3-Year Warranty
Parts, labor, and laser covered. One of the most comprehensive projector warranties in the category.
Ultra-Short Throw for Compact Spaces
The AH500ST's 0.5:1 ultra- ratio is the tightest in BenQ's golf projector lineup. It projects a massive image from an extremely short distance -- perfect for garages, basements, and tight simulator rooms where every inch counts.
Is the AH500ST Right for Your Build?
Compact Space Builder
Your garage, basement, or spare room is tight. The AH500ST's 0.5:1 throw fills a 100-inch screen from 3.6 feet -- the shortest throw in the BenQ golf lineup.
Smart Budget Builder
You want laser reliability without the 4K price tag. At $1,999, the AH500ST delivers the same 4,000-lumen laser brightness as BenQ's $2,899 4K model.
Upgrading from a Lamp Projector
Your current projector is dimming, running hot, or eating through bulbs. The AH500ST's laser source eliminates replacements entirely -- 20,000 hours of consistent brightness.
Low-Maintenance Priority
Install it once and forget it. IP5X dust sealing, no filters to clean, no bulbs to replace, 38,000 hours in ECO mode. Set it and forget it.
Commercial / Lesson Studio
Teaching pros and commercial facilities need a projector that runs 8+ hours daily. Laser delivers consistent brightness session after session without degradation.
Entertainment Beyond Golf
Your sim room doubles as a home theater. 4,000 lumens, HDR10 support, and a built-in 10W speaker mean movie nights and big-screen sports look sharp too.
Deep blacks. Vivid colors. Every blade of grass, every fairway contour, every data overlay rendered with clarity that makes your simulator feel real.
Key Specifications
BenQ AH500ST vs Other Golf Simulator Projectors
Every projector in this comparison is available from Top Shelf Golf. Your ideal choice depends on resolution needs, room size, and budget.
| Feature | TH671ST ($949) | AH30ST ($1,499) | AH500ST ($1,999) | AK700ST ($2,899) |
|---|---|---|---|---|
| Resolution | 1080p | 1080p | 1080p | 4K UHD |
| Brightness | 3,000 lumens | 3,000 lumens | 4,000 lumens | 4,000 lumens |
| Light Source | Lamp (4K-10K hrs) | LED (20K hrs) | Laser (20K hrs) | Laser (20K hrs) |
| Throw Ratio | 0.69-0.83:1 | 0.49:1 | 0.5:1 | 0.69-0.83:1 |
| Golf Mode | No | Yes | Yes | Yes |
| IP5X Dust Protection | No | No | Yes | Yes |
| Zoom / Lens Shift | 1.2x / No | Fixed / No | Fixed / No | 1.2x / Yes |
| Best For | Budget 1080p entry | LED ultra-short throw | Laser UST, best value | Premium 4K sim room |
Get the Most Out of Your AH500ST
Five tips to get a perfect image from day one.

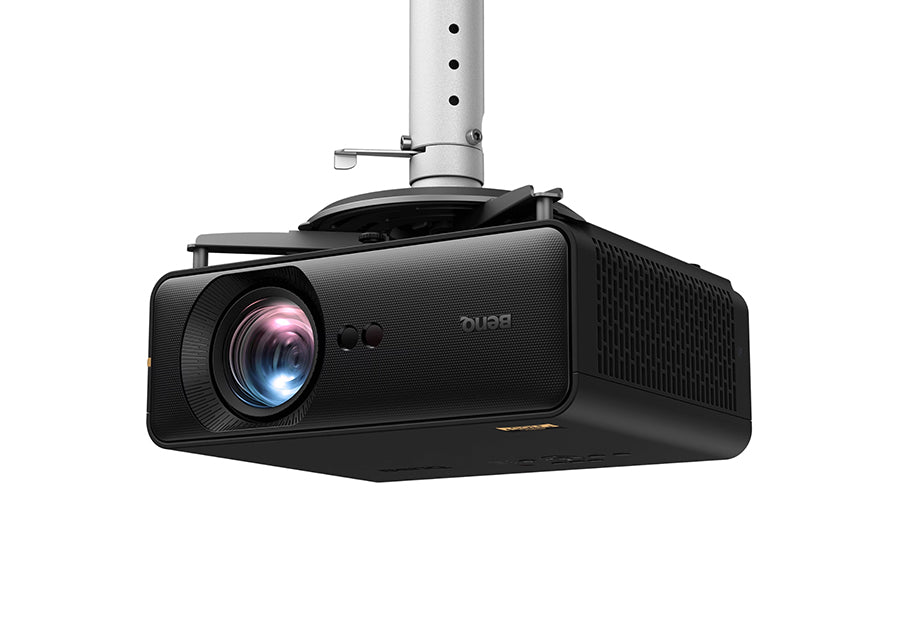

Ceiling Mount It
BenQ offers a universal ceiling mount compatible with the AH500ST. Overhead mounting eliminates swing interference and keeps cables clean.
Use Quick Focus
Press the Focus button on the remote to dial in a sharp image. The 2D keystone correction (V/H +/-30 degrees) handles alignment without moving the projector.
Connect via HDMI 2.0a
Two HDMI 2.0a ports (HDCP 2.2) let you run your sim PC and a streaming device simultaneously. Or go wireless with the optional EZC-5201BS dongle.
Enable Golf Mode
In picture settings, activate Golf Mode. It calibrates color temperature and gamma specifically for simulator graphics -- greens look green, not washed out.
Set Screen Fill
The AH500ST auto-switches to 16:9, 16:10, 4:3, or 1:1 native aspect ratios using Screen Fill. One remote button press fills your screen without distortion.
Pair with Quality Enclosure
A good enclosure setup makes a measurable difference in image quality. ALR screen material maximizes the AH500ST's 4,000 lumens.
Laser Performance. Compact Fit. Unbeatable Value.
In stock. Ships free via FedEx. Financing available through Affirm.
Add to Cart - $1,999Your Purchase is in Good Hands
1-888-871-6110
From the moment you first contact us, we offer the very best advice and service to find the right product at the right price. We do not just sell boxes -- we help you build the sim room you have been planning.
Frequently Asked Questions
The AH500ST outputs 4,000 ANSI lumens via a laser light source. This is bright enough for most home simulator environments, including rooms with some ambient light. For dedicated sim rooms with controlled lighting, the image quality is exceptional. If your room has significant ambient light (large windows, overhead fluorescents), consider blackout curtains for optimal contrast.
The AH500ST has a 0.5:1 ultra-short throw ratio with a fixed lens. For a 100-inch 16:9 screen, the projector sits approximately 3.6 feet from the screen. For a 120-inch screen, approximately 4.4 feet. This is the tightest throw in BenQ's golf projector lineup -- significantly shorter than models with a 0.69-0.83:1 ratio, which need 5.7+ feet for the same 100-inch image.
Yes. BenQ offers a universal ceiling mount compatible with the AH500ST. The mount allows you to install the projector above and behind the hitting area, keeping your sim bay clean and shadow-free. The AH500ST's 2D keystone correction handles alignment adjustments after mounting.
Yes. The AH500ST includes BenQ's dedicated Golf Mode, which calibrates color temperature and gamma specifically for simulator graphics. Greens, fairways, and sky tones render true-to-life instead of washed out. Additional picture modes include Cinema, Game, HDR10, HLG, sRGB, and two user-configurable presets.
The AH500ST uses a laser light source rated at 20,000 hours in Normal mode and 38,000 hours in ECO mode. Unlike traditional lamp-based projectors, the laser never needs replacement. At 4 hours of daily use in Normal mode, that is over 13 years of operation with no maintenance.
The AH500ST ($1,999) is a 1080p laser projector with an ultra-short 0.5:1 throw ratio and 4,000 lumens. The AK700ST ($2,899) steps up to 4K UHD resolution with a 0.69-0.83:1 throw ratio, 1.2x motorized zoom, vertical lens shift, eARC audio return, and curved screen support. Choose the AH500ST for maximum value and the tightest throw distance, or the AK700ST for 4K detail and more installation flexibility.
For most golfers, 1080p delivers excellent image quality on screens up to 120 inches. Course graphics, data overlays, and green contours all render clearly. The AH500ST also accepts 4K input signals and downscales them, so you are not limited in what sources you can connect. If you want the sharpest possible image on screens 120 inches and up, consider stepping up to a 4K model like the BenQ AK700ST ($2,899).
For most home simulators, a 100-120 inch impact screen delivers the best combination of immersion and image quality. With the AH500ST's 0.5:1 throw ratio, a 100-inch screen requires only about 3.6 feet of throw distance -- making it one of the most space-efficient projectors available. The AH500ST supports up to 200-inch projection.
Yes. BenQ provides a 3-year limited warranty covering parts, labor, and the laser light source. Top Shelf Golf is an authorized BenQ dealer, so your warranty is fully backed. See our return policy for additional details.
Yes. The AH500ST connects via HDMI 2.0a and works with any simulator software including GSPro, E6 Connect, TGC 2019, Creative Golf 3D, Awesome Golf, and more. It is simply a display device -- compatible with any PC-based or console-based simulator setup. An optional wireless dongle (EZC-5201BS) also enables cable-free 1080p projection.
We ship the AH500ST free via FedEx. Orders typically ship within 1-2 business days when in stock. The projector weighs 11.2 lbs and ships in BenQ's original packaging with all included accessories.
Yes, it has a built-in 10W speaker plus a 3.5mm audio output for connecting external speakers or a sound system. For most simulator setups, an external sound system delivers a better experience, but the built-in speaker works for basic use during setup and testing.
As an authorized BenQ dealer, every projector purchased from Top Shelf Golf comes with BenQ's 3-Year Limited Manufacturer's Warranty covering the projector and laser light source under standard terms. If anything goes wrong, BenQ covers it directly.
Returns are accepted within 30 days of receiving your order on undamaged and unused products (15% restocking fee applies). Please inspect your package when it arrives and contact us within 24 hours if there is any shipping damage. For full details, see our Return Policy.
Shipping is free within the continental United States on most products over $150. If you find any BenQ projector cheaper on another authorized dealer website, we will beat their price.
Building a sim room? Browse our complete projector collection or call us at 1-888-871-6110 for a personalized recommendation based on your room size and budget.
