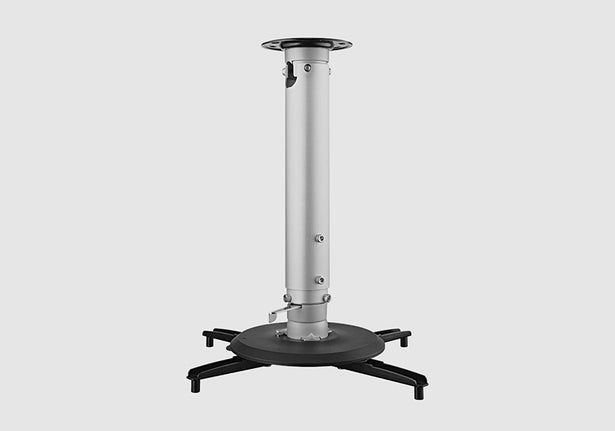

BenQ Short Throw Projector Ceiling Mount
The BenQ Short Throw Projector Ceiling Mount is a heavy-duty universal ceiling mount built for golf simulator projectors. It supports up to 55.1 lbs, adjusts from 5 to 22.7 inches in length, and provides 360-degree rotation with +/-25-degree tilt for precise image alignment.
Steel and aluminum alloy construction keeps your projector locked in place session after session. Compatible with all BenQ short-throw golf projectors including the AK700ST, LK830ST, TK710STi, and AH500ST.
Key Features
55.1 lb Capacity
Supports projectors up to 55.1 lbs (25 kg), covering every BenQ golf simulator projector and most other brands used in sim setups.
Adjustable Length

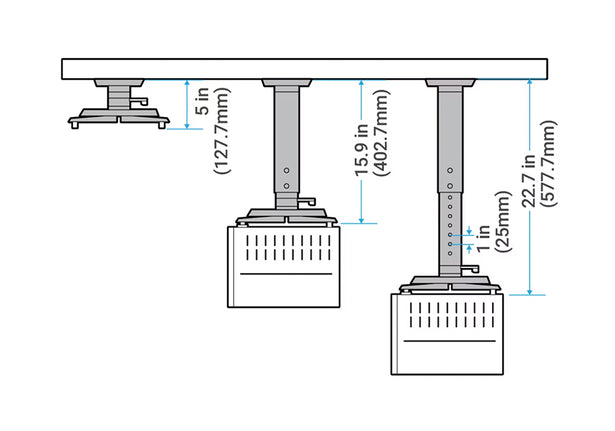

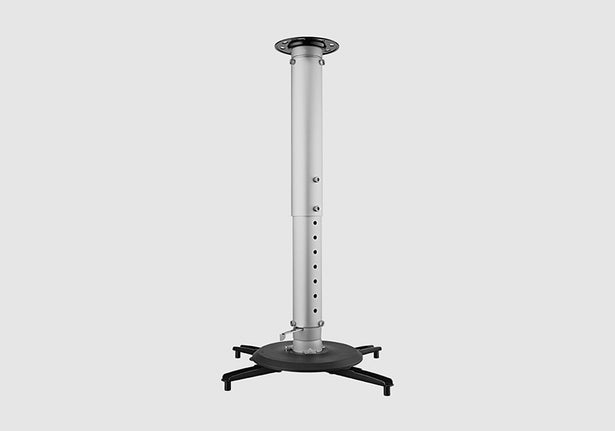

Telescoping poles adjust from 5 to 22.7 inches in 1-inch increments, fitting rooms with standard 8-foot ceilings to tall commercial spaces.

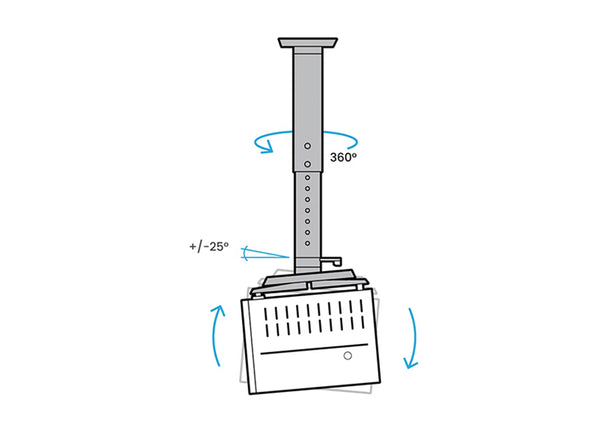

360-Degree Rotation
Full rotational freedom lets you aim the projector in any direction without repositioning the ceiling plate or re-drilling holes.
+/-25-Degree Tilt
Fine-tune the projection angle to align perfectly with your impact screen, eliminating keystoning and shadow issues.
Steel and Aluminum Build
Alloy construction provides vibration-resistant stability. Weighs just 3.9 lbs, minimizing stress on your ceiling structure.
Universal Mounting Pattern
Adjustable arms fit projector mounting holes up to 11.8 x 9.8 inches, spaced every 1 inch. Works with BenQ and most other projector brands.
Works with Every BenQ Golf Projector We Sell
This mount is designed for BenQ projectors and fits all of the short-throw models popular in golf simulator builds:
- BenQ AK700ST - 4K Laser, 4,000 lumens (7.5 lbs)
- BenQ LK830ST - 4K Laser, 4,000 lumens
- BenQ TK710STi - 4K Laser, 3,200 lumens
- BenQ AH500ST - 1080p Laser, 4,000 lumens
- BenQ TH671ST - 1080p Lamp, 3,000 lumens
Also compatible with most other BenQ projectors and third-party models with mounting holes within an 11.8 x 9.8-inch pattern.
Simple Setup, Precise Results
1. Mark Your Position
Determine where the projector needs to sit based on your throw distance and screen position. Use the ceiling plate as a template to mark drill holes.
2. Secure the Ceiling Plate
Mount the ceiling plate directly into ceiling joists or use appropriate anchors. All mounting hardware is included in the box.
3. Set the Drop Length
Choose your extension pole length (5 to 22.7 inches) based on your ceiling height and desired projector position.
4. Mount and Align
Attach your projector to the mounting plate, then use 360-degree rotation and +/-25-degree tilt to dial in the perfect image alignment.
BenQ vs Optoma Ceiling Mount
Both ceiling mounts are priced at $99. Here is where the BenQ mount pulls ahead:
If you are running a BenQ projector, this is the mount to pair with it. The purpose-built design ensures a precise fit with BenQ mounting patterns, and the wider adjustment range gives you more flexibility during installation.
View the Optoma Ceiling Mount if you are running an Optoma projector.
Specifications
| Weight Capacity | 55.1 lbs (25 kg) |
| Adjustable Length | 5 in - 22.7 in (127.7 mm - 577.7 mm) |
| Length Increments | 1 in (25 mm) |
| Rotation | 360 degrees |
| Tilt | +/-25 degrees |
| Mounting Hole Pattern | Up to 11.8 x 9.8 in (300 x 250 mm) |
| Material | Steel / Aluminum Alloy |
| Mount Weight | 3.9 lbs (1.76 kg) |
| Color | Black |
| Warranty | 90-Day Limited Manufacturer Warranty |
Frequently Asked Questions
The mount adjusts from approximately 5 inches to 22.7 inches from the ceiling using interchangeable extension poles spaced in 1-inch increments. This gives you flexibility whether your ceiling is 8 feet or 10+ feet.
Yes. The mount provides full 360-degree rotation and +/-25-degree tilt. This lets you fine-aim the projected image to align perfectly with your impact screen without moving the mount itself.
The mount fits projector mounting hole patterns up to 11.8 x 9.8 inches, with adjustable arms spaced in 1-inch increments. This covers all BenQ short-throw projectors and most other brands with standard mounting patterns.
Drywall alone has limited weight capacity. For a secure installation, mount into ceiling joists or use appropriate toggle bolts rated for your projector's weight. The mount must be installed on a horizontal ceiling only, and should not be installed where there is vibration or risk of impact.
Both are priced at $99. The BenQ mount offers 360-degree rotation (vs +/-30 degrees on the Optoma), +/-25-degree tilt (vs +/-20 degrees), and 55.1 lb capacity (vs 33.1 lbs). If you are running a BenQ projector, this mount is purpose-built for BenQ mounting patterns. If you have an Optoma projector, the Optoma ceiling mount is the better fit.
The mount includes the ceiling plate, extension poles (short and adjustable long), projector mounting plate with adjustable arms, all necessary hardware for ceiling and projector attachment, and installation instructions.
The BenQ Short Throw Projector Ceiling Mount is covered by a 90-day limited manufacturer warranty against defects. Top Shelf Golf is an authorized BenQ dealer, so your warranty is fully backed. See our return policy for additional details.
As an authorized BenQ dealer, every BenQ mount purchased from Top Shelf Golf comes with BenQ's 3-Year Limited Manufacturer's Warranty covering the mount under standard terms. If anything goes wrong, BenQ covers it directly.
Returns are accepted within 30 days of receiving your order on unused products (15% restocking fee applies). Please inspect your package when it arrives and contact us within 24 hours if there is any shipping damage. For full details, see our Return Policy.
Shipping is free within the continental United States on most products over $150. If you find any BenQ mount cheaper on another authorized dealer website, we will beat their price.
