BenQ 4K Laser

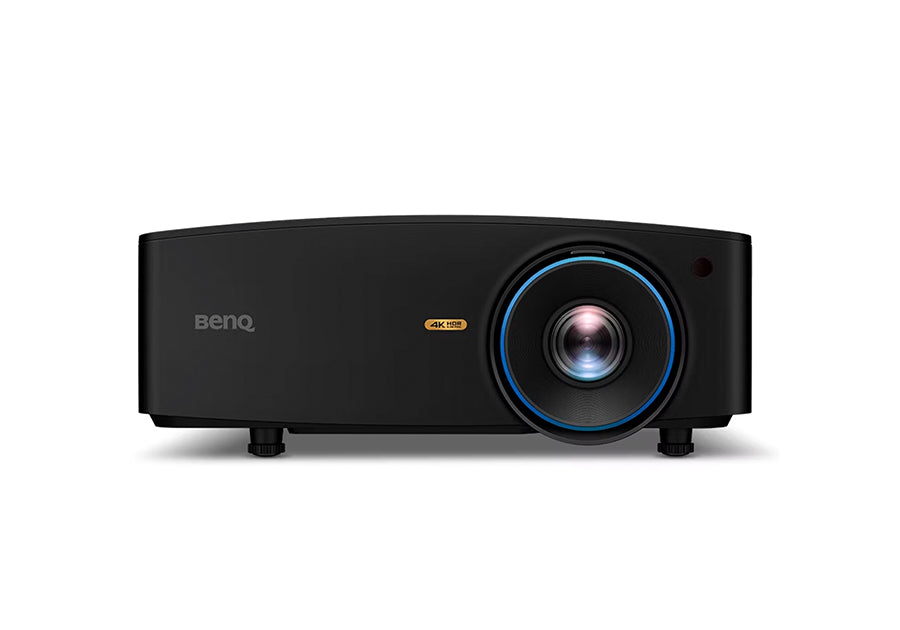

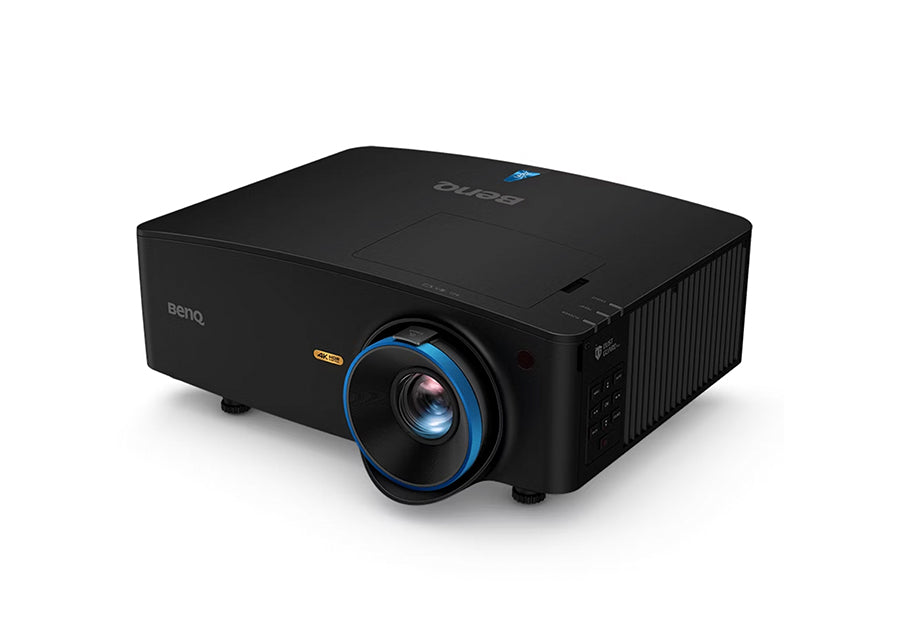

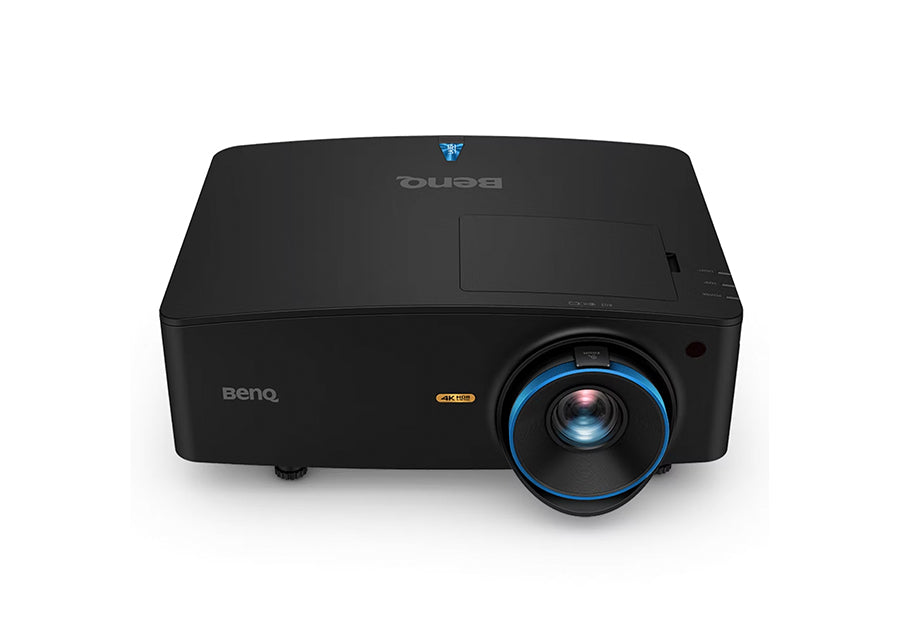

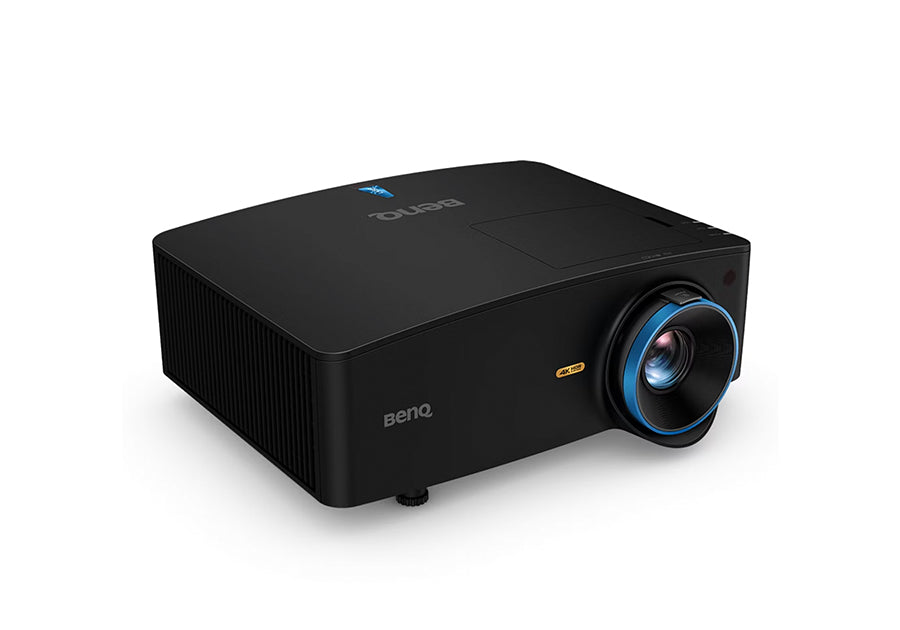

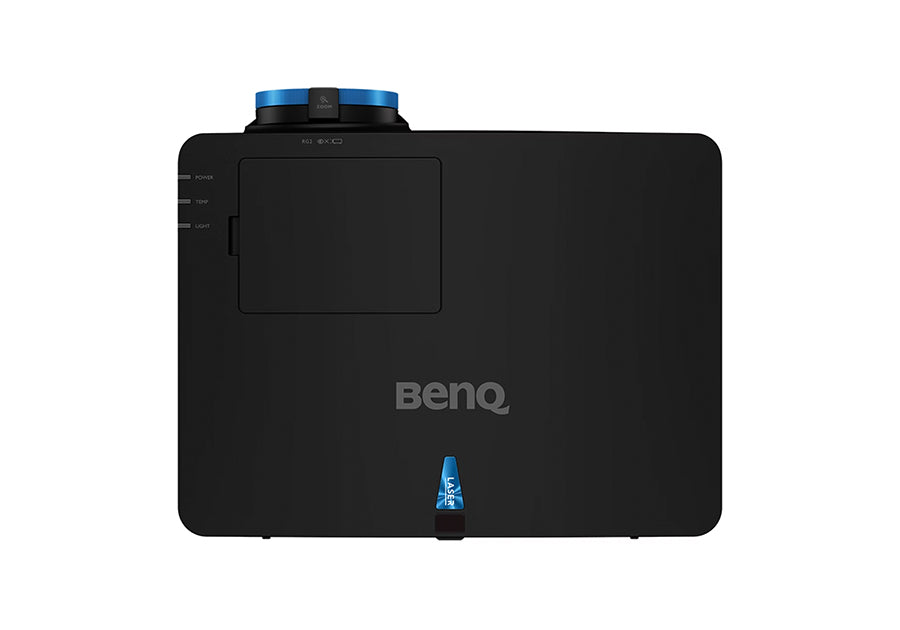

BenQ LK936ST 5100-Lumen 4K Laser Golf Simulator Projector
The BenQ LK936ST is a 4K laser short-throw golf simulator projector. At $4,899, it delivers 3840x2160 resolution, 5,100 ANSI lumens of laser brightness, and a 0.81-0.89:1 short-throw ratio. It pairs that brightness with optical lens shift and an HDBaseT input.
Not sure this is the right projector for your setup? Our Find My Projector tool matches the projectors we carry to your room size, budget, screen, and ambient light.
The LK936ST adds an HDBaseT input for long cable runs, DisplayPort, manual lens shift (V +/-60%, H +/-23%), and IP5X dust protection.
Free shipping on most orders within the contiguous 48 states
5,100
ANSI Lumens
4K UHD
Resolution
20,000
Hour Laser Life
0.81-0.89:1
Throw Ratio
The LK936ST Experience
Why Golfers Choose the LK936ST
5,100 ANSI Lumens
BenQ rates its 5,100 lumens for bright images in rooms with the lights on.
4K UHD
3840x2160 resolution with 1.07 billion colors and 92% Rec. 709 coverage. Course graphics, greens, and data overlays render in razor-sharp detail.
HDBaseT Connectivity
Send video and audio over one Ethernet cable from an HDBaseT transmitter at your PC. BenQ rates 4K up to 50 m (about 164 ft) and 1080p up to 100 m (328 ft).
Wide Lens Shift
Vertical +/-60% and horizontal +/-23% lens shift, set with knobs on the projector. Mount it off-center and line up the image without moving the projector.
Golf Mode
BenQ designed its Golf picture mode for golf simulators. It optimizes the blue sky and green grass colors of the course.
IP5X Dust Protection
BenQ's IP5X-sealed engine runs from 32°F to 104°F with no filter replacements needed.
Room Planning
Throw Ratio and Room Placement
The LK936ST's 0.81-0.89:1 short-throw ratio produces a massive image from a moderate distance. Combined with 1.1x optical zoom and V +/-60%, H +/-23% lens shift, you have room to adjust where the projector sits.
100" Screen
5.9 - 6.5 ft
120" Screen
7.1 - 7.8 ft
150" Screen
8.8 - 9.7 ft
200" Screen
11.8 - 12.9 ft
Who It's For
Is the LK936ST Right for Your Build?
The "No Compromises" Builder
You are building the best sim room money can buy. GCQuad, full enclosure, dedicated room. The LK936ST pairs 5,100 ANSI lumens with 4K resolution for a premium build.
Commercial / Lesson Studio
5,100 ANSI lumens, and HDBaseT simplifies wiring across long runs.
Tricky Installation
Your ceiling is not centered, your room is oddly shaped, or your PC is in another room. The LK936ST's lens shift range and HDBaseT input give you more placement and wiring options than a fixed-lens projector.
Large-Screen Installations
Large screens require serious brightness. The LK936ST's 5,100 ANSI lumens help maintain vivid colors and contrast as image size increases.
Multi-Purpose Entertainment
Your sim room doubles as a home theater. 4K resolution, Dolby Atmos passthrough, eARC, and S/PDIF output deliver a premium cinema experience when you are not hitting balls.
A Lasting Investment
HDBaseT, DisplayPort, HDMI 2.0b, 12V trigger for screen automation, LAN control -- the LK936ST's connectivity suite is ready for whatever you build next.
0
to 1 Contrast Ratio
Deep blacks. Vivid colors. 1.07 billion displayable colors with 92% Rec. 709 coverage. Every blade of grass, every fairway contour, every data overlay rendered with the clarity that makes your simulator feel real.
Pro-Grade Connectivity
HDBaseT: 4K Over One Cable, Up to 164 Feet
The LK936ST includes an HDBaseT input that takes video, audio, and RS-232/IR control over one Ethernet cable from an HDBaseT transmitter at your PC. BenQ's manual rates 4K signals up to 50 meters (about 164 feet) and 1080p or 1920x1200 signals up to 100 meters (328 feet) on Cat5e/Cat6A cable.
Keep your PC in a closet, server rack, or another room and run one Ethernet cable through the wall instead of a long HDMI cable.

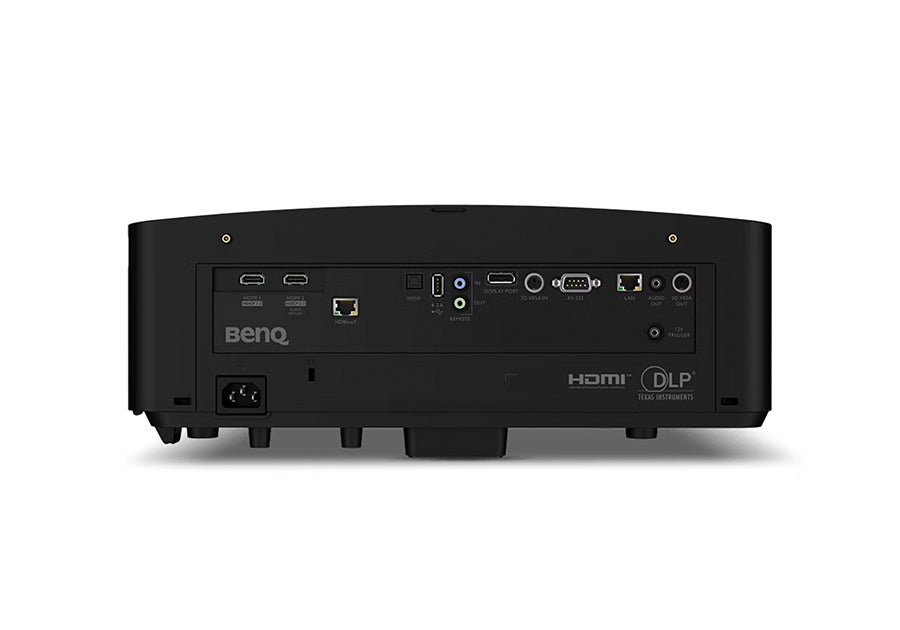

The LK936ST also includes DisplayPort, two HDMI 2.0b ports, LAN control, RS-232, and a 12V trigger for motorized screen automation.
Technical Details
Key Specifications
Resolution
3840 x 2160 (4K UHD)
Brightness
5,100 ANSI lumens
Light Source
Laser (20,000 hrs)
Throw Ratio
0.81 - 0.89:1
Contrast
3,000,000:1
Zoom
1.1x optical
Lens Shift
V +/-60%, H +/-23% (manual)
Input Lag
16.7ms (4K 60Hz)
Connectivity
HDMI 2.0b x2, DisplayPort, HDBaseT, LAN, USB-A, RS-232
Audio
10W speaker, eARC, Dolby Atmos, S/PDIF
Dust Protection
IP5X sealed engine
Weight
15.4 lbs (7 kg)
Dimensions
16.4 x 6.5 x 13.8 in (WxHxD)
Noise Level
40 dB (normal) / 33 dB (eco)
Warranty
3-year limited (parts and labor)
Our Review
BenQ LK936ST Review: Our Take
Buy the BenQ LK936ST if you want 5,100-lumen 4K laser brightness, wide optical lens shift for an off-center mount and an HDBaseT input for a PC in another room, for $4,899.
It fits off-center or oddly shaped rooms, commercial and lesson studios, large screens and sim rooms that double as a home theater.
Pros
- 5,100 ANSI lumens at 3840 x 2160 4K UHD.
- Optical lens shift, vertical +/-60% and horizontal +/-23%, lines up the picture without moving the projector.
- HDBaseT input: BenQ rates 4K up to 50 m (about 164 ft) over one Ethernet cable.
- 20,000-hour laser and an IP5X-sealed engine with no filters to replace.
- Golf picture mode, plus eARC, Dolby Atmos passthrough and S/PDIF for movie nights.
Cons
- No camera Auto Screen Fit; the AK800ST and AK900ST have Auto Screen Fit 2.0.
- 16.7 ms input lag, against 4.8 ms at 1080p 240Hz on the AK800ST and AK900ST.
- 92% Rec. 709 coverage, against 97% on the AK800ST and AK900ST.
- Needs 10.8 to 11.9 ft of throw for a 10 ft x 7.5 ft 4:3 screen; the AK800ST needs 9.2 to 11.1 ft.
- Zoom and lens shift are manual; the AK800ST and AK900ST have motorized zoom.
How They Compare
BenQ LK936ST vs AK800ST vs AK900ST
Three of BenQ's 4K laser short throw golf projectors, side by side. Distances are for a 10 ft x 7 ft 6 in 4:3 impact screen.
| Feature |
LK936ST
|
AK800ST
|
AK900ST
|
|---|---|---|---|
| Price | $4,899 | $3,999 | $5,999 |
| Resolution | 4K UHD (3840 x 2160) | 4K UHD (3840 x 2160) | 4K UHD (3840 x 2160) |
| Brightness | 5,100 ANSI lumens | 5,000 ANSI lumens | 6,000 ANSI lumens |
| Throw Ratio | 0.81-0.89:1 | 0.69-0.83:1 | 0.81-0.89:1 |
| Distance (4:3 Screen) | 10 ft 10 in to 11 ft 10 in |
9 ft 2 in to 11 ft 1 in |
10 ft 10 in to 11 ft 10 in |
| Zoom | 1.1x | 1.2x, motorized |
1.1x, motorized |
| Lens Shift | V +/-60%, H +/-23% | None | V +/-60%, H +/-23% |
| Rec. 709 Coverage | 92% | 97% | 97% |
| Contrast | 3,000,000:1 | 3,000,000:1 | 3,000,000:1 |
| Laser Life | 20,000 hrs | 20,000 hrs (30,000 Eco) | 20,000 hrs (30,000 Eco) |
| Camera Auto Screen Fit | No | Auto Screen Fit 2.0 | Auto Screen Fit 2.0 |
| AI Picture Processing | No | Yes, plus Ambient Light Enhancer | Yes, plus Ambient Light Enhancer |
| HDR | HDR, HLG | HDR10, HLG | HDR10, HLG |
| Lowest Input Lag | 16.7 ms | 4.8 ms (1080p 240Hz) | 4.8 ms (1080p 240Hz) |
| HDBaseT Input | Yes | No | No |
| Best For | Lens shift and long cable runs | Shortest throw, no lens shift | Brightest, rooms with ambient light |
LK936ST ($4,899) | AK800ST ($3,999) | AK900ST ($5,999) | AK700ST ($2,899) | LK830ST ($2,499) | All BenQ Projectors
Which One for Which Room
Shorter Room: AK800ST
The shortest throw of the three, 9 ft 2 in to 11 ft 1 in for a 10 ft x 7 ft 6 in 4:3 screen. It has no lens shift, so center the mount left to right on the screen.
Bright Room: AK900ST
6,000 ANSI lumens, the brightest of the three: 20% more than the AK800ST and 18% more than the LK936ST.
Off-Center Mount: LK936ST or AK900ST
Both have optical lens shift, vertical +/-60% and horizontal +/-23%, so the picture moves without moving the projector.
Curved Screen: AK800ST or AK900ST
Auto Screen Fit 2.0 uses a built-in camera to fit the picture to your screen, and Smart Warping adds control points for a curved screen.
Long Cable Run: LK936ST
The only one of the three with an HDBaseT input, which carries 4K from the PC over one cable.
Gaming: AK800ST or AK900ST
4.8 ms input lag at 1080p 240Hz, against 16.7 ms for the LK936ST.
Setup Guide
Get the Most Out of Your LK936ST
Six tips to get a perfect image from day one.
Ceiling Mount It
The BenQ ceiling mount ($99) is the optional ceiling mount BenQ lists for this projector. Overhead mounting eliminates swing interference and keeps cables clean.
Use the Lens Shift
The LK936ST's V +/-60% and H +/-23% lens shift is set with knobs on the projector. Mount it off-center or at a non-ideal height and line up the image without moving the projector.
Use HDBaseT for Long Runs
For a long run from your PC, use the HDBaseT port with an HDBaseT transmitter at the PC and one Ethernet cable. BenQ rates 4K up to 50 m (about 164 ft).
Enable Golf Mode
In picture settings, select Golf mode. BenQ designed it for golf simulators to optimize blue sky and green grass colors.
Pair with Quality Enclosure
On a 15 ft deep 10 x 15.5 ft Carl's Pro, the LK936ST hangs from the front top bar on Carl's Projector Frame Mount, no ceiling mount needed. See our golf simulator enclosures to build the bay.
Connect External Audio
The LK936ST supports eARC with Dolby Atmos passthrough and S/PDIF output. Connect a soundbar or surround system for an immersive golf and home theater experience.
Watch Before You Mount
How to Ceiling Mount the LK936ST
BenQ walks through finding the mounting spot on an LK936ST: test the throw on the floor, size the picture an inch larger than the screen, then mark the ceiling from the lens center.
Lens shift versus keystone on the LK936ST: 60% vertical and 23% horizontal optical shift, and why to use it before any digital correction.
4K Laser With Lens Shift and HDBaseT
Free shipping on most orders within the contiguous 48 states. Financing available through Affirm.
Add to Cart - $4,899
Related Reading
Learn More About Golf Simulator Projectors
Explore our in-depth guides to choose and set up the perfect projector.
Commercial bays
Commercial Golf Simulator Enclosures: Bays, Layouts and Builds
How many bays fit the room, the bay dimensions, which enclosure and projector take paid traffic, and what one bay costs.
BenQ Setup
How to Set Up a BenQ Golf Simulator Projector: Mounting, Auto Screen Fit and 4:3 Screens
Find the mounting spot with the projector running, set the height from the lens offset, run Auto Screen Fit, and fill a 4:3 screen with Screen Fill.
Resolution Guide
4K vs 1080p: Do You Really Need 4K?
When the jump to 4K matters for golf simulators and when 1080p is plenty -- based on screen size and viewing distance.
Comparison
BenQ vs Optoma: Which Projector Fits Your Simulator?
A head-to-head look at the two leading golf simulator projector brands across price, image quality, and throw ratio.
Buying Guide
Best Golf Simulator Projectors in 2026
BenQ and Optoma models compared side by side -- resolution, lumens, throw ratio, and price to help you pick the right one.
Setup Guide
Short Throw vs Ultra-Short Throw Projector Placement
Where to mount your projector based on throw type, screen size, and room depth. Includes diagrams and measurements.
Comparison
Laser vs Lamp vs LED: Which Light Source Is Best?
Compare projector light sources on brightness, lifespan, color accuracy, and cost to find the right fit for your sim room.
Brightness Guide
How Many Lumens Do You Need for a Golf Simulator?
A complete brightness guide covering ambient light, screen gain, and the minimum lumens for basements, garages, and dedicated rooms.
Setup Guide
Projector Setup Guide: Distance, Mounting & Image Size
Step-by-step instructions for throw distance, ceiling mount placement, keystone correction, and dialing in image size.
Pairing Guide
Projector + Screen Pairing Guide
How to match your projector to the right impact screen based on throw ratio, gain, resolution, and room dimensions.
Ambient Light
Best Projectors for Garage Golf Simulators
Top projector picks for garage setups where ambient light is a challenge. Covers ALR screens, lumens, and light control tips.
Buying Guide
Best 4K Golf Simulator Projectors: 8 Models Compared
The top 4K projectors ranked for golf simulators -- comparing true 4K vs pixel-shift, laser vs lamp, and value for money.
Budget Guide
Best Projectors Under $2,000
Eight projectors under $2,000 ranked for golf simulator use -- covering lumens, throw ratio, resolution, and input lag.
Budget Guide
Best Projectors Under $1,000
Our top two picks under $1,000 for a golf simulator, compared on key specs.
Troubleshooting
Projector Troubleshooting: Fix Common Setup Issues
Solutions for image distortion, hot spots, flickering, lag, and other common projector problems in golf simulators.
Tech Guide
True 4K vs Pixel-Shift 4K Projectors
What golf sim owners need to know about native 4K vs pixel-shifting technology and when the difference actually matters.
Ultimate Guide
The Ultimate Guide to Golf Simulator Projectors
Everything you need to know about choosing, setting up, and optimizing a projector for your golf simulator.
Why Top Shelf Golf
Your Purchase is in Good Hands
Authorized BenQ Dealer
1,194+ Verified Reviews
Free Shipping, Most Orders
Contiguous 48 States
Contiguous 48 States
Expert Support
1-888-871-6110
1-888-871-6110
Affirm Financing Available
From the moment you first contact us, we offer the very best advice and service to find the right projector for your room and budget. We do not just sell boxes -- we help you build the sim room you have been planning.
Common Questions
Frequently Asked Questions
How bright is the BenQ LK936ST and will it handle ambient light?
The LK936ST outputs 5,100 ANSI lumens from a laser light source; of the 4K BenQ projectors we carry, only the AK900ST (6,000) is brighter. BenQ rates it for bright images in daytime rooms with the lights on. For dedicated sim rooms with controlled lighting, the image quality is exceptional.
What is the throw distance for the BenQ LK936ST?
The LK936ST has a 0.81-0.89:1 throw ratio with 1.1x optical zoom. For a 100-inch screen, the projector sits approximately 5.9 to 6.5 feet from the screen. For a 120-inch screen, approximately 7.1 to 7.8 feet. For a 150-inch screen, approximately 8.8 to 9.7 feet. For a 200-inch screen, approximately 11.8 to 12.9 feet. If you need the projector closer to the screen, consider the AK700ST (0.69-0.83:1) or the LK830ST (0.496:1 short throw).
Can I ceiling-mount the BenQ LK936ST?
Yes. BenQ lists its CM00G3 ceiling mount ($99) as an optional accessory for the LK936ST. The mount allows you to install the projector above and behind the hitting area. The LK936ST's lens shift (V +/-60%, H +/-23%, set with knobs on the projector) gives you flexibility in ceiling-mount positioning, so you do not need the mount to be perfectly centered or at an exact height.
What is HDBaseT and why does it matter?
HDBaseT sends video, audio, and RS-232/IR control over one Ethernet cable from an HDBaseT transmitter at your PC to the projector's HDBaseT port. BenQ's manual rates 4K signals up to 50 meters (about 164 feet) and 1080p or 1920x1200 signals up to 100 meters (328 feet) on Cat5e/Cat6A cable. If your sim PC is in a different room, closet, or equipment rack, HDBaseT replaces a long HDMI run.
What is the BenQ LK936ST laser life?
The LK936ST uses a laser light source rated at 20,000 hours in normal mode. There is no lamp to replace, and the sealed engine needs no filter changes. At 4 hours of daily use, 20,000 hours is about 13.7 years.
How does the LK936ST compare to the BenQ AK700ST?
Both are 4K laser golf simulator projectors from BenQ. The LK936ST ($4,899) adds 5,100 lumens, HDBaseT, DisplayPort, lens shift (V +/-60%, H +/-23%; the AK700ST has none), and pro-grade connectivity. The AK700ST ($2,899) delivers 4,000 lumens with a shorter throw ratio (0.69-0.83:1 vs 0.81-0.89:1), making it better for very tight rooms. Choose the LK936ST for maximum brightness, installation flexibility, and commercial-grade setups. Choose the AK700ST for compact spaces and a lower price point.
Is 4K resolution necessary for a golf simulator?
4K resolution (3840x2160) provides four times the pixel density of 1080p. On large screens (100 inches and up), the difference is clearly visible in course graphics, green reading, and club data overlays. If you are investing in a premium launch monitor and software, consider a 4K projector for the sharpest picture. The LK936ST's 5,100 lumens also mean you are not sacrificing brightness for resolution.
What screen size should I use with the LK936ST?
For most home simulators, a 100-150 inch impact screen delivers the best combination of immersion and image quality. Choose the final screen size around room dimensions, screen gain, and ambient-light control.
Can I use the LK936ST with any golf simulator software?
Yes. The LK936ST connects via HDMI 2.0b, DisplayPort, or HDBaseT and works with any simulator software including GSPro, E6 Connect, TGC 2019, Creative Golf 3D, Awesome Golf, and more. It is simply a display device -- compatible with any PC-based or console-based simulator setup.
How does Top Shelf Golf ship the LK936ST?
Top Shelf Golf offers free shipping on most orders within the contiguous 48 states. The projector weighs 15.4 lbs (7 kg).
Does the LK936ST have a built-in speaker?
Yes, it has a built-in 10W speaker. It also supports eARC with Dolby Atmos passthrough and includes S/PDIF output for connecting external surround sound systems. For most simulator setups, an external sound system delivers a better audio experience, but the built-in speaker works for basic use during setup and testing.
Does Top Shelf Golf offer financing for the BenQ LK936ST 5100-Lumen 4K Laser Short Throw Golf Simulator Projector?
Yes. Top Shelf Golf offers financing through Affirm with flexible monthly payment options. Select Affirm at checkout to check your rate -- it takes seconds and won't affect your credit score. 0% APR options may be available depending on eligibility.
Does BenQ offer a warranty on the LK936ST?
Yes. BenQ America provides a 3-year limited warranty on parts and labor from the original purchase date. Top Shelf Golf is an authorized BenQ dealer, so your warranty is fully backed. See our return policy for additional details.
Building a sim room? Browse All BenQ Projectors or call us at 1-888-871-6110 for a personalized recommendation based on your room size and budget.
BenQ LK936ST 5100-Lumen 4K Laser Short Throw Golf Simulator Projector
$4,899.00
Customer Reviews
Overall rating: 5.0 / 5 from 2 reviews.
Very pleased with this projector. Thank you top shelf
BenQ LK936ST 5100-Lumen 4K Laser Short Throw Golf Simulator Projector
