- 5,000 ANSI Lumens Laser: Bright 1080p image for large screens and rooms that are not fully dark.
- 0.5:1 Short Throw: Fills a 100" screen from about 3.6 feet.
- 6 ms Input Lag: At 1080p 240Hz for simulator play and gaming.
- IP6X Sealed Engine: No regular filter replacements, 20,000-hour laser (30,000 hrs Eco).
- Screen Fill: Switch 16:9, 16:10, 4:3, 1:1, 5:4 and 21:9 from the remote.
BenQ LH860ST 5000-Lumen 1080p Laser Golf Simulator Projector
The BenQ LH860ST is a 1080p laser short throw projector built for golf simulators in small rooms. It puts out 5,000 ANSI lumens through a fixed 0.5:1 lens, so a 100-inch image needs only about 3.6 feet of throw.
It trades the 4K resolution of the LK830ST for 1,000 more lumens, so it is the pick when brightness matters more than resolution.
Why Golfers Choose the LH860ST
5,000 ANSI Lumens
More light than the 4,000-lumen LK830ST and AH500ST. BenQ notes that golf screens run larger than home theater screens and need a brighter projector, and that a brighter projector helps when some ambient light reaches the screen.
0.5:1 Short Throw
A 100-inch image from about 3.6 feet and a 10-foot-wide image from about 5 feet. Mount it close to the screen and out of your swing path.
Screen Fill
Match the picture to a 16:9, 16:10, 4:3, 1:1, 5:4 or 21:9 impact screen from the remote without distortion.
IP6X Sealed Engine
BenQ says the IP6X dustproof sealed engine eliminates the need for regular filter replacements. It is rated to run from 32 to 104 degrees F.
6 ms at 240Hz
Input lag is 6 ms at 1080p 240Hz, 8.4 ms at 120Hz and 16.7 ms at 60Hz.
93% Rec. 709 Color
93% Rec. 709 coverage and 30-bit color. Simulation mode is built in for sim software, with HDR10 and HLG modes for movies and sports.
Throw Distance and Room Placement
The LH860ST has a fixed 0.5:1 throw ratio: the lens sits half the image width from the screen. There is no zoom or lens shift, so plan the mount position before you drill. BenQ rates it for ceiling or floor mounting.
Is the LH860ST Right for Your Build?
Garage and Basement Bays
Low ceilings and short rooms leave little space behind the hitter. This lens fills the screen from a few feet away, so the projector stays ahead of your swing.
Brightness Before Resolution
Next to the 4K LK830ST, the LH860ST trades 4K resolution for 1,000 more lumens. Pick it when screen brightness is the priority.
Floor-Mount Setups
Renters and anyone who cannot drill the ceiling can floor-mount it. BenQ designed the short-throw lens for both floor and ceiling installs.
Game Room Owners
Between rounds the same screen handles console and PC games at high refresh rates, plus movies and live sports.
BenQ's rated contrast for the LH860ST, paired with 93% Rec. 709 color coverage and 30-bit color.

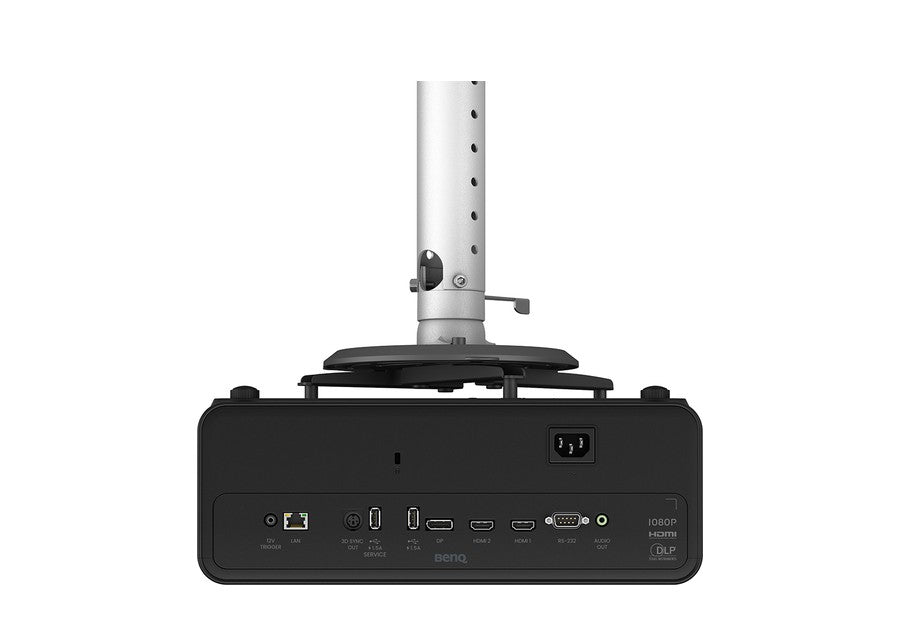

Connections for a Sim PC, a Console and a Motorized Screen
Two HDMI 2.0b inputs with HDCP 2.2 take a simulator PC and a console at the same time. DisplayPort connects straight to a PC graphics card without an adapter.
A 12V trigger can drop a motorized screen when the projector powers on. LAN and RS-232 cover wall panels and control systems, and two powered USB-A ports can run a streaming stick.
It has a built-in 10W speaker, and the 3.5 mm audio out feeds a soundbar or amplifier.
Key Specifications
BenQ LH860ST vs Other BenQ Golf Simulator Projectors
All four are BenQ laser short throw projectors with a fixed-zoom lens near 0.5:1, so they sit about the same distance from the screen. They differ in brightness, resolution, lens shift, dust rating and price.
| Feature | LH860ST | LK830ST ($2,499) | AH500ST ($1,999) | LU960ST2 ($7,499) |
|---|---|---|---|---|
| Resolution | 1080p | 4K UHD | 1080p | WUXGA (1920x1200) |
| Brightness | 5,000 lumens | 4,000 lumens | 4,000 lumens | 5,200 lumens |
| Light Source | Laser | Laser | Laser | Laser |
| Throw Ratio | 0.5:1 | 0.496:1 | 0.499:1 | 0.5:1 |
| Zoom / Lens Shift | Fixed, none | Fixed, none | Fixed, none | Fixed zoom, V +/-55%, H +/-23% shift |
| Dust Protection | IP6X | IP6X | IP5X | IP5X |
| Best For | Brightest 1080p short throw | 4K in tight rooms | Lowest-cost BenQ laser short throw | Commercial installs |
Get the Most Out of Your LH860ST
Six tips for a sharp, square image from day one.

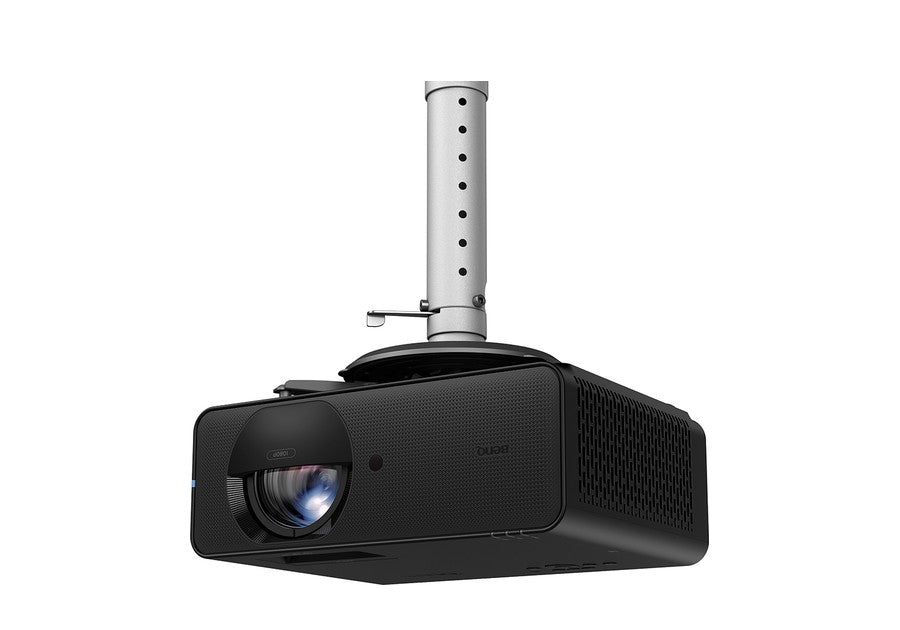

Ceiling Mount It
BenQ lists the BenQ ceiling mount ($99) as the optional mount for the LH860ST. Overhead keeps it clear of club and ball.
Measure Before You Drill
With a fixed lens, distance sets image size. Multiply your screen width by 0.5 for the lens-to-screen distance, then test on the floor first.
Set Screen Fill
Pick your screen's shape in Screen Fill before any keystone correction. BenQ says Screen Fill fills the entire screen without distortion.
Use Simulation Mode
Start from the Simulation picture mode for simulator software.
Lowest Lag at 240Hz
BenQ rates input lag at 6 ms with a 1080p 240Hz signal, 8.4 ms at 120Hz and 16.7 ms at 60Hz. A PC that outputs 1080p at 240Hz gets the lowest figure.
Pair With the Right Screen
An impact screen in a good enclosure keeps stray light off the image and gets the most from 5,000 lumens.
5,000 Lumens of 1080p Laser for Small Sim Rooms
Free shipping. Affirm and Shop Pay financing at checkout.
Shop the LH860STLearn More About Golf Simulator Projectors
Guides to choosing, placing and setting up a golf simulator projector.
How to Set Up a BenQ Golf Simulator Projector
Mounting a BenQ golf projector, sizing the image and fitting it to a 4:3 screen.
4K vs 1080p: Do You Really Need 4K?
When 4K matters for a golf simulator and when 1080p is enough, based on screen size and viewing distance.
Short Throw vs Ultra-Short Throw Projector Placement
Where to mount a short throw or ultra-short throw projector for its throw ratio and your room.
How Many Lumens Do You Need for a Golf Simulator?
How many lumens a golf simulator needs in dedicated rooms, basements and garages with ambient light.
Best Projectors for Garage Golf Simulators
Projector picks for garage simulators where ambient light is a challenge, with screen gain and light control.
Best Golf Simulator Projectors in 2026
Golf simulator projectors compared on resolution, brightness, throw ratio and price.
Your Purchase is in Good Hands
1-888-871-6110
Call, email or chat with people who have built simulators and can help you pick the right projector for your room and budget.
Frequently Asked Questions
The BenQ LH860ST is rated at 5,000 ANSI lumens from a laser light source. That is 1,000 lumens more than the LK830ST and AH500ST, which helps on large screens and in rooms with some ambient light. For the best image, still control the light around the screen.
The LH860ST has a fixed 0.5:1 throw ratio, so the lens sits half the image width from the screen. At native 16:9, a 100-inch image needs about 3.6 feet, 120 inches about 4.4 feet, 150 inches about 5.4 feet and 200 inches about 7.3 feet. A 10-foot-wide image needs about 5 feet.
No. The LH860ST has a fixed lens with no optical zoom and no lens shift. Image size is set by distance, and alignment is done with mount placement plus 2D keystone correction of up to 30 degrees vertical and horizontal.
Yes, both. BenQ designed the LH860ST's short-throw lens for ceiling or floor installation, and it lists the BenQ ceiling mount ($99) as the optional mount.
It depends on screen width. Our 4K vs 1080p guide rates 1080p ideal for an 8-foot-wide screen and excellent at 10 feet, and recommends 4K from about 12 feet wide. For 4K in the same size of room, the LK830ST is the 4K short throw option at 4,000 lumens.
The LH860ST's native aspect ratio is 16:9, and BenQ's Screen Fill feature fits the picture to 16:9, 16:10, 4:3, 1:1, 5:4 and 21:9 impact screens from the remote without distortion.
No lamp to replace: the laser light source is rated for 20,000 hours in Normal mode and 30,000 in Eco. BenQ says the IP6X sealed engine eliminates the need for regular filter replacements, and rates it to operate from 32 to 104 degrees F.
Over HDMI or DisplayPort. The LH860ST has two HDMI 2.0b inputs with HDCP 2.2 and one DisplayPort input, so a simulator PC and a console can stay connected at the same time.
Most orders ship free within the contiguous 48 states, and most items leave the warehouse within 1-2 business days when in stock. The projector weighs 11.46 lbs and comes with its remote and power cord.
Yes. Top Shelf Golf offers monthly payments through Affirm or Shop Pay at checkout. Pre-qualifying has no impact on your credit score.
Yes. BenQ covers the LH860ST with a 3-year limited warranty on parts and labor from the date of purchase. Top Shelf Golf is an authorized BenQ dealer, so the warranty applies to every unit we sell. See our return policy for additional details.
Building a sim room? Browse All BenQ Projectors or call us at 1-888-871-6110 for a recommendation based on your room size and budget.
