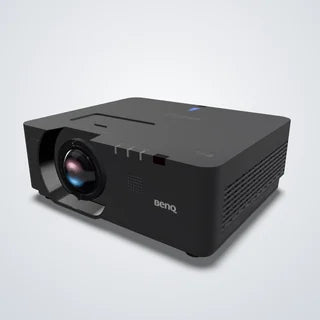

Loading the 3D view…
By placing an order, you are agreeing to our privacy policy and terms of service.
- 5,200 ANSI Lumens: Superior image quality in bright environments
- WUXGA (1920x1200): Higher resolution than 1080p with 16:10 aspect ratio
- 0.5:1 Short Throw: Mount just 3.6 ft from a 100" screen
- Laser (20,000 hrs): No lamp replacements, lifespan up to 20,000 hours
- IP5X Dust Protection: Sealed optics for commercial environments
- HDBaseT: Run video + control over a single CAT5e cable up to 328 ft
- 3-Year Warranty: Full manufacturer coverage included
Commercial Grade

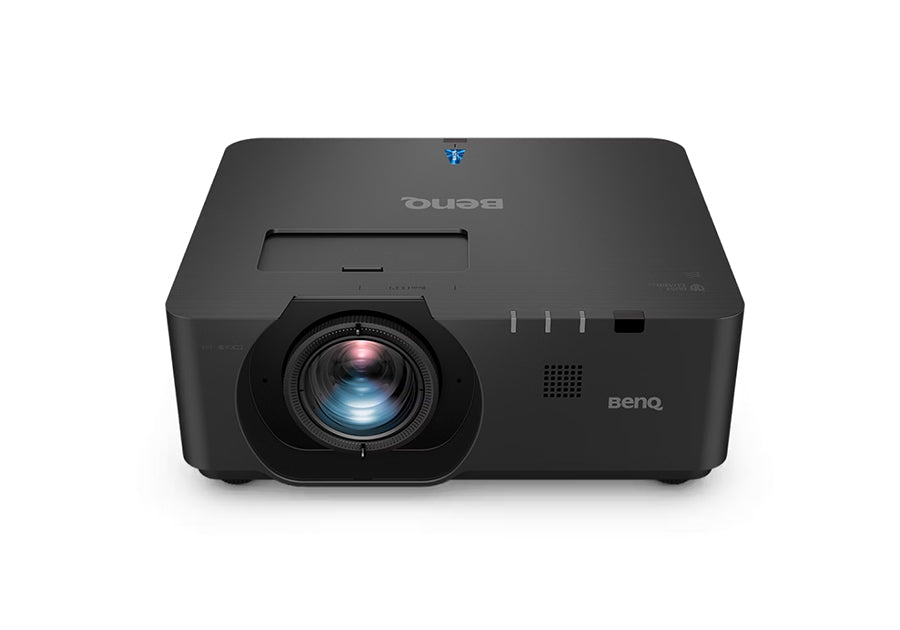

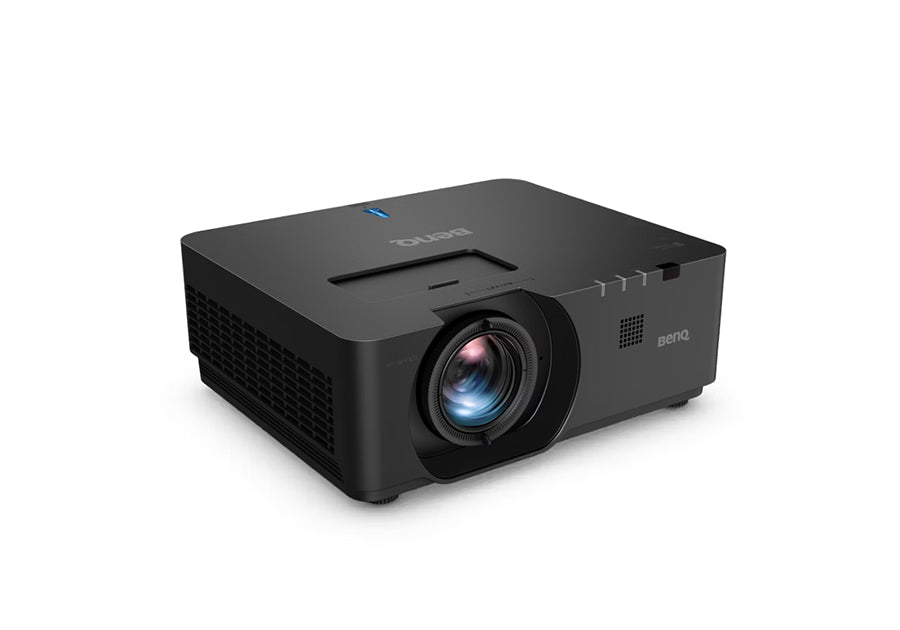

BenQ LU960ST2 5200-Lumen WUXGA Laser Short Throw Golf Simulator Projector
The BenQ LU960ST2 is BenQ's 5,200-lumen WUXGA laser short-throw golf simulator projector. At $7,499, it delivers 5,200 ANSI lumens of laser brightness through a fixed 0.5:1 short-throw lens -- filling a 100-inch screen from just 3.6 feet away.
Not sure this is the right projector for your setup? Our Find My Projector tool matches the projectors we carry to your room size, budget, screen, and ambient light.
This is not a home theater projector adapted for golf. The LU960ST2 is a commercial-grade installation projector built for facilities that run 8+ hours a day, every day. HDBaseT connectivity for 328-foot cable runs. IP5X dust protection. Up to 70,000 hours of laser life in dimming mode. Vertical and horizontal lens shift for precise alignment in any ceiling configuration. If your business depends on your projector, this is the one that will not let you down.
In Stock
Ships free within the contiguous 48 states
5,200
ANSI Lumens
WUXGA
1920 x 1200
20,000
Hour Laser Life
0.5:1
Short Throw
Built for Commercial Use
Why Professionals Choose the LU960ST2
5,200 Lumens
5,200 ANSI lumens of laser brightness. Overpowers ambient light in open commercial spaces, lit teaching studios, and multi-bay facilities.
Short Throw
Fixed 0.5:1 ratio fills a 100-inch screen from 3.6 feet. Mount about 3.6 feet from a 100-inch screen and eliminate all swing shadows.
Laser Engine
20,000 hours normal, up to 70,000 in dimming mode. No bulb changes, no brightness degradation. IP5X sealed to keep dust out.
HDBaseT Connectivity
Run a single Cat6 cable up to 328 feet for video, audio, and control. Perfect when your sim PC is in a separate equipment room.

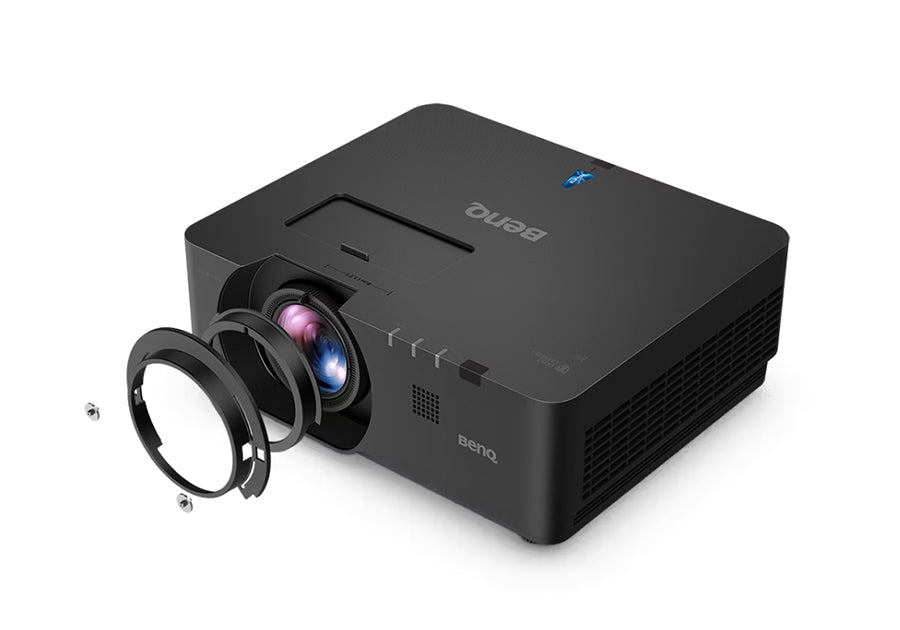

Extensive Lens Shift
Vertical +/-55% and horizontal +/-23% lens shift. Fine-tune image placement without physically repositioning the projector.
3-Year Warranty
Parts, labor, and the laser light source covered for 3 years. Commercial-grade reliability backed by BenQ's warranty.
Room Planning
Short Throw Placement
The LU960ST2's fixed 0.5:1 short-throw ratio puts it about 3.6 feet from a 100-inch screen. Combined with +/-55% vertical and +/-23% horizontal lens shift, you have exceptional flexibility in ceiling-mount positioning.
100" Screen
~3.6 ft
120" Screen
~4.4 ft
150" Screen
~5.5 ft
200" Screen
~7.3 ft
Who It's For
Is the LU960ST2 Right for Your Build?
Commercial Sim Bay Operator
You run a multi-bay facility where projectors operate 8-12 hours daily. The LU960ST2's commercial-grade laser engine and IP5X protection deliver consistent performance year after year without maintenance downtime.
Teaching Pro / Lesson Studio
Your studio has ambient light that cannot be eliminated. At 5,200 lumens, the LU960ST2 overpowers overhead lighting and windows, keeping course visuals and shot data sharp and readable during lessons.
Entertainment Venue
Bars, restaurants, and entertainment centers need projectors that perform in fully-lit environments. The LU960ST2's brightness and short throw make it ideal for high-traffic commercial spaces.
Premium Home Build
You want the absolute best projector for your home simulator, regardless of budget. The LU960ST2 delivers brightness headroom that no consumer projector can match, with professional installation flexibility.
Large Screen Installations
At its fixed 0.5:1 throw ratio, the LU960ST2 sits about 7.3 feet from a 200-inch 16:9 screen. Image brightness and quality at large sizes depend on screen gain and ambient-light control.
AV-Integrated Facility
Your installation requires HDBaseT for long cable runs, RS-232 control, HDMI daisy-chaining, or 12V trigger integration. The LU960ST2's commercial connectivity handles complex AV architectures.
0
to 1 Contrast Ratio
Deep blacks. Vivid colors. 92% Rec.709 color coverage delivers natural-looking greens, realistic sky tones, and sharp data overlays -- even at 5,200 lumens of raw brightness.
Technical Details
Key Specifications
Resolution
1920 x 1200 (WUXGA)
Brightness
5,200 ANSI lumens
Light Source
Laser (20K / 38K / 70K hrs)
Throw Ratio
0.5:1 (fixed, short throw)
Contrast
3,000,000:1
Color Coverage
92% Rec.709
Lens Shift
V: +/-55%, H: +/-23%
Input Lag
8.3ms (1080p/120Hz)

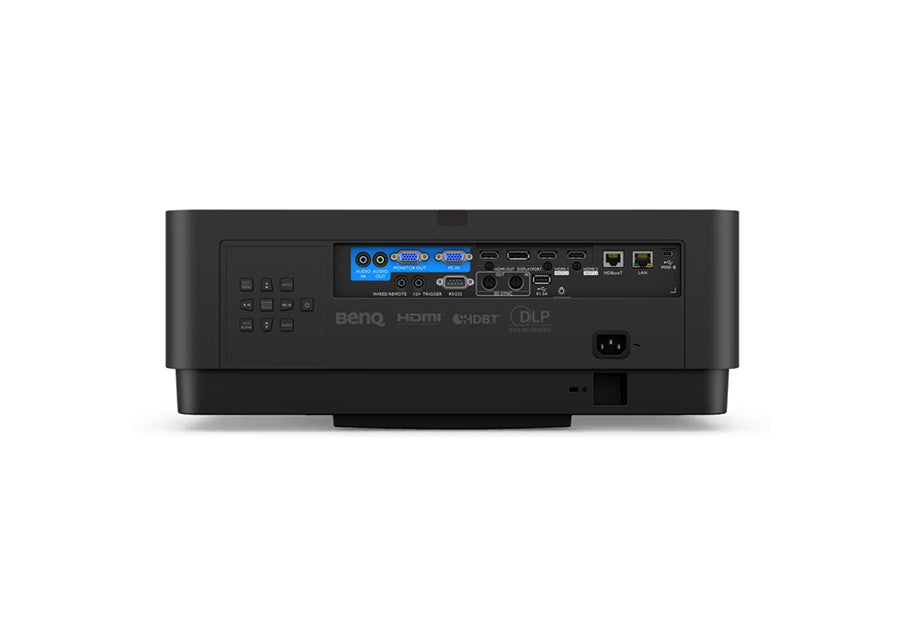

Connectivity
HDMI 2.0a x2, DisplayPort, HDBaseT, VGA, RS-232
Speaker
10W built-in
Dust Protection
IP5X sealed engine
Weight
26.5 lbs
Dimensions
18.9 x 7.2 x 15.8 in (WxHxD)
Aspect Ratio
16:10 native (16:9, 4:3 compatible)
Warranty
3-year (parts + labor + laser)
How It Compares
BenQ LU960ST2 vs Other Golf Simulator Projectors
Every projector in this comparison is available from Top Shelf Golf. Your ideal choice depends on brightness needs, resolution preference, throw distance, and budget.
| Feature | LU960ST2 ($7,499) | LK936ST ($4,899) | AK700ST ($2,899) | LK830ST ($2,499) |
|---|---|---|---|---|
| Resolution | WUXGA (1920x1200) | 4K UHD | 4K UHD | 4K UHD |
| Brightness | 5,200 lumens | 5,100 lumens | 4,000 lumens | 4,000 lumens |
| Light Source | Laser (20K hrs) | Laser (20K hrs) | Laser (20K hrs) | Laser (20K hrs) |
| Throw Ratio | 0.5:1 short throw | 0.81-0.89:1 | 0.69-0.83:1 | 0.496:1 short throw |
| Lens Shift | V: +/-55%, H: +/-23% | V: +/-60%, H: +/-23% | None | None (fixed lens) |
| HDBaseT | Yes | Yes | No | No |
| IP5X Dust Protection | Yes | Yes | Yes | IP6X |
| Weight | 26.5 lbs | 15.4 lbs | 7.5 lbs | 7.9 lbs |
| Best For | Commercial / max brightness | 4K + high brightness | Premium 4K home sim | 4K short throw on a budget |
Setup Guide
Get the Most Out of Your LU960ST2
Six tips for a professional installation.
Ceiling Mount It
The LU960ST2 weighs 26.5 lbs -- use a commercial-grade ceiling mount rated for the weight. The extensive lens shift (+/-55% V, +/-23% H) gives you significant placement flexibility.
Use Lens Shift First
Before adjusting keystone, use the generous lens shift to align the image. Lens shift preserves full resolution; keystone correction sacrifices pixels.
Consider HDBaseT
If your sim PC is more than 25 feet from the projector, use HDBaseT over Cat6 instead of long HDMI runs. It carries video, audio, and control on a single cable up to 328 feet.
Enable Simulator Mode
BenQ's Simulator Mode provides pre-calibrated settings optimized for simulation applications. Combined with 8.3ms input lag at 1080p/120Hz, your shot feedback is instantaneous.
Pair with Quality Enclosure
A professional enclosure setup with ALR screen material maximizes the LU960ST2's 5,200 lumens for the best possible image.
Read the Manual
BenQ's documentation covers every adjustment in detail. Download the LU960ST2 manual (PDF) for the full installation walkthrough.
The Projector Your Business Depends On
In stock. Ships free within the contiguous 48 states. Financing available through Affirm.
Add to Cart - $7,499
Related Reading
Learn More About Golf Simulator Projectors
Explore our in-depth guides to choose and set up the perfect projector.
Comparison
BenQ vs Optoma: Which Projector Fits Your Simulator?
A head-to-head look at the two leading golf simulator projector brands across price, image quality, and throw ratio.
Setup Guide
Projector Setup Guide: Distance, Mounting & Image Size
Step-by-step instructions for throw distance, ceiling mount placement, keystone correction, and dialing in image size.
Buying Guide
Best Golf Simulator Projectors in 2026
BenQ and Optoma models compared side by side -- resolution, lumens, throw ratio, and price to help you pick the right one.
Setup Guide
Short Throw vs Ultra-Short Throw Projector Placement
Where to mount your projector based on throw type, screen size, and room depth. Includes diagrams and measurements.
Comparison
Laser vs Lamp vs LED: Which Light Source Is Best?
Compare projector light sources on brightness, lifespan, color accuracy, and cost to find the right fit for your sim room.
Resolution Guide
4K vs 1080p: Do You Really Need 4K?
When the jump to 4K matters for golf simulators and when 1080p is plenty -- based on screen size and viewing distance.
Brightness Guide
How Many Lumens Do You Need for a Golf Simulator?
A complete brightness guide covering ambient light, screen gain, and the minimum lumens for basements, garages, and dedicated rooms.
Pairing Guide
Projector + Screen Pairing Guide
How to match your projector to the right impact screen based on throw ratio, gain, resolution, and room dimensions.
Ambient Light
Best Projectors for Garage Golf Simulators
Top projector picks for garage setups where ambient light is a challenge. Covers ALR screens, lumens, and light control tips.
Buying Guide
Best 4K Golf Simulator Projectors: 8 Models Compared
The top 4K projectors ranked for golf simulators -- comparing true 4K vs pixel-shift, laser vs lamp, and value for money.
Budget Guide
Best Projectors Under $2,000
Eight projectors under $2,000 ranked for golf simulator use -- covering lumens, throw ratio, resolution, and input lag.
Budget Guide
Best Projectors Under $1,000
Budget-friendly projectors that still deliver a great golf simulator experience. Our top two picks compared on key specs.
Troubleshooting
Projector Troubleshooting: Fix Common Setup Issues
Solutions for image distortion, hot spots, flickering, lag, and other common projector problems in golf simulators.
Tech Guide
True 4K vs Pixel-Shift 4K Projectors
What golf sim owners need to know about native 4K vs pixel-shifting technology and when the difference actually matters.
Ultimate Guide
The Ultimate Guide to Golf Simulator Projectors
Everything you need to know about choosing, setting up, and optimizing a projector for your golf simulator.
Why Top Shelf Golf
Your Purchase is in Good Hands
Authorized BenQ Dealer
1,194+ Verified Reviews
Free Shipping
Contiguous 48 States
Contiguous 48 States
Expert Support
1-888-871-6110
1-888-871-6110
Affirm Financing Available
From the moment you first contact us, we offer the very best advice and service to find the right projector for your room and budget. We do not just sell boxes -- we help you build the sim room you have been planning.
Common Questions
Frequently Asked Questions
How bright is the BenQ LU960ST2 and will it handle ambient light?
The LU960ST2 outputs 5,200 ANSI lumens via a laser light source -- enough to handle ambient light in most commercial spaces. Even rooms with overhead fluorescents, large windows, or open floor plans will produce a bright, vivid image. For commercial bays that stay lit during operation, the LU960ST2 is the clear choice.
What is the throw distance for the BenQ LU960ST2?
The LU960ST2 has a fixed 0.5:1 short-throw ratio. For a 100-inch screen, the projector sits approximately 3.6 feet from the screen. For a 120-inch screen, approximately 4.4 feet. For a 150-inch screen, approximately 5.5 feet. This is one of the shortest throw distances available in a golf simulator projector.
Why is the LU960ST2 WUXGA instead of 4K?
The LU960ST2 pairs 5,200 ANSI lumens with WUXGA (1920x1200) resolution and a 16:10 native aspect ratio. For commercial installations, weigh resolution against screen size, screen gain, viewing distance, and ambient-light control.
Can I ceiling-mount the BenQ LU960ST2?
Yes. The LU960ST2 supports ceiling mount installation and features extensive lens shift (vertical +/-55%, horizontal +/-23%) for flexible positioning. At 26.5 lbs, it requires a sturdy mount rated for commercial projectors. Contact us at 1-888-871-6110 for mounting recommendations specific to your installation. The BenQ CM00G3 ceiling mount is purpose-built for BenQ short throw projectors.
What is the BenQ LU960ST2 laser life?
The LU960ST2 uses a laser light source rated at 20,000 hours in normal mode, approximately 38,000 hours in eco mode, and up to 70,000 hours in dimming mode. At 8 hours of daily commercial use in normal mode, that is nearly 7 years of operation with no lamp replacements. No other maintenance is required -- the IP5X sealed engine keeps dust out of the optical path.
How does the LU960ST2 compare to the BenQ LK936ST?
The LK936ST ($4,899) delivers 4K UHD resolution at 5,100 lumens with a 0.81-0.89:1 throw ratio. The LU960ST2 ($7,499) delivers WUXGA resolution at 5,200 lumens with a short 0.5:1 throw ratio and significantly more connectivity options including HDBaseT and DisplayPort. Choose the LK936ST if 4K resolution is your priority. Choose the LU960ST2 if you need the shorter 0.5:1 throw, commercial-grade reliability, and maximum connectivity for professional installations.
What connectivity does the LU960ST2 offer?
The LU960ST2 offers commercial-grade connectivity: 2x HDMI 2.0a (HDCP 2.2), DisplayPort, HDBaseT (RJ45) for long cable runs up to 328 feet, VGA, HDMI out for daisy-chaining, USB-A, USB Mini-B, RS-232 for remote control, 3D Sync, and a 12V trigger output. HDBaseT is particularly valuable in commercial installations where the source PC may be in a separate equipment room.
What is the input lag on the LU960ST2?
The LU960ST2 has an input lag of 8.3ms at 1080p/120Hz. This provides responsive, real-time shot feedback with no perceptible delay between your swing and the on-screen result. The dedicated Simulator Mode pre-calibrates settings for optimal simulation performance.
Can I use the LU960ST2 with any golf simulator software?
Yes. The LU960ST2 connects via HDMI 2.0a, DisplayPort, or HDBaseT and works with any simulator software including GSPro, E6 Connect, TGC 2019, Creative Golf 3D, Awesome Golf, and more. It is simply a display device -- compatible with any PC-based or console-based simulator setup.
How does Top Shelf Golf ship the LU960ST2?
We ship the LU960ST2 free via FedEx. Usually ships within 1-3 business days when in stock. Manufacturer delays can happen; we email tracking the moment it ships. The projector weighs 26.5 lbs and ships in BenQ's original packaging with all included accessories.
Does the LU960ST2 have a built-in speaker?
Yes, it has a built-in 10W speaker. For commercial installations, an external sound system will deliver a significantly better audio experience. The built-in speaker works for basic use during setup, testing, and casual sessions.
Does Top Shelf Golf offer financing for the BenQ LU960ST2 5200-Lumen WUXGA Laser Short Throw Golf Simulator Projector?
Yes. Top Shelf Golf offers financing through Affirm with flexible monthly payment options. Select Affirm at checkout to check your rate -- it takes seconds and won't affect your credit score. 0% APR options may be available depending on eligibility.
Does BenQ offer a warranty on the LU960ST2?
Yes. BenQ provides a 3-year limited warranty covering parts, labor, and the laser light source. Top Shelf Golf is an authorized BenQ dealer, so your warranty is fully backed. See our return policy for additional details.
